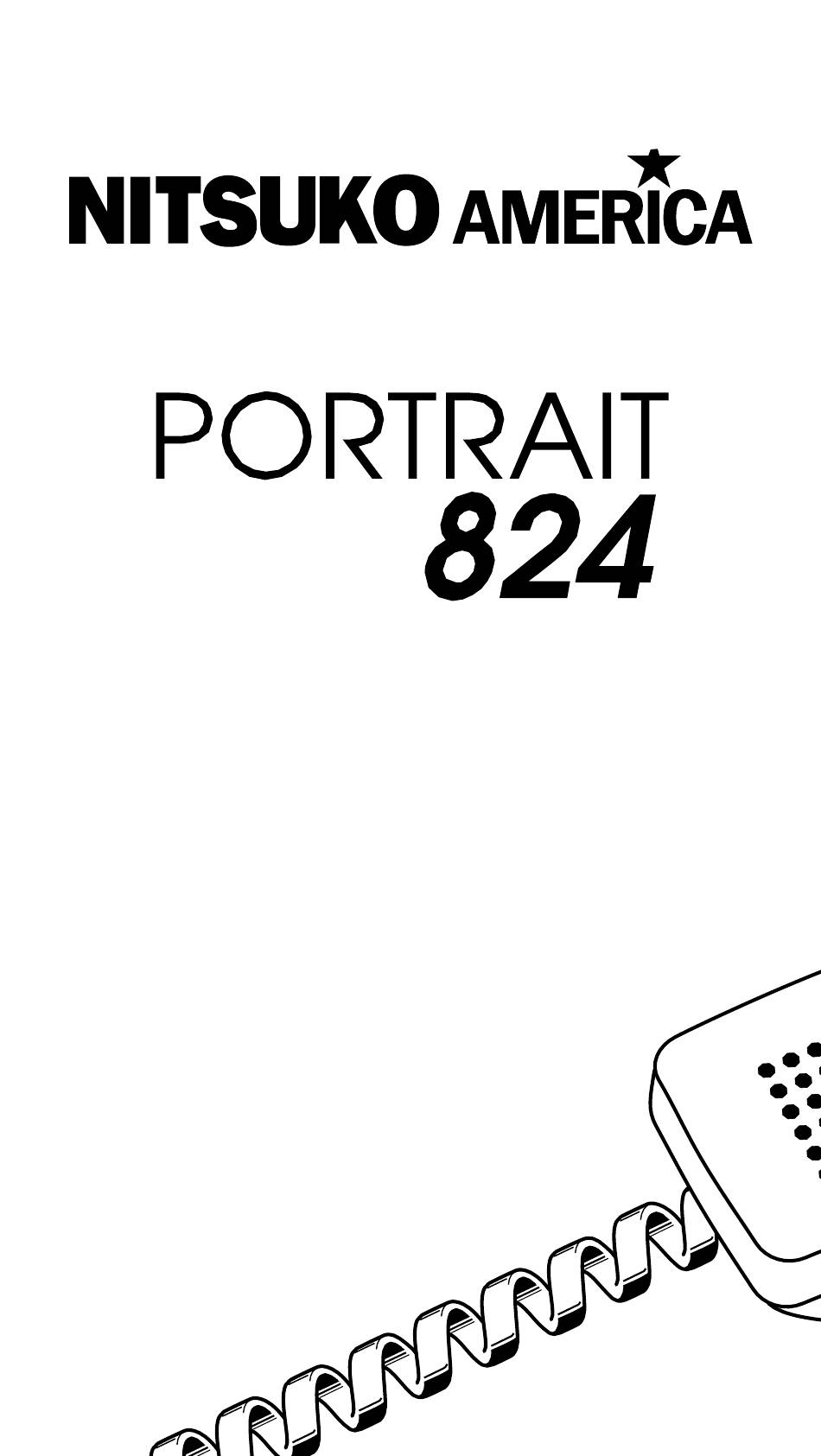

  • Page 1 Hardware Manual 82400INS03...
  • Page 2 No representation is made that this manual is complete or accurate in all respects and Nitsuko America shall not be liable for any errors or omissions. In no event shall Nitsuko America be liable for any incidental or consequential damages in connection with the use of this manual.

  • Page 3: Table Of Contents

    Section 1 Installing the Main Cabinets In this section . . . Page Installing the Cabinets ....1-3 Unpacking......1-3 Before Installing .

  • Page 5: Installing The Cabinets

    INSTALLING THE CABINET Unpacking Unpack the equipment and check it against your equip- ment lists. Inspect for physical damage. Have the appropriate tools for the job on hand, includ- ing: a test set, a punch down tool and a digital voltmeter. Before Installing Make sure you have a building plan showing the loca- tion of the common equipment, extensions, the telco...

  • Page 6: Removing The Cover

    INSTALLING THE CABINET Removing the Cover (Figure 1-1) To make wall-mounting easier, remove the cover on the common equipment cabinet. This allows you to use the cabinet as a mounting template. 1. Unscrew the two captive screws on the lower half of the cabinet cover.
  • Page 7 INSTALLING THE CABINET 250V 250V 6.3A 6.3A Figure 1-2 INSTALLATION LAYOUT...

  • Page 8: Grounding The Cabinet

    GROUNDING THE CABINET Connecting the Ground Wires (Figure 1-3) The cabinet is grounded at the ETH (Earth Ground) connection. 1. Loosen the lug on the ground connection. 2. Using a piece of 12 AWG stranded copper wire, con- nect the ETH to the ground connector. 3.
  • Page 9 Section 2 PCB Installation and Startup In this section . . . Page PCB Location ......2-3 Where to Install the PCBs .

  • Page 11: Pcb Location

    PCB LOCATION Where to Install the PCBs (Figure 2-1) Maximum Configuration: 8 Trunks 24 Extensions Lithium Battery 2 CO/8 STA PCB SMDR PCB or Caller ID PCB Auxillary PCB 4 PF XFER PCB 250V 250V 6.3A PFCON COCN PFSTN SLTCN 6.3A COCN STCN...

  • Page 12: Installing Pcbs

    INSTALLING PCBs Central Processing Unit (CPU) PCB (Figure 2-2) Battery Station 8 Station 1 Station 7 Trunk 1 Station 2 Station 6 Trunk 2 Station 3 Station 5 Trunk 3 Station 4 Trunk 4 Figure 2-2 CPU PCB The CPU PCB comes already installed in the Main Cabinet. The CPU provides: The system’s central processing, stored program and mem- ory for the customer’s site-specific data.

  • Page 13: Auxiliary Pcb

    INSTALLING PCBs Auxiliary PCB (Figure 2-5) Volume Control 2CO/8STA PCB Card Holder Figure 2-5 AUXILIARY PCB The Auxiliary PCB provides: 2-pin DDK connectors for two External Paging Zones. 2-pin DDK connectors for two Door Boxes. 2-pin DDK connectors for two common-use relay contacts. 2-pin DDK connectors for Background Music source.

  • Page 14: Power Failure (4 Pf Xfer) Pcb

    INSTALLING PCBs Power Failure (4 PF XFER) PCB (Figure 2-6) PFCON COCN PFSTN SLTCN To CO Connection on CPU Card To Telco Connection 4 PF XFER PCB BLU-WHT WHT-BLU PFUCN Attached Wire Metal Spacer PFUCN Nylon Spacer Modular Jack 2CO/8STA PCB Single Line Telephone Figure 2-6 POWER FAILURE (4 PF XFER) PCB...

  • Page 15: Smdr Pcb

    INSTALLING PCBs SMDR PCB (Figure 2-7) Set SW1 to the proper baud rate position by SMDR Jack and placing the jumper over the pins of the Cable Assembly desired baud rate. SMDR Nylon Spacer 2 CO/8STA Figure 2-7 SMDR PCB The SMDR (Station Message Detail Recording) PCB pro- vides a record of the system’s outside calls.

  • Page 16: Smdr Rs-232C Cable Assembly

    INSTALLING PCBs SMDR RS-232C Cable Assembly (Figure 2-8) To connect the SMDR and printer, an RS-232C cable is required. If you make your own cable, it must be a straight-through cable connecting pins 2, 3, 6, 7, 8 and 20. Refer to the Figure 2-8. Note that the cable length should not exceed 50’...

  • Page 17: Powering Up The System

    POWERING UP THE SYSTEM Power-Up Sequence Now that all the PCBs you need are installed, you can power- up the system. 1. Install a surge protector in the AC outlet you intend to use for system power. 2. Plug the AC power cord for the Main Cabinet into its surge protector.

  • Page 18: Section 3 Installing Extensions And Trunks

    Section 3 Installing Extensions and Trunks In this section . . . Page Connecting Blocks ......3-3 Working With DDK Connectors .

  • Page 20: Connecting Blocks

    CONNECTING BLOCKS Working With DDK Connectors The system uses DDK-type connectors for extensions, trunks and optional equipment. Using the optional DDK Installation Cables (4- pin station cable=P/N 82490, 2-pin power failure cable=82491, and 2-pin C.O. line cable=82492) makes it easy to connect the PCBs to standard 66M1-50 connecting blocks.

  • Page 21: Punching Down A Ddk Installation Cable

    CONNECTING BLOCKS Upper Half WHT/BLU BLU/WHT WHT/ORN 1 (T) Approx. 5/16" ORN/WHT 2 (R) 3 (H) 4 (L) Two pair twisted telephone wire DDK Connector Lower Half Figure 3-1 MAKING DDK CONNECTORS Punching Down a DDK Installation Cable The DDK Installation Cables have 4-pin DDK connectors installed on one end and are unterminated on the other.
  • Page 22 CONNECTING BLOCKS Figure 3-2 SECURING THE CABLES...
  • Page 23 CONNECTING BLOCKS No Connection = Tip - Only CPU - With one = Ring expansion PCB = High - With two = Low expansion PCB’s Figure 3-3 CONNECTING BLOCK...

  • Page 24: Connecting Extensions

    CONNECTING EXTENSIONS Station Connections (Figure 3-4) The CPU has 4-pin DDK connectors for eight stations. Each Expansion (2CO/8STA) PCB provides for an additional eight sta- tions. Two Expansion PCB’s are allowed per system providing a total of twenty-four stations per system. Refer to Part 4: Installing Optional Equipment for instruc- tions on connecting a power failure telephone.
  • Page 25 CONNECTING EXTENSIONS 3. For each keyset, run two-pair 24 AWG station cable from the cross-connect block to the modular jack. For each single line phone, run one-pair 24 AWG station cable from the cross-con- nect block to the modular jack. 4.
  • Page 26 CONNECTING EXTENSIONS One-Pair Cross-Connect BLU-WHT WHT-BLU Cross "B" Block Connect Block Connector 25-Pair DDK Installation Cable Single Line Telephone Figure 3-6 CONNECTING SINGLE LINE TELEPHONES...

  • Page 27: Connecting Trunks

    CONNECTING TRUNKS Trunk Connections (Figure 3-7) The CPU has 2-pin DDK connectors for four loop start CO trunks. Each Expansion (2CO/8STA) PCB provides an additional two CO trunk connections. Two Expansion PCB’s are allowed per system providing a total of eight trunks per system. Refer to Part 4: Installing Optional Equipment for instruc- tions on connecting a power failure telephone.
  • Page 28 CONNECTING TRUNKS Telco RJ11C WHT-BLU BLU-WHT Line To Central Office Cord To CO connector on CPU or 2CO/8STA PCB Connector 25-Pair DDK Installation Cable Figure 3-8 CONNECTING TRUNKS 3-11...
  • Page 29 3-12...
  • Page 30 Section 4 Installing Optional Equipment In this section . . . Page Alarm Sensors ....... .4-3 Using External Alarm Sensors .

  • Page 32: Alarm Sensors

    ALARM SENSORS Using External Alarm Sensors The Auxiliary PCB provides two alarm circuits which detect a make (open) or break (closed) contact from an alarm. Programming deter- mines if the alarm inputs require an open or closed circuit. An alarm detection causes the system to send a signal to stations pro- grammed to receive the alarms.
  • Page 33 ALARM SENSORS One-Pair Cross-Connect Input from alarm system To alarm input 82400 - 11 on Auxiliary PCB "C" Block Cross Connect Block 25-Pair DDK Connector Installation Cable Figure 4-1 CONNECTING AN ALARM Alarm Input 2 Alarm Input 1 ALM2 ALM1 CTR2 SPK2 CTR1...

  • Page 34: Caller Id

    CALLER ID Using Caller ID Caller ID allows a display keyset to show an incoming caller’s tele- phone number and/or name with the time and date on the phones dis- play. The caller’s information can be checked before answering an incoming call.
  • Page 35 CALLER ID 8. Set the jumpers on the Caller ID/SMDR PCB. Set jumper-SW1 to match the baud rate of the SMDR Unit. Set jumper-SW2 to the “RUN” position, this setting allows the system to use the cus- tomer’s current programming. 9.
  • Page 36 CALLER ID Set SW1 to the proper baud rate position placing the jumper over the pins TEST of the desired baud rate. Portrait KSU SMDR Jack and Caller ID/SMDR PCB Cable Assembly CBCN Nylon Spacer 2 CO/8 STA COCN Telco Jack SMDCN COTR8...

  • Page 37: Dss Console

    DSS CONSOLE Using a Direct Station Selection Console The DSS Console gives a display keyset user one-button access to extensions. The system supports a maximum of 3 DSS Consoles. Installing a DSS Console (Figure 4-4) 1. Unplug the telephone and remove the handset cord from the tele- phone’s base.

  • Page 38: External Paging And Page Relays

    EXTERNAL PAGING AND PAGE RELAYS Using External Paging Each Auxiliary PCB has two External Paging audio outputs and two associated control relays. The External Page zones are two way which provide for the ability to do talk back paging (no additional program- ming required).
  • Page 39 EXTERNAL PAGING AND PAGE RELAYS One-Pair Cross-Connect Output to paging system control inputs To Control Relay 82400 - 9 on Auxiliary PCB "C" Block Cross Connect Block 25-Pair DDK Connector Installation Cable Figure 4-5 CONNECTING EXTERNAL PAGING/RELAYS One-Pair Cross-Connect Output to paging system control...
  • Page 40 EXTERNAL PAGING AND PAGE RELAYS Ferrite bead To Paging or Door Box connection Loop each cable once through Ferrite bead DDK connectors to Auxiliary PCB Figure 4-7 ATTACHING THE FERRITE BEAD Paging Speaker #2 Paging Speaker #1 Amplifier Amplifier SPK1/SPK2: External paging audio signal output. CTR1/CTR2: Normally open relay contacts.

  • Page 41: Door Box

    DOOR BOX Using the Door Box Each Auxiliary PCB supports two Door Boxes. In addition, you can connect each circuit’s control relay to an electric door strike. This allows an extension user to remotely activate the door strike while talk- ing to a visitor at the Door Box.
  • Page 42 DOOR BOX Ferrite bead To Paging or Door Box connection Loop each cable once through Ferrite bead DDK connectors to Auxiliary PCB Figure 4-10 ATTACHING THE FERRITE BEAD One-Pair Cross-Connect Output to door box To DHI or DH2 connector 82400 - 42 on Auxiliary PCB "C"...

  • Page 43: Installing Door Strike Control Relays

    DOOR BOX Installing Door Strike Control Relays (Figure 4-12) CAUTION Be sure the requirements of the door strike are compatible with the control relay output specifications of the system. Contact Configuration: Normally open Maximum Load: 250 mA @ 24 VDC Maximum Initial Contact Resistance: 50 mOhms 1.
  • Page 44 DOOR BOX One-Pair Cross-Connect Output to door strike To Control Relay 82400 - 8 on Auxiliary PCB "C" Block Cross Connect Block 25-Pair DDK Connector Installation Cable Figure 4-12 CONNECTING TO THE DOOR STRIKE Door Box To Door Strike Terminals (SPK2) (SPK1) (DH2) (DH1) ALM2 ALM1...

  • Page 45: Music Sources

    MUSIC SOURCES Music on Hold and Background Music Music on Hold (MOH) provides music to callers on Hold and calls parked in orbit. The system’s default setting provides an internal (synthesized) MOH music source, or a customer-provided music source connected to the Auxiliary PCB can be used instead (see below).
  • Page 46 MUSIC SOURCES One-Pair Cross-Connect music source To MOH or BGM 82400 - 7 on Auxiliary PCB "C" Block Cross Connect Block 25-Pair DDK Connector Installation Cable Figure 4-14 CONNECTING MUSIC SOURCES BGM Source External MOH Source The relay contacts RL1 and RL2 can be used as MOH/BGM device control.

  • Page 47: Power Failure Telephones

    POWER FAILURE TELEPHONES Power Failure Cut-Through (Figure 4-16) When system AC power fails, the 4 PF XFER PCB automatically connects up to four trunks to the Power Failure Telephones. Installing a Power Failure Telephone 1. Plug a 2-pin DDK connector to a COCN connector on the CPU or 2CO/8STA PCB.
  • Page 48 POWER FAILURE TELEPHONES One-Pair Cross-Connect BLU-WHT WHT-BLU To Power Failure Telephone connector on 4 PF XFER PCB Cross "C" Block Connect Block Connector 25-Pair DDK Installation Cable Figure 4-16 CONNECTING A POWER FAILURE TELEPHONE PFCON COCN PFSTN SLTCN To CO Connection on CPU Card To Telco Connection...

  • Page 49: Voice Mail

    (P/N 17500 or 17510, version 7.0 or higher) Voice Mail Unit One of the following Portrait setups: Setup 1 Portrait 824 main cabinet (P/N 82400) with Software version 2.1B or higher and 2CO/8STA PCB (P/N 82402A) NOTE: The Voice Mail ports must be connected to the 2CO/8STA PCB (P/N 82402A).

  • Page 50: Installation

    VOICE MAIL not support the voice mail option. The following is an example of what you may see. Unit 1 (CPU - P/N 82400A) = 08 Unit 2 (First Expansion PCB - P/N 82402) = 04 Unit 3 (Second Expansion PCB - P/N 82402A) = 08 The above indicates that the CPU and Second Expansion PCB can support voice mail, but it is not supported on the First Expansion PCB.
  • Page 51 VOICE MAIL Chapter 5 - Customizing System and Port Options 17570INS** Chapter 3 - Starting Up and Installing NVM-202ex WHT-BLU BLU-WHT WHT-ORN ORN-WHT WHT-BLU BLU-WHT Twisted Pair WHT-ORN Station Cable ORN-WHT ORN-WHT WHT-ORN ORN-WHT WHT-ORN BLU-WHT WHT-BLU WHT-BLU BLU-WHT 25-Pair Cable to Portrait KSU 8240 - 62a Extension...

  • Page 52: Wall-Mount Kit

    WALL MOUNT KIT Using the Wall-Mount Kit You can use a wall-mount kit to attach any key telephone to a wall. The wall-mount kit includes a mounting bracket, wall-mount screws and a handset hanger. Note: The wall-mount kit currently does not accommodate installing on a wall plate.

  • Page 53: Wall-Mounting A Key Telephone

    WALL MOUNT KIT Wall-Mounting a Key Telephone (Figure 4-20) 1. Mount the wall-mount kit’s plastic bracket in the desired location using the screws provided. 2. Insert the telephone’s line cord from the 625 modular jack through the plastic bracket using the space provided in the bracket. 4.

  • Page 54: Section 5 Specifications And Parts List

    Section 5 Specifications and Parts List In this section . . . Page Specifications ........5-3 Parts List .

  • Page 56: Specifications

    SPECIFICATIONS System Capacities Alarm Sensors: Analog Trunks (CO/PBX lines): Cabinets: Caller ID Circuits: Door Boxes: Door Box/Music On Hold Relays: DSS Consoles: 3 max. per system Electronic Key and/or Analog Telephones: External Paging Zones: Internal Paging Zones: Power Failure Telephones: Speed Dial, Personal: Speed Dial, System: Talk Timeslots (Intercom/line):...
  • Page 57 SPECIFICATIONS Power Requirements A dedicated 110 VAC 60 Hz 15 amp circuit (terminated in a NEMA 5-15R receptable) located within six feet of the cabinet is required. You should install a separate dedicated outlet for each cabinet. Environmental Specifications Cabinets and Key Telephones Door Box Temperature: 0-45 C (32-113...

  • Page 58: Bgm/Moh Music Source Input

    Nominal 250 mV (-10 dBm) Maximum Input: 1V RMS Inputs for MOH and BGM are located on the Auxillary PCB. FCC Registration Information Model: Portrait 824 Manufacturer: Nitsuko America Load Number (DOC): FCC Part 15 Registration: Class A Sample FCC Registration Number: 1ZDTHA-12345-MF-E (Refer to the label on the Main Cabinet for the FCC Registration Number.)

  • Page 59: Mechanical Specifications

    SPECIFICATIONS Mechanical Specifications Type of Equipment Width Depth Height Weight Equipment Cabinet 19” 13” 4 1/2” 11 lbs * (* Base unit with only CPU card installed) 22-Button Display Telephone 6 11/16” 8 11/16” 3 7/16” 1 lb 12 1/2 oz 22-Button Standard Telephone 6 11/16”...

  • Page 60: Parts List

    PARTS LIST Station Equipment Description Part Number 22-Button Display Telephone (Gray) 82473 22-Button Display Telephone (White) 82473W 22-Button Standard Telephone (Gray) 82470 22-Button Standard Telephone (White) 82470W 22-Button Standard Handsfree Telephone (Gray) 82471 22-Button Standard Handsfree Telephone (White) 82471W 16-Button Standard Telephone (Gray) 82460 16-Button Standard Telephone (White) 82460W...

  • Page 61: Replacement Parts

    PARTS Replacement Parts Description Part Number Handset (Gray) 82496 Handset (White) 82496W Handset and Cord Assembly (Gray) 82495 Handset and Cord Assembly (White) 82495W Handset Coil Cord - 6’ (Gray) 82475-6 Handset Coil Cord - 9’ (Gray) 82475-9 Handset Coil Cord - 13’ (Gray) 82475-13 Handset Coil Cord - 6’...
  • Page 62 PARTS Replacement Parts Description Part Number Flying Directory Attachment 82481 Flying Directory Paper Card & Plastic Holder Assembly 82482 Flying Directory Clear Plastic Holder 82483 Flying Directory Paper Card Insert 82484 Flying Directory Card Assembly (Kit) 82480 Consists of: (1) 82481, (1) 82482 Bottom Directory Tray Assembly (Card &...
  • Page 63 PARTS 5-10...
  • Page 64 Nitsuko America, Telecom Division 4 Forest Parkway Shelton, CT 06484 TEL: 203-926-5400 FAX: 203-929-0535 Other Important Telephone Numbers Sales: ......... .203-926-5450 Customer Service: .
  • Page 65 4 Forest Parkway, Shelton, CT 06484 203-926-5400 203-929-0535 TEL: FAX: Part No. 82400INS03 May 1998 Issue 1-0 Printed in U.S.A. (183)
