Gima SKB041-1 User Manual

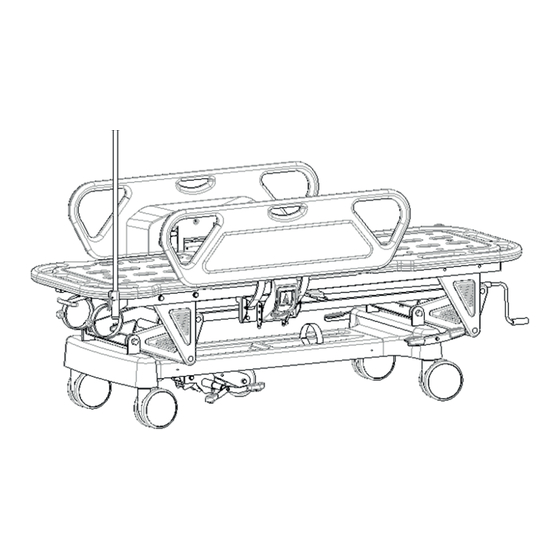

Adjustable height patient trolley
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

BARELLA PORTAPAZIENTI AD ALTEZZA REGOLABILE
ADJUSTABLE HEIGHT PATIENT TROLLEY
CHARIOT DE TRANSFERT DE PATIENT À HAUTEUR RÉGLABLE
CARRO DE PACIENTE AJUSTABLE EN ALTURA
MACA DE PACIENTE AJUSTÁVEL EM ALTURA
HÖHENVERSTELLBARER PATIENTENWAGEN
ΤΡΟΧΗΛΑΤΟ ΦΟΡΕΙΟ ΑΣΘΕΝΟΥΣ ΜΕ ΡΥΘΜΙΖΟΜΕΝΟ ΥΨΟΣ
CĂRUCIOR PACIENT REGLABIL PE ÎNĂLȚIME
MANUALE D'USO – USER MANUAL – MODE D'EMPLOI – MANUAL DE USO - MANUAL DO USUÁRIO - BENUTZERHANDBUCH -
ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ - MANUAL DE UTILIZARE
SKB041-1 (Gima 44780)
Jiangsu Saikang Medical Equipment Co.,Ltd
No. 35 Lehong Road, Modern Agriculture Demonstration
Park, Zhangjiagang City, Jiangsu Province, China
Made in China
SUNGO Europe B.V.
Fascinatio Boulevard 522, Unit 1.7, 2909VA
Capelle aan den IJssel, The Netherlands
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
85%
106kPa
%
-10˚C
70kPa
0%
+40˚C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKB041-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Gima SKB041-1

Summary of Contents for Gima SKB041-1

  • Page 1 CĂRUCIOR PACIENT REGLABIL PE ÎNĂLȚIME MANUALE D’USO – USER MANUAL – MODE D’EMPLOI – MANUAL DE USO - MANUAL DO USUÁRIO - BENUTZERHANDBUCH - ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ - MANUAL DE UTILIZARE SKB041-1 (Gima 44780) 106kPa +40˚C Jiangsu Saikang Medical Equipment Co.,Ltd No.

  • Page 2: Manual Introduction

    Note: Please carefully read this manual and strictly follow the steps before installing and using. We require all users to have the knowledge of user’s manual and all the cautions. • This instruction manual is suitable for SKB041-1 patient trolley and contains information such as instructions for the use of this model's installa- tion method and maintenance. •...

  • Page 3: Use Method

    ENGLISH Unlocked Locked 1.3 Guardrail installation After placing the mattress as shown in the figure, fix it on the trolley board with felt. 2.USE METHOD...
  • Page 4 ENGLISH 1-Handle 2-Oxygen bottle holder 3-IV Pole 4-Platform 5-Directional pedal 6-Guardrail 7-Castor Length 1900±10 Width 640±10 Trolley platform size The minimum height of the trolley surface 550-850±10 to the ground Tilt range Back 0-70±10° Weight Safety load 2.1 Caster use When there is a patient on the trolley, the guardrail should be raised before moving the trolley.
  • Page 5 ENGLISH Lowering the guardrail: Pull Guardrail switch outwardly, and hold the upper guardrail while slowly putting down the guardrail. The picture is as follows: 2.3 Use method of IV Pole Adjusting the height of the IV pole: 1. First loosen the outer sleeve counter clock carefully, insert the inner tube of the IV pole into the outer sleeve, and then adjust the length of the extension rod up and down;...
  • Page 6 ENGLISH Holding the handle Release the handle Whole trolley lifting: Pull out the middle rocker lever and turn it counterclockwise to realize the lowering of the whole trolley, and turn it clockwise to raise the whole trolley. 3.SPARE PART REPLACEMENT AND MAINTENANCE 3.1 Hand crank replacement and maintenance Use 2 pcs 17-inch Allen wrenches to unscrew the telescopic rocker nut, take out the bolt, and replace the rocker.
  • Page 7 ENGLISH 3.2 Gas spring and handle replacement and maintenance First lift the back plate to the highest position, then use an Allen key to unscrew the nuts in the order shown in the figure, take out the bolts, and re- place the gas spring and handle.
  • Page 8 ENGLISH 5. When the trolley frame ages and it reaches a certain servicing time, which the metal part of the trolley and the plastic parts of the headboard or footboard, guardrail can be recycle. 6.TROLLEY-CLEANING 1. When cleaning, please wring out the cloth soaked in neutral detergent diluted with water and wipe it, then wring out the cloth soaked in water to wipe off the remaining detergent ingredients, and finally use a dry wipe dry with a cloth.

  • Page 9: Legend Of Symbols

    Manufacturer Date of manufacture Lot number Medical Device Caution: read instructions Authorized representative Temperature limit (warnings) carefully in the European community Imported by Serial number Humidity limit Atmospheric pressure limit GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies...
