- Page 1 PROFESSIONAL MEDICAL PRODUCTS ASPIRATORE SUPERVEGA EVO SUPERVEGA EVO SUCTION UNIT ASPIRATEUR SUPERVEGA EVO ABSAUGER SUPERVEGA EVO ASPIRADOR SUPERVEGA EVO 28183 0476 Gima S.p.A. Via Marconi, 1 - 20060 Gessate (MI) Italy gima@gimaitaly.com - export@gimaitaly.com www.gimaitaly.com Made in Italy...
-
Page 2: Basic Safety Rules

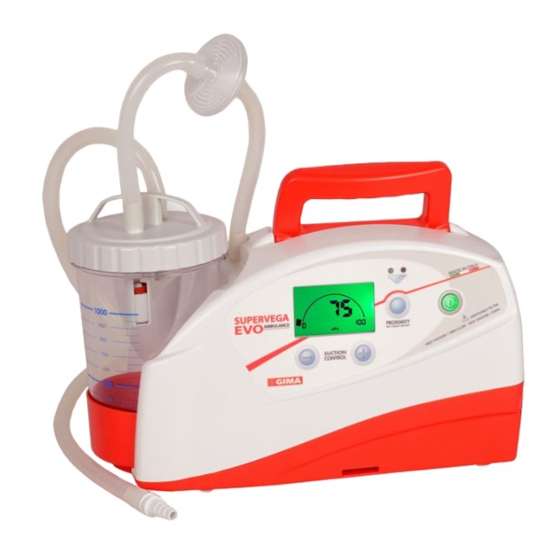

ENGLISH SUPERVEGA EVO is a desk-type electric suction unit for the aspiration of body liquids (such as mucus , phlegm and blood), oral, nasal and tracheal aspiration in adults or children. Its shape, elegantly narrow, is motly designed for fitting into ambulance care and emergency use. -
Page 3: Technical Characteristics
(send it immediately to an authorized service center or technical service). 4. For repairs, exclusively contact Gima technical service or a technical assistance centre authorised by the manufacturer and only original spare parts may be used. Failure to comply with the above may compro- mise the safety of the device. -
Page 4: Accessories Supplies
ENGLISH Working Condition Room temperature: 0 ÷ 40°C Room humidity percentage: 0 ÷ 85% RH Atmospheric pressure: 800 ÷ 1060 hPa Conservation condition and transport Room temperature (≤ 1 mounth): : - 20°C ÷ 45°C Room temperature (≤ 3 mounth): - 20°C ÷ 35°C Room temperature (≤... -
Page 5: Cleaning Of Accessories
ENGLISH the employment of the said component. Therefore, after each cleaning cycle, it is up to the final user to verify whether the fitting is suitable for reuse. The component must be replaced if there are visible signs of decay in the material constituting the said component. - Page 6 The device is equipped with a Lithium-Ion Battery, which cannot be reached from the outside. Only refer to GIMA technical service personnel to replace it. Only use batteries recommended by Gima. Use of batteries other than those recommended will make the warranty void and null.
- Page 7 2° case – If both the security system doesn’t work, there is the possibility that liquid comes inside the device, in this case return the device to GIMA technical service. GIMA S.p.A. will provide upon request electric diagrams, components list, descriptions, setting in- structions and any other information that can help the technical assistance staff for product repair.
- Page 8 ENGLISH • The negative pressure is set with keys - and +, which are found below the LCD screen: Press one of the two keys with the motor on. The level of the negative pressure will flash at the centre of the display. Release the key and, after 3 seconds, the value will be operating (fixed digit on the display) and saved.
- Page 9 ENGLISH Charging operations (through the supplied AC/DC adapter): To charge the internal battery, connect the universal adaptor (supplied) to the mains electricity supply for about 6 hours (360 minutes) with the device switched off (not operating). The symbol positioned near the 12V jack on the casing requires the user to read the instructions before each use, identifying the model and type of power supply which can be connected through the information provided in the instructions for use.
- Page 10 This section contains information regarding the conformity of the compliance with the EN 60601-1-2 Standard (2015). The SUPERVEGA EVO SUCTION UNIT surgical aspirator is an electro-medical device that requires particu- lar precautions regarding electro-magnetic compatibility and which must be installed and commissioned ac- cording to the electro-magnetic compatibility information supplied.
- Page 11 Guidance and manufacturer’s declaration – electromagnetic Emissions The SUPERVEGA EVO SUCTION UNIT is intended for use in the electromagnetic environment specified below. The customers or the user of the SUPERVEGA EVO SUCTION UNIT should make sure that it’s used in such an environment. Emissions test...
- Page 12 Guidance and manufacturer’s declaration – Immunity Emissions The SUPERVEGA EVO SUCTION UNIT is intended for use in the electromagnetic environment specified below. The customers or the user of the SUPERVEGA EVO SUCTION UNIT should make sure that it’s used in such an envi- ronment.
- Page 13 The SUPERVEGA EVO SUCTION UNIT surgical aspirator is intended to operate in an electro-magnetic environment where RF irradiated interferences are under control. The client or operator of the SUPERVEGA EVO SUCTION UNIT device can help prevent electro-magnetic interference by keeping a minimum distance between the portable and mobile RF communication devices (transmitters) and the SUPERVEGA EVO SUCTION UNIT device, as recommended below, in relation to the radio-communication maximum output power.
- Page 14 For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
