Screw Listing
mm
Where used:
1 One screw that secures the keyboard to the base enclosure
(documented in Section 5.7)
2 Three screws that secure the top cover to the base enclosure
(documented in Section 5.12)
3 Evo Notebook N620c models—Two screws that secure the top cover to the
base enclosure in the hard drive bay (documented in Section 5.12)

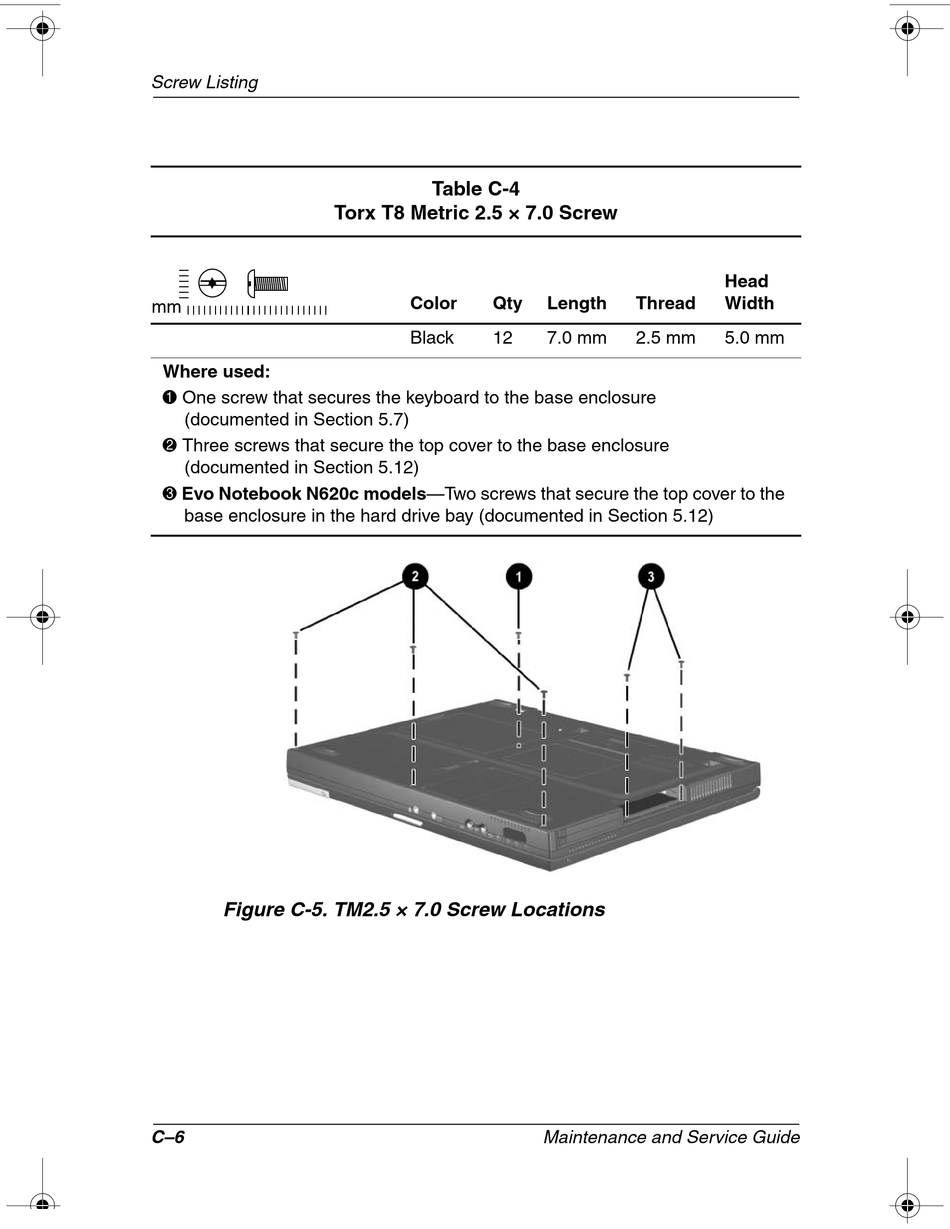

Figure C-5. TM2.5 × 7.0 Screw Locations
C–6
Table C-4
Torx T8 Metric 2.5 × 7.0 Screw
Color
Black
Qty Length
12 7.0 mm
Maintenance and Service Guide
Head
Thread Width
2.5 mm 5.0 mm
