b

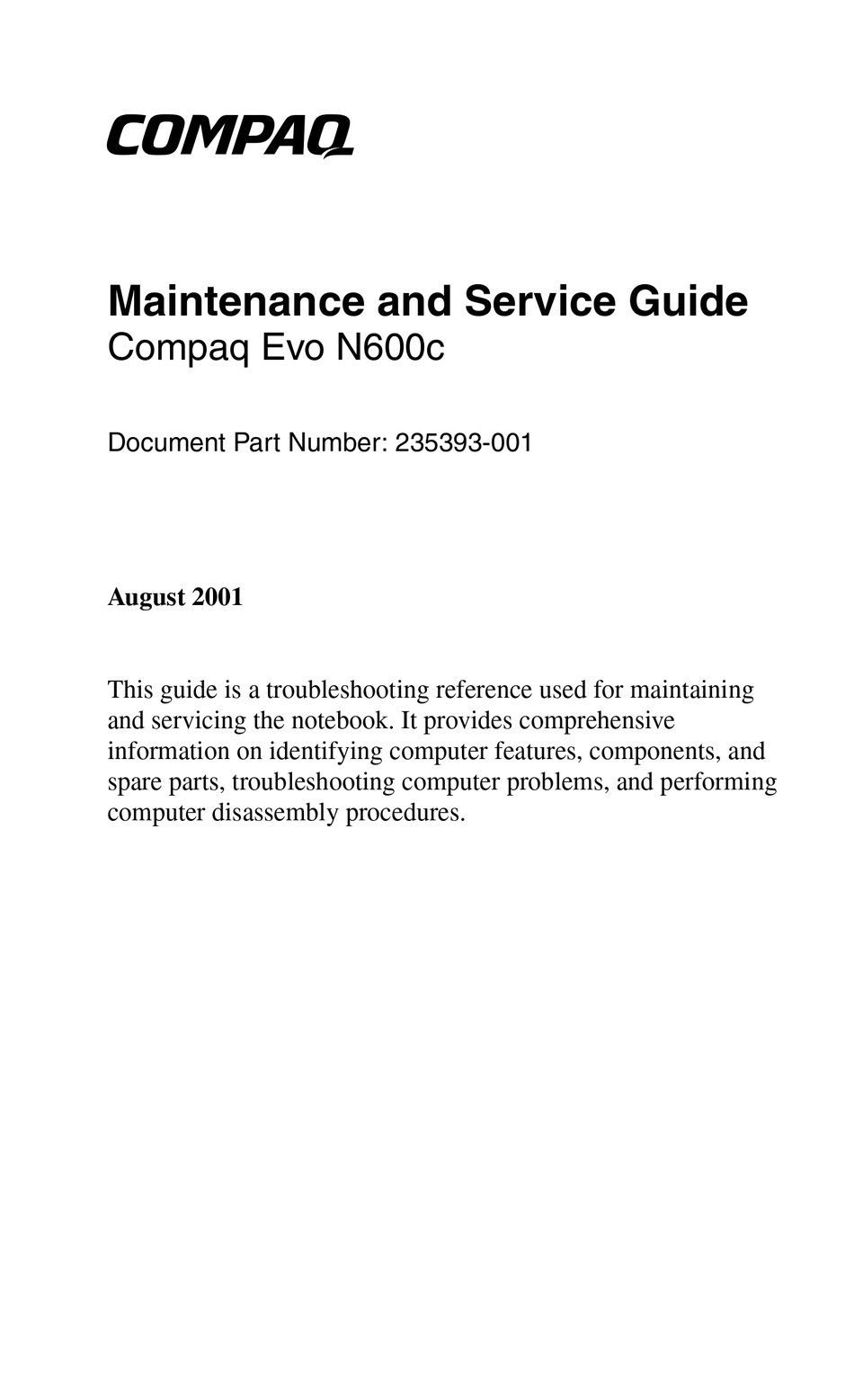

Maintenance and Service Guide

Compaq Evo N600c
Document Part Number: 235393-001
August 2001
This guide is a troubleshooting reference used for maintaining
and servicing the notebook. It provides comprehensive
information on identifying computer features, components, and
spare parts, troubleshooting computer problems, and performing
computer disassembly procedures.

Advertisement

Table of Contents
loading

Related Manuals for Compaq Evo N600c

Summary of Contents for Compaq Evo N600c

  • Page 1: Maintenance And Service Guide

    Maintenance and Service Guide Compaq Evo N600c Document Part Number: 235393-001 August 2001 This guide is a troubleshooting reference used for maintaining and servicing the notebook. It provides comprehensive information on identifying computer features, components, and spare parts, troubleshooting computer problems, and performing...
  • Page 2 © 2001 Compaq Computer Corporation Compaq, Evo, the Compaq logo, and Premier•Sound are trademarks of Compaq Information Technologies Group, L.P. Microsoft and Windows are trademarks of Microsoft Corporation. Intel and Pentium are trademarks of Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    1 Product Description 1.1 Features ........1–1 1.2 Clearing a Password .
  • Page 4 2.8 Nonfunctioning Docking Station (if applicable)......2–18 2.9 No Operating System (OS) Loading ..2–19 2.10 No OS Loading from Hard Drive, Part 1.
  • Page 5 5 Removal and Replacement Procedures 5.1 Serial Number ......5–2 5.2 Disassembly Sequence Chart ....5–3 5.3 Preparing the Computer for Disassembly .

  • Page 6: Product Description

    The Compaq Evo N600c Series of Personal Computers offers advanced modularity, Mobile Intel Pentium III processors-M with 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support. Figure 1-1. Compaq Evo N600c 1.1 Features Mobile Intel Pentium III processor 1.066 GHz-M or...
  • Page 7 Product Description ATI Mobility Radeon with 64-bit video graphics, 16-MB double date rate (DDR) SDRAM, 4X AGP graphics card 128-MB high-performance Synchronous DRAM (SDRAM), expandable to 1024 MB Microsoft Windows 98, Windows NT 4.0, or Windows 2000 preinstalled, varying by computer model 14.1-inch, XGA, TFT (1024 ×...
  • Page 8 Connectors for: ❏ RJ-11 modem ❏ Mono microphone ❏ Stereo line-out/headphone ❏ MultiPort ❏ Universal Serial Bus ❏ Docking ❏ Parallel devices ❏ Serial devices ❏ Composite TV ❏ External keyboard/mouse ❏ RJ-45 network ❏ External monitor ❏ AC power Stereo speakers providing Compaq Premier·Sound™...

  • Page 9: Clearing A Password

    Product Description 1.2 Clearing a Password If the notebook you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS. 1. Prepare the computer for disassembly (refer to Section 5.3, “Preparing the Computer for Disassembly,” for more information).

  • Page 10: Power Management

    1.3 Power Management The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features: Standby Hibernation Setting customization by the user Hotkeys for setting level of performance Smart battery that provides an accurate battery power gauge Battery calibration Lid switch suspend/resume Power/suspend button...

  • Page 11: Computer External Components

    Product Description 1.4 Computer External Components The external components on the front and right side of the computer are shown in Figure 1-2 and described in Table 1-2. Figure 1-2. Front and Right Side Components Front and Right Side Panel Components Item Component Display release latch...
  • Page 12 Front and Right Side Panel Components (Continued) Item Component Security cable slot Mono microphone jack Stereo line-out/ headphone jack Volume control buttons Infrared port Power light Battery light Drive activity light Diskette drive light Maintenance and Service Guide Table 1-2 Function Attaches an optional security cable to the computer.
  • Page 13 Product Description The computer right side and rear panel components are shown in Figure 1-3 and described in Table 1-3. Figure 1-3. Right Side and Rear Panel Components Right Side and Rear Panel Components Item Component MultiPort DC power jack Keyboard/mouse connector 1–8...
  • Page 14 Right Side and Rear Panel Components (Continued) Item Component Parallel connector Docking connector Serial connector External monitor connector Composite TV connector RJ-45 jack (network models only) USB connectors (2) Vent Hard drive PC Card slots (2) PC Card eject buttons Maintenance and Service Guide Table 1-3 Function...
  • Page 15 Product Description The keyboard components are shown in Figure 1-4 and described in Table 1-4. Figure 1-4. Keyboard Components 1–10 Maintenance and Service Guide...
  • Page 16 Item Component Caps lock through function keys Embedded numeric keypad Cursor control keys Windows application key Windows logo key Maintenance and Service Guide Table 1-4 Keyboard Components Function Used with hotkeys to perform preset hotkey functions. Turns on the caps lock function. Perform preset functions.
  • Page 17 Product Description The components on the top of the computer are shown in Figure 1-5 and described in Table 1-5. Figure 1-5. Top Components Item Component Num lock light Scroll lock light 1–12 Table 1-5 Top Components Function On: Num lock is on and the embedded numeric keypad is enabled.
  • Page 18 Item Component Caps lock light Standby button Stereo speakers (2) Easy Access buttons (4) Power switch Pointing stick Right mouse button Scroll button Left mouse button Maintenance and Service Guide Table 1-5 Top Components (Continued) Function On: Caps lock is on. Turns on the computer if it is off.
  • Page 19 Product Description The external components on the bottom of the computer are shown in Figure 1-6 and described in Table 1-6. Figure 1-6. Bottom Components Item Component MultiBay MultiBay release latch Air vent 1–14 Table 1-6 Bottom Components Function Accepts a diskette drive, CD- or DVD-ROM drive, or secondary battery pack.
  • Page 20 Bottom Components (Continued) Item Component Certificate of Authenticity label Hard drive security screw Memory expansion compartment cover Docking recess latch Battery release latch Battery compartment Serial number Maintenance and Service Guide Table 1-6 Function Contains the Product Key, which may need to be entered before using some Windows operating systems.

  • Page 21: Design Overview

    Product Description 1.5 Design Overview This section presents a design overview of key parts and features of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections: Memory expansion board Hard drive...

  • Page 22: Troubleshooting

    Å WARNING: Only authorized technicians trained by Compaq should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board.

  • Page 23: Using Computer Setup

    Troubleshooting ❏ Test system components. ❏ Troubleshoot a device configuration problem in Windows 98, Windows 2000, or Windows Me. ✎ It is not necessary to configure a device that is connected to a USB connector on the computer or to an optional docking base. Using Computer Setup Information and settings in Computer Setup are accessed from the File, Security, or Advanced menus:...

  • Page 24: Selecting From The File Menu

    Selecting from the File Menu Select System Information Save to Floppy Restore from Floppy Restore Defaults Ignore Changes and Exit Save Changes and Exit Maintenance and Service Guide Table 2-1 File Menu To Do This View identification information about the computer, a docking base, and any battery packs in the system.

  • Page 25: Selecting From The Security Menu

    Troubleshooting Selecting from the Security Menu Select Setup Password Power-on Password DriveLock Passwords Password Options ✎ Password options can be selected only when a power-on password has been set. Device Security System IDs *Not applicable to SuperDisk LS-120 drives. 2–4 Table 2-2 Security Menu To Do This...

  • Page 26: Selecting From The Advanced Menu

    Selecting from the Advanced Menu Select Language (or press Boot Options Device Options Maintenance and Service Guide Table 2-3 Advanced Menu To Do This Change the Computer Setup language. Enable/disable: QuickBoot, which starts the computer more quickly by eliminating some startup tests. (If you suspect a memory failure and want to test memory automatically during startup, disable QuickBoot.)
  • Page 27 Troubleshooting Select Device Options (continued) HDD Self Test Options *Video modes vary even within regions. However, NTSC is common in North America; PAL, in Europe, Africa, and the Middle East; NTSC-J, in Japan; and PAL-M, in Brazil. Other South and Central American regions may use NTSC, PAL, or PAL-M.

  • Page 28: Using Compaq Diagnostics

    2.2 Using Compaq Diagnostics When you access Compaq Diagnostics, a scan of all system components is displayed on the screen before the Compaq Diagnostics window opens. You can display more or less information from anywhere within Compaq Diagnostics by selecting Level on the menu bar. Compaq Diagnostics is designed to test Compaq components.

  • Page 29: Obtaining, Saving, Or Printing Diagnostic

    Troubleshooting Obtaining, Saving, or Printing Diagnostic Test Information 1. Access Compaq Diagnostics by selecting Start > Settings > Control Panel > Compaq Diagnostics. 2. Select the Test tab. 3. In the scroll box, select the category or device you want to test.
  • Page 30 5. Select a test mode: ❏ Interactive Mode—Provides maximum control over the testing process. You determine whether the test was passed or failed and may be prompted to insert or remove devices. ❏ Unattended Mode—Does not display prompts. If errors are found, they are displayed when testing is complete.

  • Page 31: Troubleshooting Flowcharts

    Troubleshooting 2.3 Troubleshooting Flowcharts Troubleshooting Flowcharts Overview Flowchart Description Initial troubleshooting No power, part 1 No power, part 2 No power, part 3 No power, part 4 No video, part 1 No video, part 2 Nonfunctioning docking station No operating system (OS) loading 2.10 No OS loading from hard drive, part 1 2.11...

  • Page 32: Initial Troubleshooting

    2.1 Initial Troubleshooting Begin Troubleshooting Is there power? Beeps, LEDs, or error Messages? Is there video? (no boot) Is the OS loading? Is there sound? Maintenance and Service Guide Go to Section 2.2, No Power. Check LED board, speaker connections. Go to Section 2.6, No Video.

  • Page 33: No Power, Part 1

    Troubleshooting 2.2 No Power, Part 1 No Power (Power LED is off) Remove from docking station if applicable. Power up on battery power? Power up on AC power? Power up in docking station? 1. Reseat power cables in docking station and at the AC outlet.

  • Page 34: No Power, Part 2

    2.3 No Power, Part 2 Continued from Section 2.2, No Power, Part 1. Visually check for debris in battery socket and clean if necessary. Power on? Check battery by recharging, moving to another computer, or replacing it. Power on? Done Maintenance and Service Guide Done Replace power...

  • Page 35: No Power, Part 3

    Troubleshooting 2.4 No Power, Part 3 Continued from Section 2.3, No Power, Part 2. Plug directly into AC outlet. Power LED Reseat AC adapter in computer and at power source. Power on? Power outlet active? Replace power cord. Power on? 2–14 Done Done...

  • Page 36: No Power, Part 4

    2.5 No Power, Part 4 Continued from Section 2.4, No Power, Part 3. Open computer. Loose or damaged parts? Close computer and retest. Power on? Done Maintenance and Service Guide Reseat loose components and boards and replace damaged items. Replace the following items, if applicable. Check computer operation after each replacement: 1.

  • Page 37: No Video, Part 1

    Troubleshooting 2.6 No Video, Part 1 No Video Docking Station Stand-alone or Docking Station? Standalone Internal or external display*? Internal External Adjust brightness. Video OK? Replace the following one at a time. Test after each replacement: 1. Cable between notebook and computer display (if applicable) Check for bent 2.

  • Page 38: No Video, Part 2

    2.7 No Video, Part 2 Continued from Section 2.6, No Video, Part 1. Remove notebook from docking station, if connected. Adjust display brightness. Video OK? Check for notebook properly seated in docking station, bent pins on cable, and for monitor connection.

  • Page 39: Nonfunctioning Docking Station

    Troubleshooting 2.8 Nonfunctioning Docking Station (if applicable) Nonfunctioning docking station Reseat power cord in docking station and power outlet. Check voltage setting on docking station. Reset monitor cable connector at docking station. Docking station operating? Remove notebook, reseat all internal parts, and replace any damaged items in docking station.

  • Page 40: No Operating System (Os) Loading

    2.9 No Operating System (OS) Loading No OS loading Reseat power cord in docking station and power outlet. NOTE: Before beginning, always check cable connections, cable ends, and drives for bent or damaged pins. Maintenance and Service Guide No OS loading from hard drive, go to Section 2.10.

  • Page 41: No Os Loading From Hard Drive, Part

    Troubleshooting 2.10 No OS Loading from Hard Drive, Part 1 OS not loading from hard drive. Nonsystem disk message? Reseat external hard drive. OS loading? Boot from Check the setup utility for correct booting order. Boot from hard drive? Done 2–20 Go to Section 2.11,...

  • Page 42: No Os Loading From Hard Drive, Part 2

    2.11 No OS Loading from Hard Drive, Part 2 Continued from Section 2.10, No OS Loading from Hard Drive, Part 1. CD or diskette in drive? Remove diskette and reboot. Boot from hard drive? Boot from diskette drive? Hard drive accessible? Go to Section 2.12,...

  • Page 43: No Os Loading From Hard Drive, Part 1

    Troubleshooting 2.12 No OS Loading from Hard Drive, Part 3 Continued from Section 2.11, No OS Loading from Hard Drive, Part 2. System files on hard drive? Virus on hard drive? Run SCANDISK and check for bad sectors. Can bad sectors be fixed? Fix bad...

  • Page 44: No Os Loading From Diskette Drive

    2.13 No OS Loading from Diskette Drive OS not loading from diskette drive. Nonsystem disk message? Boot from another device? Diskette drive enabled in the setup utility? Diskette drive boot order. Change boot priority using the setup utility. Maintenance and Service Guide Reseat diskette drive.

  • Page 45: No Os Loading From Cd- Or Dvd-Rom Drive

    Troubleshooting 2.14 No OS Loading from CD- or DVD-ROM Drive No OS loading from CD- or DVD-ROM drive. Boots from CD or DVD? Reseat drive. 2–24 Disk in drive? Install bootable disk. Done Boots from CD or DVD? Booting Section 2.17, from another Nonfunctioning device?

  • Page 46: No Audio, Part 1

    2.15 No Audio, Part 1 No audio Notebook in docking station (if applicable)? Go to Section 2.16, No Audio, Part 2. Maintenance and Service Guide Turn up audio internally or externally. Undock Replace the following docking station components one at a time as applicable. Check after each change: 1.

  • Page 47: No Audio, Part 2

    Troubleshooting 2.16 No Audio, Part 2 Continued from Section 2.15, No Audio, Part 1 Audio driver in OS configured? Correct drivers for application? Connect to external speaker. Audio? 2–26 Reload audio drivers. Load drivers and set configuration in OS. Replace audio board and speaker connections in...

  • Page 48: Nonfunctioning Device

    2.17 Nonfunctioning Device Clear CMOS. Reattach device. Close notebook, plug in power, and reboot. Device boots properly? Done Maintenance and Service Guide Nonfunctioning device Reseat device. Unplug the nonfunctioning device from the notebook, inspect cables and plugs for bent or broken pins or other damage.

  • Page 49: Nonfunctioning Keyboard

    Troubleshooting 2.18 Nonfunctioning Keyboard Keyboard not operating properly. Connect notebook to good external keyboard. External device works? Reseat internal keyboard connector (if applicable). Done 2–28 Replace system board. Replace internal keyboard or cable. Replace system board. Done Maintenance and Service Guide...

  • Page 50: Nonfunctioning Pointing Device

    2.19 Nonfunctioning Pointing Device Pointing device not operating properly. Connect notebook to good external pointing device. External device works? Reseat internal pointing device connector (if applicable). Done Maintenance and Service Guide Replace system board. Replace internal pointing device or cable. Replace system board.

  • Page 51: Network Or Modem Connection Problems

    Troubleshooting 2.20 Network or Modem Connection Problems No network or modem connection. Network or modem jack active? Digital line? NIC/modem configured in OS? Disconnect all power from the notebook and open. Reseat NIC/modem if applicable. 2–30 Replace jack or have jack activated.

  • Page 52: Illustrated Parts Catalog

    This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers. 3.1 Serial Number Location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer (Figure 3-1).

  • Page 53: Computer System Major Components

    Illustrated Parts Catalog 3.2 Computer System Major Components Figure 3-2. Computer System Major Components 3–2 Maintenance and Service Guide...
  • Page 54 Spare Parts: Computer System Major Components Item Description Displays 14.1-inch, SXGA+, CTFT 14.1-inch, XGA, CTFT Switch cover Keyboard (for use with TouchPad models) Arabic Brazilian Belgian Czech Danish French French Canadian German Greek Hebrew Hungarian International Italian Japanese Maintenance and Service Guide Table 3-1 241427-171 Korean...
  • Page 55 Illustrated Parts Catalog Computer System Major Components (continued) 3–4 Maintenance and Service Guide...
  • Page 56 Spare Parts: Computer System Major Components (Continued) Item Description Keyboard (for use with pointing stick models) Arabic Brazilian Belgian Czech Danish French French Canadian German Greek Hebrew Hungarian International Italian Japanese Miscellaneous Plastics Kit Modem/NIC cover Real time clock (RTC) battery Modem cable Memory expansion...
  • Page 57 Illustrated Parts Catalog Computer System Major Components (continued) 3–6 Maintenance and Service Guide...
  • Page 58 Spare Parts: Computer System Major Components (Continued) Item Description Mini PCI communications boards Type III mini PCI combination 56-Kbps modem/NIC board Type III mini PCI combination 56-Kbps/NIC/3DES board Type III mini PCI 56-Kbps modem board System boards Mobile Intel Pentium III processor 1.066 GHz-M Mobile Intel Pentium III processor 866 MHz-M DC-DC converter board Hard drives...

  • Page 59: Miscellaneous Plastics Kit Components

    Illustrated Parts Catalog 3.3 Miscellaneous Plastics Kit Components Figure 3-3 Miscellaneous Plastics Kit Components Miscellaneous Plastics Kit Components Item Description Modem/NIC cover PC Card slot space savers RTC battery Memory expansion compartment cover Computer feet MultiPort Module cover Modem cable 3–8 Table 3-2 Spare Part Number 241439-001...

  • Page 60: Mass Storage Devices

    3.4 Mass Storage Devices Figure 3-4. Mass Storage Devices Item Description Hard drives 30 GB 20 GB 15 GB 10 GB Diskette drive External diskette drive cable External MultiBay cradle Maintenance and Service Guide Table 3-3 Mass Storage Devices Spare Part Number 217096-001 235421-001...
  • Page 61 Illustrated Parts Catalog Mass Storage Devices (continued) Miscellaneous Plastic Kit Components (Continued) Item Description Optical drives 24X Max CD-ROM drive 8X Max DVD-ROM drive 4X Max DVD-ROM drive CD-RW drive SuperDisk LS120 drive 3–10 Table 3-3 Spare Part Number 315082-001 173949-001 102266-001 218682-001...
  • Page 62 Miscellaneous Plastic Kit Components (Continued) Item Description IOmega 250-MB ZIP drive (not illustrated) MultiBay hard drives (not illustrated) 30 GB 20 GB 10 GB 1-GB Microdrive (PC Card device, not illustrated) Maintenance and Service Guide Illustrated Parts Catalog Table 3-3 Spare Part Number 218683-001...

  • Page 63: Miscellaneous

    Illustrated Parts Catalog 3.5 Miscellaneous Spare Parts: Miscellaneous (not illustrated) Description Modems Type III mini PCI combination 56-Kbps modem/NIC board Type III mini PCI combination 56-Kbps/NIC/3DES board Type III mini PCI 56-Kbps modem board Modem adapters Czech German Hungarian Modem cable Modem cable adapters Australian Belgian...
  • Page 64 Spare Parts: Miscellaneous (not illustrated) (Continued) Description RJ-11 P55 adapters Danish Finnish RJ-11 PTT adapter (used in the United Kingdom) RJ-45 network cable Logo kit Screw kit (includes the following screws and bushing guides; refer to Appendix C, “Screw Listing,” for more information on screw specifications and usage) Torx T8 M2 ×...
  • Page 65 Illustrated Parts Catalog Spare Parts: Miscellaneous (not illustrated) (Continued) Description Power cord, black, 6 feet Australian Danish European/Middle Eastern/African Italian Japanese Memory expansion boards 512 MB 256 MB 128 MB 64 MB Common power solutions 6-cell MultiBay battery pack External battery charger Auto power adapter/charger Aircraft power adapter 3–14...

  • Page 66: Removal And Replacement Preliminaries

    Removal and Replacement This chapter provides essential information for proper and safe removal and replacement service. 4.1 Tools Required You will need the following tools to complete the removal and replacement procedures: Magnetic screwdriver Phillips P0 screwdriver 7.0-mm socket Tool kit (includes connector removal tool, loopback plugs, and case utility tool) 4.2 Service Considerations The following sections include some of the considerations that...

  • Page 67: Plastic Parts

    Removal and Replacement Preliminaries Plastic Parts Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions. Cables and Connectors Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.

  • Page 68: Preventing Damage To Removable Drives

    4.3 Preventing Damage to Removable Drives Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions: Before removing or inserting a hard drive, shut down the computer.

  • Page 69: Preventing Electrostatic Damage

    Removal and Replacement Preliminaries 4.4 Preventing Electrostatic Damage Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases the discharge contains enough power to alter device parameters or melt silicon junctions.

  • Page 70: Workstation Precautions

    Place reusable electrostatic-sensitive parts from assemblies in protective packaging or nonconductive foam. Use transporters and conveyers made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials were selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

  • Page 71: Grounding Equipment And Methods

    Removal and Replacement Preliminaries 4.7 Grounding Equipment and Methods Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megaohm ±10% of resistance in the ground cords.
  • Page 72 Nonconductive plastic bags, tubes, or boxes Metal tote boxes Electrostatic voltage levels and protective materials Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities. Typical Electrostatic Voltage Levels Event Walking across carpet Walking across vinyl floor Motions of bench worker Removing DIPS from plastic tube Removing DIPS from vinyl tray...

  • Page 73: Removal And Replacement Procedures

    Removal and Replacement Procedures This chapter provides removal and replacement procedures. Both Phillips P0 and Torx T8 screws are removed during disassembly. There are 25 screws and screwlocks, in five different sizes, that must be removed and replaced when servicing the computer.

  • Page 74: Serial Number

    Removal and Replacement Procedures 5.1 Serial Number Report the computer serial number to Compaq when requesting information or ordering spare parts. The serial number is located on the bottom of the computer (Figure 5-1). Figure 5-1. Serial Number Location 5–2 Maintenance and Service Guide...

  • Page 75: Disassembly Sequence Chart

    5.2 Disassembly Sequence Chart Use the chart below to determine the section number to be referenced when removing computer components. Section Description Preparing the computer for disassembly Computer feet Keyboard Modem/Network Interface Card (NIC) Real Time Clock (RTC) battery TouchPad and Touch button Switch cover 5.10 Display...

  • Page 76: Preparing The Computer For Disassembly

    Removal and Replacement Procedures 5.3 Preparing the Computer for Disassembly Perform the following steps before disassembling the computer. Consult the computer Hardware Guide for instructions on the following steps: 1. Turn off the computer. 2. Disconnect the AC adapter and all external devices. 3.

  • Page 77: Computer Feet

    5.4 Computer Feet The computer feet are adhesive-backed rubber pads. The computer feet are included in the Miscellaneous Plastics Kit (spare part number 241439-001). Refer to Figure 5-2 for computer feet locations. Figure 5-2. Replacing the Computer Feet Maintenance and Service Guide Removal and Replacement Procedures 5–5...

  • Page 78: Keyboard

    Removal and Replacement Procedures 5.5 Keyboard Keyboard without pointing stick (for use with TouchPad models) Arabic Brazilian Belgian Czech Danish French French Canadian German Greek Hebrew Hungarian International Italian Japanese Keyboard with pointing stick Arabic Brazilian Belgian Czech Danish French French Canadian German Greek...
  • Page 79 Removal and Replacement Procedures 3. Remove the black M2 × 7 screw that secures the keyboard to the base enclosure (Figure 5-3). Figure 5-3. Removing the Keyboard Screw 4. Turn the computer top side up with the front facing you. 5.
  • Page 80 Removal and Replacement Procedures 6. Slide the four tabs on the top of the keyboard forward 1 (Figure 5-4). 7. Lift the top edge of the keyboard and swing it up and forward until it rests on the top cover 2. Figure 5-4.
  • Page 81 9. Release the ZIF connector to which the pointing device cable is attached 1 and disconnect the pointing device cable 2 (Figure 5-5). 10. Release the ZIF connector to which the keyboard cable is attached 3 and disconnect the keyboard cable 4. Figure 5-5.

  • Page 82: Modem/Network Interface Card (Nic)

    Removal and Replacement Procedures 5.6 Modem/Network Interface Card (NIC) Modem/Network Interface Card (NIC) Mini PCI communications boards Type III mini PCI combination 56-Kbps modem/NIC board Type III mini PCI combination 56-Kbps/NIC/3DES board Type III mini PCI 56-Kbps modem board 1. Prepare the computer for disassembly (Section 5.3). 2.
  • Page 83 6. Spread the retaining tabs 2 that secure the modem/NIC board to the system board. The modem/NIC board rises up at a 45-degree angle. 7. Pull the modem/NIC board away from the connector at a 45-degree angle 3. Figure 5-7. Removing the Modem/NIC Board Reverse the above procedure to replace the modem/NIC board.

  • Page 84: Real Time Clock (Rtc) Battery

    Removal and Replacement Procedures 5.7 Real Time Clock (RTC) Battery The RTC battery is included in the Miscellaneous Plastics Kit (spare part number 241439-001). 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the keyboard (Section 5.5). 3. Remove the modem/NIC cover (Section 5.6). 4.

  • Page 85: Touchpad Or Touch Button

    5.8 TouchPad or Touch Button TouchPad (for use with TouchPad models) Touch Button (for use with pointing stick models) 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the keyboard (Section 5.5). 3. Remove the modem/NIC cover (Section 5.6). Maintenance and Service Guide Removal and Replacement Procedures TouchPad or Touch Button...
  • Page 86 Removal and Replacement Procedures 4. Lift up on the left side of the TouchPad 1 until it disengages from the top cover (Figure 5-9). 5. Swing the TouchPad up and back 2 and rest it on the top cover. 6. Disconnect the TouchPad cables from the system board 3. Figure 5-9.

  • Page 87: Switch Cover

    5.9 Switch Cover Switch cover 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the keyboard (Section 5.5). 3. Position the computer so the rear panel faces you. 4. Remove the two black M2 × 7 screws that secure the switch cover to the base enclosure (Figure 5-10).
  • Page 88 Removal and Replacement Procedures 7. Lift the switch cover up 1, slide it forward 2, and rest it on the keyboard (Figure 5-11). 8. Disconnect the left 3 and right speaker cables 4 from the system board. Figure 5-11. Removing the Switch Cover 9.

  • Page 89: Display

    5.10 Display Displays 14.1-inch, SXGA+, CTFT 14.1-inch, XGA, CTFT 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the keyboard (Section 5.5). 3. Remove the switch cover (Section 5.9). 4. Position the display so that it is vertical. Maintenance and Service Guide Removal and Replacement Procedures Display Spare Part Number Information...
  • Page 90 Removal and Replacement Procedures 5. Remove the black M2 × 7 screw that secures the display ground cable to the top cover 1 (Figure 5-12). 6. Disconnect the display video 2 and inverter cables 3 from the system board. Figure 5-12. Disconnecting the Display Cables 7.
  • Page 91 8. Remove the two black M2 × 7 screws 1 that secure the display to the base enclosure (Figure 5-13). 9. Lift the display straight up and remove it from the base enclosure 2. Figure 5-13. Removing the Display Reverse the above procedure to replace the display. Maintenance and Service Guide Removal and Replacement Procedures 5–19...

  • Page 92: Top Cover

    Removal and Replacement Procedures 5.11 Top Cover Top cover 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Keyboard (Section 5.5) b. Modem/NIC cover (Section 5.6) c. Switch cover (Section 5.9) d. Display (Section 5.10) 2.
  • Page 93 3. Remove the following screws: ❏ three black M2 × 7 screws from the front edge of the base enclosure 1 (Figure 5-14) ❏ two black M2 × 5 screws from the hard drive bay 2 ❏ three black M2 × 5 screws from the MultiBay 3 ❏...
  • Page 94 Removal and Replacement Procedures 5. Insert a flat blade screwdriver into the slot 1 above the docking connector to disengage the top cover from the I/O bracket (Figure 5-15). 6. Lift the top cover straight up and remove it from the base enclosure 2.

  • Page 95: System Board

    5.12 System Board System boards Mobile Intel Pentium III processor 1.066 GHz-M Mobile Intel Pentium III processor 866 MHz-M ✎ Make sure the PC Card eject buttons are fully depressed and there are no PC Card devices or space savers inserted into the PC Card slots before removing the system board.
  • Page 96 Removal and Replacement Procedures 3. Remove the tape that secures the modem cable to the system board 1 (Figure 5-16). 4. Remove the two silver 7.0-mm bushing guides 2 on each side of the docking connector that secure the system board to the base enclosure.
  • Page 97 ✎ When removing the system board, do not remove the following screws (Figure 5-17): four screws 1 that secure the processor bracket to the system board two screws 2 that secure the heat sink to the system board two screws 3 that secure the hard drive connector the system board four screws 4 that secure the PC Card assembly to the system board...
  • Page 98 Removal and Replacement Procedures 6. Use the MultiBay connector 1 to lift the system board and swing it up and to the right until it rests at a 45-degree angle (Figure 5-18). 7. Slide the system board out of the base enclosure at a 45-degree angle 2.

  • Page 99: Fan

    5.13 Fan 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Keyboard (Section 5.5) b. Modem/NIC cover (Section 5.6) c. RTC battery (Section 5.7) d. Touch button assembly (Section 5.8) e. Switch cover (Section 5.9) Display (Section 5.10) g.
  • Page 100 Removal and Replacement Procedures 3. Disconnect the fan cable from the system board (Figure 5-19). Figure 5-19. Disconnecting the Fan Cable 4. Turn the system board top side up with the rear panel facing you. 5–28 Maintenance and Service Guide...
  • Page 101 5. Remove the black M1 × 6 Phillips screw 1 and silver M2 × 6.5 Phillips screw 2 that secure the fan to the system board (Figure 5-20). 6. While holding the system board above the work surface, push the left side of the fan up 3 from the bottom of the system board.

  • Page 102: Dc-Dc Converter Board

    Removal and Replacement Procedures 5.14 DC-DC Converter Board DC-DC converter board 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Keyboard (Section 5.5) b. Modem/NIC cover (Section 5.6) c. RTC battery (Section 5.7) d. Touch button assembly (Section 5.8) e.
  • Page 103 3. Lift the left and right edges of the DC-DC converter board to disconnect the board from the system board (Figure 5-21). Figure 5-21. Removing the DC-DC Converter Board 4. Remove the DC-DC converter board. Reverse the above procedure to replace the DC-DC converter board.
  • Page 104 Removal and Replacement Procedures ✎ When handling the system board, be careful not to put stress on the I/O interface board 1 (Figure 5-22). The narrow profile of this board makes it susceptible to being damaged when mishandled. Do not remove the screw 2 that secures the I/O interface board to the system board or attempt to remove the I/O interface board.

  • Page 105: Modem Cable

    5.15 Modem Cable ✎ The modem cable is spared with the base enclosure. Modem cables are also included in the Miscellaneous Plastics Kit (spare part number 241439-001). 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
  • Page 106 Removal and Replacement Procedures 3. Lift the modem connector out of the base enclosure 1 and disengage the modem cable 2 from the alignment clips and tabs in the base enclosure (Figure 5-23). Figure 5-23. Removing the Modem Cable 4. Remove the modem cable. 5–34 Maintenance and Service Guide...
  • Page 107 Removal and Replacement Procedures ✎ When installing the modem cable, route the cable along the path indicated in Figure 5-24. Figure 5-24. Routing the Modem Cable in the Base Enclosure Maintenance and Service Guide 5–35...

  • Page 108: Specifications

    This chapter provides physical and performance specifications. Dimensions Height Width Depth Weight with 8-cell battery pack and optical drive in MultiBay with 8-cell battery pack and MultiBay weight saver Stand alone (Battery) power requirements Nominal operating voltage (Li ion) Average operating power Peak operating power Power in Suspend mode Power in Hibernation mode...
  • Page 109 Specifications Temperature Operating Nonoperating Relative humidity (non-condensing) Operating Nonoperating Altitude (unpressurized) Operating Nonoperating Shock Operating Nonoperating Vibration Operating Nonoperating ✎ Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures. 6–2 Table 6-1 Computer (Continued) 50°F to 95°F...
  • Page 110 Dimensions Height Depth Width Number of colors Contrast ratio Brightness Pixel resolution Pitch Format Configuration Backlight Character display Refresh Total power consumption Maintenance and Service Guide Table 6-2 14.1-inch XGA, TFT Display 8.46 in 11.22 in 14.10 in Up to 16.8 million 150:1 120 nits typical 1024 ×...
  • Page 111 Specifications User capacity per drive Drive height (with drive frame, in mm) Drive width (with drive frame, in mm) Interface type Seek times (typical read, including setting) Single track Average Full stroke User addressable sectors Logical configuration Cylinders Heads Sectors per track 1 GB = 1,000,000,000 bytes.
  • Page 112 Physical configuration Cylinders Heads Sectors per track Bytes per sector Buffer size Disk rotational speed (rpm) Transfer rate Interface max (MB/s) Media (Mb/s) 1 GB = 1,000,000,000 bytes. System capability may differ. Actual drive specifications may differ slightly. Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
  • Page 113 Specifications Diskette size Light Height Bytes per sector Sectors per track High density Low density Tracks per side High density Low density Read/write heads Average seek times Track-to-track (high/low) Average (high/low) Settling time Latency average 6–6 Table 6-4 Diskette Drive 3.5 inch On system 0.5 in...
  • Page 114 Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Cache buffer Data transfer rate Sustained, 16X Variable Normal PIO Mode 4 (single burst) Startup time Stop time Maintenance and Service Guide Table 6-5 CD-ROM Drive CD-ROM (Mode 1, 2, and 3) CD-XA ready (Mode 2, Form 1 and 2)
  • Page 115 Specifications Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Audio output level Cache buffer Data transfer rate Max 24X CD Max 8X DVD Normal IO Mode 4 (single burst) Startup time Stop time 6–8 Table 6-6 DVD-ROM Drive...
  • Page 116 Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full stroke Audio output level Cache buffer Data transfer rate Sustained, 16X Sustained, 4X CD-RW Normal PIO Mode 4 (single burst) Startup time Stop time Maintenance and Service Guide Table 6-7 CD-RW Drive .59 in...
  • Page 117 Specifications Dimensions Height Depth Width Weight Power supply (input) Operating voltage Operating current Operating frequency range Maximum transient Dimensions Length Width Depth Weight Energy Voltage Amp-hour capacity Watt-hour capacity Temperature Operating Nonoperating 6–10 Table 6-8 AC Adapter 1.10 in 1.42 in 3.70 in .39 lb 90 to 260 VAC RMS Nominal...
  • Page 118 Hardware DMA System Function DMA0 Available for audio DMA1 Entertainment audio DMA2 Diskette drive DMA3 ECP parallel port LPT1 DMA4 DMA controller cascading (not available) DMA5 Available for PC Card DMA6 Not assigned DMA7 Not assigned ✎ PC Card controller can use DMA 1, 2, or 5. Maintenance and Service Guide Table 6-10 System DMA...
  • Page 119 Specifications Hardware IRQ System Function IRQ0 System timer IRQ1 Keyboard controller IRQ2 Cascaded IRQ3 COM2 IRQ4 COM1 IRQ5 Audio (default)* IRQ6 Diskette drive IRQ7 Parallel port IRQ8 Real time clock (RTC) IRQ9 Infrared IRQ10 System use IRQ11 System use IRQ12 Internal point stick or external mouse IRQ13 Coprocessor (not available to any peripheral)
  • Page 120 I/O Address (hex) 000 - 00F 010 - 01F 020 - 021 022 - 024 025 - 03F 02E - 02F 040 - 05F 044 - 05f 062 - 063 065 - 06F 070 - 071 072 - 07F 080 - 08F 090 - 091 093 - 09F 0A0 - 0A1...
  • Page 121 Specifications System I/O Addresses (Continued) I/O Address (hex) 0A2 - 0BF 0C0 - 0DF 0E0 - 0EF 0F0 - 0F1 0F2 - 0FF 100 - 16F 170 - 177 178 - 1EF 1F0 - 1F7 1F8 - 200 202 - 21F 220 - 22F 230 - 26D 26E - 26...
  • Page 122 System I/O Addresses (Continued) I/O Address (hex) 2F0 - 2F7 2F8 - 2FF 300 - 31F 320 - 36F 370 - 377 378 - 37F 380 - 387 388 - 38B 38C - 3AF 3B0 - 3BB 3BC - 3BF 3C0 - 3DF 3E0 - 3E1 3E2 - 3E3...
  • Page 123 Specifications Size Memory Address 640 KB 00000000 - 0009FFFF 128 KB 000A0000 - 000BFFFF 48 KB 000C0000 - 000CBFFF 160 KB 000C8000 - 000E7FFF 64 KB 000E8000 - 000FFFFF 15 MB 00100000 - 00FFFFFF 58 MB 01000000 - 047FFFFF 58 MB 04800000 - 07FFFFFF 2 MB 08000000 - 080FFFFF...

  • Page 124: Connector Pin Assignments

    Connector Pin Assignments Signal Audio out Signal Audio in Maintenance and Service Guide Table A-1 Stereo Speaker/Headphone Table A-2 Microphone Signal Ground Signal Ground A–1...
  • Page 125 Connector Pin Assignments Signal Keyboard/mouse data1 Keyboard/mouse data2 Ground Signal Unused Ring A–2 Table A-3 Keyboard/Mouse Signal +5 VDC Keyboard/mouse clock1 Keyboard/mouse clock2 Table A-4 RJ-11 Modem Signal Unused Unused Unused Maintenance and Service Guide...
  • Page 126 Signal Transmit + Transmit - Receive + Unused Signal +5 VDC Data - Maintenance and Service Guide Table A-5 RJ-45 Network Interface Table A-6 Universal Serial Bus Connector Pin Assignments Signal Unused Receive - Unused Unused Signal Data + Ground A–3...
  • Page 127 Connector Pin Assignments Signal Carrier detect Receive data Transmit data Data terminal ready Signal ground A–4 Table A-7 Serial Signal Data set ready Ready to send Clear to send Ring indicator Maintenance and Service Guide...
  • Page 128 Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog Maintenance and Service Guide Table A-8 External Monitor Signal +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC2B clock Connector Pin Assignments A–5...
  • Page 129 Connector Pin Assignments Signal Strobe* Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 *Signal is active low. A–6 Table A-9 Parallel Signal Acknowledge* Busy Paper out Select Auto line feed*...
  • Page 130 Signal EBOXL AGND EBOXS1 AGND GREEN AGRD BLUE AGND VSYNC HSYNC DDC DAT DDC CLK INDEX Maintenance and Service Guide Connector Pin Assignments Table A-10 Docking Signal RDATA TRK0 WDATA WGATE STEP POWER ON SYS RESET DSKCHG +5 V (VDD) AUGND XA2/L IN XA3/R IN...
  • Page 131 Connector Pin Assignments Signal AUGND XA0/L OUT XSD/MIC SN XA1/R OUT EXPCLK2 +3.3 V EXPCLK0 +5 V (8051VCC) EXPLCK EBOXS2 EBOXL EBOXL/GND A–8 Table A-10 Docking (Continued) Signal SRDY EBOXS1/GND RI1 EX SLCT LD0 PE LD1 ACK LD2 BUSY LD3 STRB LD4 ALF LD5 INIT LD6...
  • Page 132 Signal PDATA1 LD9 PDATA2 LD10 PDATA3 LD11 PDATA4 LD12 PDATA5 LD13 PDATA6 LD14 PDATA7 LD 15 ERROR LCLK RXD1 LVREQ TXD1 LCREQ RTS1 LEN CTS1 LIIC CLK Maintenance and Service Guide Table A-10 Docking (Continued) Signal DRT1 LIIC DAT DSR1 EX DCD1 EX 12C DATA 12C CLK...
  • Page 133 Connector Pin Assignments Signal PS2 VCC SERIRQ PS2 CLK EXPREQ AD[29] AD[31] AD[30] AD[28] AD[26] AD[24] AD[22] AD[20] AD[18] AD[16] A–10 Table A-10 Docking (Continued) Signal AD[15] AD[13] AD[11] AD[09] AD[06] AD[04] AD[02] AD[00] FRAME TRDY STOP Maintenance and Service Guide...

  • Page 134: B Power Cord Set Requirements

    Power Cord Set Requirements 3-Conductor Power Cord Set The computer’s wide range input feature permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC. The power cord set received with the computer meets the requirements for use in the country where the equipment is purchased.

  • Page 135: Country-Specific Requirements

    Power Cord Set Requirements Country-Specific Requirements 3-Conductor Power Cord Set Requirements Country Australia Austria Belgium Canada Denmark Finland France Germany Italy Japan The Netherlands Norway Sweden Switzerland United Kingdom United States Notes 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country...
  • Page 136 2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration. 3. The appliance coupler, flexible cord, and wall plug must bear a “T”...

  • Page 137: Screw Listing

    Screw Listing This appendix provides specification and reference information for the screws used in the computer. All screws listed in this appendix are available in the Miscellaneous Screw Kit, spare part number 241440-001. Maintenance and Service Guide C–1...
  • Page 138 Where used: 1 One screw that secures the keyboard to the base enclosure (documented in Section 5.5) 2 Three screws that secure the top cover to the base enclosure (documented in Section 5.11) C–2 Table C-1 Torx T8 M2 × 7.0 Screw Color Black Length...
  • Page 139 Torx T8 M2 × 7.0 Screw (Continued) Where used: 1 Two screws that secure the switch cover to the base enclosure (documented in Section 5.9) 2 Two screws that secure the display to the base enclosure (documented in Section 5.10) Maintenance and Service Guide Table C-1 Color...
  • Page 140 Torx T8 M2 × 7.0 Screw (Continued) Where used: One screw that secures the display ground cable to the base enclosure (documented in Section 5.10) C–4 Table C-1 Color Length Black 7.0 mm Maintenance and Service Guide Head Thread Width 2 mm 4.0 mm...
  • Page 141 Where used: One screw that secures the fan to the system board (documented in Section 5.13) Maintenance and Service Guide Table C-2 Phillips M1 × 6.0 Screw Color Black Length Thread 6.0 mm 1 mm Head Width 4.0 mm C–5...
  • Page 142 Where used: One screw that secures the fan to the system board (documented in Section 5.13) C–6 Table C-3 Phillips M2 × 6.5 Screw Color Silver Length Thread 6.5 mm 2 mm Maintenance and Service Guide Head Width 4.0 mm...
  • Page 143 Where used: 1 Two screws that secure the memory expansion compartment cover to the base enclosure (refer to the Hardware Guide included with the computer for installation procedure) 2 Two screws that secure the top cover to the base enclosure (documented in Section 5.11) 3 Three screws that secure the top cover to the base enclosure (documented in Section 5.11)
  • Page 144 Torx T8 M2 × 5.0 Screw (Continued) Where used: Three screws that secure the system board to the base enclosure (documented in Section 5.12) C–8 Table C-4 Color Length Silver 5.0 mm Maintenance and Service Guide Head Thread Width 2 mm 4.0 mm...
  • Page 145 Where used: Two bushing guides that secure the system board to the base enclosure (documented in Section 5.12) Maintenance and Service Guide Table C-5 7.0 mm × 20.0 Bushing Guide Color Silver Length Thread 20 mm Head Width 7.0 mm C–9...
  • Page 146 AC adapter spare part numbers 3–13 specifications 6–10 Advanced Menu, Computer Setup 2–5 aircraft power adapter, spare part number 3–14 audio troubleshooting 2–25 auto power adapter/charger, spare part number 3–14 base enclosure illustrated 3–6 spare part number 3–7 battery compartment 1–15 battery components light 1–7 release latch 1–15...
  • Page 147 Index Computer Setup Advanced Menu 2–5 File Menu 2–3 overview 2–1 Security Menu 2–4 computer specifications 6–1 connector pin assignments headphone jack A–1 keyboard connector A–2 microphone jack A–1 modem jack A–2 monitor connector A–5 mouse connector A–2 network interface jack A–3 parallel connector A–6 RJ-11 jack A–2 RJ-45 jack A–3...
  • Page 148 embedded numeric keypad 1–11 external battery charger, spare part number 3–14 external diskette drive cable 3–9 external monitor connector 1–9 external MultiBay cradle 3–9 illustrated 3–4 location 1–14 removing 5–27 spare part number 3–5 5–27 features 1–1 feet illustrated 3–8 locations 5–5 File Menu, Computer Setup 2–3...
  • Page 149 Index mass storage devices, part numbers 3–9 memory expansion board, spare part numbers 3–14 memory expansion compartment cover illustrated 3–8 location 1–15 memory map specifications 6–16 Microdrive, part numbers 3–11 microphone jack location 1–7 pin assignments A–1 Miscellaneous Plastics Kit components 3–8 spare part number 3–5 modem...
  • Page 150 packing precautions 4–4 parallel connector location 1–9 pin assignments A–6 password, clearing 1–4 PC Card eject buttons 1–9 slot space savers 3–8 slots 1–9 plastic parts 4–2 pointing device, troubleshooting 2–29 pointing stick 1–13 power jack 1–8 light 1–7 switch 1–13 troubleshooting 2–12 power cord 3-conductor set B–1...
  • Page 151 Index speakers disconnecting 5–16 location 1–13 specifications AC adapter 6–10 battery 6–10 CD-ROM drive 6–7 CD-RW drive 6–9 computer 6–1 diskette drive 6–6 display 6–3 DMA 6–11 DVD-ROM drive 6–8 hard drive 6–4 I/O addresses 6–13 interrupts 6–12 memory map 6–16 Standby button 1–13 static shielding materials 4–7 stereo line-out jack 1–7...
  • Page 152 universal serial bus (USB) connector location 1–9 pin assignments A–3 vent 1–9 1–14 Maintenance and Service Guide video troubleshooting 2–16 volume control buttons 1–7 Windows application key 1–11 Windows logo key 1–11 workstation precautions 4–5 Index Index–7...

Table of Contents
