3. Remove the following screws:
❏
❏
✎
The Evo Notebook N620c contains two TM2.5 × 7.0 screws in
the hard drive bay.
❏
❏
❏

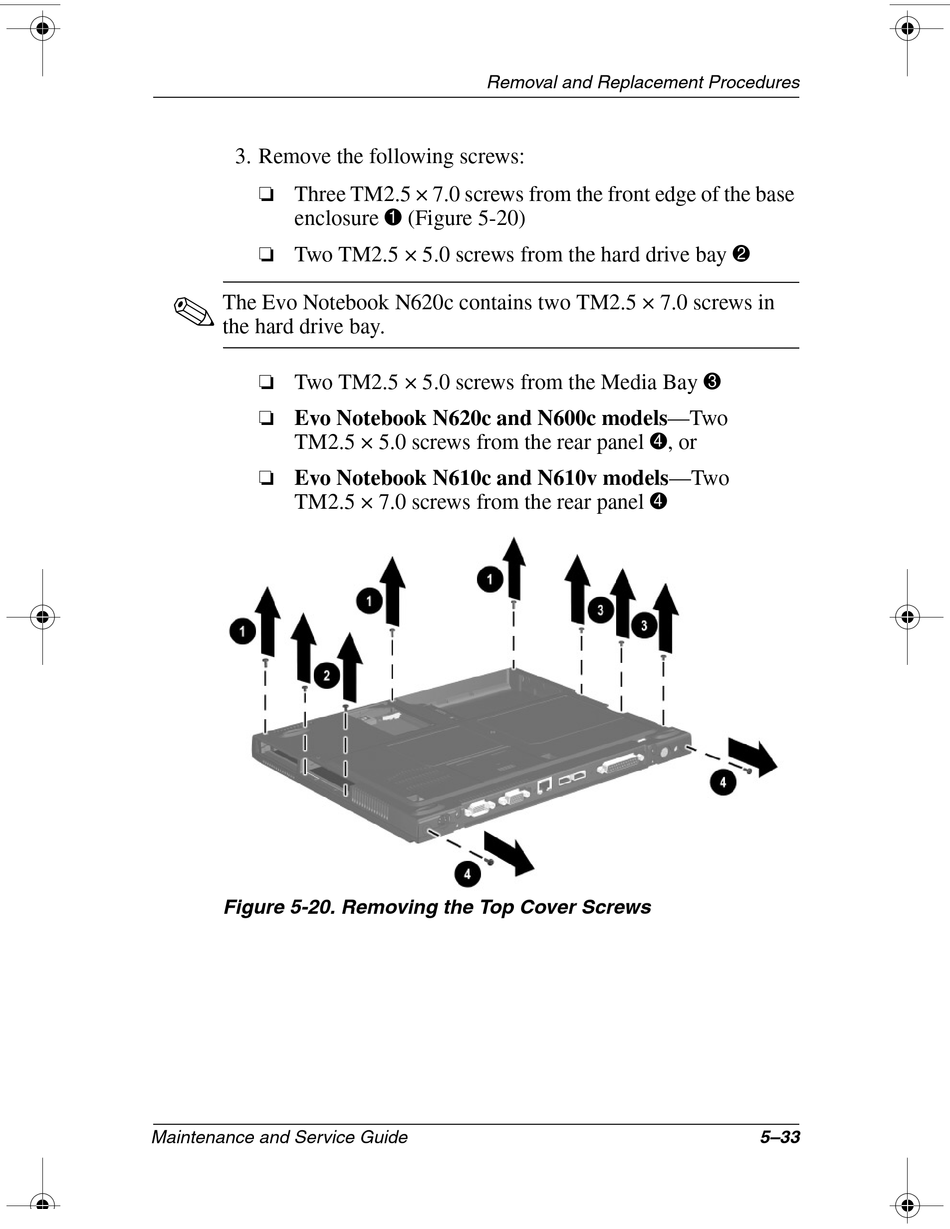

Figure 5-20. Removing the Top Cover Screws
Maintenance and Service Guide
Three TM2.5 × 7.0 screws from the front edge of the base
enclosure 1 (Figure 5-20)
Two TM2.5 × 5.0 screws from the hard drive bay 2
Two TM2.5 × 5.0 screws from the Media Bay 3
Evo Notebook N620c and N600c models—Two
TM2.5 × 5.0 screws from the rear panel 4, or
Evo Notebook N610c and N610v models—Two
TM2.5 × 7.0 screws from the rear panel 4
Removal and Replacement Procedures
5–33
