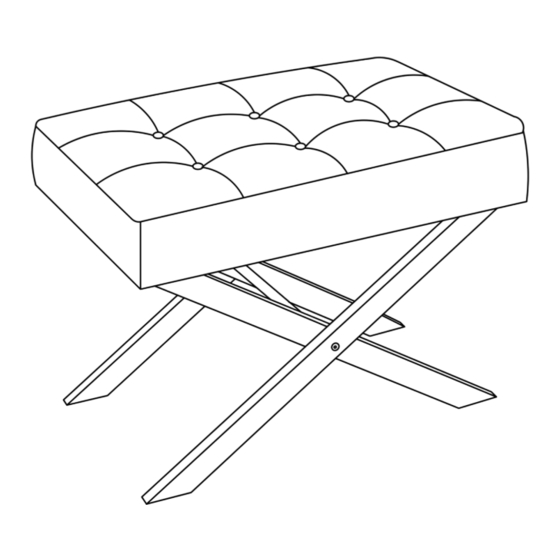

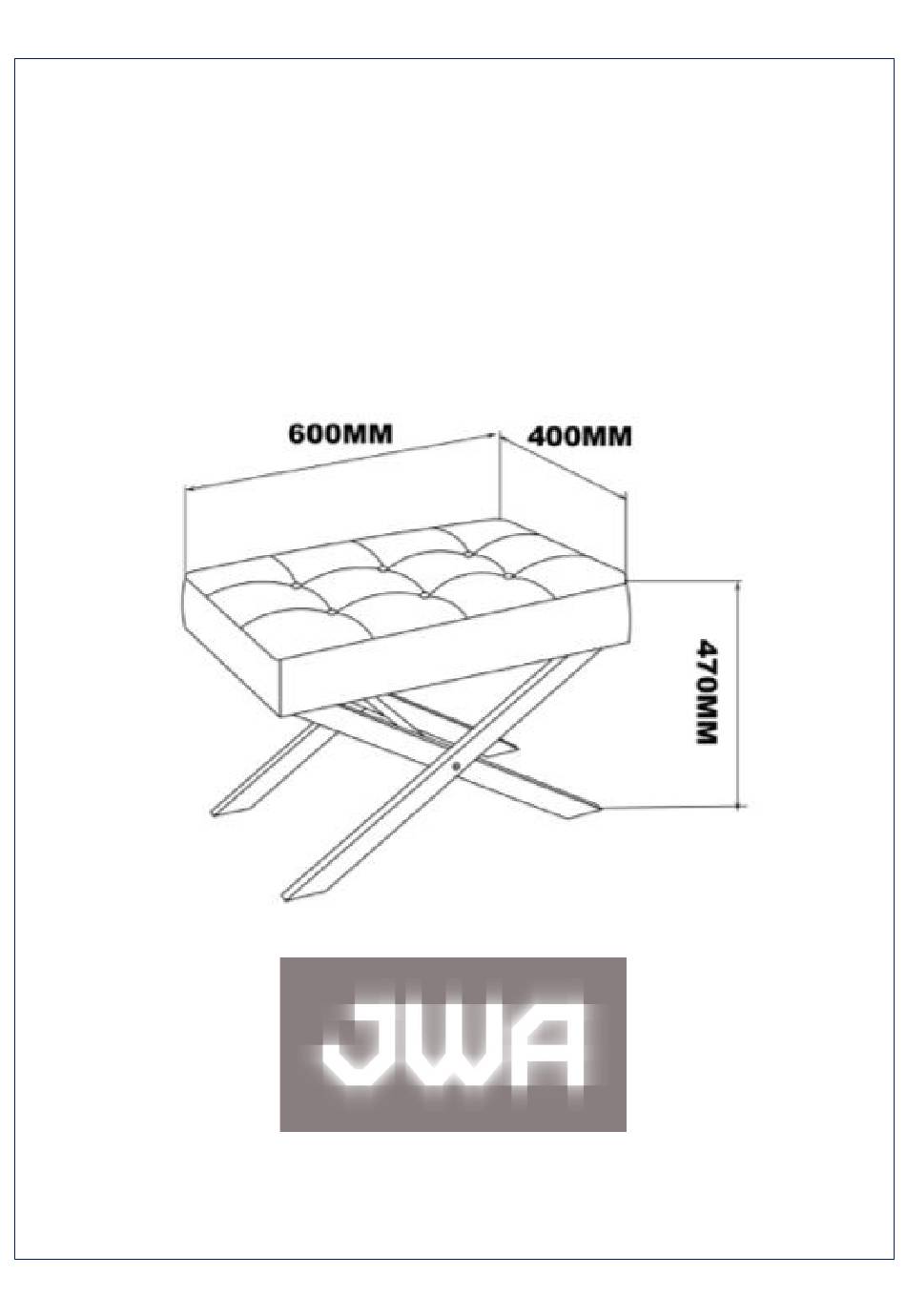

- Page 1 ASSEMBLY INSTRUCTION RESTON Foot Stool 68024 INSERT PAGE NUMBER Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST A x2 B x16 C x16 D x18 E x1 M8*20MM M8*60MM Part Description Legs Spreader Bar Bench... - Page 4 STEP 1: • Prepare a floor with a blanket or cardboard. • Assemble the 2x legs(1), as shown below, with one in front of the other. • Thread a bolt(A), through a spring washer(D). • Screw on the spreader bar(2), as show below, Fasten with Allen Key(E).
- Page 5 • Repeat for the end, as shown below. You should have 2 inside legs closest to each other. E A D STEP 2: • Prepare 16 bolt kits by threading bolt(B) through spring washer(D), then washer(C). • Place the leg structure onto the seat(3) as shown below. •...
- Page 6 STEP 3: • Stand the stool up the right way up on a level surface. • Push down on the stool until it levels out. Do not lean beyond your own balance. • Once level, flip the bench back over again (upside down). •...
