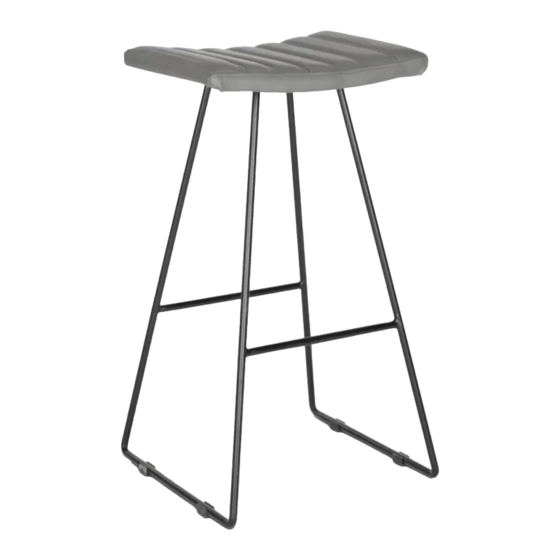

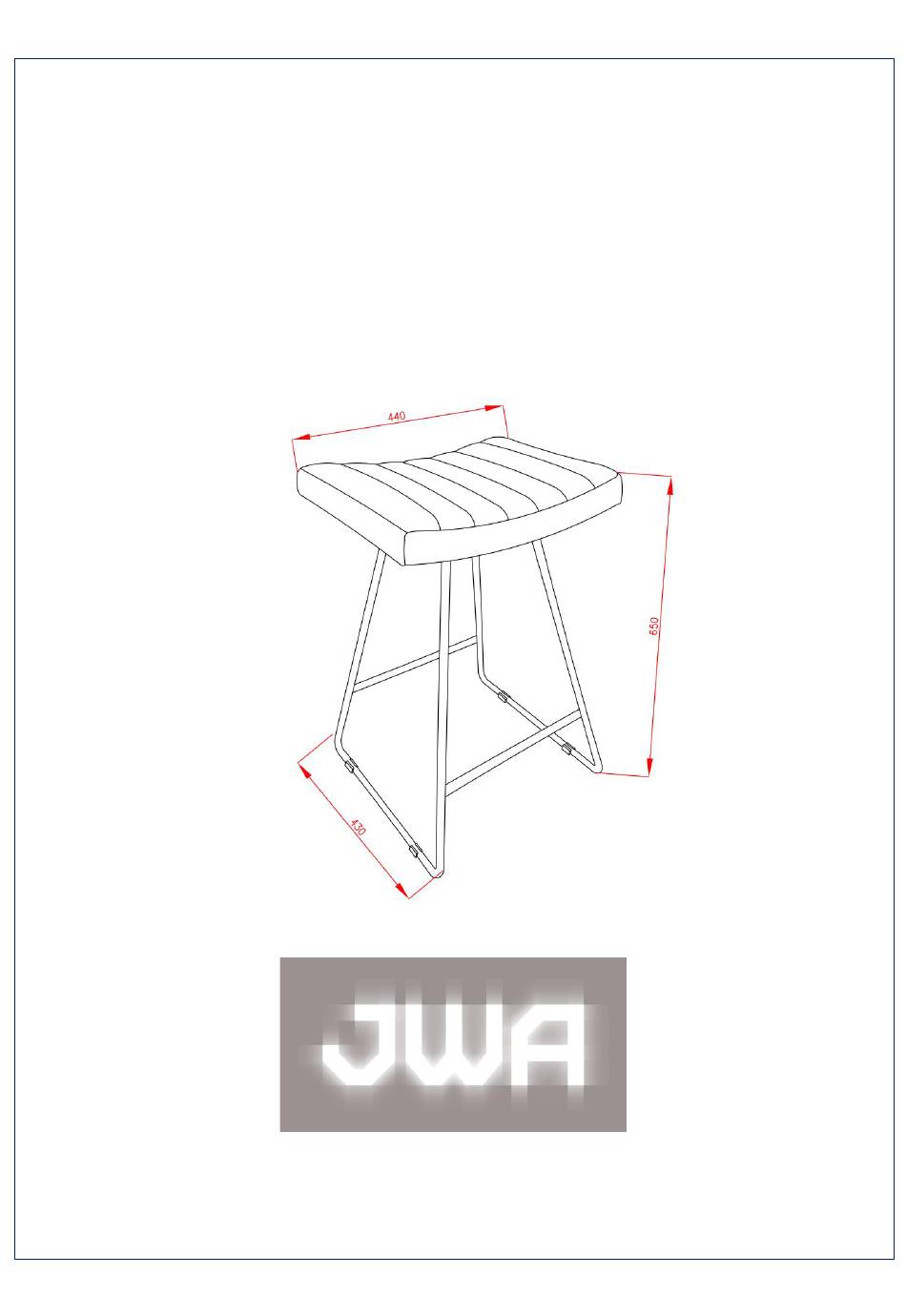

- Page 1 ASSEMBLY INSTRUCTION MADEIRA Bar Stool 68032 INSERT PAGE NUMBER Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST M6X19 M6X12 M6X20 Seat Legs Stretcher bars Connector...
- Page 4 STEP 1: Prepare a surface with a protective blanket or cardboard. • Insert the 2 stretcher bars(3) to one of the legs(2), as shown below. • Secure with 2x bolt(C) at each connecting point, fasten with Allen key(B). • Tighten only until the bolt is a little firm in the thread, do not fasten •...
- Page 5 STEP 3: Lay the seat(1) on a surface, with the bottom facing up. • Prepare 4 bolt D sets, by threading bolt(D) through washer(A). • Place the leg structure onto the seat as show below. • Secure with 4x bolt D sets, fasten with Allen Key(B). •...
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 PRODUCTCARE: If the glass is chipped or broken, stop using the produ ct and consult place of purchase WARNING: .Donot place very hotor cold items on the glass surface unless adequ atelythick table mats are used to prevent such items coming in contact W ith theg lass DOnotsitorstandupontheqlasssurface DOnotusetheglassasachoppingSurface DOnotstriketheglassWithhardorpointeditemS...
