How to reverse the SD card port of the
CAVS 205G USB/Plus Karaoke player
This instruction shows how to modify the SD card port of a CAVS 205G USB or
CAVS 205G Plus karaoke player so that an SD card can be connected internally
instead of externally. This approach is particularly useful for safeguarding the SD
card when renting out or catering the karaoke player, ensuring it remains secure
from customer access.

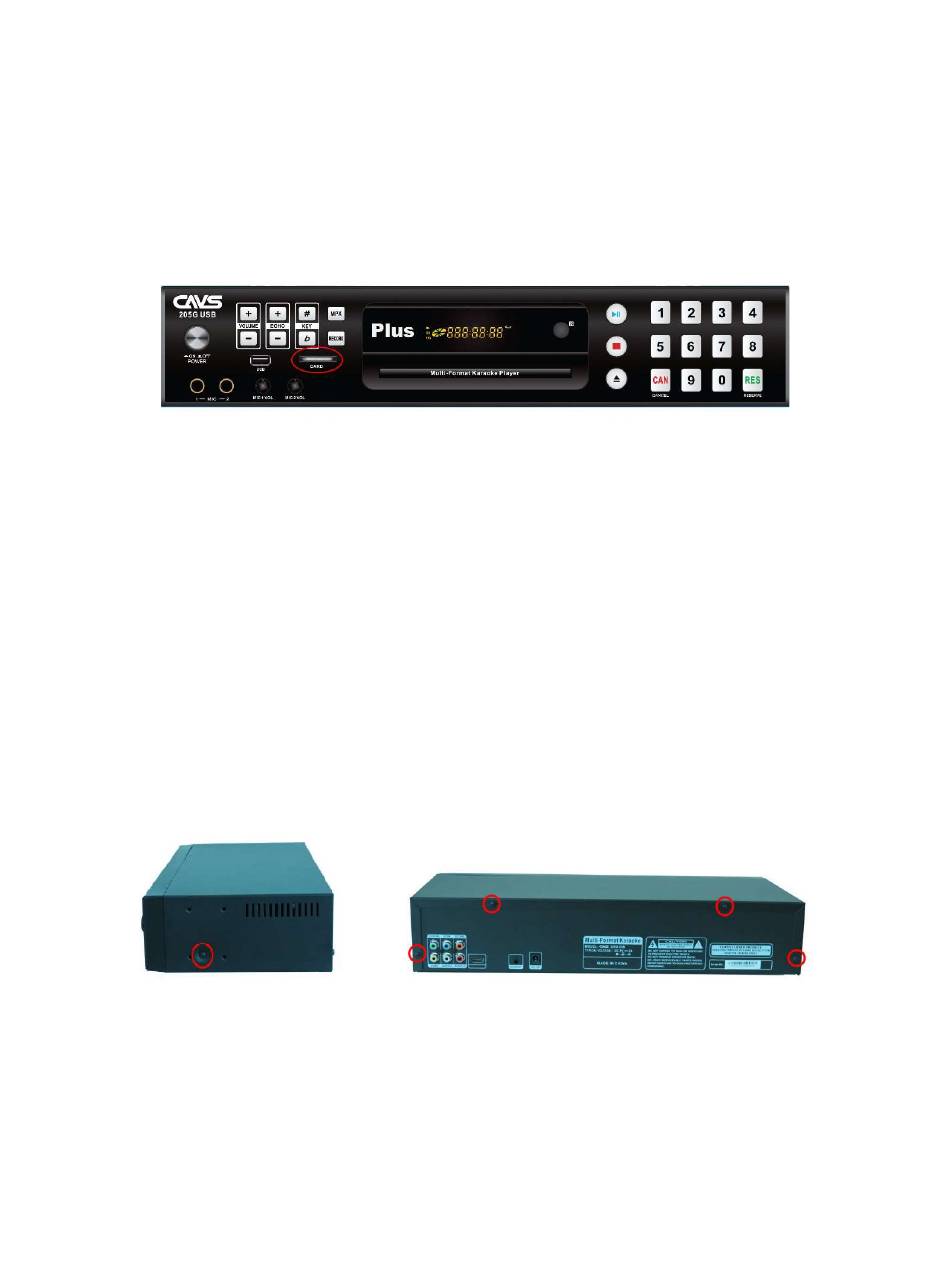

To begin, remove the six screws holding the top cover of the 205G player: one on
each side and four on the back. Use a Phillips screwdriver to take out the screws.
Lift the top cover from the back and gently pull it away from the player.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CAVS 205G USB
Summary of Contents for CAVS 205G USB
- Page 1 How to reverse the SD card port of the CAVS 205G USB/Plus Karaoke player This instruction shows how to modify the SD card port of a CAVS 205G USB or CAVS 205G Plus karaoke player so that an SD card can be connected internally instead of externally.
- Page 2 Inside, you'll find two screws securing the SD card port to the front panel. Undo these screws, allowing the SD card port to slide out from the front panel. Use double-layer tape or velcro tape to secure the loosened SD card port to the bottom of the chassis, ensuring it is ready for internal connection.
- Page 3 The grooves in the screw holes of the chassis can easily lose their grip, resulting in the screws spinning indefinitely. For operation of the CAVS 205G Plus or CAVS 205G USB karaoke player, refer to the following documents: CAVS 205G Plus Karaoke Player User Manual CAVS 205G USB Karaoke Player User Manual For questions and support, contact CAVS USA Inc.
