PowerBox Systems iGyro SAT Instruction Manual page 5

b) Test-flown model
- Assigning the gyro outputs
- Setting the installed orientation
- Learning the centre and end-points
- Adjusting the iGyro in flight using the gain adjustor
- Fine-tuning the individual axes, if necessary
- Storing the established gain value on a switch
As you can see, no adjustments of any kind are required at the iGyro SAT or the
primary device in order to enter the basic model settings, or to test-fly the model
without the gyro. For this reason we start the set-up procedure with assigning the
gyro channels in the Telemetry menu:
3.1 CREATING A TELEMETRY WIDGET

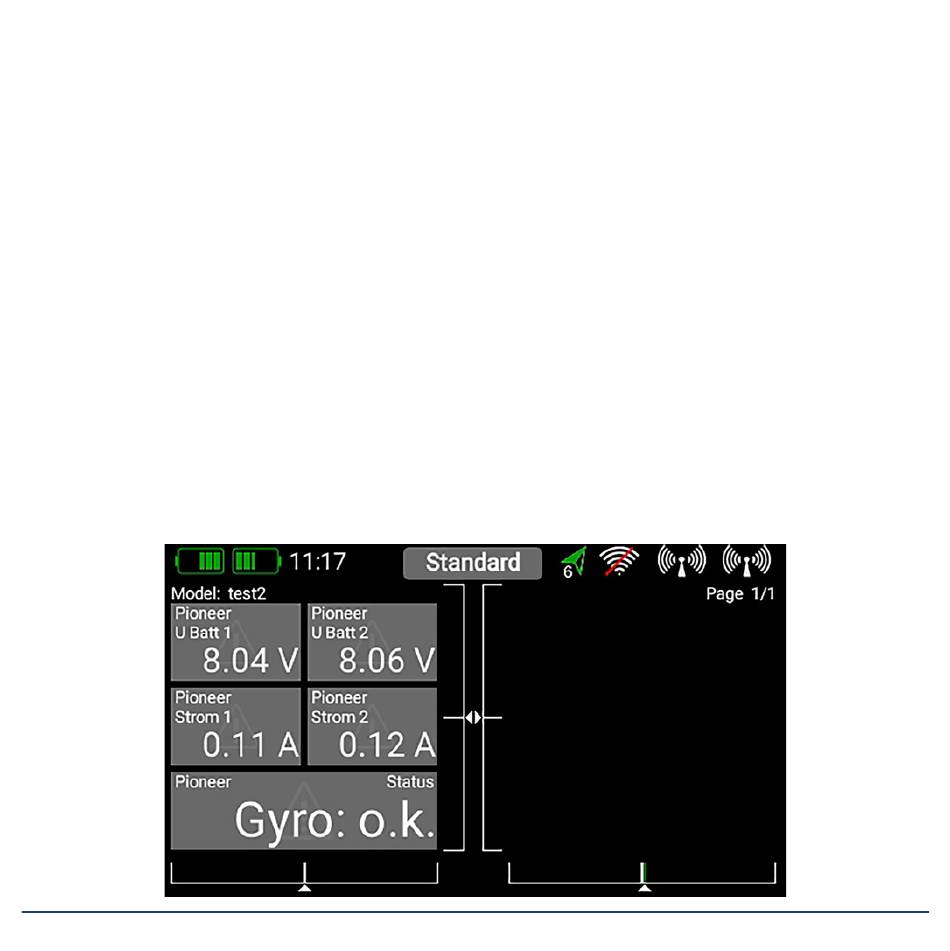

If you have not already done so, the first step is to create a Telemetry widget for the
primary device. This widget provides access to the Telemetry menu:
