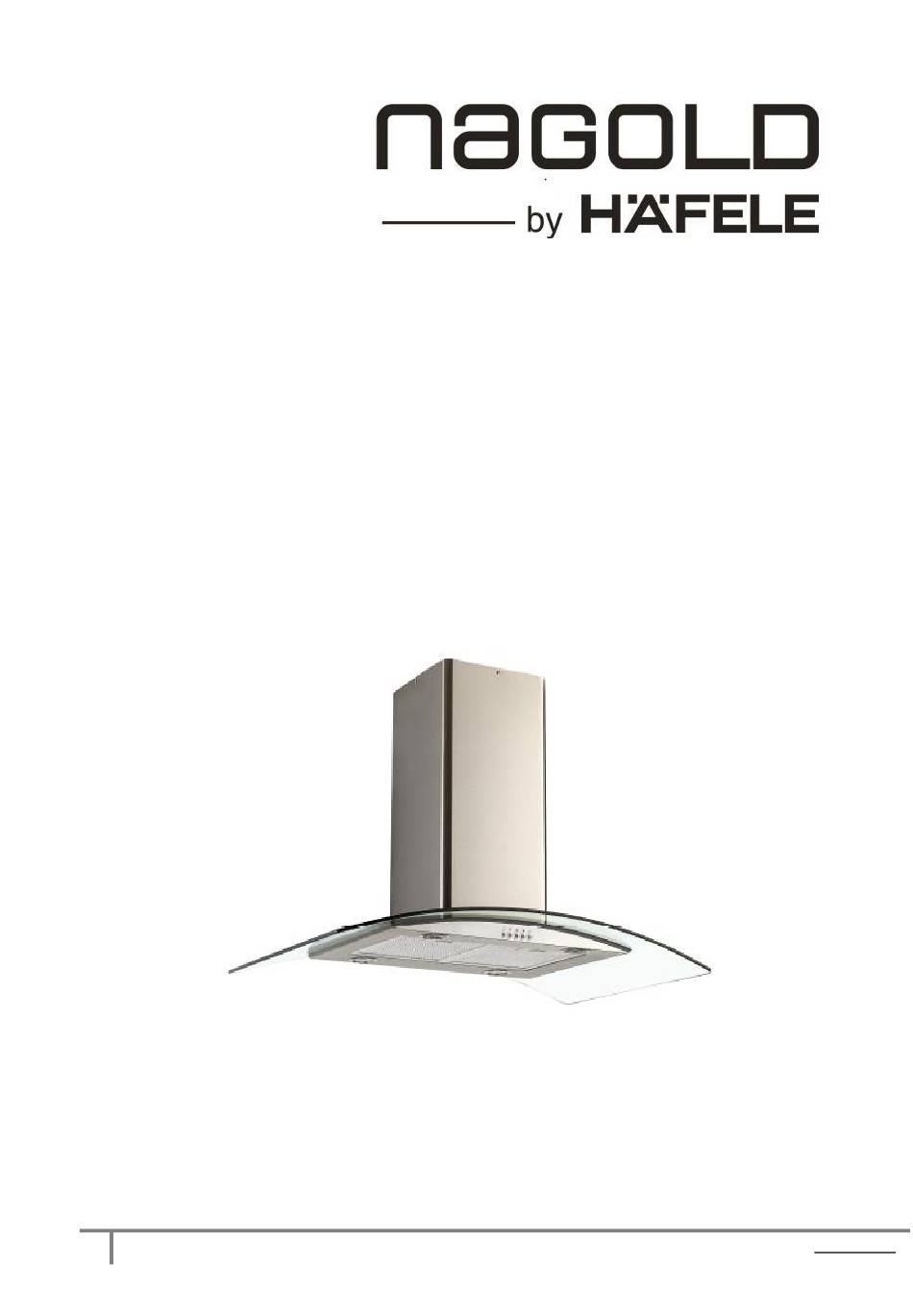

INSTRUCTION MANUAL
Island Cooker hood – CROWN ISOLA 90
Hafele Article Number (538.81.733)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nagold CROWN ISOLA 90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Häfele nagold CROWN ISOLA 90

  • Page 1 Hafele Nagold Appliances INSTRUCTION MANUAL Island Cooker hood – CROWN ISOLA 90 Hafele Article Number (538.81.733)
  • Page 2: Table Of Contents

    Hafele Nagold Appliances CONTENT 1……………………………………………………………..Notice 2………………………………………………………………Feature 3…………………………………………………………..Installation 4………………………………………………..Notice of installation 5……………………………………………………...Safety Warning 6……………………………………………………………..Operation 7…………………………………………………………Maintenance 8………………………………………………….…Troubleshooting...
  • Page 3: Notice

    Hafele Nagold Appliances NOTICE Thank you for choosing our cooker hood. Please read the instruction manual carefully before use. The installation work must be undertaken by a qualified and competent fitter. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.
  • Page 4: Feature

    Hafele Nagold Appliances FEATURE 1. The cooker hood uses high quality materials, and is made with a streamlined design. 2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.
  • Page 5: Installation

    Hafele Nagold Appliances INSTALLATION Installation dimension 1. The ceiling must can bear at least 40kgs weight, and the thickness of the ceiling must be ≧30MM, see Image 1, drill 1*170mm round hole in the ceiling. 2. According to the hanging board, drill 12 holes in the ceiling, see Image 2, 12pcs of ST6*40mm big flat screws will be used to fix the hanging board on the ceiling, and then 8pcs of M4*10 screws and M4 nut with gasket will be used to connect the angle iron into the hanging board, see Image 1, calculated the...
  • Page 6: Notice Of Installation

    Hafele Nagold Appliances ⑥ Put the extensible pipe on the outlet; after ensure all the things ok, put down the hook, take from the external chimney, all the installation is finished, see Image 9. NOTICE OF INSTALLATION...
  • Page 7: Safety Warning

    Hafele Nagold Appliances 1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust. 2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. 3.
  • Page 8: Operation

    Hafele Nagold Appliances  Never let the children operate the machine  The cooker hood is for home use only, not suitable for barbecue, Roast shop and other commercial purpose.  Please ask the technical person to do the assembling. ...
  • Page 9: Maintenance

    Hafele Nagold Appliances 1. Turn on the power; the buzzer will buzz five times. The sound shows that the appliance is powered. 2. Push the low button, the indicating light 1 on, the buzzer will buzz once, and the motor runs at low speed. Push it again and the motor will stop. 3.
  • Page 10: Troubleshooting

    Hafele Nagold Appliances 1. The cleaning of the carbon grease filter mesh The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins.
  • Page 11 Hafele Nagold Appliances Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor The motor jammed bearing damaged Replace motor does not work The internal with of motor off or a bad Replace motor smell from the motor Beside the above mentioned, check the following:...
