Henderson ROOMFLEX 40 Fitting Instructions Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

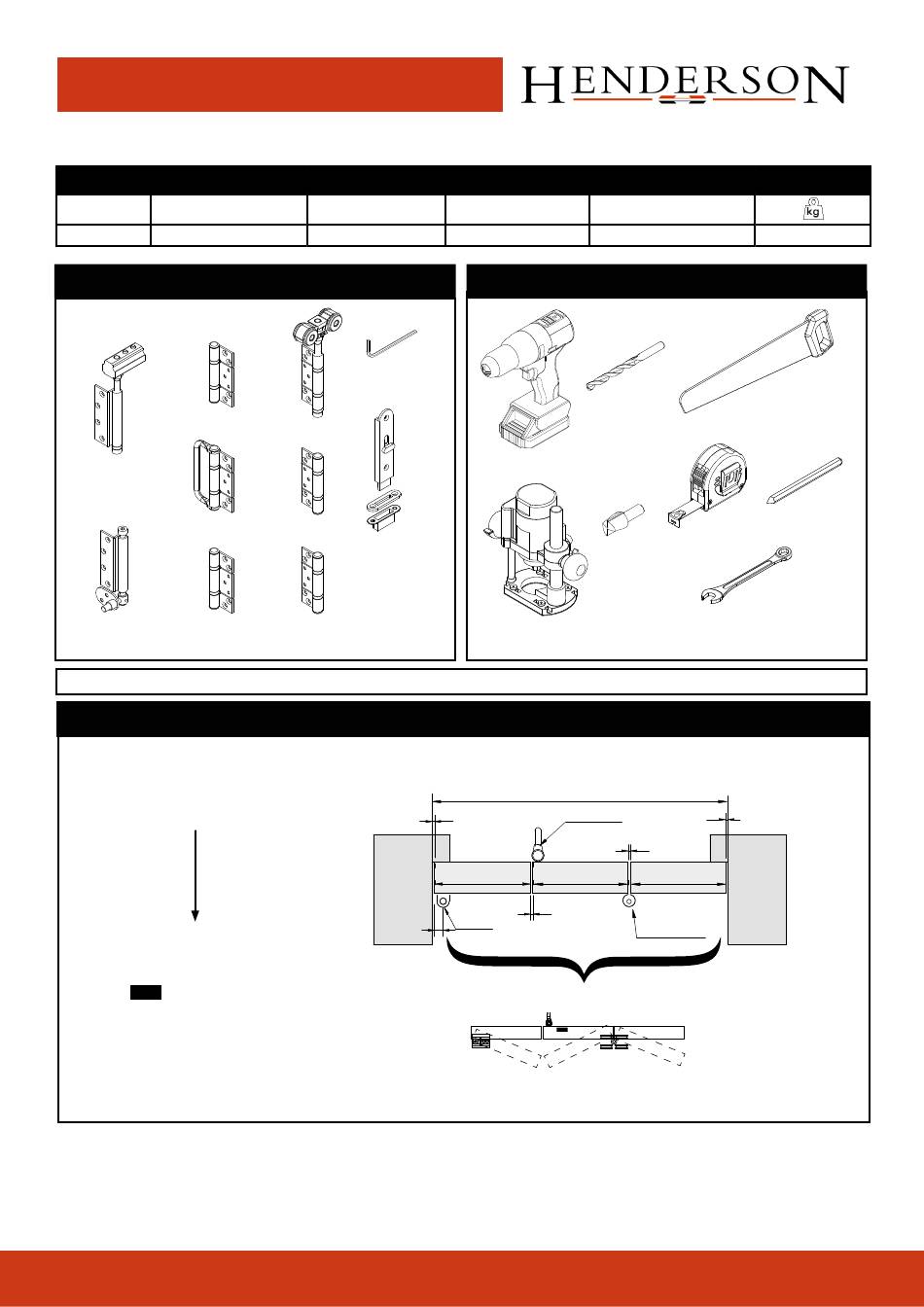

MIDSET HINGE
ROOMFLEX 40
FB110 FLUSH BOLT
(X3)
Kit Short Code
Door Configuration
HRP3/0
3+0 KIT CONTENTS
Top Pivot x 1
Bottom Pivot x 1
Handle Set x 1
It is recommended that a light smear of general purpose grease is applied to all bolts prior to assembly.
Folding Direction
= Flush bolt
FITTING INSTRUCTIONS
KIT AND DOOR SPECIFICATION
Max. Door Height
3+0
3000mm
2, 3 & 5mm
Intermediate
Offset Hinge
Hinge Hanger
Set x 1
SYSTEM OVERVIEW AND DOOR CONFIGURATIONS
Max. Door Width
838mm
Flush Bolt
Set x 1
DIAGRAM 1
FINISHED OPENING WIDTH (W)
6
DOOR 1
JAMB
TOP PIVOT
11
1
Max. Door Thickness
35-44mm
TOOLS REQUIRED
12mm
24mm
OFFSET HINGE
6
3
DOOR 2
DOOR 3
3
INTERMEDIATE
HANGER
HINGE
3
40kg
13mm
JAMB

Advertisement

loading
Need help?

Need help?

Do you have a question about the ROOMFLEX 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Henderson ROOMFLEX 40

Summary of Contents for Henderson ROOMFLEX 40

  • Page 1 MIDSET HINGE ROOMFLEX 40 FITTING INSTRUCTIONS FB110 FLUSH BOLT (X3) KIT AND DOOR SPECIFICATION Kit Short Code Door Configuration Max. Door Height Max. Door Width Max. Door Thickness HRP3/0 3000mm 838mm 35-44mm 40kg 3+0 KIT CONTENTS TOOLS REQUIRED 2, 3 & 5mm...

  • Page 2: Frame Dimensions

    Note: Ensure opening is square, level and all load bearing areas are suitable for weight of system. Ensure there is sufficient strength in structure above the opening to take concentrated weight of doors when open. Roomflex 40 provides +/- 5mm of horizontal adjustment. Ensure doors are measured accurately prior to installation.
  • Page 3 SECURE TRACK POSITION TIMBER HEADERS AS SLIDE PIVOT INTO PLACE. PER THE BELOW. BLOCK FLUSH TO FRAME. DT - 6 SECURE IN PLACE. INSTALLATION 1. Ensure that you have all the required parts. Unpack the com- ponents and identify the parts. Lay the parts on the ground in the same con guration as they will be when installed.
  • Page 4 FLUSH BOLT ROUTING DETAIL ROUTE FLUSH BOLTS (SEE DIAMGRAM 1 FOR LOCATION). SECURE FLUSH BOLTS USING 30MM SCREWS PROVIDED. DOORS AND HINGES OVERVIEW DIAGRAM 4 20mm 20mm JAMB REBATE WRAPPED HANGER HINGE SET JAMB REBATE INTERMEDIATE HANGER SET JAMB JAMB 110mm JAMB JAMB...
  • Page 5 FIX OFFSET HINGE TO DOOR 1 (SEE DIAGRAM 4 FOR LOCATION). O set Hinge Handle Set Centre JAMB REBATE Door GE SET JAMB REBATE INTERMEDIATE Height HANGER SET JAMB JAMB JAMB JAMB PIVOT SET PIVOT SET PIVOT SET RAISE DOOR 1 5MM FROM FLOOR. SLIDE STRAP BOLT THROUGH OFFSET H UNSCREW NUT, SLIDE STRAP BOLT...

  • Page 6: Height Adjustment

    TOLERANCES: LINEAR: ANGULAR: 20mm NAME SIGNATURE DATE TITLE: DRAWN CHK'D APPV'D MATERIAL: Roomflex 40 - General Arrangement DWG NO. WEIGHT: SCALE:1:20 SHEET 1 OF 1 O set Hinge O set Hinge Handle Set Handle Set Intermediate Hanger Hinge Set Centre...
  • Page 7 Use hinge handle to folding doors bolts bolts pull Door 1 and Door 2 into fully closed position P C HENDERSON LTD UK SALES IRELAND SALES INTERNATIONAL SALES 370972 Durham Road, Bowburn, t: +44 (0) 191 377 7345 t: +353 (0)1 643 6816...
