Datalogic Reader Matrix-1000 Reference Manual

Datalogic Reader Matrix-1000 Reference Manual

Datalogic scanning ccd reader reference manual
Hide thumbs Also See for Reader Matrix-1000:
Table of Contents

Advertisement

Quick Links

MATRIX-1000™
Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reader Matrix-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Reader Matrix-1000

Summary of Contents for Datalogic Reader Matrix-1000

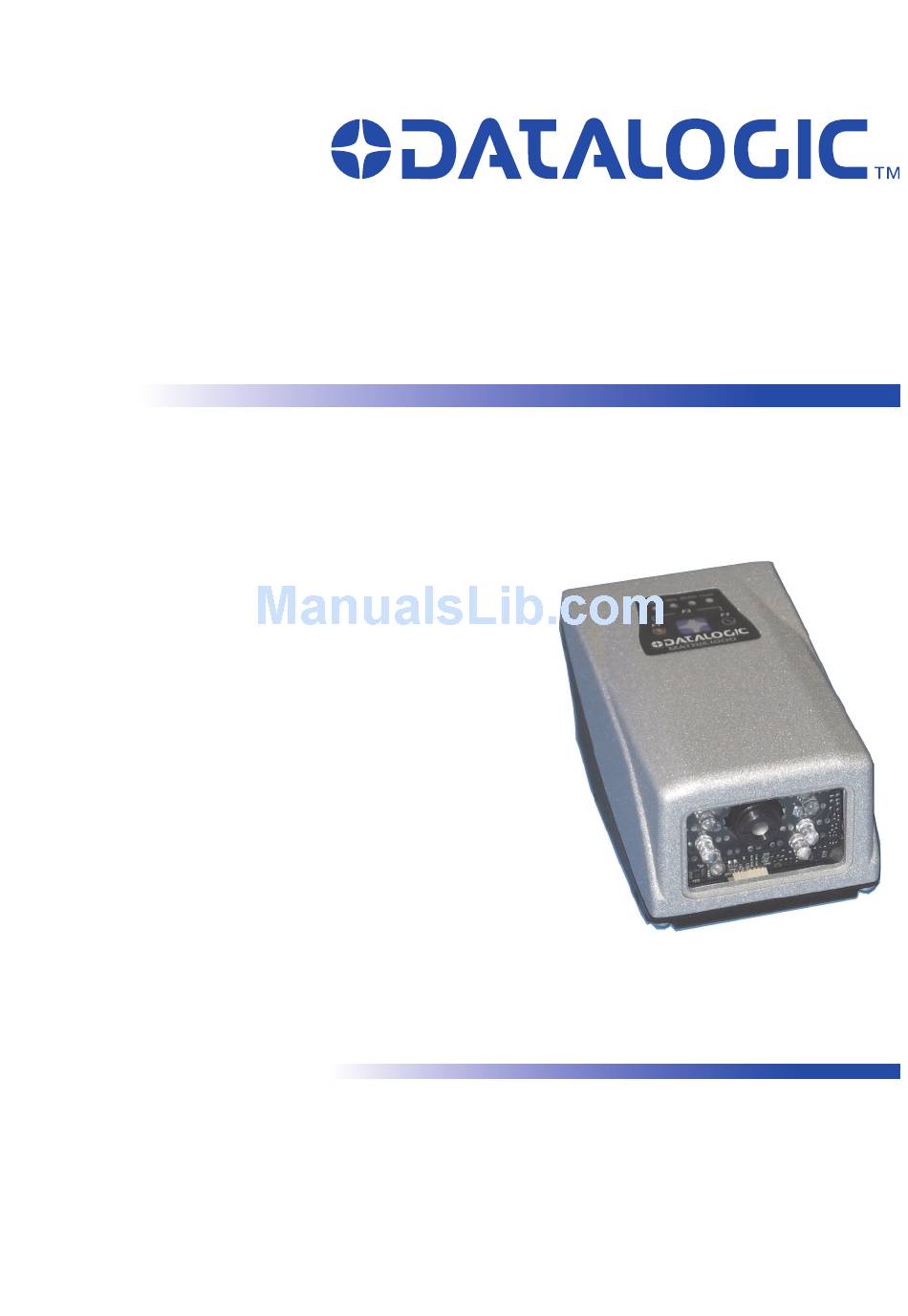

  • Page 1 MATRIX-1000™ Reference Manual...
  • Page 2 Datalogic Automation S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara di Reno Bologna - Italy Matrix-1000™ Reference Manual Ed.: 05/2007 ALL RIGHTS RESERVED Datalogic reserves the right to make modifications and improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

  • Page 3: Table Of Contents

    CONTENTS REFERENCES ... v Conventions... v Reference Documentation ... v Service and Support ... v Patents... v Compliance ... vi EMC Compliance... vi Power Supply... vi LED Class... vi CE Compliance... vi WEEE Compliance ... vi GENERAL VIEW ... vii RAPID CONFIGURATION ...
  • Page 4 4.4.2 Calibration... 43 Image Capture and Decoding... 47 Statistics ... 47 MAINTENANCE ... 48 Cleaning... 48 TROUBLESHOOTING ... 49 General Guidelines ... 49 TECHNICAL FEATURES... 52 GLOSSARY... 54 INDEX... 57...

  • Page 5: References

    REFERENCES CONVENTIONS This manual uses the following conventions: "User" refers to anyone using a Matrix-1000™ reader. "Reader" refers to the Matrix-1000™ reader. "You" refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a Matrix-1000™ reader. REFERENCE DOCUMENTATION For further details refer to: the VisiSet™...

  • Page 6: Compliance

    COMPLIANCE For installation, use and maintenance it is not necessary to open the reader. EMC COMPLIANCE In order to meet the EMC requirements: • connect reader chassis to the plant earth ground by means of a flat copper braid shorter than 100 mm;...

  • Page 7: General View

    GENERAL VIEW Reading Window F2 LED Keypad button F1 LED Power On LED Matrix-1000™ Figure A External Trigger LED Good Read LED Communication LED Main/Auxiliary Interface Auxiliary Interface...
  • Page 8 viii...

  • Page 9: Rapid Configuration

    1 RAPID CONFIGURATION STEP 1 – CONNECTING THE SYSTEM To connect the system in a Stand Alone configuration, you need the hardware indicated in Figure 1. In this layout the data is transmitted to the Host on the RS232 auxiliary serial interface which is also used for reader configuration by running VisiSet™.

  • Page 10: Step 2 - Mounting And Positioning The System

    When connected to a C-BOX 3x0/4x0, Matrix-1000™ can only communicate through its Auxiliary Interface. The Matrix-1000™ 9-pin Auxiliary port connector cannot be used for communication (i.e. configuration through VisiSet™). To configure Matrix-1000™ through the 9- CAUTION pin connector inside the C-BOX 3x0/4x0, the C-BOX 3x0/4x0 must first be configured.

  • Page 11: Auto Learn

    STEP 3 – AUTOLEARNING CONFIGURATION An autolearning procedure is available to reduce installation time. Status and diagnostic information are clearly presented by means of four colored LEDs, whereas the single push button and F1 and F2 LEDs give immediate access to the following relevant functions: Positioning (F1) gives visual feedback from the F1 LED to •...
  • Page 12 Repeat the procedure if needed, to program different code symbologies, however you must present only one code at a time to the reader. Matrix-1000™ is able to decode any code symbology in its library with this procedure. If your application has been configured using Auto Learn, your reader is ready. If necessary you can use VisiSet™...
  • Page 13 Positioning (F1) Restore Default (Optional) At any time you can use the Restore Default procedure to return the reader to the factory default settings. 1. Enter the Restore Default function (F3) by pressing and holding the push button until both the F1 and F2 LEDs are on.

  • Page 14: Step 4 - Installing Visiset™ Configuration Program

    STEP 4 – INSTALLING VISISET™ CONFIGURATION PROGRAM ™ VisiSet is a Datalogic reader configuration tool providing several important advantages: • Autolearning Wizard for new users; • Defined configuration directly stored in the reader; • Communication protocol independent from the physical interface allowing to consider the reader as a remote object to be configured and monitored.
  • Page 15 The Autolearning Wizard option is advised for rapid configuration or for new users. It allows reader configuration in a few easy steps. 1. Select the Autolearning Wizard button from the Main menu. 2. Place the desired code in front of the reader at the correct reading distance (depending on the model, see the Reading Features table in the Appendix of this Quick Reference Guide).
  • Page 16 The reader flashes once acquiring the image and auto determines the best exposure and gain settings. If the code symbology is enabled by default, the code will also be decoded. 5. If the code symbology is not enabled by default, select a Code Setting Mode choice and press the "Code Setting"...

  • Page 17: Advanced Reader Configuration

    RAPID CONFIGURATION ADVANCED READER CONFIGURATION For further details on advanced product configuration, refer to the VisiSet™ Help On-Line. The following are alternative or advanced reader configuration methods: Advanced Configuration Using VisiSet™ Advanced configuration can be performed through the VisiSet™ program by selecting Device>...

  • Page 18: General Features

    Matrix-1000™ Reference Manual 2 GENERAL FEATURES 2.1 INTRODUCTION Matrix-1000™ is an area CCD reader for industrial application using 2D, 1D, stacked and postal codes. Matrix-1000™ uses imaging technology and provides complete reading system functions by integrating: lighting system, image acquisition, image processing, decoding...

  • Page 19: Description

    2.2 DESCRIPTION Some of the main features of this reader are given below: • Decoding of most popular linear and stacked barcodes, 2D code symbologies and postal codes • Omni-directional reading • Quick installation without PC by using Autolearning button and F1, F2 LEDs •...
  • Page 20 The following indicators are located on the top of the reader: red LED indicates that the reader is connected to the power supply (see Figure A, yellow LED indicates external trigger activity (Figure A, 6); for details refer to par TRIG 3.3.4;...

  • Page 21: Model Description

    2.3 MODEL DESCRIPTION The Matrix-1000™ reader is available in different versions according to the following characteristics: 2.4 ACCESSORIES Order No. Accessory 93A051190 CAB-6001 93A051200 CAB-6002 93A051210 CAB-6005 93A051271 CAB-6010 93ACC1510 C-BOX 100 93A301000 C-BOX 300 93A301030 C-BOX 310 93A301010 C-BOX 400 93A301040 C-BOX 410 93ACC1718...

  • Page 22: Application Examples

    Matrix-1000™ Reference Manual 2.5 APPLICATION EXAMPLES The Matrix-1000™ wide choice of fields of view and high performance of decoding libraries allow the reading of many small codes (see 96 vial application in Figure 10) as well as deformed and / or overprinted codes also when they are damaged or printed on high reflective surfaces (see Figure 11, Figure 12, Figure 13).
  • Page 23 GENERAL FEATURES The Matrix-1000™ is particularly suitable for applications requiring an array of readers to cover a very large reading area (see Figure 14). Figure 14 - Ten readers connected to a Datalogic MX4000 through a multidrop network.

  • Page 24: Installation

    3 INSTALLATION 3.1 PACKAGE CONTENTS Verify that the Matrix-1000™ reader and all the parts supplied with the equipment are present and intact when opening the packaging; the list of parts includes: Matrix-1000™ reader Quick Reference Guide Test chart Matrix family CD-ROM Auxiliary port connector cover Mounting kit •...

  • Page 25: Mechanical Installation

    INSTALLATION 3.2 MECHANICAL INSTALLATION Matrix-1000™ can be installed to operate in different positions. The eight screw holes (M4 x 5) on the body of the reader are for mechanical fixture (Figure 16). The diagram below gives the overall dimensions of the reader and may be used for its installation.
  • Page 26 Matrix-1000™ Reference Manual [2.87] [1.46] [0.59] [0.08] [inch] [0.17] Figure 17 - Mounting Bracket Overall Dimensions...

  • Page 27: Mounting Matrix-1000

    INSTALLATION 3.2.1 Mounting Matrix-1000™ Using the Matrix-1000™ mounting bracket you can obtain vertical shift and rotation of the reader as shown in the diagram below: Figure 18 - Positioning with Mounting Brackets...

  • Page 28: Electrical Connections

    3.3 ELECTRICAL CONNECTIONS The Matrix-1000™ reader is equipped with a 25-pin male D-Sub connector for connection to the power supply and input/output signals. The details of the connector pins are indicated in the following table: 25-pin male D-sub connector pinout Name SHIELD RTX485+...
  • Page 29 There is also a separate 9-pin female D-sub connector for the Auxiliary port connection with the following pinout: Figure 20 - 9-pin female D-Sub Connector 9-pin female D-sub connector pinout Name TXAUX RXAUX 1,4,6,7,8,9 N.C. Avoid simultaneous connection to 25-pin and 9-pin signals of the auxiliary RS232 interface.
  • Page 30 C-BOX 100 pinout for Matrix-1000™ The table below gives the pinout of the C-BOX 100 terminal block connectors. Use this pinout when the Matrix-1000™ reader is connected by means of the C-BOX 100: C-BOX 100 Terminal Block Connectors 1, 3, 5 2, 4, 6 7, 8 EARTH GROUND...

  • Page 31: Power Supply

    3.3.1 Power Supply Power is supplied to the reader through the pins provided on the 25-pin connector (see Figure 21): MATRIX SHIELD The allowed supply voltage range is 10 to 30 Vdc. USER INTERFACE 9/13 23/25 Figure 21 - Power Supply Connection V+ (10 - 30 Vdc) V- (Ground) CHASSIS...

  • Page 32: Rs485 Half-Duplex Interface

    3.3.2 RS485 Half-Duplex Interface The RS485 half-duplex (3 wires + shield) interface is available for polled communication protocols. It can be used for multidrop connections with a Datalogic Multiplexer, (see Figure 22 and par. 3.6.2). The following pins of the 25-pin connector are used for RS485 half-duplex communication: Name RTX485+ RTX485-...
  • Page 33 The figure below shows a multidrop configuration with Matrix-1000™ readers connected to a Multiplexer. MATRIX (up to 31) MATRIX MATRIX three wires + shield MULTIPLEXER Figure 23 - Matrix-1000™ Multidrop Connection to a Mutiplexer max. 2 m. 120 Ohm RTX485+ RTX485- RS485REF SHIELD...

  • Page 34: Auxiliary Rs232 Interface

    3.3.3 Auxiliary RS232 Interface The RS232 auxiliary interface is available for Point-to-Point connections. When it is connected to the host computer it allows both transmission of code data and reader configuration by VisiSet™. Its communication parameters (baud rate, data bits, etc.) can be defined by the user. For more details refer to the "Communication"...

  • Page 35: Input

    3.3.4 Input An opto-coupled and polarity insensitive input is available on the 25-pin connector. The pinout is the following: Name EXT_TRIG A External trigger (polarity insensitive) EXT_TRIG B External trigger (polarity insensitive) When current flows through the EXT_TRIG input, the yellow LED (Figure A, 6) is on. The External Trigger can be used in One Shot Mode or in Phase Mode.

  • Page 36: Output

    Figure 28 - Input NPN Command Using External Power MATRIX Figure 29 - Input NPN Command Using Matrix-1000 ™ Power The electrical features of the input are: INPUT Open Closed An anti-disturbance filter (debounce filter) is implemented on the input, and is software programmable.
  • Page 37 MATRIX Figure 30 - Open Collector Output Connection The electrical features of the output are the following: OUTPUT Open Closed × I = 170 mW Max. oLoad USER INTERFACE Vext 30 Vdc max Load Load 0 mA 30 Vdc Max 10 mA 1.8 Vdc Max...

  • Page 38: User Interface

    3.4 USER INTERFACE 9-pin male connector How To Build A Simple Interface Test Cable: The following wiring diagram shows a simple test cable including power, external (push- button) trigger and PC RS232 COM port connections. 25-pin D-sub female MATRIX- 1000™ Trigger RS232 PC-side connections 25-pin male connector...

  • Page 39: Positioning

    3.5 POSITIONING Position the reader so that the distance from the reading window to the code surface is that indicated in the figure below for your model. 1021 HD focus distance 115 mm (4.53 in) code surface 1041 LD focus distance 110 mm (4.33 in) code surface...
  • Page 40 Matrix-1000™ Reference Manual Matrix-1000™ is able to decode code labels at a variety of angles, however significant angular distortion may degrade reading performance. When mounting Matrix-1000™, take into consideration these ideal label position angles: Pitch 10° to 20° and Tilt 0°. Note: Since Matrix-1000™...

  • Page 41: Typical Layouts

    INSTALLATION 3.6 TYPICAL LAYOUTS The following typical layouts refer to system hardware configurations. However, they also require the correct setup of the software configuration parameters. Dotted lines in the figures refer to optional hardware configurations within the particular layout. 3.6.1 Point-to-Point In this layout the data is transmitted to the Host on the Matrix-1000™...

  • Page 42: Multiplexer

    3.6.2 Multiplexer Each reader is connected to a MX4000 through a multidrop network. Before proceeding with the connection it is necessary to select the MUX32 communication protocol and the multidrop address for each reader. P.S. Host The auxiliary serial interface of each reader can be used for configuration purposes, using VisiSet™, or in Local Echo communication mode to control the single device operation.

  • Page 43: Software Configuration

    4 SOFTWARE CONFIGURATION Software configuration of your Matrix-1000™ for static reading or simple code reading applications can be accomplished by the Autolearning Procedure (which requires no external configuration program or by using the VisiSet™ Autolearning Wizard for easy setup. These procedures are described in chapter 1.

  • Page 44: Startup

    4.3 STARTUP After completing the mechanical and electrical connections to Matrix-1000™, you can begin software configuration as follows: 1. Power on the Matrix-1000™ reader. Wait for the reader startup. The system bootstrap requires a few seconds to be completed. The reader automatically enters Run Mode. 2.

  • Page 45: Visiset™ Options

    4.3.1 VisiSet™ Options The Options item from the VisiSet™ menu (see Figure 38) presents a window allowing you to configure: − the logging function (Log) − VisiSet™ window properties (Environment) − VisiSet™ communication channel (Communication) Figure 39 - Options - Log Figure 40 - Options - Environment...
  • Page 46 Matrix-1000™ Reference Manual Figure 41 - Options – Communication: Serial Port...

  • Page 47: Configuration

    4.4 CONFIGURATION Once connected to Matrix-1000™ as described in par. 4.3, you can modify the configuration parameters as follows: 1. Press the Calibration Tool button from the Main Menu. Matrix-1000™ will download its permanent memory configuration parameters with the default values (if it is the first time) to VisiSet™.

  • Page 48: Edit Reader Parameters

    Matrix-1000™ Reference Manual 4.4.1 Edit Reader Parameters The Parameter Setup window displays the configuration parameters grouped in a series of folders. Each parameter can be modified by selecting a different item from the prescribed list in the box, or by typing new values directly into the parameter box. By right clicking the mouse when positioned over the name of a specific Parameter or Group, a pop-up menu appears allowing you to directly manage that particular parameter or group.
  • Page 49 Parameters to verify/modify: Operating Mode Calibration Communication Image Processing 1D & 2D, Postal Codes Data Collection Digital I/O Match Code Miscellaneous Symbol Verification LEDs And Keypad Sets the parameters which customize the reader operating mode starting from three main modes: One Shot: acquires a single image based on the selected value for the Acquisition Trigger and Acquisition Trigger Delay.
  • Page 50 Matrix-1000™ Reference Manual When all the configuration parameters are set correctly, save them to the Matrix-1000™ reader by pressing the Send button. See Figure 42. For successive configuration of other readers or for backup/archive copies, it is possible to save the configuration onto your PC by selecting the Save Configuration File option from the File menu.

  • Page 51: Calibration

    4.4.2 Calibration VisiSet™ provides a Calibration Tool to maximize the reading performance by tuning the acquisition parameters and the time of the delayed triggers. By selecting the Calibration Tool from the VisiSet™ Main Menu (F), the following window appears together with the Parameter Setup window: This tool provides a "real-time"...
  • Page 52 The following examples show some of the typical conditions occurring during the installation: Under Exposure: To correct this result it is recommended to change the following parameters in their order of appearance: 1. increase the Exposure Time (x 10 µs) 2.
  • Page 53 SOFTWARE CONFIGURATION Over Exposure: To correct this result it is recommended to change the following parameters in their order of appearance: 1. decrease the Gain 2. decrease the Exposure Time (x 10 µs) Figure 45 - Example Over Exposure: Too Light...
  • Page 54 Moving code out of the Field of View: To correct this result and have the code completely visible in F.O.V., it is possible to follow one or both the procedures listed below: • reposition the reader • use the Acquisition Trigger Delay by tuning the Delay Time (x100µs) Figure 46 - Example out of FOV...

  • Page 55: Image Capture And Decoding

    SOFTWARE CONFIGURATION 4.5 IMAGE CAPTURE AND DECODING By using the Capture Image and Decode Last Image functions from the VisiSet™ Main menu, you can get information about the image decodable codes in terms of Symbology, encoded Data, Position and Orientation, Decode Time and Code Quality Assessment Metrics. Figure 47 - Capture and Decoding Functions 4.6 STATISTICS Statistics on the reading performance can be viewed by enabling the Statistics parameter...

  • Page 56: Maintenance

    Matrix-1000™ Reference Manual 5 MAINTENANCE 5.1 CLEANING Clean the reading window (see Figure A, 1) periodically for continued correct operation of the reader. Dust, dirt, etc. on the window may alter the reading performance. Repeat the operation frequently in particularly dirty environments. Use soft material and alcohol to clean the window and avoid any abrasive substances.

  • Page 57: Troubleshooting

    6 TROUBLESHOOTING 6.1 GENERAL GUIDELINES • When wiring the device, pay careful attention to the pin number of the signals and whether you are referring to the 25-pin connector or to the C-BOX 100 spring clamp connectors. • If you need information about a certain reader parameter you can refer to the VisiSet™ program help files.
  • Page 58 Problem One Shot or Phase Mode using the External Trigger input: the ”TRIG” LED is not blinking while the External Trigger is switching. One Shot mode using the External Trigger input: the ”TRIG" LED is correctly blinking but no image is displayed in VisiSet™...
  • Page 59 Problem Reading: the reader always transmits the No-Read Message Communication: reader is not transmitting anything to the host. Communication: data transferred to the host are incorrect, corrupted or incomplete. How do I obtain my reader Serial Number? How do I obtain my reader Order Number? TROUBLESHOOTING GUIDE Suggestion...

  • Page 60: Technical Features

    7 TECHNICAL FEATURES ELECTRICAL FEATURES Power Supply Voltage Power Consumption Communication Interfaces Main - RS485 half-duplex Auxiliary - RS232 Input External Trigger Max. Voltage Max. Input Current Output OUT3 = 0 mA) Max. Load = 10 mA) Max. Load × I Max.

  • Page 61: Reading Features

    READING FEATURES Frame Rate Readable Codes per Frame Pitch Tilt Focus Distance Field of View MODELS mm (in) 1021 HD (4.53) 1031 SD (6.10) 1041 LD (4.33) 1051 MR (8.26) @ Focus Distance Pixels per inch @ Focus Distance Measurement Conditions: •...

  • Page 62: Glossary

    GLOSSARY Barcodes (1D Codes) A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in machine-readable form. The general format of a barcode symbol consists of a leading margin, start character, data or message character, check character (if any), stop character, and trailing margin.
  • Page 63 Flash Non-volatile memory for storing application and configuration files. Host A computer that serves other terminals in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages. Image Processing Any form of information processing for which the input is an image and the output is for instance a set of features of the image.
  • Page 64 Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read.

  • Page 65: Index

    INDEX Accessories; 13 Application Examples; 14 Auto Learn; 3 Auxiliary RS232 Interface; 26 Calibration; 43 C-BOX pinout for Matrix-1000™; 22 Compliance; vi Edit Reader Parameters; 40 Electrical Connections; 20 General View; vii Glossary; 54 Image Capture and Decoding; 47 Input; 27 Installing VisiSet™;...

  • Page 66: Declaration Of Conformity

    dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Matrix-1XXX; sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats: cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente: 89/336/EEC EMC Directive...
