Summary of Contents for Atest Gaz ReAct 4

  • Page 1 User Manual Gas Detector ReAct 4 Product code: PW-093-RA4-X POD-065-ENG R07...
  • Page 2 Engineering, manufacturing, implementation and technical support to Systems for Monitoring, Detection and Reduction of gas hazards To get familiar with our complete offer please visit www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
  • Page 3: How To Use This Manual

    www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual at hand with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content.
  • Page 4: Table Of Contents

    www.atestgaz.pl Table of contents 1 Preliminary information........................6 1.1 Functional properties..........................6 1.2 Marking of the explosion protection degree..................7 1.3 Additional information related to the explosion-proof protection of the device........7 1.4 Cable glands and blanking plugs......................7 1.5 Cables..............................8 1.6 Blanking enclosure..........................8 1.7 Operation principle..........................
  • Page 5 www.atestgaz.pl List of Tables Table 1: Possible statuses of the optical indicator.....................3 Table 2: Meaning of information provided on the rating plate.................7 Table 3: Gas detector status..........................9 Table 4: Layout of connecting terminals for the device option with the RS-485 port........12 Table 5: Layout of connecting terminals for the device option with the Teta Bus port........12 Table 6: Information assigned to levels of current from the 4 –...
  • Page 6: Preliminary Information

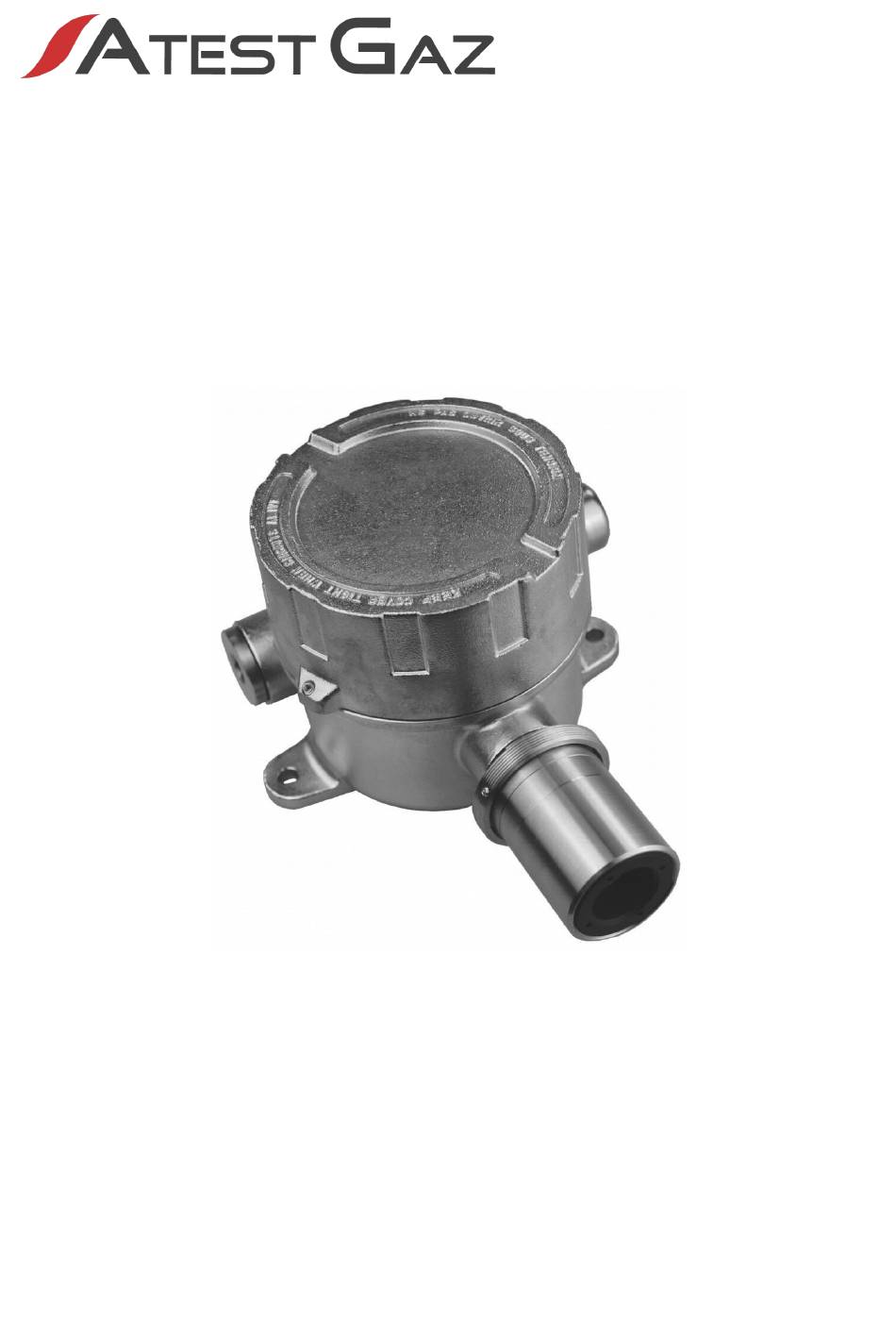

    Preliminary information The ReAct 4 Gas Detector is a device designed as a component of the Gas Safety System dedicated for operation in areas with potentially explosive atmospheres and under heavy-duty industrial conditions with a broad range of ambient parameters variations (high temperatures, corrosive gases, moisture and dust).
  • Page 7: Marking Of The Explosion Protection Degree

    www.atestgaz.pl Electronic compensation of the influence of ambient temperature. Self-test functionality. Storage of such parameters as: the CAS number of the substance, location name, serial number, the interval between mandatory calibrations, etc., in an internal memory of the device. Marking of the explosion protection degree Figure 2: Information on the rating plate of the device Description Ex code for the device...
  • Page 8: Cables

    www.atestgaz.pl 1.4.1 Replacement of cable glands and blanking plugs To replace/screw the cable gland or blanking plug: remove the gland/blanking plug from device (when is screwed in), apply small amount of technical vaseline on the thread of the gland/blanking plug, screw in a new gland/blanking plug (remember to use the appropriate torque specified by the manufacturer).
  • Page 9: Detectable Gases

    www.atestgaz.pl Mode Description Calibration It is the mode when settings of the detector can be adjusted and the operability of the device can be checked without raising of an alarm (actually, the system behaviour shall be determined by the interpretation of the data by the central system). The detector can be switched to this mode by means of the appropriate software.
  • Page 10: Working Environment

    www.atestgaz.pl Before painting the facility walls make sure that the device is properly protected against unintentional painting or paint splashing. Before use of silicon or silicon-based materials (paints, adhesives, sealant, etc.), make sure that the device is properly protected against unintentional coating. Working environment Details about the working environment parameters can be found in the Guide –...
  • Page 11: Input-Output Interfaces

    www.atestgaz.pl ~205 Figure 4: The design option with an audible warning (E=ALB, ALZ, SS, D=FLED.A) Figure 5: The gas detector design and dimensions (E=PES) Input-output interfaces Electric interface Assignment of contacts on the terminal block depends on the device configuration (see details in Section 10).
  • Page 12: Table 4: Layout Of Connecting Terminals For The Device Option With The Rs-485 Port

    www.atestgaz.pl 4.1.1 RS-485 serial transmission port Figure 6: Electric connections for the option with the RS-485 port Port designation Name Terminals Description RS-485 A, B Signal lines for the RS-485 port POWER -, + Power supply 4-20 4 – 20 mA current output R1.1 –...
  • Page 13: Rs-485 Serial Transmission

    www.atestgaz.pl RS-485 serial transmission Communication via the RS-485 port employs either the Modbus ASCII or the Sigma Bus protocol (when the detector is used with other devices of the Sigma system). Detectors provided with the RS-485 port transmit output signals in the digital form (see Appendix [2]). Each detector provides information about its status by transmission of the following parameters: result for measurements of gas concentration expressed as percentage of the full range, information whether warning /alarms thresholds are exceeded or not,...
  • Page 14: Table 6: Information Assigned To Levels Of Current From The 4 - 20 Ma Current Output

    www.atestgaz.pl 4 mA – no alarms, 9 mA – warning 1, 11 mA – warning 2, 13 mA – alarm Gas overload 22 mA Table 6: Information assigned to levels of current from the 4 – 20 mA current output For the operation mode ‘proportional output’...
  • Page 15: Relay Outputs

    www.atestgaz.pl The dynamic mode of operation can be activated by setting the T or T time slots to the level > 0. The waveform below explains how the 4 – 20 mA current output behaves when the dynamic mode is inactive (T and T = 0).
  • Page 16: Bluetooth Wireless Interface (Wi=Bt)

    www.atestgaz.pl Active Inactive R1.2 R1.2 R1.1 R1.1 Figure 12: Terminals of a relay output in the standard (NO) mode of operation Each relay output is configurable and can be operated in one of the following modes: Warning 1 (W1) – the output is activated when the concentration exceeds the first warning threshold, Warning 2 (W2) –...
  • Page 17: User Interface

    www.atestgaz.pl The detector is seen The detector can Permanent on the list of devices communicate via Operation of the Bluetooth interface magnet in place with Bluetooth the Bluetooth interface interface Detector not available for remote control Detector is always seen but can communicate only with the permanent magnet in place Detector is seen and can communicate only with the permanent magnet in place...
  • Page 18: Life Cycle

    www.atestgaz.pl Life cycle Transportation The device can be shipped in the same way as new equipment of that type. If the original package or another protecting means (e.g. corks) is unavailable the conveyed equipment must be secured against shocks, vibrations or moisture by means of adequate methods and material at the own responsibility of the sender.
  • Page 19: Figure 15: Earthing Conductor Connection And Correct Routing Of Cables

    www.atestgaz.pl arrange the cable correctly so that it is free of mechanical stress and water cannot penetrate into the detector down the cable – see Figure 15, tighten the cable gland, reinstall the detector cover, make sure that the seal is in place, tighten the locking screw (for version E=ALB, ALZ, SS).
  • Page 20: Commissioning

    www.atestgaz.pl Do not leave a spare length of a cable inside the device. Bare wires with worn insulation or entangled wires may create a danger of electric shock or equipment damage. Do not leave disconnected cables inside the device. Incorrect cable routing may lead to worsening of the device immunity to electromagnetic interferences.
  • Page 21: Troubleshooting

    www.atestgaz.pl Terminating resistor for the RS-485 port Configuration of the electric current source: sink/source Figure 16: Front view of the detector – configuration jumpers 6.4.1 Configuration of the electric current source The detector is furnished with a source of electric current. Depending on needs the source can be configured as a SOURCE or a SINK –...
  • Page 22: Scheduled Maintenance

    Gas detectors manufactured by Atest Gaz are classified to the A category of instruments (see Appendix [5]) with respect to environments conditions for calibration.
  • Page 23 www.atestgaz.pl • control unit of the system, where the connection can be established: via a common data bus to transfer information between detectors located in the area with explosion hazard and the control unit to be always located outside the hazardous zone, however the master control device must be connected to the bus in a safe area without explosion hazard, •...
  • Page 24 6.6.4 Scheduled inspection Gas detectors ReAct 4 are designed for operation in areas with potentially explosive atmospheres. Thus, its explosion-proof properties must be verified and maintained on regular basis in the following way: check of the cable gland and make sure that it is tight and free of damage.
  • Page 25: Maintenance

    www.atestgaz.pl 6.6.5 Maintenance The regular maintenance of the detector is limited to wiping its housing with a damp soft cloth. cleaning agents that contain solvents, white spirit or alcohol are not allowed. Utilization This symbol on a product or on its packaging indicates that the product must not be disposed of with other household waste.
  • Page 26: List Of Consumables

    Table 11: Power consumption List of consumables Consumables Lifetime Manufacturer Product code Shield for reactive gases Depends on ambient conditions Atest Gaz PWS-028 Sensor with a gasket Depends on the sensor type Table 12: List of consumables s. 26|29 User Manual: POD-065-ENG R07...
  • Page 27: List Of Accessories

    www.atestgaz.pl List of accessories Product code Description PW-063-A AW1 Ventilation Adapter PW-064-WM4 WM4 Mounting Bracket (for version E=ALB, ALZ, SS) PW-064-WM6 WM6 Mounting Bracket (for version E=ALB, ALZ, SS) PW-064-WM11 WM11 Mounting Bracket (for version E=ALB, ALZ, SS) PW-069-DP2 Roofing for the WM6 bracket (for version E=ALB, ALZ, SS) PW-082-X Calibration Kit PW-049-CB6...
  • Page 28: Product Marking

    Product marking ReAct 4 Gas Detector PW-093-RA4- AI WI MC To be selected by the manufacturer depending on the code – this parameter is irrelevant for ordering of the product (please put X in the product order, the Converter module available EC, PEL, IR, PID options stand for the sensor type specific for the product –...
  • Page 29: Appendices

    Appendices DEZG139-ENG – EC Declaration of Conformity – ReAct 4 PU-Z-113-ENG – Register map of gas detectors of PW-017, PW-044 and PW-093 type PU-Z-073-ENG – The user interface and failure codes of Gas Detectors of PW-017, PW-044 and PW-093 type PU-Z-015-ENG –...
  • Page 30: Eu Declaration Of Conformity

    EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Gas Detector ReAct 4 PW-093 complies with the following Directives and Standards: in relation to Directive 2014/34/EU –...
  • Page 31 Test Test mode Warm_Up Sensor warm-up 11..15 Inessential data, can take any value Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 1/1 Appendix: PU-Z-113-ENG R01 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
  • Page 32 – red Gas overload The display has light-sensitive area, which ensures appropriate backlit of the display during operation in an unlit room. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 1/5 Appendix: PU-Z-073-ENG R05 ul.
  • Page 33 The display shows LOCK information. Display description contains sample content. The state occurs only in case of detectors with a catalytic sensor. The lock mechanism is active. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
  • Page 34 0,0 ppm turned off. AWK2100H The display shows AWK2100H message. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 3/5 Appendix: PU-Z-073-ENG R05 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
  • Page 35 Description Sensor lock – sensor off, the last measurement latched Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 4/5 Appendix: PU-Z-073-ENG R05 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
  • Page 36 Bluetooth module is failure bit 13 calibration time is exceeded bit 14 digital amplifier operation monitor warning Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 5/5 Appendix: PU-Z-073-ENG R05 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
  • Page 37 For the systems with RS-485 interface, it is necessary to make sure that A and B transmission signals as well as + and – power supply were led with the use of the cables which belong to one pair. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
  • Page 38 It is unacceptable to leave a reserve inside the detector. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
  • Page 39 www.atestgaz.pl Classification of chemicals used at Atest-Gaz Because of the need to present a consistent and high level of maintenance services, to ensure the safety of the calibration process and to create a basis for a rational calculation of the costs of this process, Atest-Gaz developed the "Classification of Chemical Substances"...
  • Page 40 www.atestgaz.pl Category Description Terms of facility calibration No precipitations, no strong winds, Cylinder gases, temperature over – 10 C¹. stable environment In other cases, calibration at a location that meets the above conditions (necessary to remove the detectors). No precipitations, no strong winds, Cylinder gases, temperature over + 10...
  • Page 41 www.atestgaz.pl Notes...
  • Page 42 www.atestgaz.pl Notes...
  • Page 44 Atest Gaz A. M. Pachole sp. j. Spokojna 3, 44-109 Gliwice tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl For more details on our devices and other products and services offered by us, visit:...
