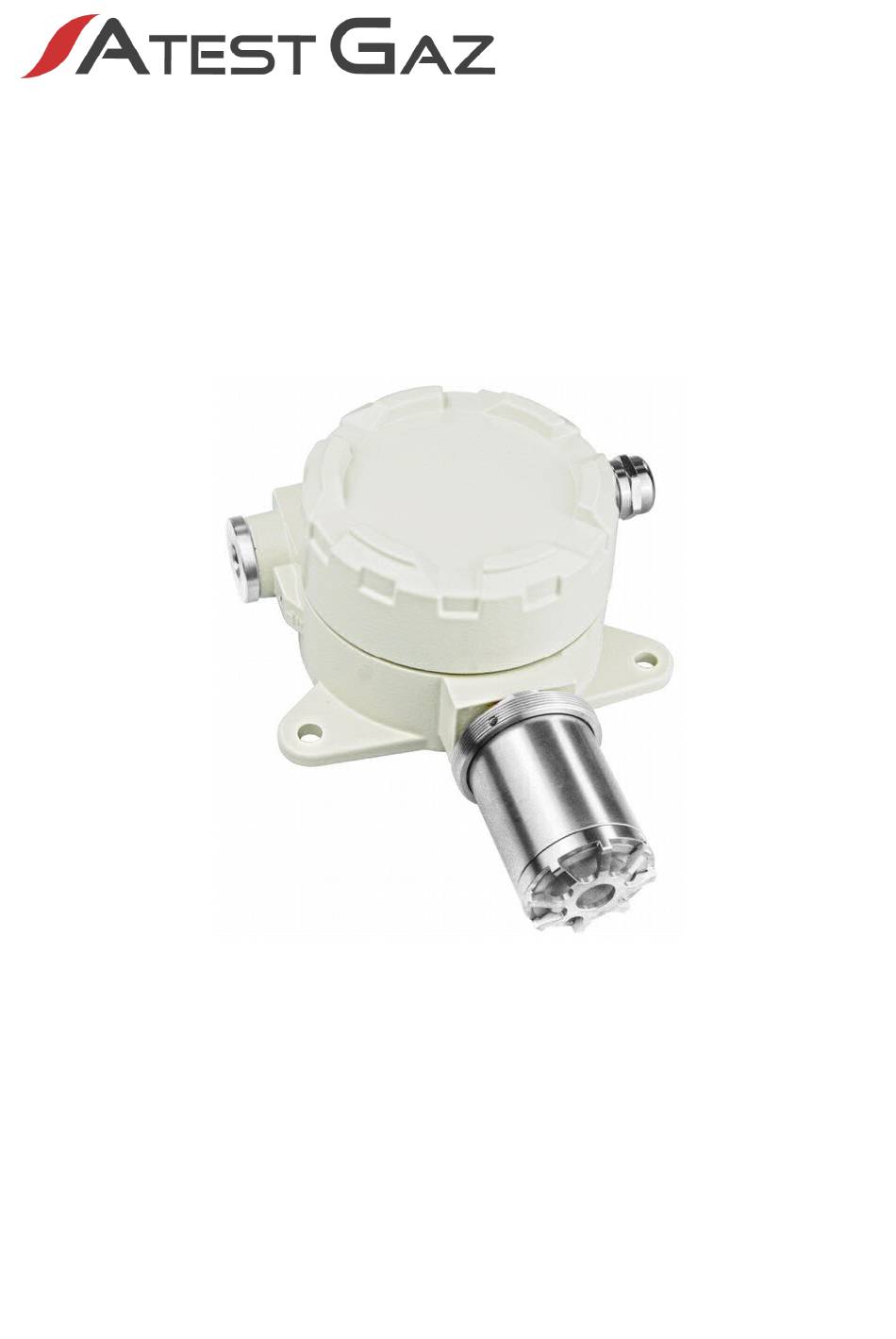

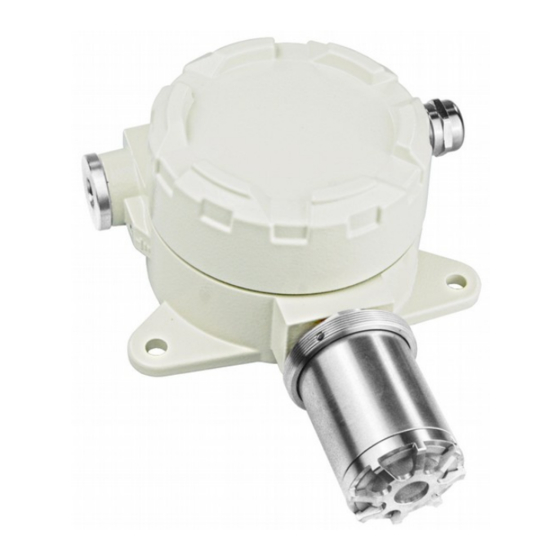

- Page 1 User Manual Gas Detector ProGas 4 Product code: PW-017-PG4-X POD-064-ENG R05...
- Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards We invite you to familiarize yourself with our offer on www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
-
Page 3: Table 1: Optical Indicators Status Notation
www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content. -
Page 4: Table Of Contents
www.atestgaz.pl Table of contents 1 Preliminary information................................5 1.1 Functional properties................................. 5 1.2 The principle of operation................................6 1.3 Gas detector status..................................6 1.4 Detected gases................................... 7 1.5 Output signal....................................7 1.6 Gas detector with an FL.C head..............................7 2 Safety......................................8 2.1 Conditions of the working environment.............................9 3 Description of the construction..............................10 4 Input-output interfaces................................11 4.1 Electric interface.................................. -
Page 5: Preliminary Information
Preliminary information The ProGas 4 Gas Detector is a device designed as a component of the Gas Safety System and is intended for operation under heavy duty industrial conditions with broad variations of environmental factors (high temperatures, corrosive gases or vapours, moisture and dust). -
Page 6: The Principle Of Operation
www.atestgaz.pl The principle of operation The gas detectors measures the concentration of a given component, and then turns it – depending on the variety (described below) – to understandable signal for other devices of the gas safety system. In addition to the implementation of the measurement, the detector analyses the value of the measured concentration and may provide information about exceeding the following threshold values: warning 1,... -
Page 7: Detected Gases
Measurement parameters configuration document (DOK-6073). Information about sensors properties can be found in User Manual – Sensors used in gas detectors produced by Atest Gaz (POD-062-ENG). Output signal RS-485 – this port allows easy integration with data transmission systems, visualization systems in ACP, industrial controllers –... -
Page 8: Safety
www.atestgaz.pl Figure 2: Calibration of a gas detector with the FL.C head Safety Testing of the detector with a gas of unknown composition or excessive concentration is forbidden since it may lead to irreversible damage of the gas sensor. All activities related to connecting detectors, signallers and other system components must be carried out while control unit's power supply is off. -
Page 9: Conditions Of The Working Environment
www.atestgaz.pl Despite the power supply voltage for the Gas Safety System is off, dangerous voltage may persist across terminals of the Control Unit. Such a voltage may come from another system controlled by the same unit, for instance ventilation, that use one output pin of the control unit. -
Page 10: Description Of The Construction
• pollution of the detector – e.g. the presence of silicone can cause damage to catalytic detector – see User Manual – Sensors used in gas detectors produced by Atest Gaz (POD-062-ENG), • crossover effect – the sensor also reacts to other gases, e.g. an electrochemical sensor of carbon monoxide can also react with hydrogen –... -
Page 11: Input-Output Interfaces
www.atestgaz.pl Figure 4: The construction of the gas detector and its dimensions (H=HW) Input-output interfaces Electric interface Assignment of contacts on the terminal block depends on the device configuration (see details is Section 9). All possible options of the terminal block layouts are shown on illustrations below. 4.1.1 RS-485 digital communication port Figure 5: Electric connections for the option with the RS-485 port... -
Page 12: Rs-485
www.atestgaz.pl 4.1.2 Teta Bus digital communication port Figure 6: Electric connections for the option with the Teta Bus port Port designation Name Description TETA BUS -, + Combined transmission and power supply lines 4-20 4 – 20 mA current output R1.1 –... -
Page 13: Relay Outputs
www.atestgaz.pl Maximum limits for U and R are provided in Table 10. More configuration details – see Section 5.4.1. 4.3.2 Operation modes – status details The level of output current is in proportion to the gas concentration measured by the detector (constant output signal). -
Page 14: Life Cycle
www.atestgaz.pl The Bluetooth interface behavior depends on the operation mode selected for the Bluetooth port upon configuration and presence of a permanent magnet. See details in Table 7 below. The detector is seen on The detector can Permanent magnet Operation of the Bluetooth interface the list of devices with communicate via the in place... -
Page 15: Installation
www.atestgaz.pl Installation 5.2.1 Deployment of gas detectors Deployment of gas detectors must be determined by the system designed with consideration to the following rules: medium density detected in relation to density of air: • detectors of gases with densities less than air density must be mounted nearby the room ceiling with the maximum distance between the face of the measuring head to the room ceiling from about 20 to 30 cm, •... -
Page 16: Figure 9: Correct Mounting Of The Gas Detector
www.atestgaz.pl Figure 9: Correct mounting of the gas detector The manufacturer recommends application of the Mounting Bracket WM8 (see Table 13) – since it enables easy calibration of gas detectors and protects their housings against damage. First the mounting bracket should be mounted to a support structure (wall) by means of two rawlplugs or M6 bolts. - Page 17 www.atestgaz.pl Should the cable gland design allows, connect cable shields to the gland to avoid threading the cable braiding into the device housing. Do never connect cable shields to the earthing potential (ground) of electronic boards. Cable shields must be insulated and slightly protrude from the cable gland inside the device interior. Do never connect shields to any terminal of the electronic device.
-
Page 18: Commissioning
www.atestgaz.pl Commissioning Before power up make sure that all parts are tightly screwed (cable glands, blinding plugs and the detector lid). All fixing bolts (for the detector lid and bushing) must be in place and firmly tightened to prevent any self-loosening during operation of the detector. -
Page 19: Troubleshooting
www.atestgaz.pl Setting of jumpers Operation mode SOURCE of electric current (default setting) SINK for electric current Table 8: Configuration of the embedded source of electric current 5.4.2 End-line terminals The communication port is furnished with end-line terminals. Configuration of these terminals needs opening of the device housing to insert a jumper into the terminal connector (TERM.). - Page 20 Gas detectors manufactured by Atest Gaz are classified to the A category of instruments (see Appendix [10]) with respect to environments conditions for calibration.
- Page 21 www.atestgaz.pl The calibration also includes checks of the following explosion proof properties: tightness of cables in cable glands, retighten glands when necessary, symptoms of a flameproof housing damage. 5.6.3 Replacement of fast wearing parts Please refer to Table 12 for the recommended lifetime and replacement schedule of fast wearing parts. It is highly recommended to entrust all jobs related to the measuring head to the service staff of the manufacturer or to properly trained personnel.
-
Page 22: Figure 11: Design Of The Gas Sensing Head
www.atestgaz.pl Cover with the sinter Membrane Ring Protective cover Securing bolt Figure 11: Design of the gas sensing head 5.6.3.3 Sensor replacement {5} During operation there is a natural loss of metrological parameters of the sensors. Compensation of this phenomenon occurs through periodic, systematic adjustment of the display (see Section 5.6.2.2) – until the moment when it is necessary to exchange the sensor. -
Page 23: Utilization
www.atestgaz.pl When the bushing of the detector head is damaged or removed the detector must be sent back to the manufacturer for repair. 5.6.4 Maintenance The regular maintenance of the detector is limited to wiping its housing with a damp soft cloth. cleaning agents that contain solvents, white spirit or alcohol are not allowed. -
Page 24: Technical Specification
www.atestgaz.pl Technical specification Power supply • Voltage V 15 – 50 V • Power 0.1 – 4 W( depends on the configuration, see Table 11) Environment In operation Storage • Ambient temperatures Ta Specified depending device 0 – 40 configuration, including the sensor used (see Section 9) •... -
Page 25: List Of Consumables
Depends on the sensor type Table 12: List of consumables List of accessories Product code Description PW-063-A Ventilation Adapter AW1 PW-064-WM8 Mounting Bracket (for wall mounting, ProGas 4) PW-064-WM10 Mounting Bracket (for ceiling mounting, ProGas 4) PW-082-X Calibration kit PW-049-CB6 Service cable CB6 PW-126-A... -
Page 26: Product Marking
Product marking ProGas 4 Gas Detector PW-017-PG4- AI WI MC Selected by the manufacturer depending on the chosen – field value does not matter when ordering the product (when ordering, please Converter module specify X, available EC, PEL, IR, PID options show the used sensor type –... -
Page 27: Appendices
Appendices DEZG138-ENG – EC Declaration of Conformity – ProGas 4 PU-Z-114-ENG– SmArtGas 4, ProGas 4 – non-standard execution PU-Z-093-ENG – Instructions for removing the lock of a detector with a catalytic sensor PU-Z-113-ENG – Register map of gas detectors of PW-017, PW-044 and PW-093 type PU-Z-073-ENG –... - Page 28 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Gas Detector ProGas 4 PW-017 complies with the following Directives and Standards: in relation to Directive 2014/30/EU –...
- Page 29 SmArtGas 4, ProGas 4 – non-standard execution SmArtGas 4 Gas Detector PW-044-SG4- AI WI MC G Converter module PELm Catalytic, 40% LEL Display Without Measuring head With sinter, made of stainless steel Enclosure Aluminium, spray epoxy – white Temperature...
- Page 30 www.atestgaz.pl Instructions for removing the lock of a detector with a catalytic sensor Detectors using a catalytic sensor (more details concerning the sensor – see Appendix PU-Z-054-ENG) are equipped with a system protecting against its damage caused by a gas concentration exceeding the measuring range of the sensor and before entering non-monotonic part of the catalytic sensor characteristics.
- Page 31 Test Test mode Warm_Up Sensor warm-up 11..15 Inessential data, can take any value Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 1/1 Appendix: PU-Z-113-ENG R01 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
- Page 32 – red Gas overload The display has light-sensitive area, which ensures appropriate backlit of the display during operation in an unlit room. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 1/5 Appendix: PU-Z-073-ENG R04 ul.
- Page 33 The display shows LOCK information. Display description contains sample content. The state occurs only in case of detectors with a catalytic sensor. The lock mechanism is active. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
- Page 34 0,0 ppm turned of. AWK2100H The display shows AWK2100H message. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 3/5 Appendix: PU-Z-073-ENG R04 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
- Page 35 Description Sensor lock – sensor off, the last measurement latched Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 4/5 Appendix: PU-Z-073-ENG R04 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
- Page 36 10 minor negative zero drift bit 11 temperature overload bit 13 calibration time is exceeded Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 5/5 Appendix: PU-Z-073-ENG R04 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
- Page 37 www.atestgaz.pl Example of connection cables for gas detector PW-017 and PW-044 with 4-20 mA output Introduction It is recommended that all system components are made according to the design created by person with the necessary skills and competence. Connection cable In case where project does not specify this, you can use the following types of shielded cables for connecting gas detectors: An example of a cable symbol...
- Page 38 www.atestgaz.pl Example of connection cables for gas detector PW-017 and PW-044 with relay output Introduction It is recommended that all system components are made according to the design created by person with the necessary skills and competence. Connection cable In case where project does not specify this, you can use the following types of shielded cables for connecting gas detectors: An example of a cable symbol Approximate external...
- Page 39 www.atestgaz.pl Guidelines to the cabling of the system with an RS-485 interface Introductory It is recommended that all system components are made according to the design created by person with the necessary skills and competence. Connection cable The data transmission line for the gas detectors working in the RS-485 standard should be performed only with the use of a shielded twisted pair cable.
- Page 40 www.atestgaz.pl Power supply of the gas detector As a standard, in gas detectors with digital data transmission, it is assumed that the voltage cannot drop below 12 V (see the documentation of the detector). The power consumption of the detector is constant within the range of acceptable voltages.
- Page 41 For the systems with RS-485 interface, it is necessary to make sure that A and B transmission signals as well as + and – power supply were led with the use of the cables which belong to one pair. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
- Page 42 It is unacceptable to leave a reserve inside the detector. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p.
- Page 43 www.atestgaz.pl Classification of chemicals used at Atest-Gaz Because of the need to present a consistent and high level of maintenance services, to ensure the safety of the calibration process and to create a basis for a rational calculation of the costs of this process, Atest-Gaz developed the "Classification of Chemical Substances"...
- Page 44 www.atestgaz.pl Category Description Terms of facility calibration No precipitations, no strong winds, Cylinder gases, temperature over – 10 C¹. stable environment In other cases, calibration at a location that meets the above conditions (necessary to remove the detectors). No precipitations, no strong winds, Cylinder gases, temperature over + 10...
- Page 45 www.atestgaz.pl Notes...
- Page 46 www.atestgaz.pl Notes...
- Page 48 Atest Gaz A. M. Pachole sp. j. Spokojna 3, 44-109 Gliwice tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl For more details on our devices and other products and services offered by us, visit:...
