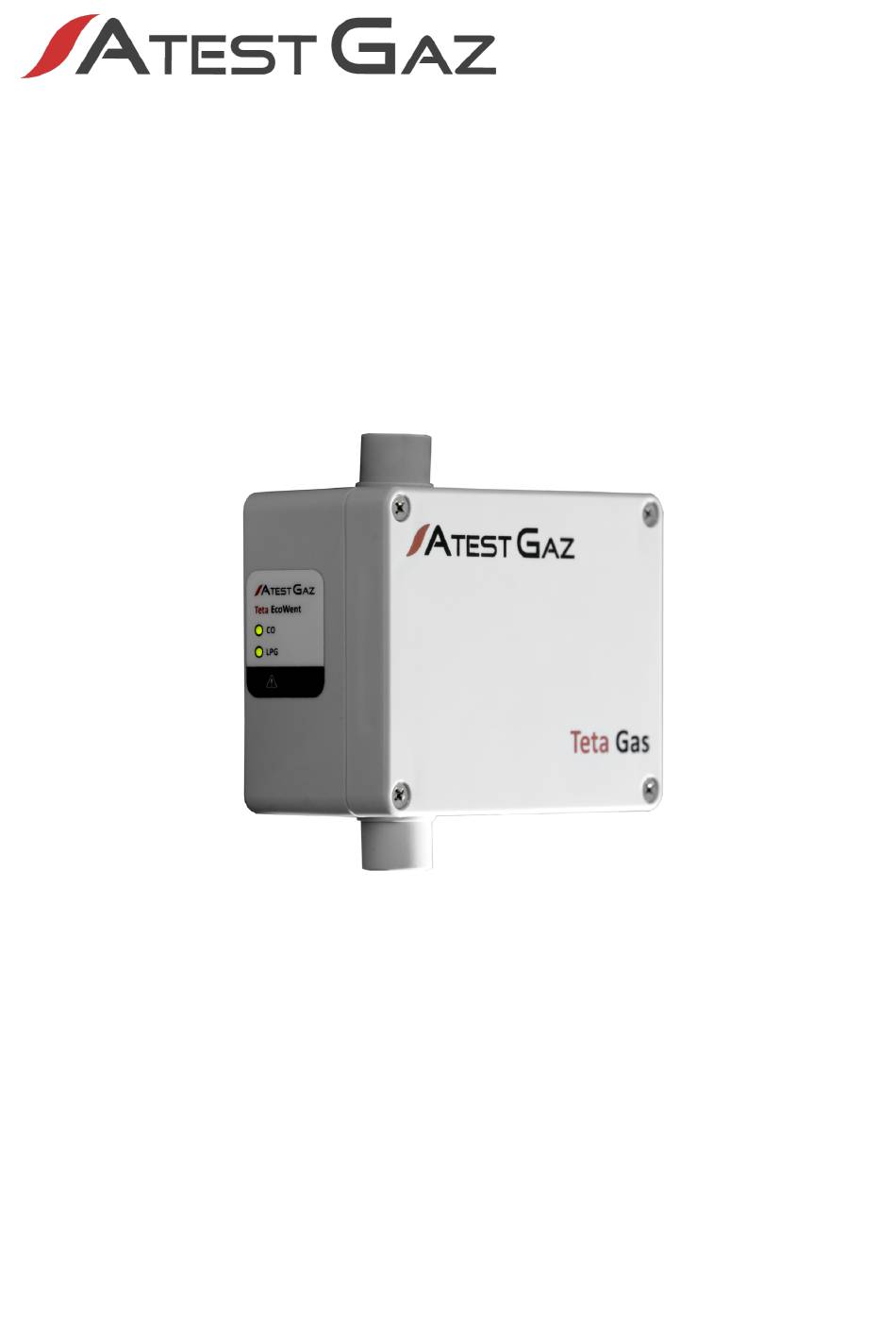

- Page 1 User Manual Gas Detector Teta EcoWent / Teta EcoN Product code: PW-105-CO / PW-111-NO2 POD-046-ENG R01...
- Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards For more details please visit our website www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
- Page 3 www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content.
-
Page 4: Table Of Contents
www.atestgaz.pl Table of contents 1 General information..........................5 1.1 Application field.............................5 1.2 Operation principle..........................5 2 Safety..............................7 3 Device design............................8 4 Input-output interfaces...........................9 4.1 Electric interface.............................9 5 User interface............................9 5.1 Indication of the device status.......................9 5.2 Display..............................10 6 System architectures..........................11 6.1 Data bus architecture...........................11 7 Lifetime cycle............................11 7.1 Transportation............................11 7.2 Installation............................11... -
Page 5: General Information
General information Application field Gas detectors Teta EcoWent and Teta EcoN are designed as crucial components of the Teta Gas system for monitoring of hazardous gas concentrations and are dedicated to detect excessive (hazardous) concentrations of carbon oxide and nitrogen dioxide in public access facilities, in particular in underground garages and car parks. - Page 6 www.atestgaz.pl Operation of gas detector consists in periodical measurements of hazardous gases in their vicinity with continuous averaging of measurement results. Momentary concentration of gases are measured with the time period of 1 second and average concentrations are calculated. These measurements enable reporting of warnings or alarms.
-
Page 7: Safety
www.atestgaz.pl 1.2.4 Failure In parallel to measurements of gas concentration the detector carries out a series of self-test measurements to verify fault-free operation of the sensor and the gas monitoring system as a whole. The defects indicated by the gas detectors may include: problems with built-in gas sensors, error of communication with the control unit, incorrect configuration,... -
Page 8: Device Design
www.atestgaz.pl Before painting the facility walls make sure that the device is properly secured against unintentional painting or paint splashing. Before painting the facility floor make sure that the device is properly secured against unintentional painting or paint splashing. Before use of silicon or silicon-based materials (paints, adhesives, sealant, etc.), make sure that the device is properly secured against unintentional coating. -
Page 9: Input-Output Interfaces
www.atestgaz.pl Input-output interfaces Electric interface Locations and arrangement of terminal blocks is shown on Figure 1. Port designation Name Terminal Description TETA BUS Teta Bus port. Parameters – see section 8 Supply / data transmission line Port for connection of the Teta MiniDet Gas Detector Positive Signal line Negative... -
Page 10: Display
www.atestgaz.pl LED indication Operation mode indicator Alarm 2 Alarm 3 R R R Failure of the measuring path for LPG, incorrect connection, configuration error or Y Y Y Y defect of the coupled Teta MiniDet detector Warm-up of the measuring path for LPG G Y R No requests from the Control Unit Internal defect of the gas detector (no relation to the measuring paths) -
Page 11: System Architectures
System architectures The gas monitoring systems can be made up of independent gas detector Teta EcoWent or Teta EcoN or coupled and collaborating pairs of detectors (Teta EcoWent with Teta MiniDet). Data bus architecture In this system gas detectors are connected to the bus via T-connectors S2. -
Page 12: Mechanical Mounting Of Detectors
www.atestgaz.pl detectors must not be exposed to direct effect of water (moisture) or other chemicals (e.g. cleaning chemicals when the facilities are being cleaned), as well as to direct effect of sunlight, rain or wind, detectors must be secured against damaging mechanical impacts, locations of detectors must enable easy checks and adjustments as well as replacement or disconnection of each detector. -
Page 13: Commissioning Of The Gas Monitoring System
Example of a suitable cable designation Connections between T-connectors and gas detectors Two-core cable YDY 2 x 1 mm Connections between Teta EcoWent /EcoN detectors and Three-core cable YDY 3 x 1 mm Teta MiniDet detectors Table 3: Types of suitable cables... -
Page 14: Configuration Of Gas Detectors
www.atestgaz.pl In case of improper operation of the system recheck all wiring and connections or contact the system provider /equipment manufacturer. The gas monitoring system can be approved for operation only after passing results of all aforementioned checks and verifications. Configuration of gas detectors Reliable operation of gas detector needs preliminary configuration of the device parameters. -
Page 15: Troubleshooting
www.atestgaz.pl Troubleshooting When a detector reports problems with its operation (see Table 2) he reason for such a behaviour of the device can be identified following guidelines summarized in Table 4. Configuration Possible reason for the problem indicator indication option CO / NO •... -
Page 16: Maintenance Schedule
www.atestgaz.pl Maintenance schedule Each user must be aware of the fact that operation of any gas monitoring system leads to inevitable ageing of equipment, in particular gas sensors, due to detrimental impact of environmental factors. Therefore the systems must undergo regular and scheduled maintenance. Maintenance operations shall include: calibration of gas detectors, replacements of fast-wearing parts,... - Page 17 – test gas is supplied to inlet of the gas detector (or a pair of coupled detectors), the message ‘tE’ should appear on the device display, simulation of alarms for CO concentration (for Teta EcoWent detectors) or NO (Teta EcoN detectors), the message ‘S1’...
-
Page 18: Disposal
www.atestgaz.pl 7.7.3.3 Simulation of alarms for LPG gas (S2 alarms) Simultaneous depressing the arrow buttons (see Figure 1) and holding them depressed for about four seconds switches the detector over to the simulation mode for LPG gas (S2 alarm). Please remember that that simulation mode is available only for detectors where collaboration with Teta MiniDet detectors is enables (HE parameter is set to 1). -
Page 19: Technical Specification
Table 5: Technical specification List of fast wearing parts Part name Lifetime Manufacturer Product code Sensor plate CO Atest Gaz PWS-017-CO Up to 5 years Sensor plate NO Atest Gaz PWS-017-NO2-10 Table 6: List of fast wearing parts In case of installation in dwelling houses, public access buildings, car parks or garages s. -
Page 20: List Of Accessories
List of accessories Product code Description PW-114-A Mounting kit for Teta EcoWent gas detector PW-114-C Mounting kit for the set of gas detectors Teta EcoWent + Teta MiniDet PW-064-WM1 Mounting bracket WM1 (for wall-mounted installation) PW-092-A Calibration kit Standardized reference gas – carbon monoxide CO with concentration of 300 ppm Standardized reference gas –... - Page 21 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Gas Detector Teta EcoDet PW-106 Teta EcoN PW-111 Teta EcoTerm PW-113 Teta...
-
Page 22: Table Of Contents
www.atestgaz.pl Parameters of gas detectors with electrochemical sensor Table of Contents 1 Detected substances..........................2 2 Principle of operation..........................2 3 Impact of environmental conditions......................3 3.1 Composition of the controlled atmosphere..................3 3.1.1 Impact of the presence of a substance in a controlled atmosphere..........4 3.1.2 Impact of the presence of a working gas or other reaction gas............4 3.1.3 Effect of oxygen concentration value....................5 3.2 Influence of temperature........................5... -
Page 23: Detected Substances
www.atestgaz.pl Detected substances Detectors equipped with electrochemical sensors are used for measuring and detecting the presence of specific substances in gaseous atmospheres in concentrations generally above single "ppm," but in some cases (e.g. oxygen, hydrogen), the concentration may be tens or hundreds of thousands "ppm". These gases have characteristic measurement ranges. -
Page 24: Impact Of Environmental Conditions
www.atestgaz.pl 1 – inlet of sensor 2 – measuring electrode 3 – extra electrode 4 – electrolyte 5 – reference electrode 6 – membrane Figure 1: Construction of an electrochemical sensor Example response to a carbon monoxide sensor: Sensing electrode: CO + H O ->... -
Page 25: Impact Of The Presence Of A Substance In A Controlled Atmosphere
www.atestgaz.pl Ingredient C [% vol] C [ppm] Nitrogen 78.084 780 840 Oxygen 20.946 209 460 Argon 0.934 9 340 Carbon dioxide 0.0360 Neon 0.00181 18.18 Helium 0.00052 5.24 Methane 0.00017 1.70 Krypton 0.00011 1.14 Hydrogen 0.00005 0.50 Xenon 0.000008 0.087 Table 2: Typical composition of atmospheric air When gas concentrations in the atmosphere differ significantly from those indicated in the table 2, it is necessary to conduct the analysis of the impact of such a situation on the detector operation. -
Page 26: Effect Of Oxygen Concentration Value
www.atestgaz.pl with electrochemical sensors are designed to measure and detect the short-term presence of certain gases in the atmosphere. Both the more sustained concentration with values falling within the range of measurement, and even instantaneous concentrations outside the measuring range lead to a rapid wear of the sensor. - Page 27 www.atestgaz.pl Classification of chemicals used at Atest-Gaz Because of the need to present a consistent and high level of maintenance services, to ensure the safety of the calibration process and to create a basis for a rational calculation of the costs of this process, Atest-Gaz developed the "Classification of Chemical Substances"...
- Page 28 www.atestgaz.pl Category Description Terms of facility calibration No precipitations, no strong winds, Cylinder gases, temperature over – 10 C¹. stable environment In other cases, calibration at a location that meets the above conditions (necessary to remove the detectors). No precipitations, no strong winds, Cylinder gases, temperature over + 10...
