Summary of Contents for Atest Gaz LTT2

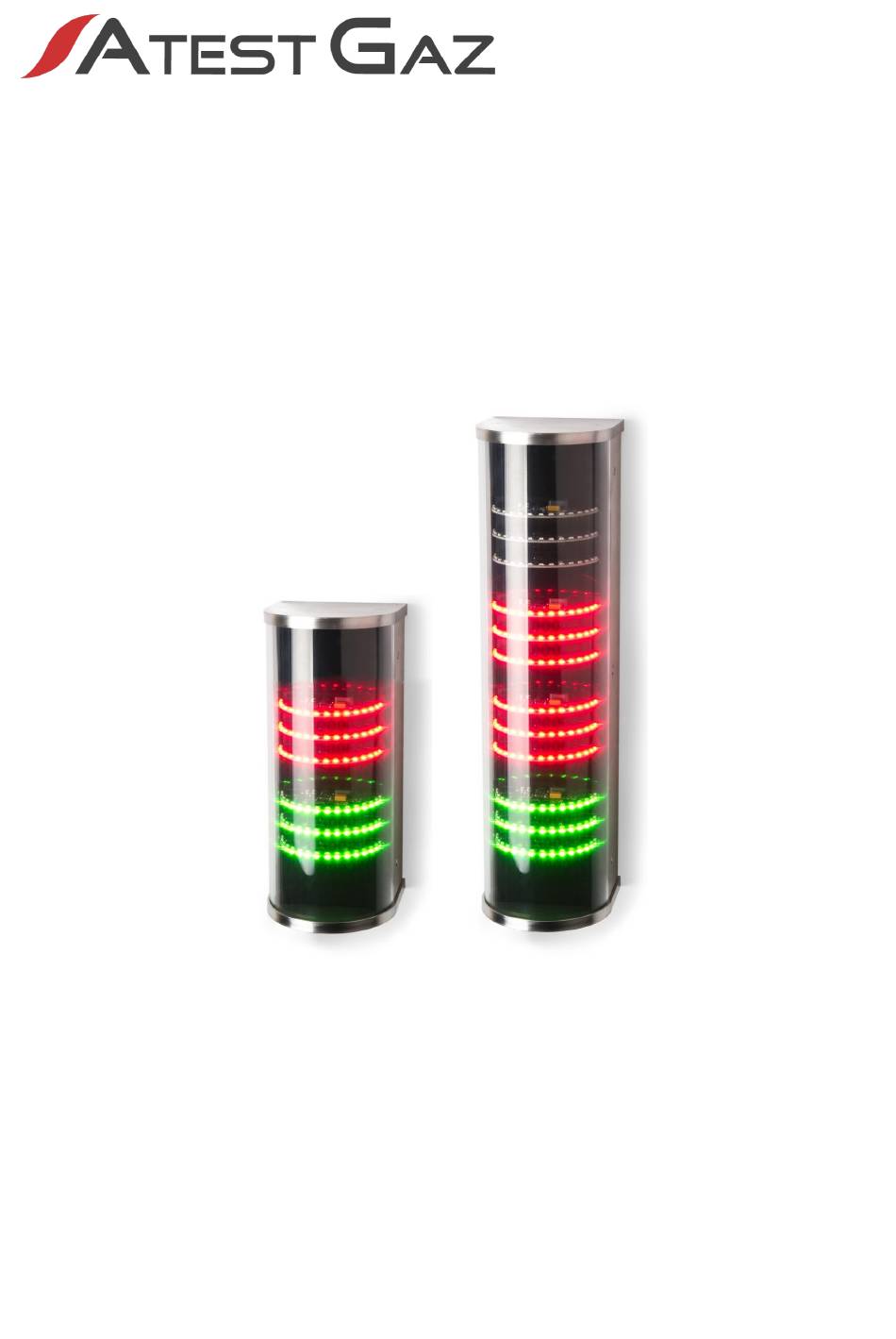

- Page 1 User Manual Warning LED Tower with Sounder LTT2 / LTT4 Product code: PW-091-X / PW-089-X POD-037-ENG R06...
- Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards For more details please visit our website www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
-
Page 3: Table 1: Optical Indicators Status Notation
www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content. -
Page 4: Table Of Contents
Table 4: Configuration example PW-091-X – meaning of the device indications............9 Table 5: Configuration example PW-089-X – meaning of the device indications............10 Table 6: Description of pilot LED for status indication of the LTT2 / LTT4..............10 Table 7: List of tools necessary for installation of the signaller.................14 Table 8: Technical specification.......................... - Page 5 List of Figures Figure 1: Location and role of the LTT2 in Gas Safety System..................6 Figure 2: Layout of device components and its dimensions..................8 Figure 3: Electric connections........................... 8 Figure 4: Architecture with signaller PW-091-S -X / PW-089-S-X................11 Figure 5: Architecture with signaller PW-091-M-X / PW-089-M-X................12 Figure 6: Device with Modbus interface control (PW-091-M-X / PW-089-M-X)............12...
-
Page 6: General Information
General information LTT2 / LTT4 Warning LED Tower with Sounder is a device dedicated to optical and acoustic signalling of the presence of hazards in the particular industrial installation. Device can be installed in Zone 2 (II3G 3D) of gas and dust hazardous areas. -
Page 7: Explosion-Proof Protection
www.atestgaz.pl Installer friendly. Mistakes and errors in connections does not result in device damage. Device can also easily communicate a proper operation of the connected (controlling) devices, including connection / control lines (type PW-091-S-X / PW-089-S-X and PW-091-M-X / PW-089- M-X). -
Page 8: Input-Output Interfaces
LTT2 LTT4 Segment 4 Segment 3 84 mm Segment 2 Segment 1 Locking screw Earth clamp hanger The field of the signaller own states Internal screw M20 x 1,5 Front view Bottom view Figure 2: Layout of device components and its dimensions * The total height of the device (H) depends on the cable gland used –... -
Page 9: User Interface
(only for PW-089-C) Control and signalling input of the 4 LED segment. Applying the supply voltage to the pin activates the optical signalling (only for PW-089-C) Table 3: Electric connections description – PW-091-C-X, PW-089-C-X User interface LTT2 Segment Operation Failure Alarm I... -
Page 10: Ltt4
Continuous signalling – correct operation of the device Failure (yellow) Continuous signalling – critical failure of the device, please contact with the manufacturer Table 6: Description of pilot LED for status indication of the LTT2 / LTT4 s. 10|23 User Manual: POD-037-ENG R06... -
Page 11: System Architectures
www.atestgaz.pl System architectures Sigma Ethernet, MODBUS TCP, Profibus EBUS 4×DI 8×PK RS- 485, MODBUS ASCII SBUS / RTU 4×DI 8×PK 4×DI 8×PK 8×4..20 mA ExBUS NOTE! The diagram presents merely an example of the system layout with a typical set of equipment. The number and types of control units may vary depending on specific needs. -
Page 12: Modbus
www.atestgaz.pl Modbus MODBUS Figure 5: Architecture with signaller PW-091-M-X / PW-089-M-X PW-091-M-X / PW-089-M-X device with Modbus interface Device control The device with Modbus interface is controlled via ExBUS port (see Table 2) and setting the corresponding bits in the Modbus register – see details in Appendices [2]. The signaller subsystems are turned on according to logic shown on the Figure 6. -
Page 13: Configuration
www.atestgaz.pl Configuration Configuration of the signaller with Modbus interface is done by using dedicated software (Sigma Toolbox). This software downloaded from manufacturer's website https://www.atestgaz.pl/en/product/sigma-toolbox A computer with installed software should be connected to the SBUS port of the device (see Table 2). The device will be visible at address 1. Possible parameters to be set: device address on the ExBus port, type of communication protocol and data transmission parameters (see also Table 8). -
Page 14: Table 7: List Of Tools Necessary For Installation Of The Signaller
www.atestgaz.pl Do never leave spare lengths of cables inside the device. Bare wires or wires surplus may lead to a hazard of electric shock or equipment damage. Do never leave redundant cable cores not terminated inside the device. Incorrect routing of cables may result in impairment of the equipment immunity to electromagnetic interferences. -
Page 15: Figure 7: Installation Of The Device - Step 1
Φ max. 10mm Φ: 5.5 mm ① 120 mm (LTT2) 240 mm (LTT4) Figure 7: Installation of the device – step 1 To connect power voltage and control lines to the signaller use the N1 tool to loose four bolts ② that secure the cover of the cable connector ③. -
Page 16: Figure 9: Installation Of The Device - Step 3
www.atestgaz.pl Then lower the cover of the cable connector, disconnect the cable connector ④ and thread the cable via the cable inlet (bushing)⑤. ⑥ ④ ③ ⑤ Figure 9: Installation of the device – step 3 Secure ends of stranded conductors with sleeves. After having the cable cores to terminals of the terminal block ⑥... -
Page 17: Connections
Version PW-091-S-X / PW-089-S-X, PW-091-M-X / PW-089-M-X For the PW-091-S-X / PW-089-S-X and PW-091-M-X / PW-089-M-X device wiring is recommended by means of shielded twisted cables. The wiring diagram is shown on the figure below. LTT2 / LTT4 Unconnected screen T-connector... -
Page 18: Figure 13: Two Wires Connection
LTT2 / LTT4 Unconnected screen T-connector T-connector Figure 13: Two wires connection 8.3.2 Version PW-091-C-X LTT2 T-connector T-connector Figure 14: Wiring of the PW-091-C-X device s. 18|23 User Manual: POD-037-ENG R06... -
Page 19: Device Configuration
www.atestgaz.pl 8.3.3 Version PW-089-C-X LTT4 T-connector T-connector Figure 15: Wiring of the PW-089-C-X device Device configuration Signaller are factory configured by their manufacturer. Configuration options are described in Section 5. Troubleshooting PW-091-S-X / PW-089-S-X and PW-091-M-X / PW-089-M-X device are furnished with self-test functions (see details in Section 5.3). -
Page 20: Technical Specification
www.atestgaz.pl Technical specification Power voltage • • PW-091-S-X / PW-089-S-X, PW-091-M-X / PW-089-M-X 12 – 30 V • PW-091-C-X / PW-089-C-X 18 – 30 V • Power consumption • PW-091-X 8.5 W • PW-089-X 14 W Environment Operation Storage • Temperature -40 –... -
Page 21: Product Marking
Product marking 10.1 LTT2 Warning LED Tower with Sounder 10.1.1 PW-091-S-X, PW-091-M-X PW-091- S1 S2 Sigma Interface Modbus Red-green Green Segment 1 Blue Yellow Yellow-green White Red flash light Green Blue Segment 2 Yellow Yellow flash light White See details in POD-066-ENG „Cable glands used in offered devices”... -
Page 22: Ltt4 Warning Led Tower With Sounder
www.atestgaz.pl Yellow Blinking yellow Yellow with flash light Segment 2 MYFY Blinking yellow with flash light White Blinking white See details in POD-066-ENG „Cable glands used in offered devices” cable gland Table 10: Configuration of PW-091-C-X version 10.2 LTT4 Warning LED Tower with Sounder 10.2.1 PW-089-S-X, PW-089-M-X PW-089-... -
Page 23: Appendices
See details in POD-066-ENG „Cable glands used in offered devices” Cable gland Table 12: Configuration of PW-089-C-X version Appendices DEZG115-ENG – EU Declaration of Conformity – LTT2 / LTT4 PU-Z-096-ENG – The memory map for the GTW functionality in LTT2 and LTT4 s. 23|23 User Manual: POD-037-ENG R06... - Page 24 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Warning LED Tower with LTT2 / LTT4 PW-091-X / PW-089-X Sounder complies with the following Directives and Standards: in relation to Directive 2014/34/EU –...
- Page 25 Map of GTW functionality memory in LTT2 and LTT4 Memory map Addresses range Description 40001 – 40064 Status of detectors at channels 1 – 32 40065 – 40066 Condition of optical and acoustic elements 40067 – 40067 Status of signaller 40068 –...
- Page 26 The system is halted N – gas concentration. The value of 0 corresponds to zero concentration whilst the value of 1000 corresponds to the concentration equal to the measurement range of the detector. Outputs status (read-only) 1.2.1 LTT2 Address Name Description Type...
- Page 27 Signaller with Modbus interface control register flags Control_Reg – assignment of individual bits is listed in the table below. S16 – unsigned 16-bit number. Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 s. 3/4 Appendix: PU-Z-096-ENG R03 ul.
- Page 28 1.6.1 LTT2 Flag Description Seg_1A Segment 1A Seg_1B Segment 1B Seg_2A Segment 2A Seg_2B Segment 2B Seg_1_Alt Segment 1 – alternative colour Acoustic_L_1 Quiet acoustic signalling 1 Acoustic_L_2 Quiet acoustic signalling 2 Acoustic_H Loud acoustic signalling 8 – 15 Unused 1.6.2...
- Page 29 www.atestgaz.pl Notes...
- Page 30 www.atestgaz.pl Notes...
- Page 32 Atest Gaz A. M. Pachole sp. j. Spokojna 3, 44-109 Gliwice tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl For more details on our devices and other products and services offered by us, visit:...
