Summary of Contents for Atest Gaz Teta EcoTerm

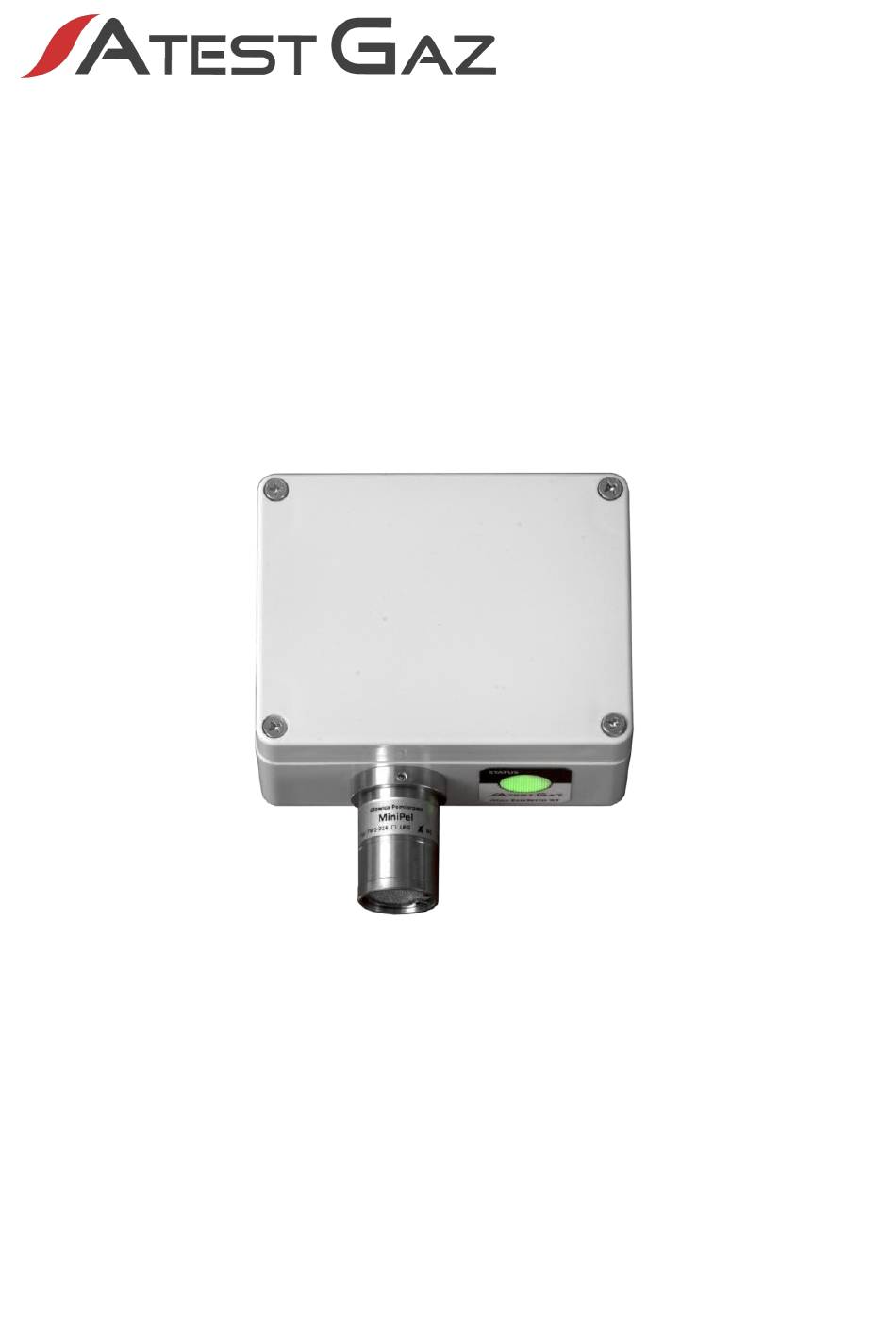

- Page 1 User Manual Gas Detector Teta EcoTerm Product code: PW-113-NG POD-054-ENG R01...
- Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards We invite you to familiarize yourself with our offer on www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
- Page 3 www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content.
-
Page 4: Table Of Contents
www.atestgaz.pl Table of contents 1 Preliminary information..........................5 1.1 Purpose..............................5 1.2 Operation principle..........................5 2 Safety..............................7 3 Description of the construction.......................8 4 Input-output interfaces...........................8 4.1 Electric interface.............................8 5 User interface............................9 5.1 Indication of the device status.......................9 5.2 Display..............................10 6 System architectures..........................11 6.1 Data bus architecture...........................11 7 Life cycle..............................11 7.1 Transportation............................11 7.2 Installation............................11... -
Page 5: Preliminary Information
Preliminary information Purpose Gas detector Teta EcoTerm is designed as crucial components of the Teta Gas system for monitoring of hazardous gas concentrations and are dedicated to detect excessive (hazardous) concentrations of methane in public access facilities, in particular in underground garages and car parks, boilers or industrial halls. - Page 6 www.atestgaz.pl Depending on results of the foregoing actions the system may adopt various statuses that are described in subsequent paragraphs. 1.2.1 Operation It is the status when the gas detector is in sound working conditions and takes regular measurements. Measurement results for the monitored gas still remain below threshold limits and no irregularities in operation of the equipment are detected.
-
Page 7: Safety
www.atestgaz.pl Safety Do never install gas detectors at locations exposed to direct effect of water (moisture) or direct sunlight. When defects are revealed switch the detector off, secure connection cables and contact maintenance staff or a service team. Despite the power supply voltage for the Gas Safety System is off, dangerous voltage may persist across terminals of the Control Unit. -
Page 8: Description Of The Construction
www.atestgaz.pl Description of the construction Configuration buttons Mounting holes Terminal blocks Locking screw Place of application Measuring of the magnet head Display Optical control Service interface Figure 1: The construction of the device and its dimensions Input-output interfaces Electric interface Locations and arrangement of terminal blocks is shown on Figure 1. -
Page 9: User Interface
www.atestgaz.pl User interface Indication of the device status Gas detectors are provided with LED indicator to show status of the device. This LED is located on the bottom of the device housing (see Figures 1). It is also possible to adjust light intensity of LEDs designed to indicate normal operation of the device (see details in Section 7.5.2). -
Page 10: Display
www.atestgaz.pl Detector status LED indication Operation mode Related to Not related to the measurement line measurement line Alarm 3 Failure Alarm threshold 3 is exceeded. The detector also indicates that there are no interrogation from a control unit or a detector defect not related to the measurement line –... -
Page 11: System Architectures
www.atestgaz.pl System architectures Data bus architecture In this system gas detectors are connected to the bus via T-connectors S2. Teta MOD Control 1 Teta Teta Teta EcoDet EcoWent EcoTerm Teta MiniDet Figure 2: Arrangement of gas detectors according to the data bus architecture Detailed schematic diagrams in an editable format can be found on our website. -
Page 12: Mechanical Mounting Of Detectors
www.atestgaz.pl detectors must not be exposed to direct effect of water (moisture) or other chemicals (e.g. cleaning chemicals when the facilities are being cleaned), as well as to direct effect of sunlight, rain or wind, detectors must be secured against damaging mechanical impacts, locations of detectors must enable easy checks and adjustments as well as replacement or disconnection of each detector. -
Page 13: Commissioning Of The Gas Monitoring System
www.atestgaz.pl Do never leave redundant cable cores not terminated inside the device. Incorrect routing of cables may result in impairment of the equipment immunity to electromagnetic interferences. Correct Incorrect Figure 3: An example of cable termination inside a gas detector 7.3.2 Types of suitable cables and conductors Connection type... -
Page 14: Configuration Of Gas Detectors
www.atestgaz.pl In case of improper operation of the system recheck all wiring and connections or contact the system provider /equipment manufacturer. The gas monitoring system can be approved for operation only after passing results of all aforementioned checks and verifications. Configuration of gas detectors Reliable operation of gas detector needs preliminary configuration of the device parameters. -
Page 15: Maintenance Schedule
www.atestgaz.pl LED indication Possible reason for the problem Indications according to the sequence Defective T-connector of S2 type of improper (mismatched) connections of indicator LEDs illustrated in Table 2 at locations indicated on the drawing below: (self-test status – failure) Possible mismatched connections No requests from the Control Unit –... - Page 16 www.atestgaz.pl 7.7.1 Calibration Gas sensor incorporated into the device is a component that subject to ageing due to environmental factors, which inevitably leads to deterioration of its sensitivity. To compensate the deterioration effect the gas detectors must be calibrated on the regular basis (calibration frequency is specified in the Calibration Certificate –...
- Page 17 www.atestgaz.pl Test mode is initiated by approaching a permanent magnet to the detector, the display shows the ‘Ad’ message, the detector address stored in its memory and the ‘tE’ message. Test mode is quitted upon removing of the magnet or within five minutes after test initiation. The location where the magnet is to be approached is shown in Figure 1.
-
Page 18: Utilization
www.atestgaz.pl Utilization This symbol on a product or on its packaging indicates that the product must not be disposed of with other household waste. Instead, it is the user's responsibility to ensure disposal of waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 19: Technical Specification
Consumables Lifetime Manufacturer Product code Measuring head MiniPel Up to 5 years Atest Gaz PWS-016-NG Table 6: List of consumables In case of installation in dwelling houses, public access buildings, car parks or garages s. 19|20 User Manual: POD-054-ENG R01... -
Page 20: List Of Accessories
Gas Detector Teta EcoTerm Table 8: Method of product's marking Appendices DEZG121-ENG – EC Declaration of Conformity – Teta EcoDet, Teta EcoN, Teta EcoTerm, Teta EcoWent, Teta MiniDet PU-Z-054-ENG – Parameters of gas detectors with catalytic sensor PU-Z-039-ENG – Classification of chemicals used at Atest Gaz s. - Page 21 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Gas Detector Teta EcoDet PW-106 Teta EcoN PW-111 Teta EcoTerm PW-113 Teta...
-
Page 22: Table Of Contents
www.atestgaz.pl Parameters of gas detectors with catalytic sensors Table of contents 1 Detected substances..........................2 2 Principle of operation..........................2 3 Impact of environmental conditions......................3 3.1 Composition of the controlled atmosphere..................3 3.1.1 Impact of the presence of a working gas or other reaction gas............3 3.1.2 Effect of oxygen concentration value....................4 3.2 Influence of temperature........................4 3.3 Influence of pressure..........................4... -
Page 23: Detected Substances
www.atestgaz.pl Detected substances Detectors equipped with catalytic sensors are used for measuring and detecting the presence of gases and flammable gases in the range of up to 100% LEL. Principle of operation The catalytic sensor (figure 1) consists of two components: an active and a passive one, heated to a high temperature. -
Page 24: Impact Of Environmental Conditions
www.atestgaz.pl Impact of environmental conditions Never exceed the rated operating parameters of the detector. These parameters can be found in the detector calibration certificate. The detector must be used in accordance with the provisions in the User's Manual. Composition of the controlled atmosphere It is assumed that the standard composition of the atmosphere is a mixture of gases with the proportions indicated in table 1. -
Page 25: Effect Of Oxygen Concentration Value
www.atestgaz.pl concentrations over 100% LEL, even temporarily persistent ones, can lead to a physical wear of the sensor. For these reasons, detectors operating in places where such conditions may occur are / should be equipped with mechanisms to prevent the negative effects of high concentrations, a very high concentration of combustible gas (well above 100% LEL) leads to a decrease in oxygen concentration –... -
Page 26: Influence Of Vibrations, Impacts
www.atestgaz.pl Influence of vibrations, impacts Vibrations and impacts affect the detector's operation, as they may cause: damage to delicate parts of the sensor (e. g. detector element, compensation element), shift of the sensor's zero. It should be ensured that the detector is not exposed to shock and vibration in excess of the amplitude of vibrations amounting to 0.15 mm of the frequencies of over 10 Hz. - Page 27 www.atestgaz.pl Classification of chemicals used at Atest-Gaz Because of the need to present a consistent and high level of maintenance services, to ensure the safety of the calibration process and to create a basis for a rational calculation of the costs of this process, Atest-Gaz developed the "Classification of Chemical Substances"...
- Page 28 www.atestgaz.pl Category Description Terms of facility calibration No precipitations, no strong winds, Cylinder gases, temperature over – 10 C¹. stable environment In other cases, calibration at a location that meets the above conditions (necessary to remove the detectors). No precipitations, no strong winds, Cylinder gases, temperature over + 10...
