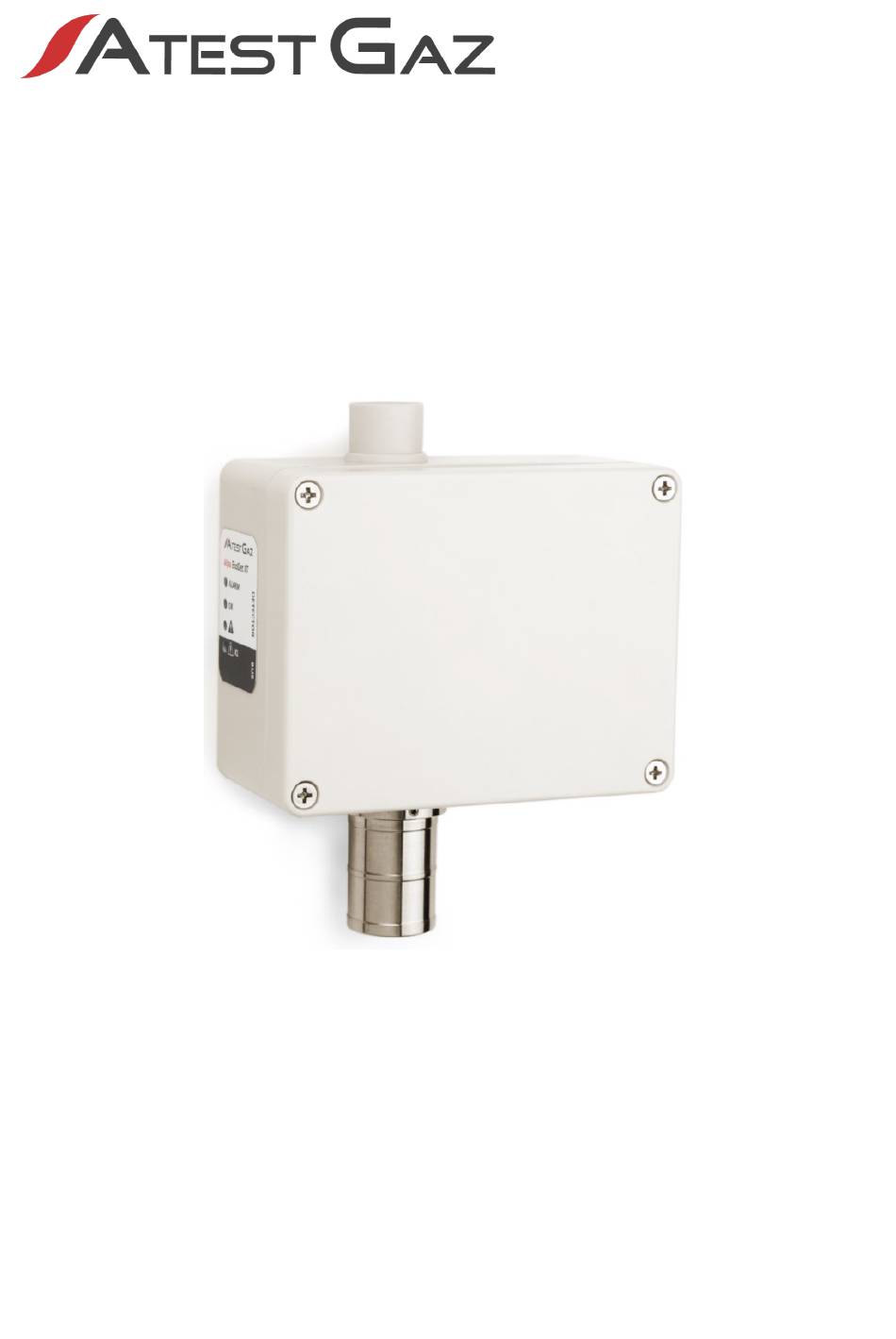

  • Page 1 User Manual Gas Detector Alpa EcoDet XT Product code: PW-098-LPG POD-043-ENG R03...
  • Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards We invite you to familiarize yourself with our offer on www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
  • Page 3 www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content.

  • Page 4: Table Of Contents

    13 Product marking............................... 25 14 Appendices..............................25 List of Tables Table 1: Priorities of output signals produced by the Alpa EcoDet XT Gas Detector............6 Table 2: Electric interface description........................9 Table 3: Indication of operation modes........................10 Table 4: Settings of the configuration switch......................13 Table 5: Possible reasons for indication of interconnection failures................16...

  • Page 5: General Information

    In addition, if it works in an alarm loop system (see sections 6.2, 6.3), at its input (via an XT T-connector) a current signal can be passed from the next detector – Alpa EcoWent XT or Alpa EcoDet XT. This signal is compared with the local value and a signal corresponding to a status of a higher priority is transmitted to the output (see Table 1).

  • Page 6: Table 1: Priorities Of Output Signals Produced By The Alpa Ecodet Xt Gas Detector

    Failure of the detector, system bus, connection to the Alpa EcoWent XT detector or information about incorrect settings of the configuration switch 5 (lowest) Regular operation of the detector (no errors) Warm-up in progress Table 1: Priorities of output signals produced by the Alpa EcoDet XT Gas Detector Gas concentration [%LEL] Output current [mA]...

  • Page 7: Safety

    www.atestgaz.pl 1.2.2 Warning 1 (1 threshold) /Warning 2 (2 threshold) It is the mode of operation when a slight concentration of a hazardous gas is detected and a user must be aware of the situation. The following measures should be undertaken: identification of a reason for presence of gas, which include: •...
  • Page 8 www.atestgaz.pl Do not install a gas detector in places exposed to direct sunlight and water. In the case of damage, shut down the detector, secure the connection cables and contact with the service. All activities related to connecting detectors, signallers and other system components must be carried out while control unit's power supply is off Although switching power supply of the Gas Detection &...

  • Page 9: Description Of The Construction

    www.atestgaz.pl Silicon-based materials irreversibly damage the gas sensor incorporated into the detector. Other incompatible substances are listed in the Appendix [2]. Description of the construction Electric Configuration switch connections Mounting holes „TEST” button Locking screw controls Measuring head Figure 2: Layout of device components and its dimensions Input-output interfaces Electric interfaces The appearance of the terminal strip is shown in Figure 2.

  • Page 10: User Interface

    (an open or closed chain of gas detectors connected to a common communication bus). Such system may comprise only the Alpa EcoDet XT detector or pairs made up of the Alpa EcoDet XT detector combined with the Alpa EcoWent XT unit.

  • Page 11: Star Layout

    www.atestgaz.pl Star layout Within a gas detection system arranged according to the conventional architecture any individual detector is directly connected to a central control unit. Such a solution needs routing of great many cables to a single control unit, which makes installation of a system quite difficult and cost of cabling is pretty large. Figure 4: Connection with the Alpa MOD LED8 Control Unit into a star-shaped system The detailed schematic diagram for such a layout is provided in Appendix [3].

  • Page 12: Bus Layout With A Closed Alarm Loop

    www.atestgaz.pl Bus layout with a closed alarm loop That layout differs from the previous one in one aspect, namely the far end of the power supply line and the communication bus is looped back to the control unit that is provided with a dedicated port for test of the communication loop (e.g.

  • Page 13: Configuration Of Gas Detectors

    www.atestgaz.pl Number of detectors:3 Number of detectors: 3 Bus 1 – Alarm zone 1 Bus 2 – Alarm zone 2 Figure 7: Connecting into two open bus systems servicing two zones Configuration of gas detectors Location of the detector operation To enable reliable operation of gas detectors they have to be configured by appropriate setting of the configuration switch provided inside the detector (see Figures 2 and 8).

  • Page 14: Collaboration With Alpa Ecowent Xt Detectors

    www.atestgaz.pl Subsequent line-up detectors or a control unit Line-up detector Last detector Figure 8: Settings of the configuration switch Collaboration with Alpa EcoWent XT detectors This detector is considered as the last one (the most distant) Figure 9: Collaboration with Alpa EcoWent XT detectors s.

  • Page 15: Troubleshooting Of Electric Interconnections - Seeking For Connection Errors

    1 (POS), even in case when the Alpa EcoDet XT detectors is coupled with the last (the most distant) Alpa EcoWent XT detector (see also Section 7.1.

  • Page 16: Life Cycle

    www.atestgaz.pl LED indicator Further conditions Possible reason for the problem The detector is coupled Mismatched interconnection at locations encircled in the drawing with the Alpa EcoWent XT below: detector Possibly mismatched interconnections Improper setting of the configuration switch (see Section 7.1) Table 5: Possible reasons for indication of interconnection failures Life cycle Transportation...
  • Page 17 YTKS, OMY and LiYY (for the communication bus). Detectors Alpa EcoDet XT must be connected by means of a four-core cable. Selection of appropriate cables is within the responsibility scope of the system designer with consideration of local conditions at the installation site of the Gas Safety System.

  • Page 18: Figure 10: Example Of Cable Routing Inside An Electronic Device

    www.atestgaz.pl It is not allowed to combine two or mode conductors with individual ferrules and lugs in a single terminal. Clamp all conductors into a single ferrules beforehand. It is not allowed to leave spare lengths of cables inside the device. Bare wires or wires surplus may lead to a hazard of electric shock or equipment damage.

  • Page 19: Figure 11: Connection Of Gas Detectors Alpa Ecodet Xt According To The Star Layout

    CONTROL UNIT Unused terminal S2 Figure 11: Connection of gas detectors Alpa EcoDet XT according to the star layout Only the S1 terminal is used. The configuration switch of gas detectors must be always set to the OST position (the last /most distant detector).
  • Page 20 www.atestgaz.pl After the control unit reports the status of OPERATION (PRACA) the test of a detector can be launched. For that purpose enforce the ALARM status by depressing the TEST button of the detector. The control unit should also report the ALARM status. Switch the power voltage off.

  • Page 21: Commissioning And Start-Up

    www.atestgaz.pl See more details in Appendix [3]. 9.2.2.3 Bus layout with a closed alarm loop That layout differs from the previous one only in the following aspects: configuration switches for all gas detectors included into the communication loop are set to the ‘POS’...

  • Page 22: Scheduled Maintenance

    Calibration Certificate (see Table 6) issued for the Gas Detector Alpa EcoDet XT. These operations must be entrusted to a service company authorized by the equipment manufacturer. The calibration process can be carried out in several way:...
  • Page 23 www.atestgaz.pl 9.4.2 Replacement of consumables and fast wearing parts Service life of consumables and fast wearing parts is specified in Table 7. 9.4.2.1 Replacement of the MiniPel measuring head In pace with operation time of the detector its sensor subjects to natural deterioration of its metrological parameters.

  • Page 24: Utilization

    www.atestgaz.pl Utilization This symbol on a product or on its packaging indicates that the product must not be disposed of with other household waste. Instead, it is the user's responsibility to ensure disposal of waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 25: List Of Consumables

    PU-Z-054-ENG – Parameters of gas detectors with catalytic sensor PU-Z-099-ENG – Connection diagrams of gas detectors XT series PU-Z-098-ENG – Maximum quantity of Alpa EcoWent XT and Alpa EcoDet XT detectors by cable type PU-Z-039-ENG – Classification of chemicals used at Atest Gaz s.
  • Page 26 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Gas Detector Alpa EcoDet XT PW-098 complies with the following Directives and Standards: in relation to Directive 2014/30/EU –...
  • Page 27 www.atestgaz.pl Parameters of gas detectors with catalytic sensors Detected substances Detectors equipped with catalytic sensors are used for measuring and detecting the presence of gases and flammable gases in the range of up to 100% LEL. Principle of operation The catalytic sensor (figure 1) consists of two components: an active and a passive one, heated to a high temperature.
  • Page 28 www.atestgaz.pl Impact of environmental conditions Never exceed the rated operating parameters of the detector. These parameters can be found in the detector calibration certificate. The detector must be used in accordance with the provisions in the User's Manual. Composition of the controlled atmosphere It is assumed that the standard composition of the atmosphere is a mixture of gases with the proportions indicated in table 1.
  • Page 29 www.atestgaz.pl concentrations over 100% LEL, even temporarily persistent ones, can lead to a physical wear of the sensor. For these reasons, detectors operating in places where such conditions may occur are / should be equipped with mechanisms to prevent the negative effects of high concentrations, a very high concentration of combustible gas (well above 100% LEL) leads to a decrease in oxygen concentration –...
  • Page 30 www.atestgaz.pl Influence of vibrations, impacts Vibrations and impacts affect the detector's operation, as they may cause: damage to delicate parts of the sensor (e. g. detector element, compensation element), shift of the sensor's zero. It should be ensured that the detector is not exposed to shock and vibration in excess of the amplitude of vibrations amounting to 0.15 mm of the frequencies of over 10 Hz.
  • Page 31 Connection diagrams of gas detectors XT series Examples of connection between Alpa EcoWent XT and Alpa EcoDet XT gas detectors with control units are shown in the drawings. Control Unit Input Input T-connector XT T-connector XT T-connector XT Jumper...
  • Page 32 T-connector XT T-connector XT Figure 2: Connection Alpa EcoDet XT Gas Detector with control unit into an open bus system While connecting detectors to the control loop pay attention to the position of an internal configuration switch (the last detector in the loop or a transient detector).
  • Page 33 T-connector XT T-connector XT T-connector XT Figure 3: Connection Alpa EcoWent XT and Alpa EcoDet XT Gas Detectors with control unit into an open bus system Please make sure that configuration jumpers are in correct positions. The jumper in the terminal block X2 of the Alpa EcoWent XT must be installed when the detector is not directly coupled with the Alpa EcoDet XT detector).
  • Page 34 T-connector XT T-connector XT T-connector XT Figure 4: Connection Alpa EcoWent XT and Alpa EcoDet XT Gas Detectors with control unit into an closed bus system Please make sure that configuration jumpers are in correct positions. The jumper in the terminal block X2 of the Alpa EcoWent XT must be installed when the detector is not directly coupled with the Alpa EcoDet XT detector).
  • Page 35 Control Unit Figure 5: Connection Alpa EcoWent XT and Alpa EcoDet XT Gas Detectors with control unit into a star- shaped system Please make sure that configuration jumpers are in correct positions. The jumper in the terminal block X2 of the Alpa EcoWent XT must be installed when the detector is not directly coupled with the Alpa EcoDet XT detector).
  • Page 36 Maximum quantity Alpa EcoWent XT and Alpa EcoDet XT detectors by cable type Open loop configuration Length L2 [m] Length L1 [m] Detectors installed 30 m apart Figure 1: Open loop configuration for Alpa EcoWent XT detectors Cross-section of...
  • Page 37 Quantity of detectors L1 [m] L2 [m] Quantity of detectors 0,75 Table 2: Maximum quantity of Alpa EcoDet XT – open loop configuration Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 2/7 Appendix: PU-Z-098-ENG R06 ul.
  • Page 38 L1 [m] L2 [m] Quantity of sets 0,75 Table 3: Maximum quantity of sets of Alpa EcoWent XT and Alpa EcoDet XT – open loop configuration Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 3/7 Appendix: PU-Z-098-ENG R06 ul.
  • Page 39 1619 1882 1622 1884 1625 Table 4: Maximum quantity Alpa EcoWent XT – closed loop configuration Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 4/7 Appendix: PU-Z-098-ENG R06 ul. Spokojna 3, 44-109 Gliwice, Poland fax: +48 32 234 92 71 VAT No.: PL 9691433231...
  • Page 40 Quantity of detectors L1 [m] L2 [m] Quantity of detectors 0,75 Table 5: Maximum quantity of Alpa EcoDet XT – closed loop configuration Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 5/7 Appendix: PU-Z-098-ENG R06 ul.
  • Page 41 L1 [m] L2 [m] Quantity of sets 0,75 Table 6: Maximum quantity of sets of Alpa EcoWent XT and Alpa EcoDet XT – closed loop configuration Atest Gaz A. M. Pachole sp. j. tel.: +48 32 238 87 94 p. 6/7 Appendix: PU-Z-098-ENG R06 ul.
  • Page 42 System with backup battery supply (U = 20 V) IN(min) single cable One Alpa EcoWent XT Gas Detector One Alpa EcoDet XT Gas Detector conductor at the end of the line at the end of the line L2 [m] L2 [m]...
  • Page 43 www.atestgaz.pl Classification of chemicals used at Atest-Gaz Because of the need to present a consistent and high level of maintenance services, to ensure the safety of the calibration process and to create a basis for a rational calculation of the costs of this process, Atest-Gaz developed the "Classification of Chemical Substances"...
  • Page 44 www.atestgaz.pl Category Description Terms of facility calibration No precipitations, no strong winds, Cylinder gases, temperature over – 10 C¹. stable environment In other cases, calibration at a location that meets the above conditions (necessary to remove the detectors). No precipitations, no strong winds, Cylinder gases, temperature over + 10...
  • Page 45 www.atestgaz.pl Notes...
  • Page 46 www.atestgaz.pl Notes...
  • Page 48 Atest Gaz A. M. Pachole sp. j. Spokojna 3, 44-109 Gliwice tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl For more details on our devices and other products and services offered by us, visit:...
