Summary of Contents for Dahua DHI-LM65-F400

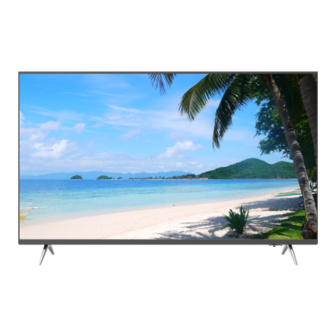

- Page 1 LCD Monitor User Manual Please read this manual before use and retain it for future reference. Specifications are subject to change without notice.
-
Page 3: Safety Instructions
Safety Instructions Safety precautions and maintenance WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards. Read and follow these instructions when connecting and using your display: Operation: •... - Page 4 IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen.
- Page 5 Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off.
- Page 6 ESD Warnings When user close to the monitor may cause the equipment discharge and reboot to the display of main menu. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 7: End Of Life Disposal
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment - EN 301 489-1 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements Canada: Industry Canada statement:... - Page 8 End of Life Directives-Recycling Your new Public Information Display contains several materials that can be recycled for new users. Please dispose of according to all Local, State, and Federal laws Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.
-
Page 9: Table Of Contents
Table of contents Compatibility of the USB device ........20 Input mode ......23 Unpacking and installation ..1 1.1. Unpacking .........1 Cleaning and Troubleshooting .24 1.2. Items in the packing case ..1 7.1. Cleaning .........24 1.3. Installation precautions .....1 7.2. Troubleshooting ......25 1.4. -
Page 10: Unpacking And Installation
The appearance and the color of the product are subject to the material object. The picture is for reference only. Unpacking and installation 1.1. Unpacking • This product is packed in a paper packing case and comes with standard accessories. •... -
Page 11: Installation For The Base Of The Mounting Desk
1.4. Installation for the base of the mounting desk: Install the base: 1. Spread the protective film (wrapped on the monitored during packing) on the desk, and place the monitor with its front face down on the protective film (keep the trademark off the desk) to avoid scratching the screen. -
Page 12: Hang The Monitor On The Wall
1.5. Hang the monitor on the wall In order to install the monitor on the wall, you must prepare a set of standard wall-hanging kit (separately purchased). You are recommended to use the mounting plate which conforms to the TUV-GS and/or UL1678 standard. Protective Sheet VESA Grid Table... - Page 13 Ventilation requirements for enclosed space In order to ensure normal heat dissipation, sufficient space from items to four sides shall be kept, as shown in the figure below. 100 mm 100 mm 100 mm 100 mm...
-
Page 14: Parts And Functions
Parts and functions 2.1. Control panel Power button Turn the display On or put the display to standby mode. Remote control sensor and power status indicator. -
Page 15: Input/Output Terminal
2.2. Input/output terminal AUDIO-IN AC IN AC power input from the wall socket. AUDIO IN Audio input for VGA source VGA IN VGA video input. RS232 Receive command signals from the external RS232 device. USB port Connect to the USB storage device. HDMI 1/ HDMI 2 HDMI 1 support HDMI 1.4, up to 4K... -
Page 16: Remote Control
2.3. Remote Control [MENU] SETTINGS button Enter the main menu, or return to 2.3.1. General functions previous menu or exit the main menu. The remote control buttons [up], [down], [left], [right] are movement,Under the menu setting, press the left and right buttons to enter the lower menu or adjust the parameters. -
Page 17: Install Batteries Into The Remote Control
2.3.2. Install batteries into the remote control The remote control is electrified by two pieces of 1.5V AAA batteries. Install or replace batteries: 1. Install and push away the battery cover. 2. Place the batteries according to the marks (+) and (–). 3. -
Page 18: Working Scope Of The Remote Control
2.3.4. Working scope of the remote control To press buttons on the remote control, please point the front of the remote control at the remote sensor on the monitor. When the remote control is in use, the distance to the sensor on the monitor shall be smaller than 5m/16 inch, and the horizontal and vertical angles shall be smaller than 30 degrees. -
Page 19: Connect External Devices
Connect external devices 3.1. Connect external devices (DVD/VCR/NVR) 3.1.1. Use HDMI video input DVD / VCR / NVR IN 2 IN 1 HDMI OUT [HDMI IN] 3.2. Connect PC 3.2.1. Use HDMI input IN 2 IN 1 HDMI OUT [HDMI IN]... -
Page 20: Use Vga Input
3.2.2. Use VGA input AUDIO-IN VGA OUT AUDIO IN [VGA IN] [AUDIO IN] 3.3. Connect USB 3.3.1. Use USB device 5.0V 500mA... -
Page 21: Operation
Operation NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device 1. Connect your USB device to the USB port on the display. SOURCE 2. Press button, choose , and press button. -
Page 22: Photo
4.1.1. Photo Select a picture file and press to view, and it will display all the pictures in the folder automatically. Press to display the following menu. Play/Pause Press “Play/Pause” button to paly or pause the slideshow. Next/Prev. Press “Next/Prev.” button to skip to view the photo which are seclecd the photo. -
Page 23: Music
4.1.2. Music Play/Pause Press to play or stop. Press to play slower. Press to play faster. Prev. Press to play the previous song. Next Press to play the next song. Stop Press to stop and return to folder interface. RepeatAll Press to select the repeat mode: Repeat 1/ALL/None. -
Page 24: Movie
4.1.3. Movie Play/Pause Press to play or pause. Press to play slower. Press to play faster. Prev. Press to play the previous movie. Next Press to play the next movie. Stop Press to stop and back to folder interface. RepeatAll Press to select the repeat mode: Repeat 1/ALL/None. -
Page 25: Text
4.1.4. Text Prev Page Press to the previous page. Next Page Press to the next page. Prev. Press to play previous text. Next Press to play next text. Stop Press to stop and back to folder interface. Charset Character set switching. Music Turn background music on or off. -
Page 26: Operation On The Osd Menu
4.2. Operation on the OSD menu: Column 2, 3 or Column 1 Column 2 Column 1, 3 Remarks Column 2, 2 Security Depend on HDMI 1/ monitoring HDMI 2 Depend on HDMI 1/ Automatic HDMI 2 Bright Picture Mode Standard Soft Sub items can be adjusted in user mode... - Page 27 After setting the Off, 10min, 20min, time, the device will 30min, 60min, automatically turn off Sleep Timer 90min, 120min, at the time you set. 180min, 240min Restart and return to the default value of off. Turn off or select no TIME device operation to Off, 3 hours, 4...
- Page 28 Note: 1. The VGA Auto Adjust signal is not connected, so the screen menu cannot be selected; 2. Press up / down key to Position H. switch in the process of horizontal position / vertical position / clock Position V. / phase adjustment value.
-
Page 29: Compatibility Of The Usb Device
Compatibility of the USB device Format of the USB multi-media coder-decoder Spec of AV codec , Video Video coder- Frame Type Highest bit rate Resolution Audio format decoder rate AVI(.avi) MPEG-1, 80Mbps 30FPS 1920x1080 MPEG-1 Layers I,II, MPEG-2MP@HL, 80Mbps 30FPS 1920x1080 MPEG-4 50Mbps... - Page 30 BDAV H.264 100Mbps(VCL) 30FPS 3840x2160 AC3, MPEG-2 MP,HP@Level 120Mbps(NAL) AAC, 4.1, transport VC1 (AP), 45Mbps 30FPS 1920x1080 stream MPEG-2MP@HL, 80Mbps 30FPS 1920x1080 (.m2ts) Matroska H.264 100Mbps(VCL) 30FPS 3840x2160 (.mkv) MP,HP@Level 120Mbps(NAL) 4.1, VC1 (AP), 45Mbps 30FPS 1920x1080 H265 100Mbps 30FPS 3840x2160 Flash H.264...
- Page 31 Spec of AV codec , Audio Type Audio format Sampling Rate Bit rate Windows Media 8KHz ~ 48Khz 128bps ~ 320Kbps Audio (.wma) WMAPro MPEG MPEG 32kHz ~ 48kHz 32kbps ~ 320kbps Audio Layer III (.mp3) Advanced 16kHz ~ 48kHz 24kbps ~ 384kbps Audio Coding (.aac) 32kHz, 44.1kHz,...
-
Page 32: Input Mode
Input mode PC mode ·720 x 400 @ 70Hz ·640 x 480 @ 60Hz ·640 x 480 @ 75Hz ·800 x 600 @ 60Hz ·1024 x 768 @ 60Hz ·1152 x 870 @ 75Hz ·1280 x 720 @ 60Hz ·1280 x 1024 @ 60Hz ·1366 x 768 @ 60Hz ·1920 x 1080 @ 60Hz ·1600 x 900 @ 60Hz... -
Page 33: Cleaning And Troubleshooting
Cleaning and Troubleshooting 7.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. -
Page 34: Troubleshooting
7.2. Troubleshooting Symptom Possible cause Solution No display 1. The power cord has been 1. Plug the power cord. disconnected. 2. Make sure the power switch 2. The main power switch on is turned on. the back of the monitor is 3. - Page 35 There is picture, but 1. The input source signal wire 1. Make sure video input and no sound. is incorrectly connected. voice input are both correctly connected. 2. The volume is minimized. 2. Use button to 3. {Mute} has been enabled. adjust the volume.
-
Page 36: Technical Specification
Technical specification Specification Item 50” 65” Screen size (effective area) 49.5 inch (126 cm) diagonal 64.5 inch (163.9 cm) diagonal line LCD line LCD Aspect ratio 16:9 16:9 Pixel number 3840 (H) x 2160 (V) 3840 (H) x 2160 (V) Dot Spacing 0.2854 (H) x 0.2854 (V) [mm] 0.372 (H) x 0.372 (V) [mm] Displayable color... -
Page 37: Environmental Conditions
General: Specification Item 50” 65” Power input 100-240V~, 50/60Hz 100-240V~, 50/60Hz Power consumption (max.) 110 W 190 W Power consumption (classic) 90 W 160 W Power consumption (standby <0.5 W <0.5 W and power-off) Dimension (without base) [W x 1113.0 X 649.0 X 87.2 1449.6 X 844.7 X 78.6 mm H x D] Dimension (with base) [W x H... - Page 40 Q41G65M107806B...
