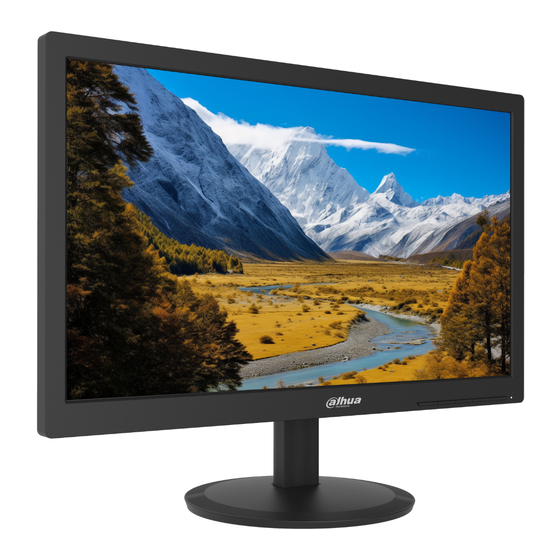

- Page 1 A202S Series LED Monitor User’s Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
Foreword General This manual introduces the installation, functions and operations of the A202S Series LED Monitor equipment (hereinafter referred to as " the Device " ). Read carefully before using the device, and keep the manual safe for future reference. - Page 3 User’s Manual There might be errors in the print or deviations in the description of the functions, operations and technical data. If there is any doubt or dispute, we reserve the right of nal explanation. Upgrade the reader software or try other mainstream reader software if the manual (in PDF ...
-
Page 4: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Operation Requirements WARNING Do not tread on or squeeze the power line, especially the plug or connection point of the power ... - Page 5 User’s Manual If the product is installed on the wall, please make sure the wall's load bearing capacity is su cient. To avoid falling and injuring people, install according to the included instructions with mounting hardware. Do not put the product in ammable or corrosive gaseous environment, which may cause re or ...
- Page 6 User’s Manual Only quali ed service people can maintain. If the product gets any kind of damage, such as damage to the plug, foreign matter or liquid into the unit, exposure to rain or humidity, loss of function, or dropped, please contact dealer or after-sales service center. Be careful during maintenance of product even if the power is o .
-
Page 7: Table Of Contents
User’s Manual Table of Contents Foreword .................................... I Important Safeguards and Warnings ......................... III 1 Packing List ................................... 1 2 Angle Adjustment ............................... 2 3 Button Description ..............................3 4 Cable Connection ................................ 4 5 Menu Description ................................ 5 6 ECO Modes .. -
Page 8: Packing List
User’s Manual Packing List Packing list Table 1-1 Packing list Name Power adapter Signal cable User's manual Stand Base The above gure is for illustration only and the physical accessories shall govern. -
Page 9: Angle Adjustment
User’s Manual Angle Adjustment The screen can be adjusted by inclining forward and backward; however, the speci c adjustment depends on the speci c model of the device. Generally, it may be inclined 5±2° forward and 22 ±2° backward. Angle adjustment +22°... -
Page 10: Button Description
User’s Manual Button Description Angle adjustment Table 3-1 Button description Name Description LED indicator light The light is green when the screen is turned on. The light is orange when the screen enters energy saving mode. The light is o when the screen is turned o . OSD/Power button Press the button to turn on the monitor. -
Page 11: Cable Connection
User’s Manual Cable Connection Input and output ports The above ports are for explanation only, and the speci c ports are subject to the actual display. VGA interface HDMI interface Use the HDMI cable to connect the HDMI Use a VGA cable to connect the VGA interface of the product to the VGA IN interface of the product to the HDMI interface of the PC. -
Page 12: Menu Description
User’s Manual Menu Description The color and shape of the OSD menu of the actual computer may be slightly di erent from them shown in the gure. Speci cations of the OSD menu may change with improvements of functions without prior notice. ... - Page 13 User’s Manual Press to select an option, then press to con rm the setting and exit the current menu. Step 4 Press to exit the menu interface.
-
Page 14: Eco Modes
User’s Manual Modes and Gameplus Step 1 Press any one of the buttons ( ) to activate the navigation window. Figure 6-1 Navigation window Step 2 Press to switch ECO modes . These modes ( STANDARD , FPS , RTS , LBL , GAME and MOVIE ) can be used to optimize settings according to your activity. -
Page 15: Operation Menu (Osd) Function Descriptions
User’s Manual Operation Menu (OSD) Function Descriptions Functions of the monitor vary with models, and the functions in this manual are for reference only. Table 7-1 Menu description Menu Sub Menu Value Range BRIGHTNESS 0-100 BRIGHTNESS CONTRAST 0-100 STANDARD/LBL/GAME//FPS/RTS/MOVIE ON/OFF H.POSITION 0-100 0-100... -
Page 16: Product Specifications
User’s Manual Product Specifications Product model DHI-LM20-A202S Screen Size 19.5" Aspect Ratio 16:9 ° ° 90 (H) / 65 (V) Viewing Angle 600:1(TYP) Contrast ratio Colors 16.7M Resolution 1600x900 Maximum refresh rate 75Hz Without ba 464.8 x 283.5 x 48.3 mm roduct Dimensions With base... -
Page 17: Appendix 1 Troubleshooting
User’s Manual Troubleshooting Appendix Table 1-1 FAQ Faults Occurring Possible Solutions Check if the power is on. The power indicator light is not on Check if the power cord is connected. Check if the function of plug-and-play of the device is compatible with PC. -
Page 18: Appendix 2 Cybersecurity Recommendations
IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. Below are some tips and recommendations from Dahua on how to create a more secured security system. - Page 19 User’s Manual 1024–65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel. MAC Address Binding We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoo ng.
- Page 20 User’s Manual Enable IP/MAC address ltering function to limit the range of hosts allowed to access the device. More information Please visit Dahua o cial website security emergency response center for security announcements and the latest security recommendations.
- Page 21 E N A B L I N G A S A F E R S O C I E T Y A N D S M A R T E R L I V I N G ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
