Page 1: User Manual

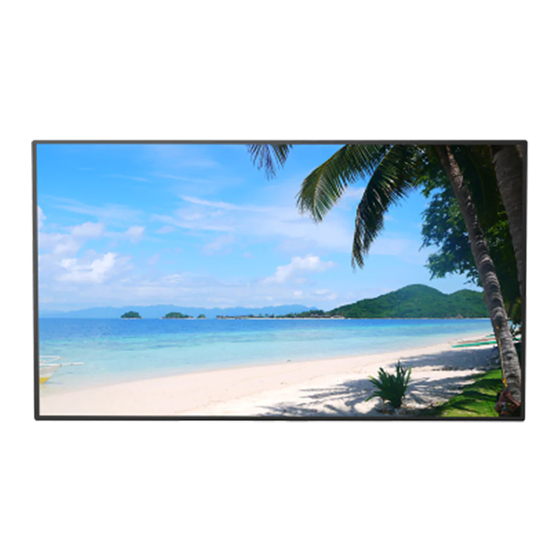

UHD LED Monitor User Manual DHI-LM43-F410 Please read this manual before use and retain it for future reference. -
Page 3: Safety Instructions
Safety Instructions Safety precautions and maintenance WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards. Read and follow these instructions when connecting and using your display: Operation: •... -
Page 4: Ce Declaration Of Conformity
Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. - Page 5 Europe – EU Declaration of Conformity This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive (2014/53/EU): - EN60950-1 Safety of Information Technology Equipment - EN 62311...
- Page 6 End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local DH dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
-
Page 7: Table Of Contents
Table of contents Unpacking and installation ........1 1.1. Unpacking ..................1 1.2. Items in the packing case ............1 1.3. Installation precautions .............1 1.4. Hang the monitor on the wall ..........2 1.4.1. VESA grid plate ............2 Parts and functions ..........3 2.1. -
Page 8: Unpacking And Installation
Please confirm that the packing case contains the following items: • LCD monitor • Remote control • Instructions UHD LED Monitor User Manual DHI-LM43-F410 • Power cord • HDMI wire • Logo User Manual Remote Control * The supplied power cord varies depending on destination。... -
Page 9: Hang The Monitor On The Wall
4. Use assembling screws (with a length 10mm greater than the thickness of the assembling rack to fix the wall-hanging kit), and fasten the screws. 1.4.1. VESA grid plate DHI-LM43-F410 400(H) x 400(V) mm Caution: Prevent the monitor from falling down: •... -
Page 10: Parts And Functions
Parts and functions 2.1. Control panel MUTE INPUT MENU • Indicates the operating status of the display without OPS: [ ] button - Lights green when the display is turned on Use this button to turn the display on or put the display to standby. -
Page 11: Input/Output Terminal
2.2. Input/output terminal RS232 HEADPHONE HDMI 2 HDMI 1 LINE IN 5 6 7 AC IN AC power input from the wall outlet. MAIN POWER SWITCH Switch the main power on/off. PC LINE IN Audio input for VGA source (3.5mm stereo phone). RJ-45 LAN control function for the use of remote control signal from control center. -
Page 12: Remote Control
2.3. Remote Control [.] button Set dot. 2.3.1. General functions ] Source Button Choose input source. [ ] [ ] [ ] [ ] [ ] Button Up and down operation key & confirmation key. ] INFO Button Show Information OSD. [ ] [ ] Volume Button Increase and decrease volume. -
Page 13: Install Batteries Into The Remote Control
2.3.2. Install batteries into the remote control The remote control is electrified by two pieces of 1.5V AAA batteries. Install or replace batteries: 1. Install and push away the battery cover. 2. Place the batteries according to the marks (+) and (–). 3. -
Page 14: Connect External Devices
Connect external devices 3.1. Connect external devices (DVD/VCR/VCD) 3.1.1. Use HDMI video input DVD / VCR / VCD HDMI OUT HDMI 1 HDMI 2 RS232 5.0V 500mA [HDMI IN] 3.1.2. Use network interface 音频输入 耳机输出 INTERNET 3.2. Connect PC 3.2.1. Use HDMI input HDMI 1 LINE IN HEADPHONE HDMI 2... -
Page 15: Connect Usb
3.3. Connect USB 3.3.1. Use USB device 5.0V 500mA... -
Page 16: Operation
Operation - Photos /root/pictures/ - Music /root/music/ 4.1. Media Player introduction: 1. The front page of the media player, this page contains three items: “Play”, “Compose” and “Settings”. Play: choose to play the playlist. Compose: edit playlists. Settings: set the playback content. 5. - Page 17 - Add/Remove：Update from the playlist。 - Sort：Sort playlists. - Save/Abort：Storage or suspend the playlist。 - Back：return. 11. If you make a playlist containing all of the image files, the application will ask you if you want to play background music while playing the video. 8.
-
Page 18: Pdf Reader Play
4.2. PDF reader play 4. If an empty playlist is chosen, the app will guide you to select the media source. 1. Home page of Pdf app, this page has three items: All media files should be placed in root directory. “Play”, “Compose”... - Page 19 7. Once you start to edit a playlist, you will see 9. Select “Settings” on home page, this page has below screen. two parts, “Repeat Mode” and “Effect Duration”. Source - files in storage. Repeat Mode : play mode. Playlist – files in playlist. Effect Duration : photo effect duration.
-
Page 20: App Customization
4.3. App customization The user can set the client-source application programs. Notes: 1. Display the app installed by users only. 2. Do not display the app pre-installed by the system. 4.3.1. Operation on the OSD menu: Column 1 Column 2 Column 1, 3 Column 2, 3 or Column 2, 2 Remarks... - Page 21 Time Setting Date Picker Set Year/Month/Date Time:Minute Repeat OFF/Once/Everyday/Workday Shutdown Time Time Set time Repeat OFF/Once/Everyday/Workday Time Set time Power Time HDMI1/HDMI2/PDF/MEDIA/ Source CUSTOMER “File Number [1 … 7]” Depends on Source = MEDIA / PDF Time Time Setup “OFF/10 min /20 min /30 min /60 Sleep Time min /90 min /120 min /180 min /240 min ”...
-
Page 22: Compatibility Of The Usb Device
Compatibility of the USB device Format of the USB multi-media coder-decoder Video decoding Video coder- Type Container Decoding Coding Channel Remarks decoder Supported size in a range from 48x48 pixels to 1920X1088 pixels MPEG1/2 MPEG1/2 File format: VOB Max. frame rate:30fps Max. - Page 23 Audio decoding Audio coder- Type Container Decoding Coding Channel Remarks decoder MPEG1/2/2.5 “Bit rate”: 8kbps~320Kbps, CBR and VBR MPEG audio Decode: MP1, MP2, MP3 Audio Layer1/2/3 Sampling rate: 8KHZ~48KHz” “Bit rate”: 8kbps~320Kbps WMA version Windows Sampling rate: 8KHZ~48KHz 4,4.1, 7, 8, 9, Decode: WMA Media Audio Do not support WMA Pro non-destructive...
-
Page 24: Input Mode
Input mode HDMI computer mode Available resolution ratio Standard resolution ratio Refresh rate Pixel rate Aspect ratio Horizontal Perpendicular pixel line 60 Hz 25.175 MHz 67 Hz 30.24 MHz 75 Hz 31.5 MHz WVGA 70 Hz 28.32 MHz SVGA 60 Hz 40 MHz SVGA 75 Hz... -
Page 25: Leaning And Troubleshooting
leaning and Troubleshooting 7.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 26: Troubleshooting
7.2. Troubleshooting Symptom Possible cause Solution No display 1. The power cord has been disconnected. 1. Plug the power cord. 2. The main power switch on the back of 2. Make sure the power switch is turned the monitor is not turned on. 3. -
Page 27: Technical Specification
Technical specification MonitorDHI-LM43-F410 Item Specification Screen size (effective area) 42.51 inch (107.9 cm) diagonal line LCD Aspect ratio 16:9 Pixel number 3840 (H) x 2160 (V) Dot Spacing 0.2451 (H) x 0.2451 (V) [mm] Displayable color 8bits+FRC 1.07G Color Brightness (classic) 350 cd/m2 (classic) Contrast (classic) 5000:1...
