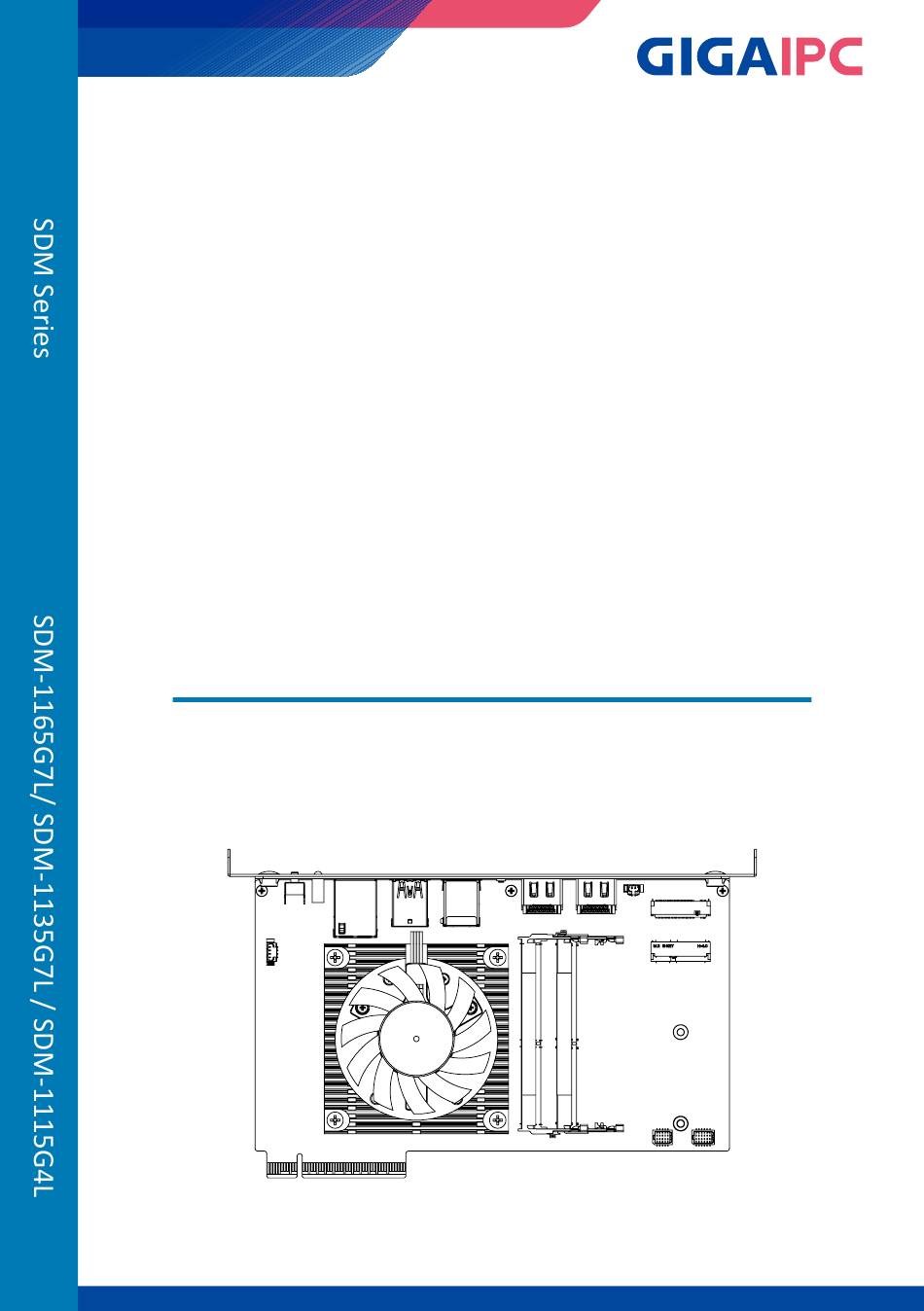

Page 1: Smart Display Module Series
SDM-1165G7L (MTGU7AL-SI) SDM-1135G7L (MTGU5AL-SI) SDM-1115G4L (MTGU3AL-SI) Smart Display Module Series Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
• To get installation instructions, please see P.24 Item Quantity DIMM2 PAD (P/N : 25ST3-200086-T5R) M.2 Standoff (P/N : 12KSF-F10303-20R) M.2 Screw (P/N: 25KSG-130048-S0R) M.2 Bracket (P/N: 25ST1-1231Z0-S7R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
TPM (Trusted Platform Module Connector) ....18 2.2.2 CPU_FAN (CPU Fan connector) ........19 2.2.3 BATTERY (Battery cable connector) ......20 Chapter 3 – SDM-L Installation Dimension ..............22 Installation ..............23 Chapter 4 – BIOS Introduction ..............27 www.gigaipc.com... - Page 10 Hardware Monitor ............35 4.3.6 S5 RTC Wake Settings ........... 36 4.3.7 Network Stack Configuration ........37 4.3.8 NVMe Configuration ............. 38 4.3.9 Offboard SATA Controller Configuration ...... 39 Chipset ................40 Security ................41 Boot ................44 Save & Exit ..............45 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
2 x HDMI 2.0 (Rear), supporting a maximum 4096x2160@60Hz resolution of 4096x2160 @60Hz 2 x HDMI 2.0 (Rear), supporting a (4 independent display outputs) maximum resolution of 4096x2160 @60Hz (4 independent display outputs) Audio Intel® integrated Audio www.gigaipc.com... - Page 14 2 x External Antenna Hole (Optional) 1 x Reset button 1 x Power button 1 x TPM header Windows® 10 (x64) Compatibility Operating temperature: 0°C to 55°C Operating Operating humidity: 0%-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com...
-
Page 15: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -

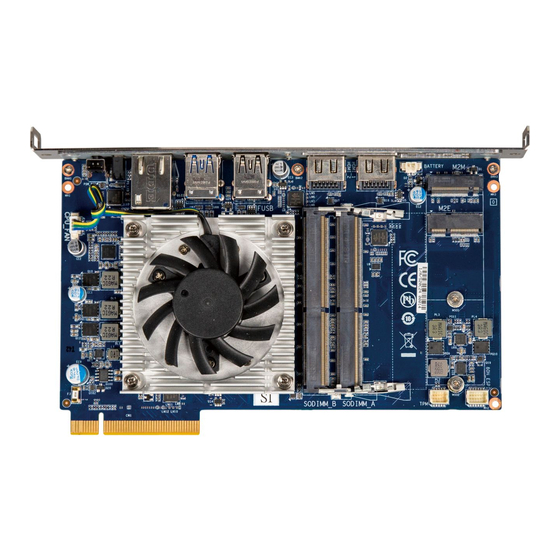

Page 16: Jumpers And Connectors
Jumpers and Connectors 6 7 1 www.gigaipc.com... - Page 17 SODIMM_A 2 x DDR4 SO-DIMM sockets SODIMM_B 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Trusted Platform Module Connector CPU_FAN 1 x CPU Fan connector BATTERY 1 x Battery cable connector www.gigaipc.com...
-
Page 18: Tpm (Trusted Platform Module Connector)
2.2.1 TPM (Trusted Platform Module Connector) Pin 1 TPM Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition Clock SPI_CS TPM_SO RESET TPM_SI 3.3V www.gigaipc.com... -
Page 19: Cpu_Fan (Cpu Fan Connector)
2.2.2 CPU_FAN (CPU Fan connector) Pin 1 CPU FAN Connector Connector PN Vendor 85205-0470N ACES KYOYAKU A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 20: Battery (Battery Cable Connector)
2.2.3 BATTERY (Battery cable connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V RTC www.gigaipc.com... -
Page 21: Chapter 3 - Sdm-L Installation
Chapter 3 Chapter 3 – SDM-L Installation www.gigaipc.com... -
Page 22: Dimension
Dimension www.gigaipc.com... -
Page 23: Installation
Installation [SDM Install] ＊ The image is for reference only. The actual product could be slightly different. www.gigaipc.com... - Page 24 M.2 slot, and use the standoff which provided in the accessory kits to secure the M.2 SSD. Step 3. Step 4. Tighten up the screw which was Tighten up the screw which was previously removed. provided in the accessory kits on the bracket. www.gigaipc.com...
- Page 25 [Internal WiFi cable Install & Routing] Using 280mm Using 90mm Internal WiFi cable Internal WiFi cable www.gigaipc.com...
-
Page 26: Chapter 4 - Bios
Chapter 4 Chapter 4 – BIOS www.gigaipc.com... -
Page 27: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 28: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Weekday - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 29: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 30: Tpm Configuration
4.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 31 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 32: Sata And Rst Configuration
4.3.2 SATA And RST Configuration Item Description shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 33: Cpu Configuration
To speed up CPU frequency transition time from basic frequency to maximum frequency. Intel(R) Speed Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default Shift Technology setting) Interrupt control Disabled : Disables Intel(R) Speed Shift Technology Interrupt control www.gigaipc.com... -
Page 34: It8613 Super Io Configuration
Enabled : Enables allows you to configure the serial port settings Serial Port 1 Configuration Disabled : if Disabled, displays no configuration for the serial port Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com... -
Page 35: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU temperature Shows current CPU temperature System Shows current system temperature temperature CPU Fan Speed Shows current CPU fan Speed www.gigaipc.com... -
Page 36: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 37: Network Stack Configuration
IPv4 PXE Support Disabled : Disables IPv4 PXE Support Enabled : Enables IPv4 PXE Support (Default setting) When Network stack is enabled : IPv6 PXE Support Disabled : Disables IPv6 PXE Support Enabled : Enables IPv6 PXE Support (Default setting) www.gigaipc.com... -
Page 38: Nvme Configuration
4.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 39: Offboard Sata Controller Configuration
4.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 40: Chipset
Enable/Disable I2C1 controller function I2C1 Controller Enabled : Enables I2C1 controller function Disabled : Disables I2C1 controller function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 41: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 42 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 43 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 44: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Shows the information of the storage that be installed in the system Boot Option #1 Choose/set the boot priority www.gigaipc.com... -
Page 45: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
