Page 1: Industrial Embedded System
QBiX-Pro-GLKA5005HD-A1 (QP-5005A-SI) Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
Beijer assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com... -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
SCREW HDD M3x3L (25984G-1C014-S00) TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R ) TERMINAL BLOCKS 1 x 2P (25IO0-EC3500-D2R) TERMINAL BLOCKS 1 x 10P (25IO0-EC3810-D2R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
(Wireless Module inclusion may vary based on local distribution) ..............19 B) Memory Installation: DDR4 SO-DIMM ....20 Antenna Installation (Antenna inclusion may vary based on local distribution) ............ 21 Din Rail Bracket Installation .......... 22 HDD Installation ............23 Safety and Regulatory Information ....... 24 www.gigaipc.com... - Page 10 3.2.19 HDMI (HDMI Connector)..........43 3.2.20 VGA (DB-15 VGA Connector) ........44 3.2.21 USB3 (USB3.0 Connector) ..........44 3.2.22 Power Switch (Remote Control connector ) ....45 3.2.23 Power Button ..............45 3.2.24 DC_IN (DC IN 1x3pin power connector ) ...... 46 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
2 x COM Ports (RS-232/422/485), RI/5V/12V) 2 x COM (RS-232/422/485) 1 x Antenna option Rear I/O Din Rail Support 1 x GPIO 8bits Side I/O 2 x Antenna option 1 x Terminal block 3pin DC input — Power DC 9~36V (Full Range) www.gigaipc.com... - Page 14 Box Packing Capacity: 6pcs Shock During Carton size: 416x409x347(mm) Operation Content: Packaging SCREW HDD M3x3L x 4 (25984G-1C014-S00 ) Content TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R) TERMINAL BLOCKS 1 x 2P (25IO0-EC3500-D2R) TERMINAL BLOCKS 1 x 10P (25IO0-EC3810-D2R) Order System: 6BQP1606AMR-SI Information www.gigaipc.com...
-
Page 15: Chapter 2 - Qbix-Pro-Glka5005Hd-A1 (Qp-5005A-Si)
Chapter 2 Chapter 2 – QBiX-Pro-GLKA5005HD-A1 (QP-5005A-SI) www.gigaipc.com... -
Page 16: Dimension
Dimension 38.2 37.4 22.2 29.0 30.0 26.2 127.0 17.4 118.0 13.2 18.7 16.3 28.7 35.4 101.1 38.7 37.9 55.7 39.5 21.1 105.0 13.0 www.gigaipc.com... -

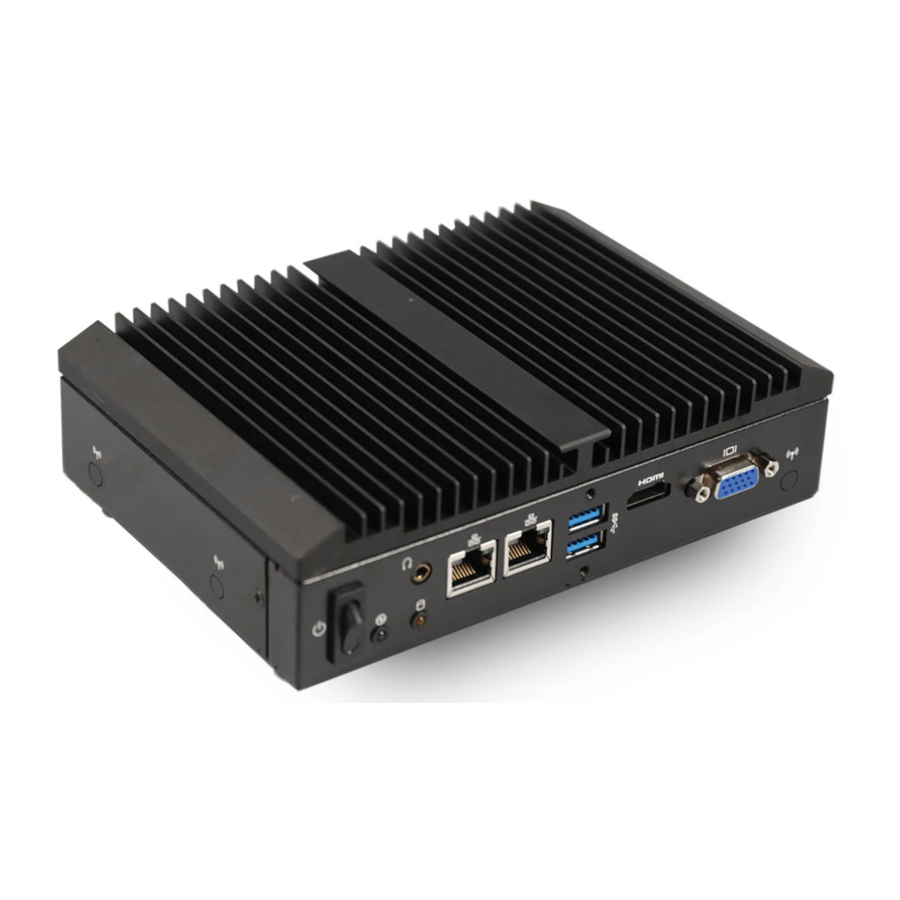

Page 17: Getting Familiar With Your Unit
[Rear I/O Port on Board] [Side IO Down side ] Headphone HDMI USB3.0 Remote Switch DC IN Jack Power Button RJ-45 WiFi LED (RS232/422/485, RI/5V/12V) HDD LED [Front Side] [Side IO Top Side] WiFi Antenna x 2 (Option) 3G/4G Antenna (Option) www.gigaipc.com... - Page 18 * Before Connecting the power, make sure to fasten the case securely. * 接上電源前 ，請確實將機殼完整鎖附 。 [Bottom PCB Side] Information A M.2 2230 WiFi module connector B DDR4 2400 MHz SO-DIMM Slot C M.2 2280SSD connector D Mini PCIe (PCIe + USB2.0) connector www.gigaipc.com...
-
Page 19: A) Wireless Module : How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 20: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com... -
Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 22: Din Rail Bracket Installation
Din Rail Bracket Installation BRIX IoT. VESA BRIX VESA VESA www.gigaipc.com... -
Page 23: Hdd Installation
HDD Installation www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 25: Chapter 3 - 3.5" Sbc Board/ Qbip-5005B Define
Chapter 3 Chapter 3 – 3.5” SBC Board/ QBiP-5005B Define www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 26: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 27 Serial Port connector, COM Port COM1 (RS232/422/485 and RI/5V/12V) Serial Port connector, COM Port COM2 (RS232/422/485 and RI/5V/12V) LAN1 LAN connector LAN2 LAN connector Headphone Jack Headphone Jack www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 28 D-Sub VGA Connector RUSB3_1 USB3.0 Connector x 4 RUSB3_2 Remote Control connector PWR_SW PWR_BUTTON Power button DC_IN DC IN 1 x 3-pin thermal block (Side) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
-
Page 29: Cpu Fan (Cpu Fan Connector)
CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 30: Usb2 (Vertial Usb2.0 Connector)
2.2.2 USB2 (Vertial USB2.0 connector) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 31: Battery (Battery Cable Connector)
2.2.3 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 32: Jcom1, Jcom2 (Com1, Com2 Ri# Pin Ri#/5V/12V Select)
JCOM1/ JCOM2 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 33: Satapw (Sata 6Gb/S Power Connector)
2.2.5 SATAPW (SATA 6GB/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 34: Sataiii (Sata 6Gb/S Connector)
2.2.6 SATAIII (SATA 6GB/s Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 35: M2M1 (M.2 Slot, Sata/Pciex4, Ngff2280)
3.2.7 M2M1 (M.2 Slot, SATA/PCIeX4, NGFF2280) 3.2.8 M2E1 (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 36: Sim-Card (Sim Card Slot)
3.2.9 SIM-CARD (Sim Card slot) 3.2.10 MPCIE (Mini PCIe full size, support 3G/4G module) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 37: Gpio_Cnt (General Purpose Input/Output Header )
Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 38: Com3, Com4 (Serial Port Header)
2.2.12 COM3, COM4 (Serial port header) 12 13 Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/ 5V/ 12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 39: Lpc_Cn (Lpc Connector)
2.2.13 LPC_CN (LPC Connector) Pin 1 LPC Connector Pin No. Definition LPC_CLK LFRAME# LAD0 PCI_RST LAD1 LAD3 LAD2 3.3V SERIRQ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 40: Sys_Panel (Front Panel Header)
Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 41: Sodimm1 (Ddr4 So-Dimm Slot)
3.2.15 SODIMM1 (DDR4 SO-DIMM Slot) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 42: Com1, Com2 (Serial Port Connector)
3.2.16 COM1, COM2 (Serial Port connector) 17 18 COM2 COM2 COM1 COM1 COM1 COM1 COM2 COM2 Battery Cable Connector Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 43: Lan1, Lan2 (Lan Connector)
3.2.17 LAN1, LAN2 (LAN Connector) 19 20 LAN2 LAN2 LAN1 LAN1 3.2.18 Headphone Jack(Headphone Jack) 3.2.19 HDMI (HDMI Connector) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 44: Vga (Db-15 Vga Connector)
3.2.20 VGA (DB-15 VGA Connector) 3.2.21 USB3 (USB3.0 Connector) 4 x USB3.0 4 x USB3.0 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 45: Power Switch (Remote Control Connector )
3.2.22 Power Switch (Remote Control connector ) Power Switch Power Switch Remote Control connector Pin No. Definition PWRBTSW 3.2.23 Power Button Power Button Power Button www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 46: Dc_In (Dc In 1X3Pin Power Connector )
3.2.24 DC_IN (DC IN 1x3pin power connector ) DC_IN Connector Pin No. Definition CH_GND DCVIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
