SLG51003V-EVB
SLG51003V Power GreenPAK Evaluation Board R1.2
SLG51003V Evaluation Board (EVB) provides
programming, emulation, and testing functions for
the SLG51003V IC. Working in pair with the Go
Configure™ Software Hub it can be used as:
standalone board
■
with the Power GreenPAK Development
■
Motherboard
with the GreenPAK Serial Debugger
■
R16UH0033EU0101 Rev.1.01
Oct 17, 2024
Features
■
■
■
■

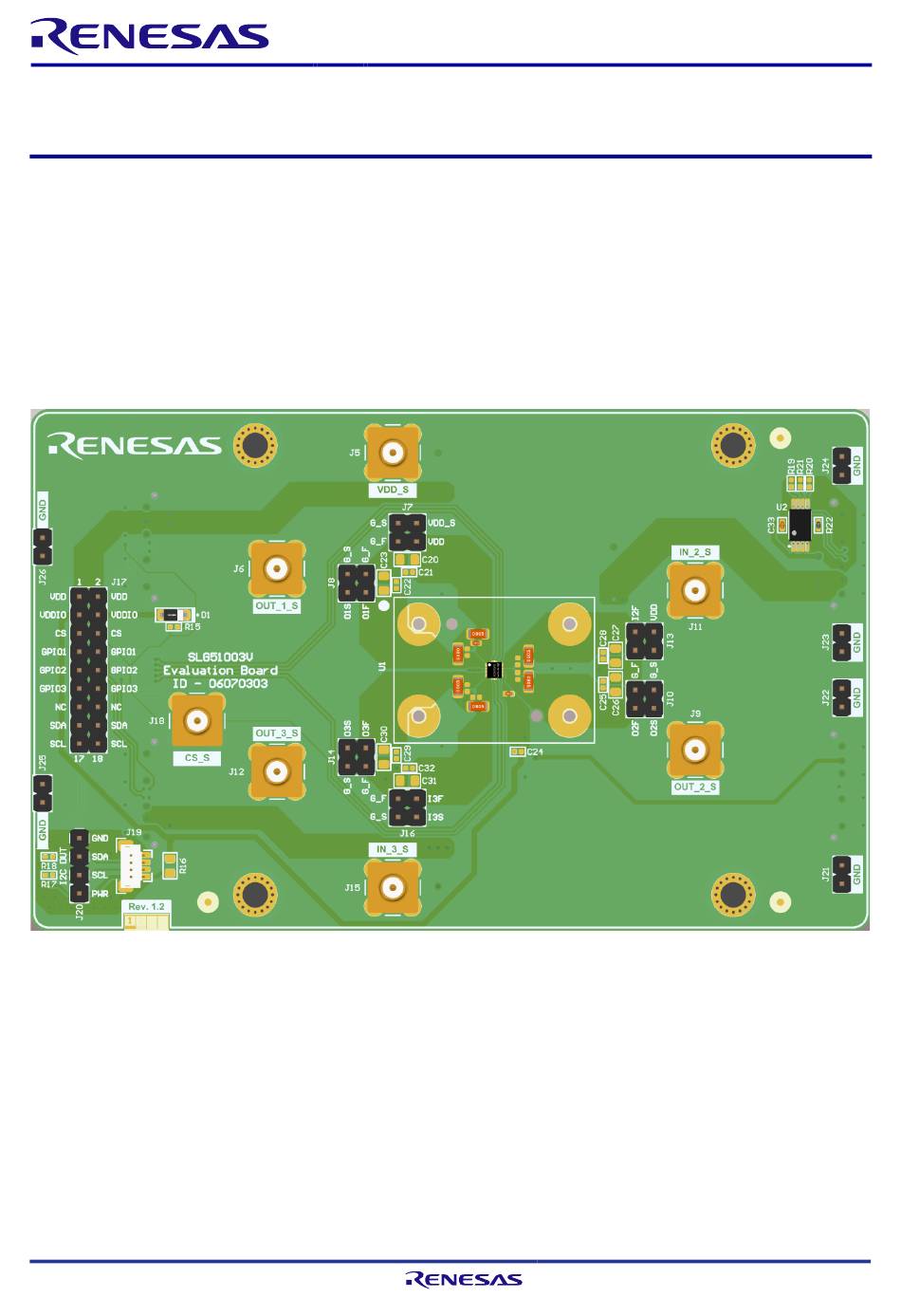

Figure 1. SLG51003V Evaluation Board
Evaluation Board Manual
LDO input and output connectors with Kelvin
sense
RF connectors for each LDO input and output
channel
GPIO connector
GreenPAK Serial Debugger connector for quick
debugging
© 2024 Renesas Electronics
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas SLG51003V-EVB
Summary of Contents for Renesas SLG51003V-EVB
-
Page 1: Figure 1. Slg51003V Evaluation Board
Power GreenPAK Development ■ GPIO connector ■ Motherboard GreenPAK Serial Debugger connector for quick ■ with the GreenPAK Serial Debugger ■ debugging Figure 1. SLG51003V Evaluation Board R16UH0033EU0101 Rev.1.01 Page 1 Oct 17, 2024 © 2024 Renesas Electronics... -
Page 2: Table Of Contents
Figure 12. Evaluation Board Area on the PGP_DM ....................10 Figure 13. PGP_DM Debugging Setup ........................11 Figure 14. PGP_DM and SLG51003V-EVB GPIO Connector Pinout Correspondence ........11 Figure 15. SLG51003V Evaluation Board - Power Section Schematic ..............14 Figure 16. SLG51003V Evaluation Board - GPIO Section Schematic ..............15 Figure 17. -
Page 3: Functional Description
SLG51003V Evaluation Board Manual 1. Functional Description SLG51003V Evaluation Board provides connection between an IC and the following two devices for programming, emulation, and testing functions: Power GreenPAK Development Motherboard (PGP_DM) ■ GreenPAK Serial Debugger (GSD). ■ This Evaluation Board can be used to apply the Power GreenPAK IC to the custom design with a minimum of additional tools. -
Page 4: Figure 2. Pin Location Of Ldo Input/Output With Kelvin Functions Pins, Gpio Pins, Gsd Connector On Evaluation Board
SLG51003V Evaluation Board Manual Figure 2. Pin Location of LDO Input/Output with Kelvin Functions Pins, GPIO Pins, GSD Connector on Evaluation Board Figure 3. Pin Location of SMB Measurement Connectors on Evaluation Board R16UH0033EU0101 Rev.1.01 Page 4 Oct 17, 2024... -
Page 5: Figure 4. Input/Output Force Ldo Pins With Kelvin Functions
SLG51003V Evaluation Board Manual Table 1. Recommended Operating Conditions Parameter Unit Power Supply Voltage on V Power Supply Voltage on V DDIO Power Supply Voltage on V LDO Mode Power Supply Voltage on V Load Switch Mode Voltage on GPIO4_SDA and GPI5_SCL Pins DDIO Voltage on GPIO1 to GPIO3 Pins -0.3... -
Page 6: Working With The Slg51003V Evaluation Board
SLG51003V Evaluation Board Manual 2. Working with the SLG51003V Evaluation Board Using GreenPAK Serial Debugger with Evaluation Board To start using the Evaluation Board for chip emulation, three separate power supplies are required alongside with the GreenPAK Serial Debugger. For IC emulation, apply V and V based on application requirements DDIO... -
Page 7: Figure 6. Evaluation Board With Greenpak Serial Debugger
SLG51003V Evaluation Board Manual Figure 6. Evaluation Board with GreenPAK Serial Debugger Figure 8 shows debugging control setup for working with GSD. The programming feature for OTP devices is not available using GSD tool. I C levels must be within the allowed range, shown in Table 2, that corresponds to one of the configured settings in Go Configure™... -
Page 8: Precise Measurements Using Evaluation Board
SLG51003V Evaluation Board Manual Figure 8. GSD Debugging Setup Precise Measurements Using Evaluation Board As mentioned above, precise measurements, such as PSRR, transient response, and others, can be performed on this board. This is not a typical use case for the evaluation and requires minor modifications to the PCB components position. -
Page 9: Power Greenpak Development Motherboard
SLG51003V Evaluation Board Manual Power GreenPAK Development Motherboard As was previously stated, the Evaluation Board can be used in pair with the Power GreenPAK Development Motherboard, as shown in Figure 10. There are two revisions of such board – R1.0 and R1.1. Further description will be referred to R1.0. -
Page 10: Figure 11. Leds Location On Pgp_Dm
SLG51003V Evaluation Board Manual Green – GPIO pins status Green – 12V presence Blue – STATUS Red – POWER Figure 11. LEDs Location on PGP_DM To emulate and program the IC, the Evaluation Board should be inserted in the PGP_DM. To do so, find the evaluation board area on the PGP_DM, as shown in Figure 12, and connect the Evaluation Board to the... -
Page 11: Figure 13. Pgp_Dm Debugging Setup
GPIO IC pins of the installed Evaluation Board. Correspondence of TPs to the GPIO ports can be checked in the design by clicking the TP Map button shown in Figure EVB GPIO Connector PGP_DM, Hooks for pinout oscilloscope pinout Figure 14. PGP_DM and SLG51003V-EVB GPIO Connector Pinout Correspondence R16UH0033EU0101 Rev.1.01 Page 11 Oct 17, 2024... -
Page 12: Ordering Information
SLG51003V Evaluation Board Manual 3. Ordering Information Part Number Description SLG51003V-EVB SLG51003V Power GreenPAK Evaluation Board R1.2 R16UH0033EU0101 Rev.1.01 Page 12 Oct 17, 2024... -
Page 13: Revision History
SLG51003V Evaluation Board Manual 4. Revision History Revision Date Description 1.01 Oct 17, 2024 Change details: • Replaced Figures 1, 5, 6 to show the latest EVB revision from 1.1 to 1.2 and name from SLG51003C Socket Eval to SLG51003V Evaluation Board. •... -
Page 14: Evaluation Board Documentation
SLG51003V Evaluation Board Manual A. Evaluation Board Documentation A.1 Schematic VDD_S VDD_S VO1_S VO1_S 131-3701-261 131-3701-261 SMB: V-RJ45 SMB: V-RJ45 10uF 10nF DUT_GPIO 2.2uF 10uF C1210 C0805 NO C0402 NO C0402 NO C0805 NO C1210 GNDS 67997-204HLF GPI5_SCL VO1_S GNDS GPI5_SCL CON: M, 4-pin, 2x2, S, P2.54 GNDP... -
Page 15: Figure 16. Slg51003V Evaluation Board - Gpio Section Schematic
SLG51003V Evaluation Board Manual VDDIO 1N4148W-TP SOD-123, 1.55x2.65mm VDD_J VDD_J R0402 DUT_GPIO CS_S VDDIO VDDIO 131-3701-261 GPIO1 GPIO1 SMB: V-RJ45 GPIO1 GPIO2 GPIO2 GPIO2 GPIO3 GPIO3 DUT_GPIO 11 12 GPIO3 GNDS 13 14 GPIO4_SDA GPIO4_SDA GPIO4_SDA 15 16 GPI5_SCL GPI5_SCL GPI5_SCL 17 18 67996-218HLF... -
Page 16: Figure 18. Board Id
SLG51003V Evaluation Board Manual +3.3V R0402 2.2k 2.2k R0402 R0402 SLAVE ADDRESS 0x55 +3.3V R0402 GNDP +3.3V BRG_SCL 0.1uF GNDP BRG_SDA C0402 +3.3V GNDP BR24T02FV-WGE2 GNDP TSSOP-8, 4.4x3mm POWER PORT DESCRIPTION: Power voltage Ground Figure 18. Board ID R16UH0033EU0101 Rev.1.01 Page 16 Oct 17, 2024... -
Page 17: Bom
SLG51003V Evaluation Board Manual A.2 BOM Quantity per Items Package Symbol Development Board Bumper: perforated hole D3.5 SJ61A6 BP1, BP2, BP3, BP4 C2, C5, C9, C12, C15, 10 µF 16V X5R 0805 C0805 NO 10nF 50V X7R 0402 C0402 NO 0.1 µF 16V X7R 0402 C0402 NO, C0402 C7, C33... -
Page 18: Contact Information
Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products. - Page 19 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Renesas Electronics SLG51003V-EVB...
