Renesas SDAH02 User Manual

Description
The SDAH02 Evaluation Kit is used to assess the HS3001 High-
Performance Relative Humidity and Temperature Sensor in a
typical application. The battery-operated portable sensing system
enables users to easily monitor the ambient relative humidity and
temperature via the LCD display. A single button can be used to
select different modes and plot data. The plots show relative
humidity or temperature readings versus time.
Kit Contents
SDAH02 Evaluation Board

CR1632 3V Battery

Quick Start Guide


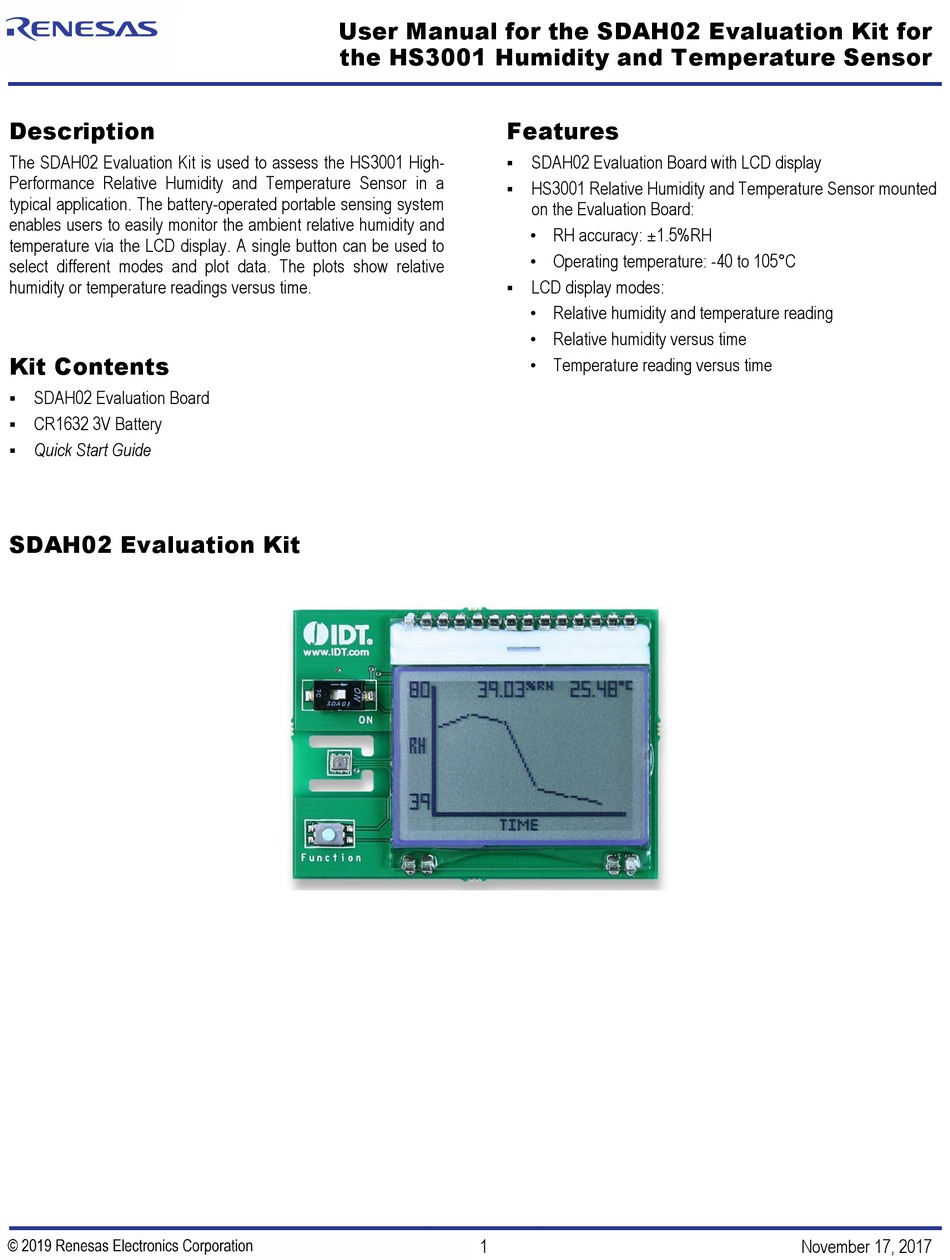

SDAH02 Evaluation Kit
© 2017 Integrated Device Technology, Inc.
User Manual for the SDAH02 Evaluation Kit for
the HS3001 Humidity and Temperature Sensor
Features



1
SDAH02 Evaluation Board with LCD display
HS3001 Relative Humidity and Temperature Sensor mounted
on the Evaluation Board:
• RH accuracy: ±1.5%RH
• Operating temperature: -40 to 105°C
LCD display modes:
• Relative humidity and temperature reading
• Relative humidity versus time
• Temperature reading versus time
November 17, 2017
