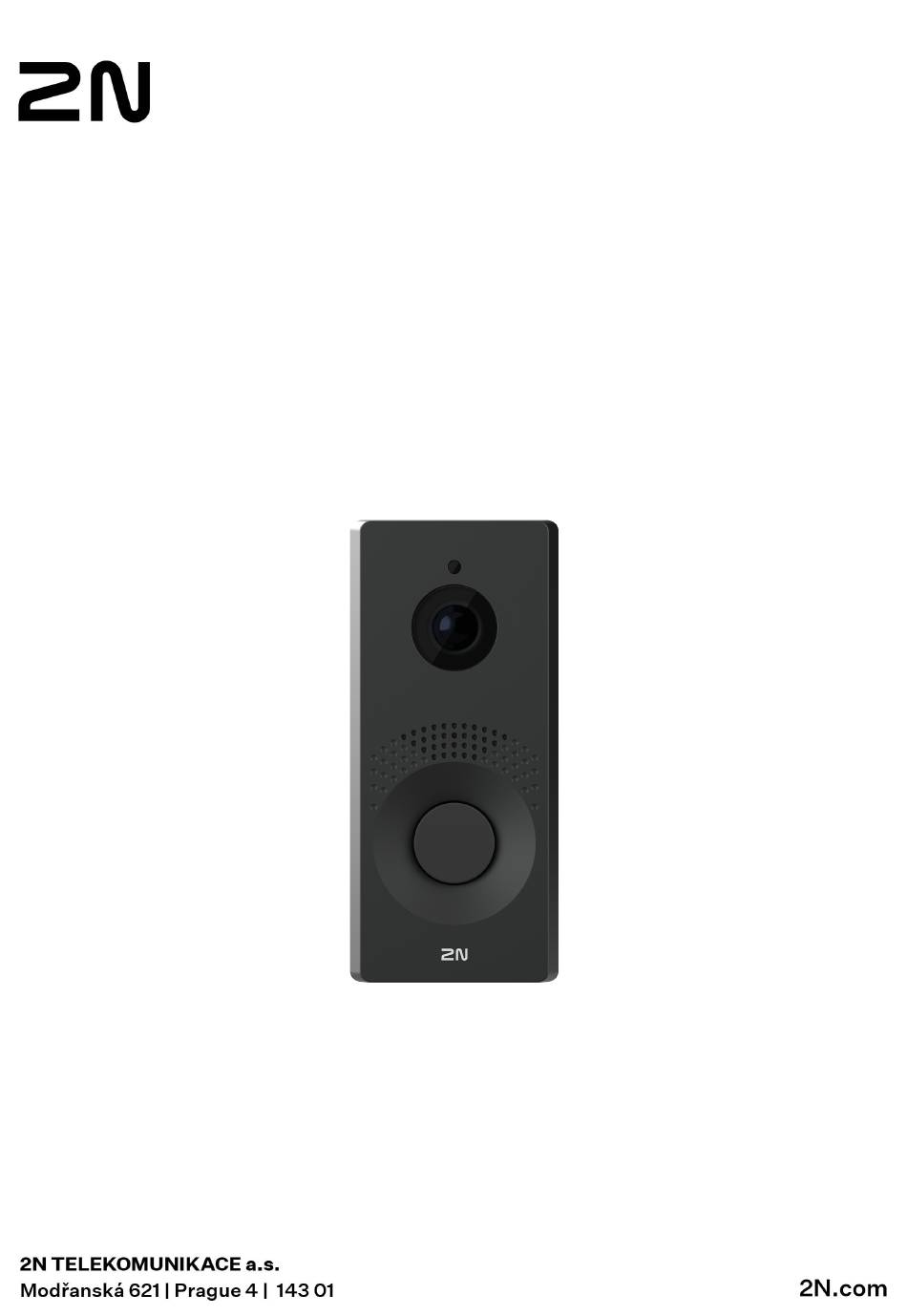

  • Page 1 2N IP One User Manual...

  • Page 2: Table Of Contents

    Dynamic/Static IP Address Switching ..................25 Factory Default Reset ........................ 25 IP Address Retrieval ........................25 IP Address Retrieval Using 2N Network Scanner ................. 26 IP Address Retrieval Using Speed Dial Button ................27 Dynamic/Static IP Address Switching ..................... 27 Device Restart ..........................

  • Page 3: Symbols And Terms Used

    Symbols and Terms Used Symbols and Terms Used The following symbols and pictograms are used in the manual: DANGER Always abide by this information to prevent persons from injury. WARNING Always abide by this information to prevent damage to the device. CAUTION Important information for system functionality.

  • Page 4: Product Description

    Product Description Product Description In this section, we introduce the 2N IP One product, outline its application options and highlight the advan- tages following from its use. Basic Features 2N IP One is an elegant yet robust and mechanically resistant IP video intercom designed for residential buildings.

  • Page 5: Product Versions

    2N IP One Main Unit – Bronze Accessories Accessories for Installation 2N IP One is designed for both outdoor and indoor applications. Choose the proper a mounting box depending on your particular installation needs. Part No. 9158001 Axis Part No. 02941-001...

  • Page 6: Power Supply

    Designed for external supply of electric locks. Part No. 9159052 Axis Part No. 01393-001 12 V / 1 A power supply for 2N Induction Loop The external induction loop power supply has 230 V AC input voltage and 12 V DC output voltage.

  • Page 7: Licenses

    Product Description Licenses Part No. 9137909 Axis Part No. 01380-001 Gold License Includes the Enhanced Video, Enhanced Integration and Lift Control licenses. Part No. 9137910 Axis Part No. 01381-001 InformaCast License Part No. 9137921 Axis Part No. 03160-001 MS Teams license Other accessories...
  • Page 8 IP de- vice. You do not have to configure anything, all you need is one 2N 2Wire unit at each end of the cable and a power supply connected to at least one of these units.

  • Page 9: Package Completeness Check

    Torx head screw Torx wrench Component Layout 2N IP One is equipped with the following buttons on its backside: Tamper Switch The purpose of the tamper switch is to signal any unauthorized opening of the intercom (to prevent a theft, e.g.).

  • Page 10: Installation

    Mechanical Installation Installation Conditions Make sure that the following 2N IP One installation conditions are met. • There must be enough space for the device installation. • Make sure that the dowel holes have the required diameter. If the diameters are too large, the dowels may get loose! Use the mounting glue to secure the dowels if necessary.

  • Page 11: Installation Tips

    Viewing angle 138° (H), 114° (V) Flush mounting The flush mounting box allows you to place cables in the wall below 2N IP One and mount the device. What you need for mounting: • 2N IP One • Flush mounting box (9158001, 02941-001)
  • Page 12 Installation WARNING Before starting the mechanical installation on a selected place, make sure carefully that the preparations associated with it (drilling, wall cutting) cannot damage the electrical, gas, water and other existing wires and pipes.
  • Page 13 Installation...

  • Page 14: Electric Installation

    Loosen the screw if too tight to make the device fit in the box. Then tighten the screw again. Electric Installation Power Supply 2N IP One can be fed either directly from the LAN if equipped with PoE 802.3af supporting network elements or from an external 12 V ±15 % / 2 A DC power supply.

  • Page 15: Poe Supply

    Current consumption [A] Available power output [W] Combined Power Supply 2N IP Onecan be fed from an external power supply and PoE at the same time. In this configuration, the maximum power for the is available.

  • Page 16: Device Connectors

    LAN Connection 2N IP One is connected to the LAN by inserting a SSTP cable (category Cat-5e or higher) in the dedicated LAN connector on the device. As the device is equipped with the Auto-MDIX function, you can use either the...

  • Page 17: Overvoltage Protection

    • We recommend the use of a shielded SSTP Ethernet cable. Overvoltage Protection The 2N device cables have to be protected against atmospheric overvoltage caused by external causes (lightning, e.g.). A surge can damage a device installed outside/inside the building if the wires are unprotec- ted.
  • Page 18 Installation Examples of Overvoltage Protection Installation Overvoltage protection installation diagram for a device installed on the building facade and cables outside the building...
  • Page 19 Installation Overvoltage protection installation diagram for a device installed on the building facade and cables inside the building...

  • Page 20: Main And Extending Modules

    Module Specifications Security Relay The Security Relay (9159010, 01386-001) is used for enhancing security between 2N IP One and the connected electric lock. The Security Relay significantly enhances security of the connected electric lock by preventing unlocking due to device tampering.

  • Page 21: Specification

    Installation FAQ: 2N Security Relay – description of the device and use with the 2N intercoms Specification Passive switch NO/NC contact, up to 30 V / 1 A AC/DC Switched out- • Where the Security Relay is fed from the device, 8 to 12 V DC is available on the output depending on the power supply, 400 mA DC.
  • Page 22 • to the passive output in series with the external power supply The Security Relay also supports the Departure button connected to the ‘PB’ and ‘– 2N IP intercom’ terminals. Once the Departure button is pressed, the output is activated for 5 seconds.

  • Page 23: Installation Completion

    Installation Status Signaling Green LED Red LED State flashing Operational mode Activated output flashing flashing Programming mode – waiting for initialization flashing Error – wrong code Configuration Connect the Security Relay to the properly set Security output of the device. Refer to the Configuration Manual for details.

  • Page 24: Brief Guidelines

    Device Configuration Interface Access 2N IP One is configured via the web configuration interface. You have to know the device IP address portal or the device domain name. Make sure that the device is connected to the local IP network and powered.

  • Page 25: Configuration Via Hardware

    Brief Guidelines It is recommended that a password is used that is difficult to break. It is not recommended that names, places or things, especially those closely related to the user, are used in the password. For increased password security, it is recommended that: •...

  • Page 26: Ip Address Retrieval Using 2N Network Scanner

    • Use the freely accessible 2N Network Scanner. • Use the Speed Dial button. IP Address Retrieval Using 2N Network Scanner The application helps you find the IP addresses of all the 2N devices in the LAN. Download 2N Network Scanner from the 2N.com website.

  • Page 27: Ip Address Retrieval Using Speed Dial Button

    Restart the device in System > Maintenance > System using Restart . Firmware Update We recommend that the firmware is also updated during the 2N IP One installation. Refer to 2N.com for the latest FW version. Update firmware via the web configuration interface in System > Maintenance, refer to the device Configura- tion Manual.

  • Page 28: Factory Default Reset

    Buttons, refer to Buttons. Make sure that the call transmitting service is enabled on the called 2N device to make a successful call. • Each user can be assigned up to 3 phone numbers. In case the first user fails to answer, the call is forwarded to the next number.

  • Page 29: Device Control

    Device Control Device Control 2N IP One is an intercom allowing you to: • call other devices using a speed dial button • receive and reject incoming calls • activate/deactivate users or profiles using the 2N Mobile Key mobile application...

  • Page 30: Troubleshooting

    Troubleshooting Troubleshooting Refer to faq.2n.com for the most frequently solved problems.

  • Page 31: Technical Parameters

    Technical Parameters Technical Parameters Power Supply Types IEEE 802.3af (Class 0, max. 12.95 W, 44–57 V DC, 400 mA) External supply 12 V ±15 % / 2 A DC Signaling protocol UDP, TCP, TLS Audio Microphone Electret Amplifier 3 W RMS / 6 W (class D) Speaker 3 W / 4 Ω...
  • Page 32 Technical Parameters Audio stream Protocols • RTP • RTSP Codecs and Used Bandwidth • G.711 (PCMA, PCMU) – 64 kbps (with 85.6 kbps headers) • G.729 – 16 kbps (with 29.6 kbps headers) • G.722 – 64 (with 85.6 kbps headers) •...
  • Page 33 Technical Parameters Video stream Protocols • RTP • RTSP • SRTP • HTTP ONVIF/RTSP streaming codecs • H.264, MJPEG • H.265 • MJPEG IP Camera Function Yes – compatible profiles: • ONVIF v2.4 profile S Interface 10/100BASE-TX s Auto-MDIX, RJ-45 Recommended cabling Cat-5e or higher Passive switch (relay)
  • Page 34 Technical Parameters Mechanical Parameters Cover Hardened glass Body material • Black version: • Material - Zamak 410 - Zn95Al4Cu1 • Surface treatment – PUR Wet coating 15-25 μm, RAL 9005 Jet black, inner side - passivated zinc Body material • Material – EN AC-46100 •...

  • Page 35: Directives, Laws And Regulations - General Instructions And Cautions

    Directives, Laws and Regulations - General Instructions and Cautions Directives, Laws and Regulations - General Instructions and Cautions 2N IP One conforms to the following directives and regulations: • 2014/30/EU for electromagnetic compatibility • 2014/53/EU for radio equipment • 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment •...
  • Page 36 / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s. company shall not be held liable for any functionality limitation of such a product or any damage, loss or injury related to this potential functionali- ty limitation.

  • Page 37: Electric Waste And Used Battery Pack Handling

    Directives, Laws and Regulations - General Instructions and Cautions All applicable legal regulations concerning the product installation and use as well as provisions of technical standards on electric installations have to be obeyed. The manufacturer shall not be liable and responsible for damage or destruction of the product or damage incurred by the consumer in case the product is used and handled contrary to the said regulations and provisions.
  • Page 38 Directives, Laws and Regulations - General Instructions and Cautions Legislation of Japan 本製品は、シールドネットワークケーブル(STP)を使用して接続してください。また適切に接地してくださ い。 本製品は電気通信事業者（移動通信会社、固定通信会社、インターネットプロバイダ等）の通信回線（公衆 無線 LAN を含む）に直接接続することができません。本製品をインターネットに接続する場合は、必ずル ータ等を経由し接続してください。...
  • Page 39 2N IP One – User Manual © 2N Telekomunikace a. s., 2024 2N.com...
