Summary of Contents for Smeg SHW610X2

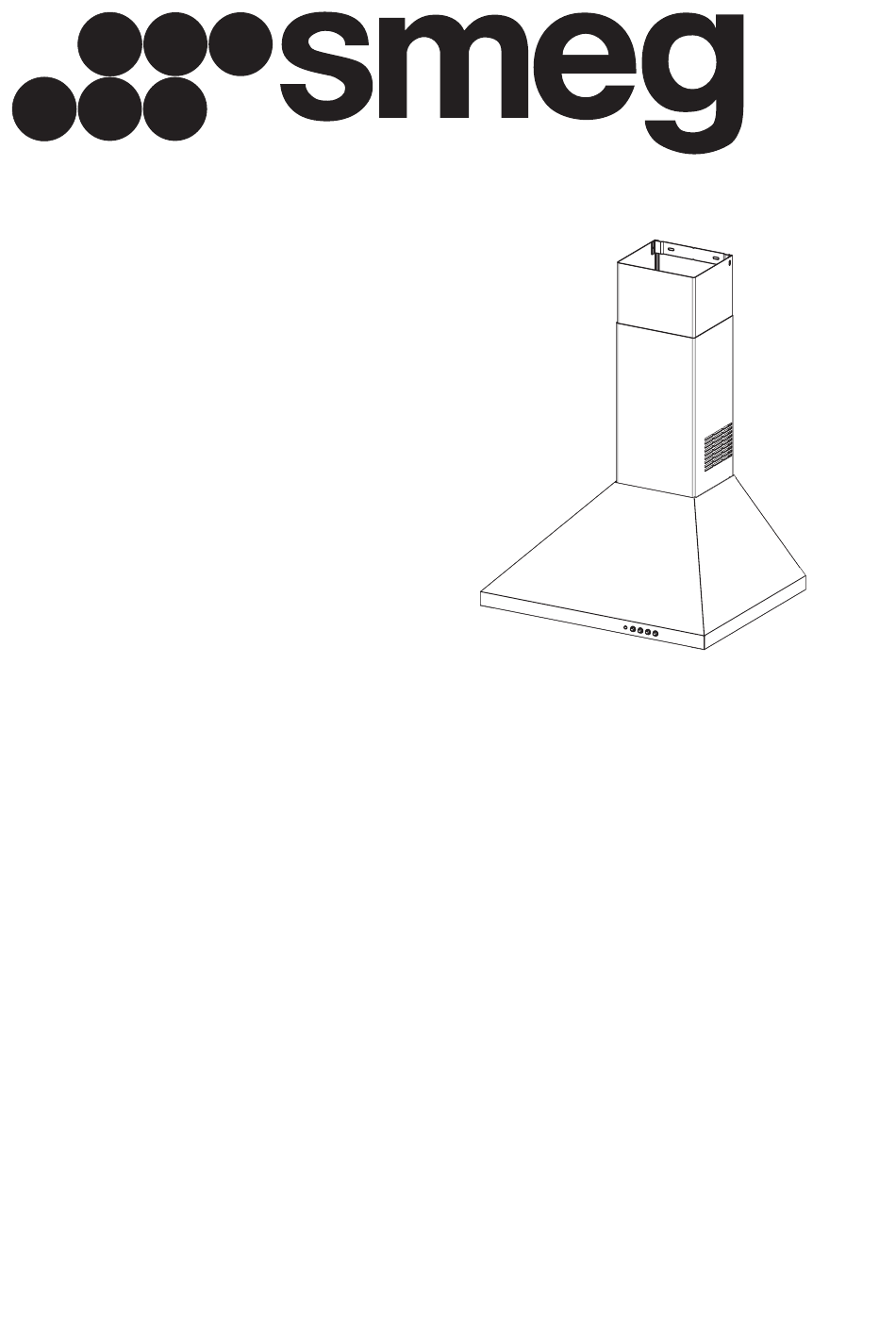

- Page 1 Instructions Manual Instructions Manual SHU501X - SHU701X SHW610X2 - SHW910X2 SHU501X - SHU701X...
- Page 2 1. SAFETY INFORMATION • Connect the extractor to the exhaust flue through a pipe of For your safety and correct minimum diameter 120 mm. operation of the appliance, The route of the flue must be read this manual carefully before as short as possible.
- Page 3 • With regards to the technical with the appliance. and safety measures to be • The appliance is not to be used adopted for fume discharging by persons (including children) it is important to closely follow with reduced physical, sensory the regulations provided by the or mental capabilities, or lack local authorities.
- Page 4 recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. • Range hoods and other cooking fume extractors may adversely - The Grease filters must be cleaned affect the safe operation of every 2 months of operation, or more frequently for particularly heavy usage,...
- Page 5 4. CONTROLS BUTTON FUNCTIONS Turns the Motor on at Speed Speed one. Turns the Motor off. Turns the Motor on at Speed Speed two. Fixed When pressed briefly, Speed turns the Motor on at Speed three. Flashing Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it...
- Page 6 Safety Warnings - Range Hoods SHW610X2 & SHW910X2 The appliance is not intended for use by persons (including children) with • reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
- Page 7 NOTE 1: If the Instruction Manual for installation show any screws that are intended to penetrate the range hood enclosure during installation or for any accessory attachments such as flue attachments, then associated screws marked in the manual must be marked with the size of the intended screw used for use. Usually these screws are provided with the appliance but the manual must indicate the screw size intended to be used for these applications.
- Page 9 INSTALLATION MANUAL Warning! Before proceeding with installation, read the safety information in the User Manual.
- Page 10 I = 8x L = 8x N = 4x...
- Page 11 ø 120 ø 150 ø 150 MIN. 500 mm MIN. 650 mm MIN. 600 mm (AU/NZL)
- Page 12 2° ø 150 ø 120...
- Page 14 > O K ! I = 8x...
- Page 15 ø 150 ø 120 L = 4x...
- Page 16 L = 4x N = 4x N = 4x...
- Page 20 991.0725.867_01 - 240529 - D000000009880_00...
