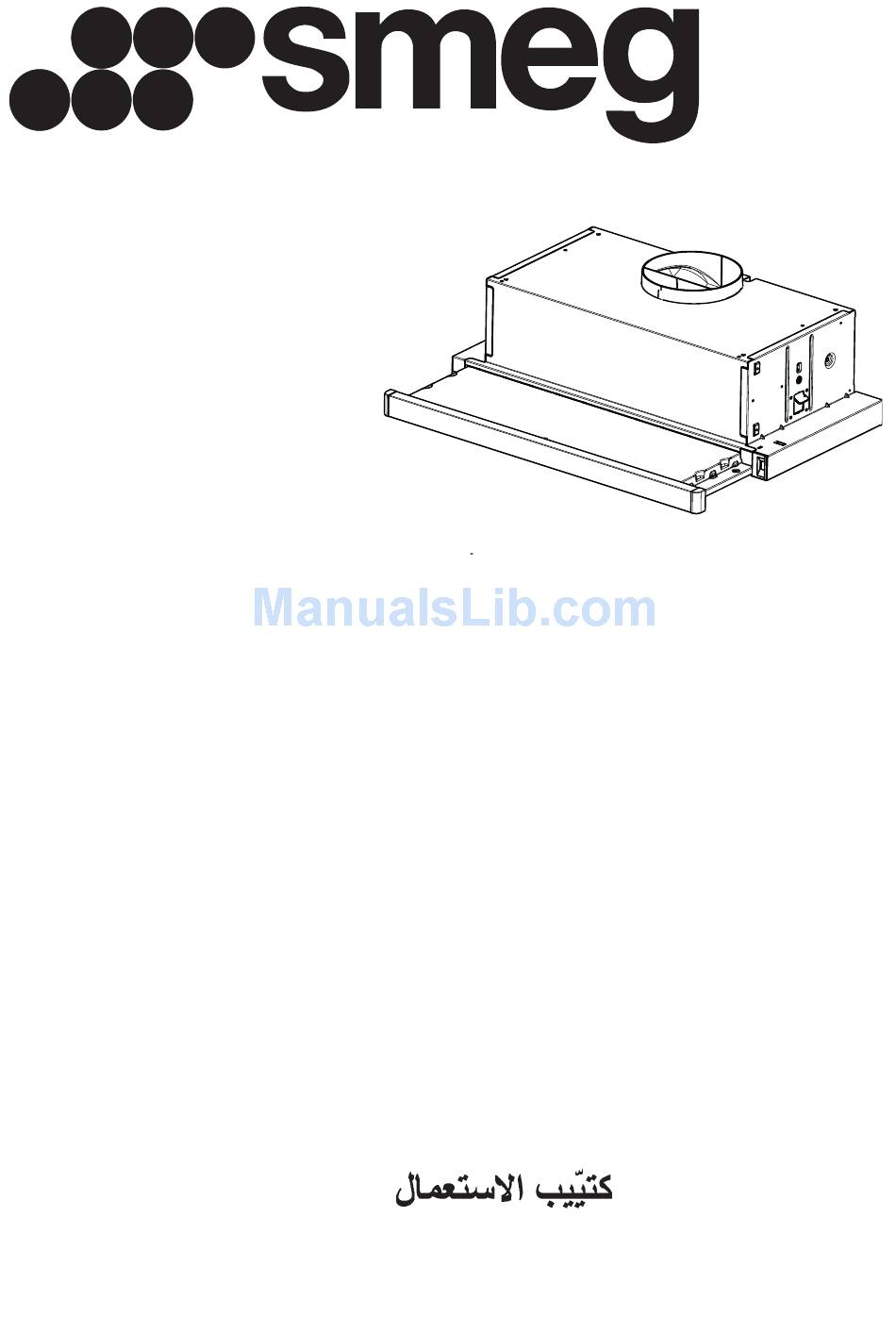

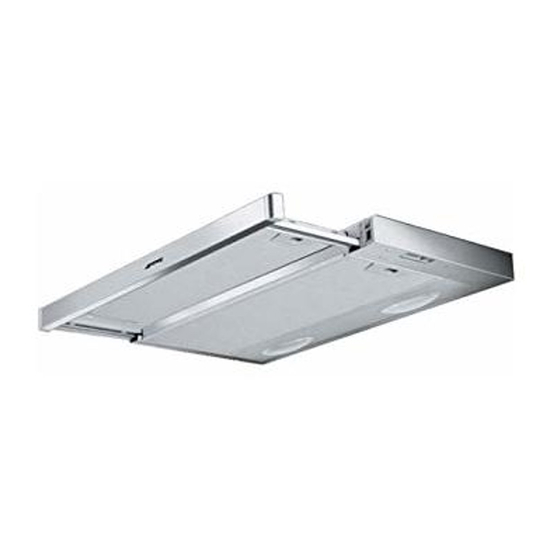

- Page 1 Libretto d’ uso User manual Manuel d’utilisation Gebrauchsanleitung Gebruiksaanwijzing Manual de uso Livro para utilização Brugsvejledning Användningshandbok Руководство по эксплуатации Instrukcja użytkowania Bruksveiledning KSET61E...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 5 CARATTERISTICHE................................6 INSTALLAZIONE ................................... 7 USO......................................9 MANUTENZIONE ................................10 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................11 CHARACTERISTICS ................................12 INSTALLATION..................................13 USE ...................................... 15 MAINTENANCE ................................... 16 SOMMAIRE CONSEILS ET SUGGESTIONS............................17 CARACTERISTIQUES................................. 18 INSTALLATION..................................19 UTILISATION ..................................
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES............................41 CARACTERÍSTICAS ................................42 INSTALAÇÃO..................................43 UTILIZAÇÃO ..................................45 MANUTENÇÃO..................................46 INDHOLD RÅD OG ANVISNINGER ..............................47 APPARATBESKRIVELSE ..............................48 INSTALLATION..................................49 BRUG ....................................51 VEDLIGEHOLDELSE ................................52 INNHOLD RECOMMENDATIONS AND SUGGESTIONS.....................53 CHARACTERISTICS............................54 INSTALLATION ..............................55 USE..................................57 MAINTENANCE..............................58 УКАЗАТЕЛЬ...
- Page 4 اﻟﻔﻬﺮس 77 ..............................ارﺷ ﺎدات و اﻗﺘﺮاﺣ ﺎت 87 ................................اﻟﺨﺼ ﺎﺋﺺ ﺐ 97 ................................اﻟﺘﺮآﻴ 18 ................................اﻻﺳ ﺘﺨﺪام 28 ..............................ﻋﻤﻠﻴ ﺔ اﻟﺼ ﻴﺎﻧﺔ...
-
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 6 CHARACTERISTICS Min. Min. 650mm 500mm Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Reducer Flange ø 150-120 mm Closing element Ref. Q.ty Installation Components Screws 4,2 x 44,4 Screws 4,2 x 12,7 Screws 2,9 x 9,5 Q.ty Documentation Instruction Manual...
- Page 7 INSTALLATION Drilling the Support surface and Fitting the Hood SCREW FITTING • The hood support surface must be 135 mm above the bottom surface of the wall units. • Drill the support with a ø 4,5 mm drill bit, using the drilling template provided.
- Page 8 RECIRCULATION VERSION AIR OUTLET • Cut a hole ø 125 mm in any shelf that may be posi- tioned over the hood. • Insert the reducer flange 9 on the hood body outlet. • Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe ø120 mm.
- Page 9 M - V Light Switches the lighting system on and off M-V Speed Sets the operating speed of the extractor: 0. Motor Off. 1. Low speed, used for a continuous and silent air change in the presence o light cooking vapour. 2.
- Page 10 MAINTENANCE Grease filters CLEANING METAL CASSETTE GREASE FILTERS • The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher. • Pull out the sliding suction panel. •...
