Summary of Contents for Smeg STH600X

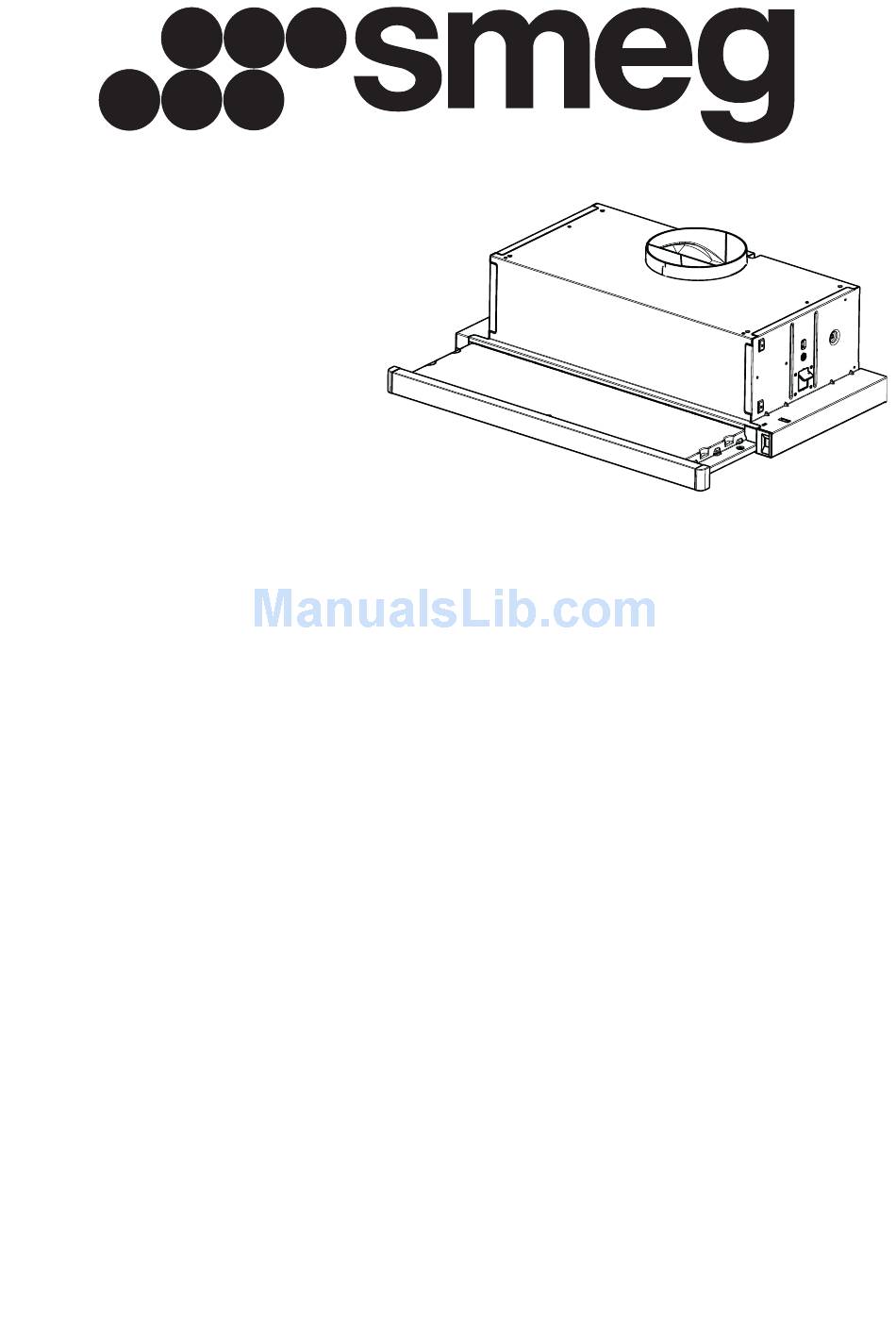

- Page 1 Instructions Manual STH600X - STH900X...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................7 MAINTENANCE ..................................8... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Min. Min. 650mm 500mm Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Reducer Flange ø 150-120 mm Damper ø 150 Closing element Ref. Q.ty Installation Components Screws 4,2 x 44,4 Screws 4,2 x 12,7 Screws 2,9 x 9,5 Q.ty Documentation... -
Page 5: Installation
INSTALLATION Drilling the Support surface and Fitting the Hood SCREW FITTING • The hood support surface must be 135 mm above the bottom surface of the wall units. • Drill the support with a ø 4,5 mm drill bit, using the drilling template provided. - Page 6 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to ø 150 ø 120 the chimney using either a flexible or rigid pipe ø 150 or 120mm, the choice of which is left to the installer. To install a ø...
-
Page 7: Use
Control panel M - V Light Switches the lighting system Light Switches the lighting system on and off. on and off. Motor Switches the extractor motor Motor Switches the extractor motor on and off. on and off. Speed Sets the operating speed of Speed Sets the operating speed of the extractor:... -
Page 8: Maintenance
MAINTENANCE Grease filters CLEANING METAL CASSETTE GREASE FILTERS • The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dish- washer. • Pull out the sliding suction panel. •... - Page 12 991.0319.368_ver2...
