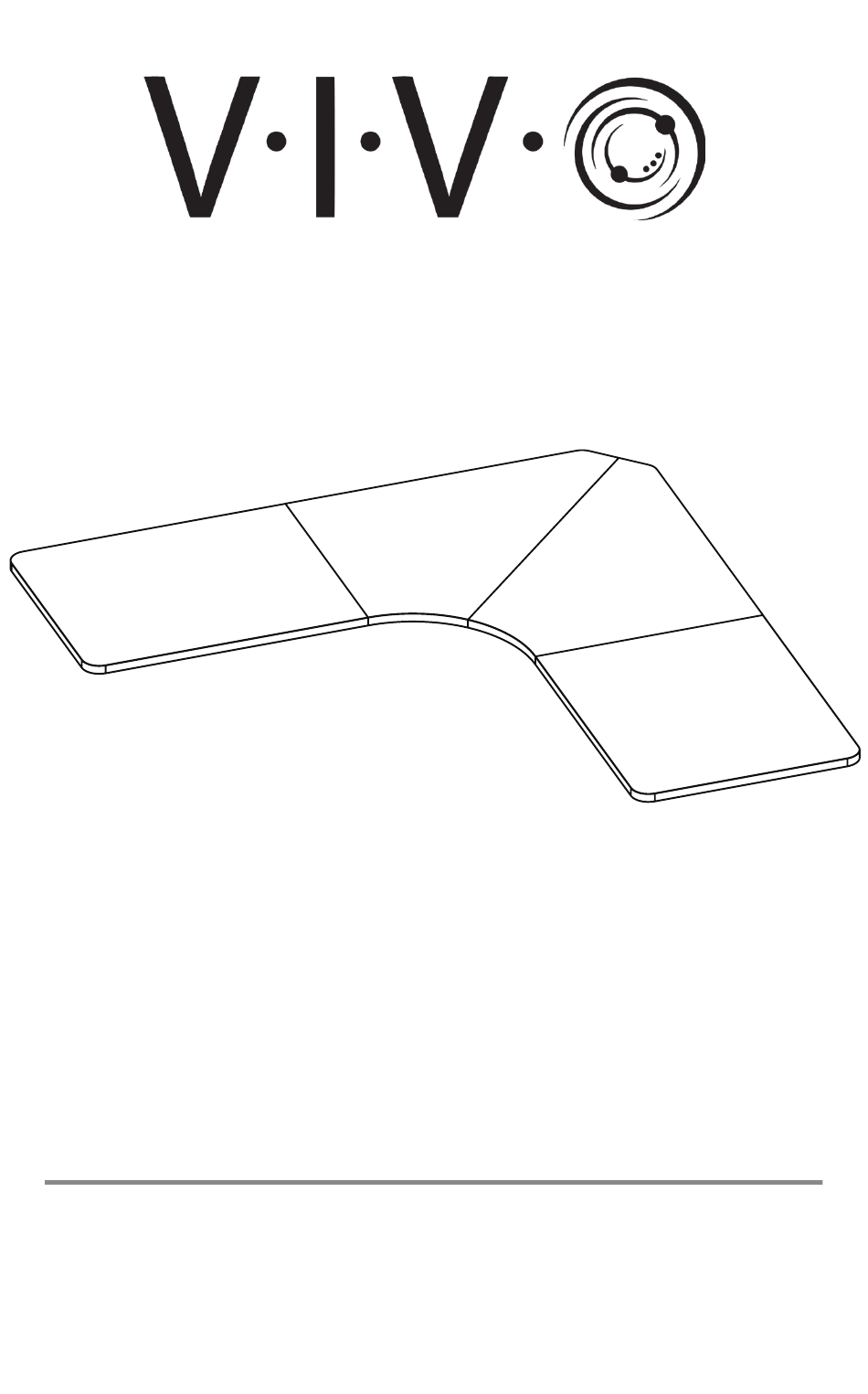

- Page 1 71” x 71” Curved Table Top DESK-TOP2CB Series Assembly Manual Individual Product SKUs DESK-TOP2CB DESK-TOP2CG DESK-TOP2CC DESK-TOP2CN DESK-TOP2CD DESK-TOPCW...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) Right Panel Left Panel C (x1) D (x1) Right Middle Left Middle Panel Panel E (x6) Support Bar Included Hardware S-A (x24) S-B (x10) ST4.2x20mm Wooden Dowel Screw Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Place Panels (A, B, C, D) upside-down on a protective surface. Insert Wooden Dowel Pins (S-B) into the edges of each Panel and connect them together as shown. Protective Surface... - Page 5 STEP 2 Attach Support Bars (E) to the desktop assembly using ST4.2x20mm Screws (S-A) and a Phillips screwdriver.
- Page 6 STEP 3 Place desk frame (not included) upside-down onto the Desktop and adjust the frame to line up with the pilot holes. Secure the frame to the Desktop using hardware provided with your frame. Desktop Mount your control panel (not included) to the mounting holes on the left of right side of the Desktop using hardware provided with your frame.
- Page 7 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
