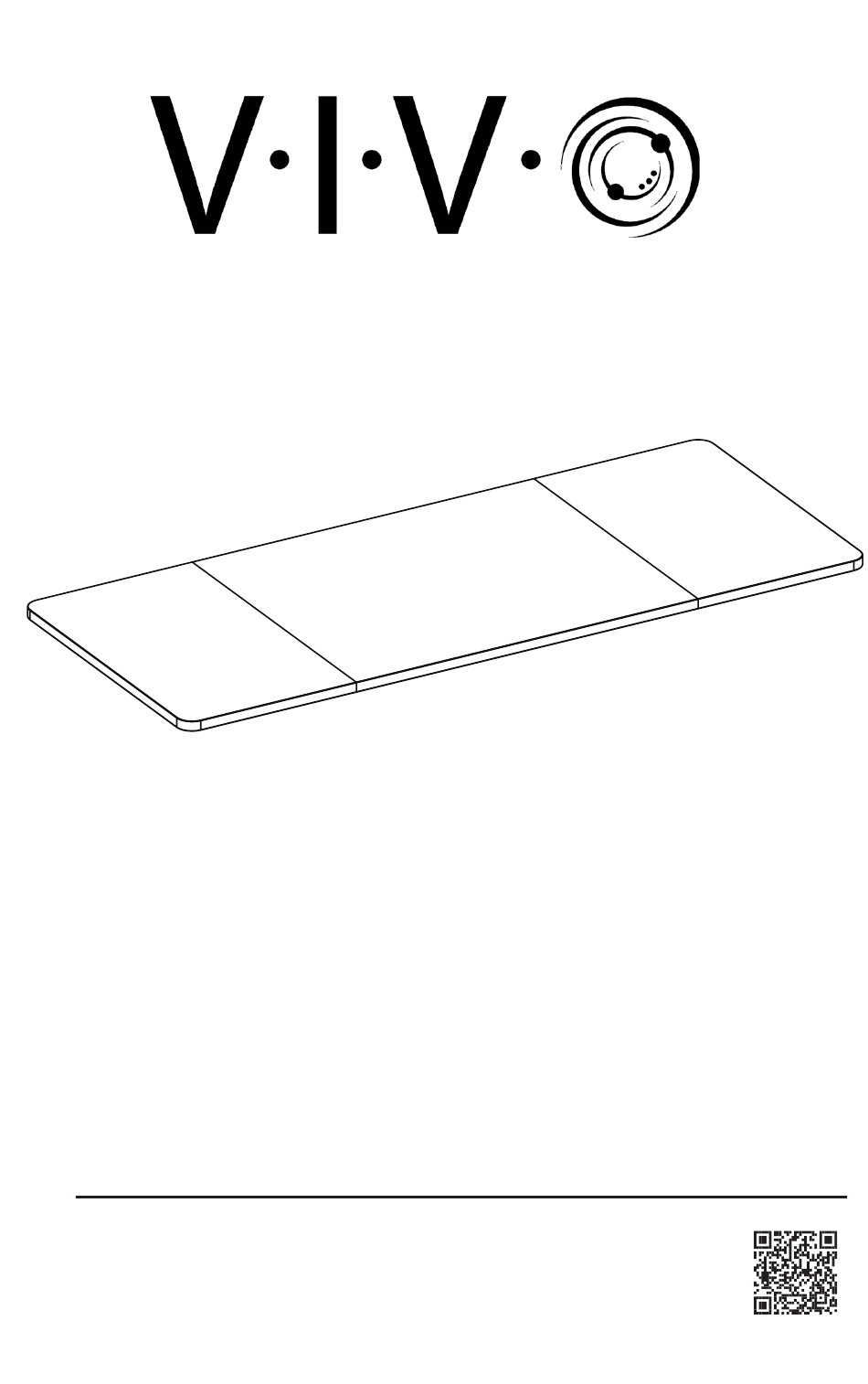

- Page 1 71” x 30” Dual Color Table Top SKU: DESK-TOP72-30BN/WC Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-top72-30b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Right Panel Middle Panel Left Panel D (x4) Support Bar Included Hardware & Tools S-A (x16) S-B (x6) ST4.2x20mm Wooden Screw Dowel Pin Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place Wooden Dowel Pins (S-B) into pre-dilled holes on both sides of Middle Panel (B). S-B (x6) Place Desktop Panels (A, B, C) upside down on a protective surface with pilot holes facing up. To arrange desktop panels in correct order, inspect the wooden dowel locations on Middle Panel (B). - Page 5 STEP 1 - CONT’D Align so that the front of all three panels are aligned, as shown below. Note: Right & Left Panels feature pilot holes for controller/hand crank on the front edge. FRONT FRONT FRONT Slide desktop panels together.
- Page 6 STEP 2 Attach Support Bars (D) to predrilled holes in desktop assembly using ST4.2x20mm Screws (S-A) and a Phillips screwdriver. S-A (x16)
- Page 7 Place desk frame upside down on the desktop assembly. Adjust frame width to match desktop mounting holes, and secure frame to desktop assembly using hardware provided in your desk frame kit. For VIVO frames, pre-drilled holes have been included for most control panels and crank handles. Bottom Side...
- Page 8 LAST UPDATED: 11/30/23 REV1.2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
