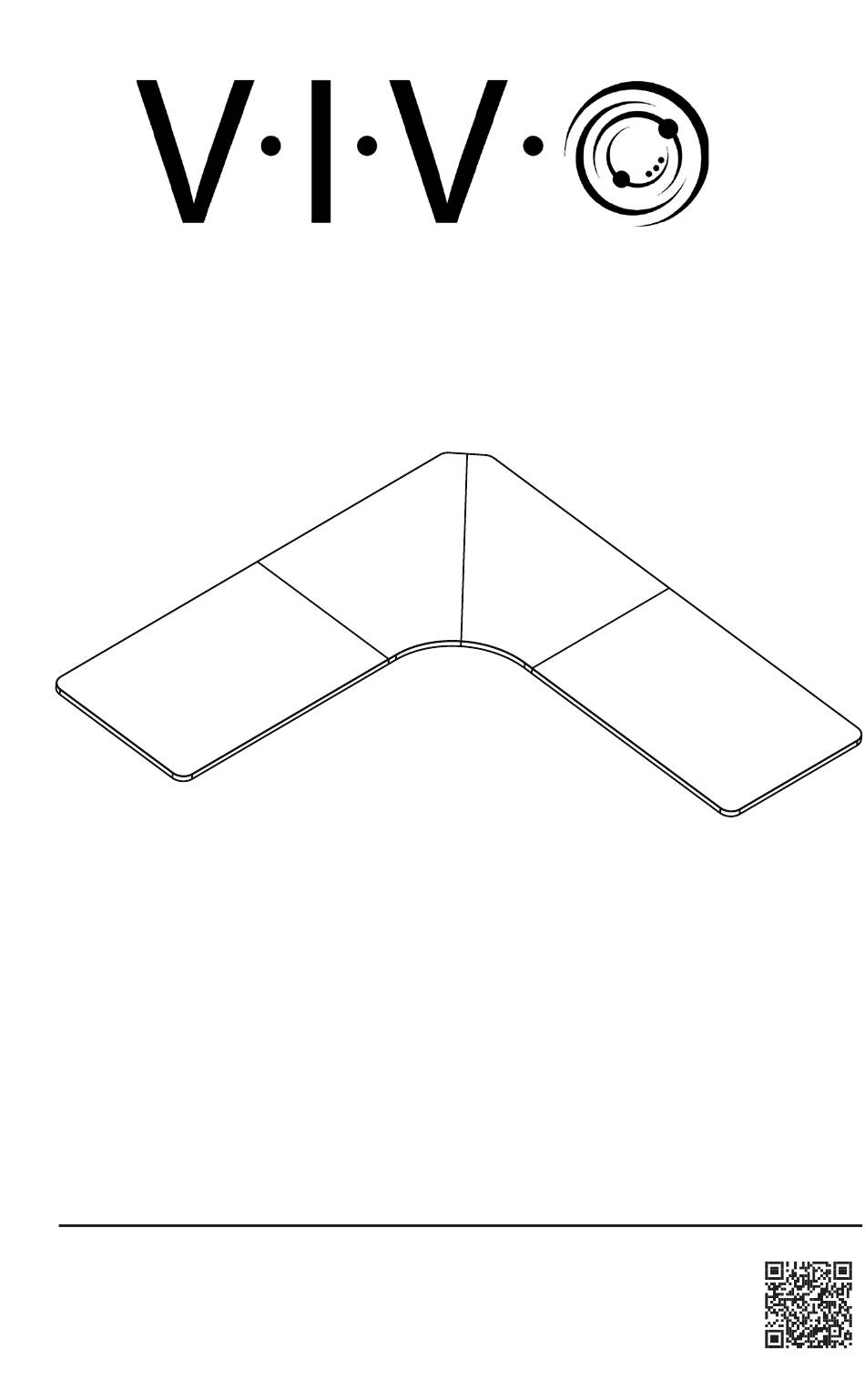

- Page 1 83” x 83” Curved Corner Table Top SKU: DESK-TOP83CB Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-top2cb...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Left Panel Left Middle Right Middle Panel Panel D (x1) E (x6) Right Panel Support Bar Included Hardware & Tools S-A (x10) S-B (x24) Wooden Dowel Pin ST4.2x20mm Screw Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place Desktop Panels (A, B, C, D) upside down on a protective surface and insert Wooden Dowel Pins (S-A) into Right Middle Panel (C) and connect Right Panel (D). Connect Left Panel (A) and Left Middle Panel (B) to Right Middle Panel (C) and Right Panel (D) using Wooden Dowel Pins (F). - Page 5 STEP 2 Attach Support Bars (E) to desktop assembly using ST4.2x20mm Screws (S-B) and a Phillips screwdriver. S-B (x24)
- Page 6 Mount the control panel to mounting holes on left or right side of the desktop assembly using screws included with the desk frame. For VIVO frames, pre-drilled holes have been included for most control panels.
- Page 7 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 8 LAST UPDATED: 1/11/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
