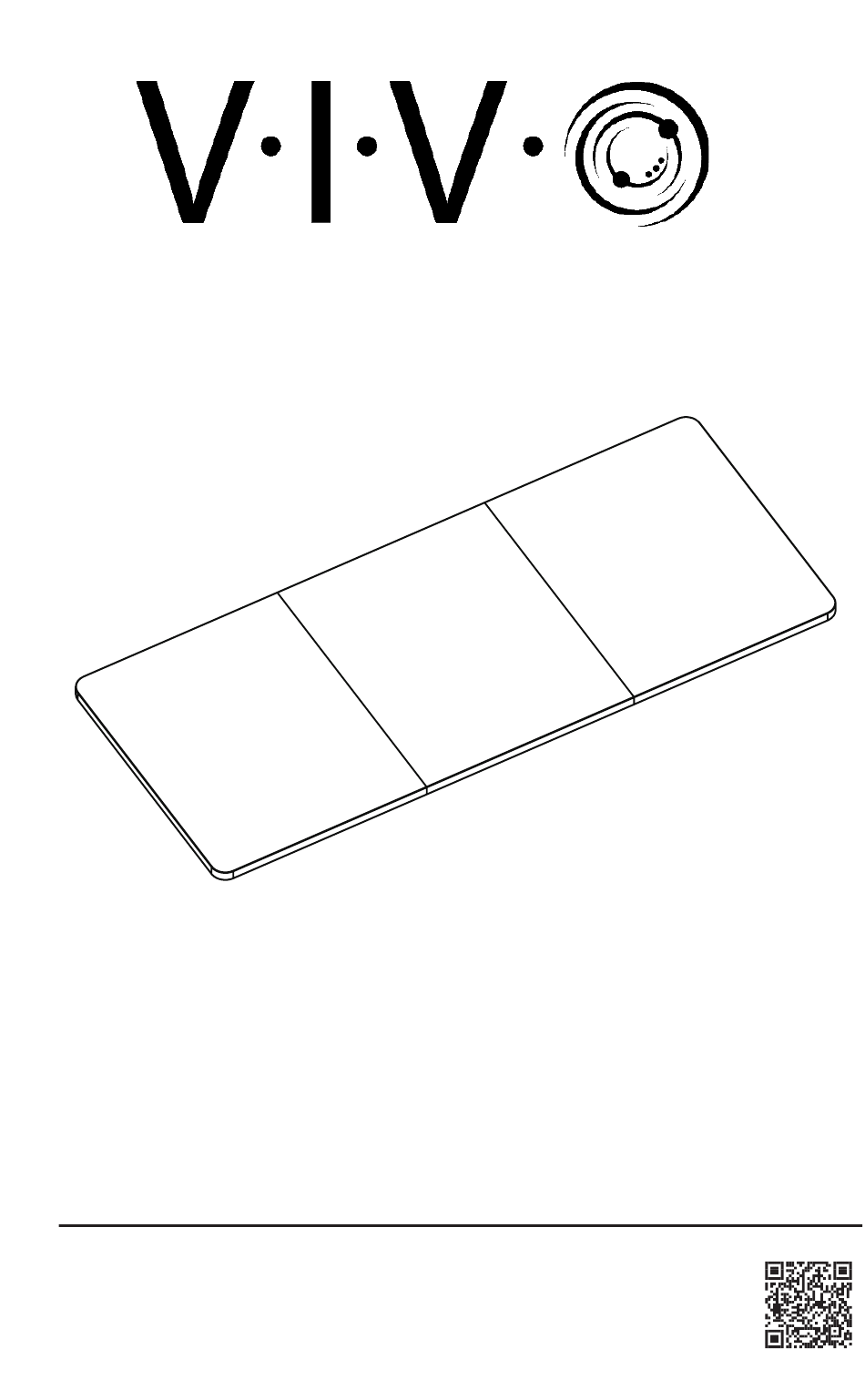

- Page 1 72” x 30” Table Top SKU:DESK-TOP72-30WE Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-top72-30b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Right Panel Middle Panel Left Panel D (x4) Support Bar Included Hardware & Tools S-B (x16) S-A (x6) ST4.2x16mm Screw Wooden Dowel Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place desktop pieces upside down on a soft surface. Insert Wooden Dowels (S-A) into the holes on the sides of Middle Panel (B). Once inserted, slide the Left and Right Panels (A,C) over the Wooden Dowels. - Page 5 STEP 2 Align Support Bar (D) with holes on Panels (A,B,C), then secure using M4.2x16mm Screws (S-B) and a Phillips screwdriver.
- Page 6 Set your desk frame (not included) upside down and place it onto the desktop assembly. Adjust the frame width to match the holes on the desktop. Once aligned, secure the frame using the included hardware in your frame kit. Pre-Drilled Holes VIVO Frames Most control panels will fit pre-drilled holes. = Pre-Drilled Holes...
- Page 7 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 8 LAST UPDATED: 07/23/24 REV2 v1.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
