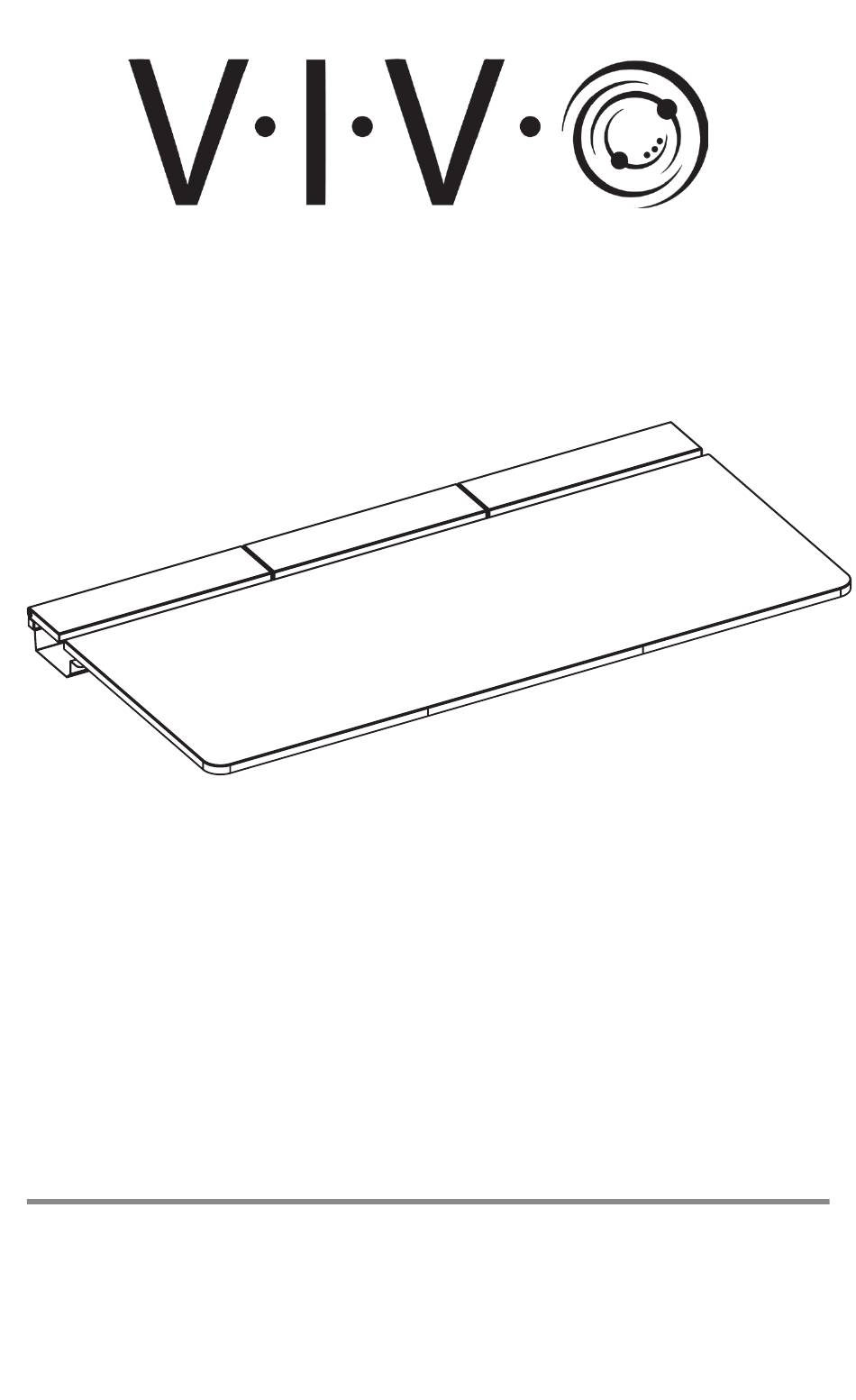

- Page 1 60” x 30” Concealed Cable Table Top with Full-Size Pad DESK-TOP3 Series Assembly Manual Individual Product SKUs DESK-TOP3 DESK-TOP3-W...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Left Panel Middle Panel Right Panel D (x4) F (x2) E (x3) Support Bar Lower Tray Upper Tray G (x2) H (x1) Connecting Plate Mouse Pad Included Hardware & Tools S-A (x12) S-B (x6) S-C (x28) S-D (x10) -
Page 5: Assembly Steps
Assembly Steps STEP 1 Place Desktop Panels (A, B, C) upside down on a protective surface and insert Wooden Dowel Pins (S-B) into Middle Panel (B). Connect the Left and Right Panels (A,C) to Middle Panel (B) using the Wooden Dowel Pins. STEP 2 Attach Support Bars (D) to Desktop Panels (A, B, C) using M6x30mm Screws (S-C) and Phillips Screwdriver (T-A). - Page 6 STEP 3 Attach Upper Trays (E) to Desktop Panels (A, B, C) using M6x30mm Screws (S-C) and Phillips Screwdriver (T-A). Do not fully tighten the screws. Flip the desktop assembly and open Upper Trays (E). Fasten Upper Trays to Desktop Panels (A, B, C) using ST4.2x20mm Screws (S-E) and Phillips Screwdriver (T-A).
- Page 7 STEP 4 Fasten Upper Trays (E) to each other using Connecting Plates (G), M6x8mm Screws (S-F), and Phillips Screwdriver (T-A). Fully tighten the previously installed M6x30mm Screws (S-C) using Phillips Screwdriver (T-A).
- Page 8 STEP 5 Flip the desktop assembly and place desk frame upside down on the desktop assembly. Adjust frame width to match the desktop mounting holes, and secure frame and control panel or crank to the desktop assembly using ST4.2x16mm Screws (S-A) and Phillips screwdriver (T-A) Note: Holes for some control panels and cranks are not pre-drilled.
- Page 9 STEP 6 Install Lower Trays (F) to Upper Trays (E) using M6x6mm Screws (S-D) and Phillips Screwdriver (T-A). STEP 7 Flip the desk assembly right side up and place Mouse Pad (H) onto desktop.
- Page 10 STEP 8 The lower trays can be accessed by flipping open the upper trays. Conceal cables by keeping the upper trays closed.
- Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
