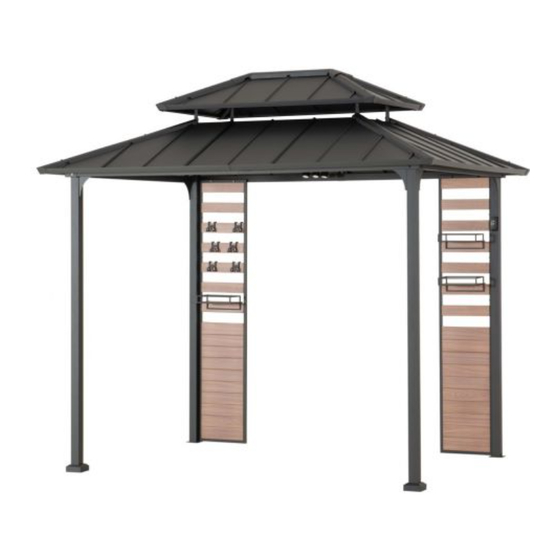

7 ft. x 9 ft. hardtop gazebo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item# 1001829233
Model# A102027610

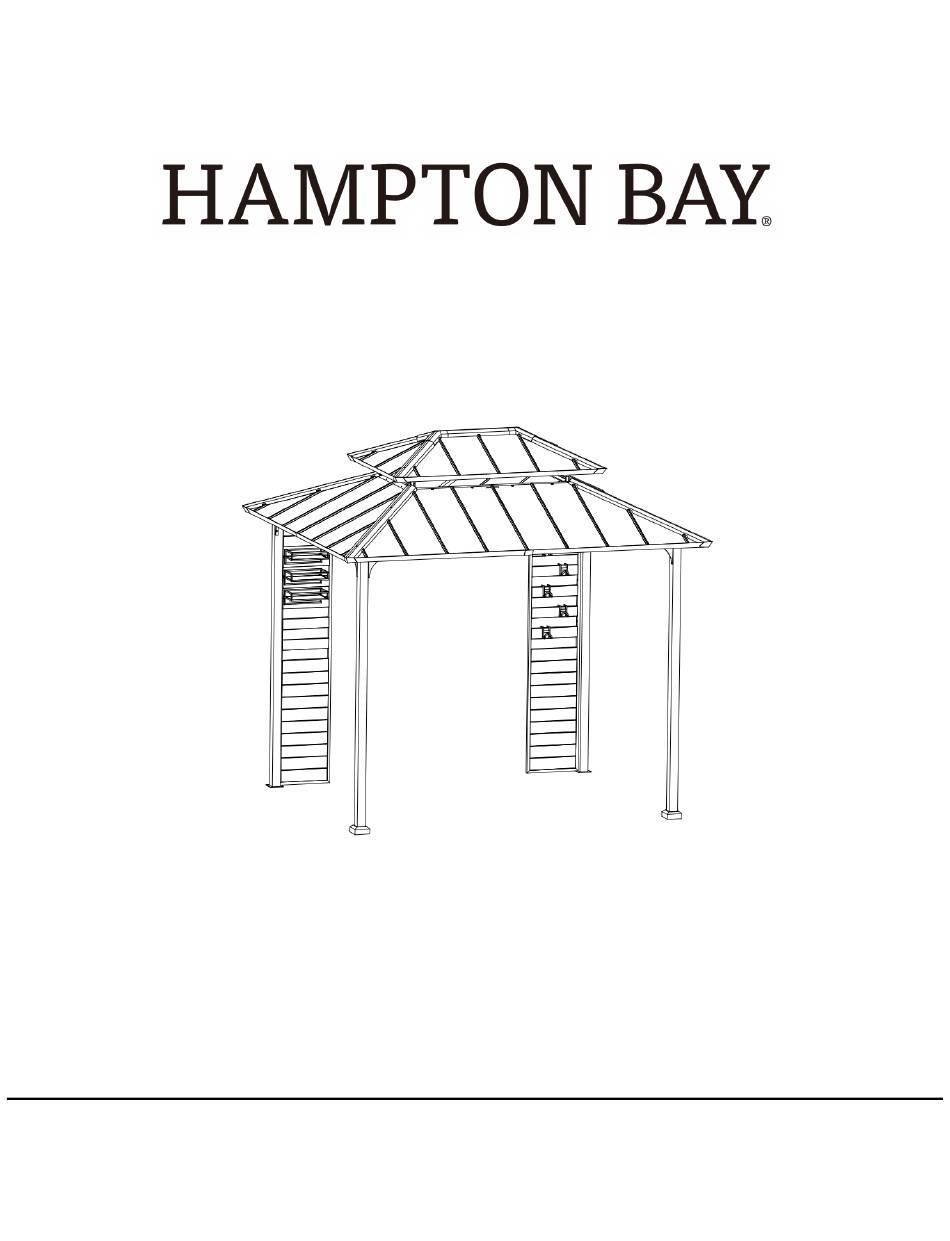

USE AND CARE GUIDE
EVERVIEW 7 FT. X 9 FT. HARDTOP GAZEBO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-841-1350
WWW.HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton
Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVERVIEW A102027610 and is the answer not in the manual?

Questions and answers

Dawn
April 13, 2025

Hello I bought and assembled the everview 7 x 9 ft hardtop gazebo. Im trying to open the batter compartment of the remote and other than the sticker that says open here, there are no instructions for how to open it. Like ive pushed, pulled , tried to pry with my nails and it wont open. So "open here" means with a knife? Damaging the casing? Nothing else is small enough to fit in that tiny slit. Hopefully you get back to me with somwthibg other than a knife option. Thans, Dawn

0

Related Manuals for HAMPTON BAY EVERVIEW A102027610

Summary of Contents for HAMPTON BAY EVERVIEW A102027610

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Hardware Included ................. 5 Important Safety Instructions ........2 Package Contents ................6 Warranty ................. 3 Assembly ............... 9 Pre-Assembly ..............4 Care and Cleaning ............35 PlanningAssembly……………………………………………………………… 4 Important Safety Instructions SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE To reduce the risk of injury to persons:...

  • Page 3: Warranty

    Warranty 2 YEAR WARRANTY WHAT IS COVERED This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of 2 years.

  • Page 4: Hardware Included

    Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Number Description Quantity H100010047 Bolt M6*20 with Washer 210+10 H100010059 Bolt M6*45 with Washer 28+2 H100010069 Bolt M6*35 with Washer 12+1 H050030001 M6 Rubber Washer 12+1 H990010010 Plastic Buckle 12+1 H070010003...

  • Page 5: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 6 Pre-Assembly (continued) PACKAGE CONTENTS WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 7 Pre-Assembly (continued) PACKAGE CONTENTS Part Number Part Description Quantity P00020092001 Post 1 P00020092101 Post 2 P00020092201 Post 3 P00020092301 Post 4 P00610026301 Base Cover P00010025201 Post Base P00500091401 Supporter Panel 1 P00500091501 Supporter Panel 2 P00050225201 Rafter Connector P00050225301 Middle Beam Connector P00040173001 Long Side Cross Beam 1 P00040173101...
  • Page 8 Pre-Assembly (continued) PACKAGE CONTENTS Part Number Part Description Quantity P00070117101 Small Roof Side Roof Panel 1 P00070116901 Small Roof Side Roof Panel 2 P00070149201 Big Roof Left Middle Panel P00070149301 Big Roof Right Middle Panel P00070149401 Big Roof Left Big Panel P00070149501 Big Roof Middle Panel P00070149601...

  • Page 9: Assembly

    Assembly Attaching the Post 1/2 and Base Cover and Post Base □ Insert and connect the base cover (B) into the post 1/2 (A1/A2), insert and connect the post base (C) into the post 1/2 (A1/A2) using bolts (H1). □ Use the wrench (HW) to tighten the bolts.
  • Page 10 Assembly (continued) Attaching the Post 3/4 and Post Base □ Insert and connect the post base (C) into the post 3/4 (A3/A4) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. STEP 2 STEP 1 WWW.HOMEDEPOT.CA...
  • Page 11 Assembly (continued) Connecting the Long Side Cross Beam 1/2/3/4 and Cross Beam Connector □ Insert the cross beam connector (G) into the long side cross beam 1/2/3/4 (F1/F2/F4/F5) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly.
  • Page 12 Assembly (continued) Attaching the Cross Beam and Post and Post Cap □ Connect the short side cross beam (F3) with post 1/2/3/4 (A1/A2/A3/A4) using corner cap (J) and bolts (H2). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. STEP 1 STEP 2 WWW.HOMEDEPOT.CA...
  • Page 13 Assembly (continued) Attaching the Cross Beam and Post and Post Cap □ Connect the long side cross beam 1 (F1) with Post 1 (A1), connect the long side cross beam 2 (F2) with post 2 (A2). □ Connect the long side cross beam 3 (F4) with Post 4 (A4), connect the long side cross beam 4 (F5) with post 4 (A4). □...
  • Page 14 Assembly (continued) Attaching the Big Roof Long Frame and Big Roof Short Frame and Big Roof Corner Frame □ Connect the rafter connector (E1) with post 1/2/3/4 (A1/A2/A3/A4) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly.
  • Page 15 Assembly (continued) Attaching the Rafter □ Connect the supporter panel 1 (D1) with post 1/3 (A1/A3) and long side/short side cross beam (F1/F3). □ Connect the Supporter Panel 2 (D2) with post 2/4 (A2/A4) and long side/short side cross beam (F2/F3) using bolts (H1). □...
  • Page 16 Assembly (continued) Attaching the Middle Beam and Middle Beam Connector □ Insert and connect the big roof corner frame (K3) into the long/short big roof frame (K2/K1) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. STEP 1 STEP 2 WWW.HOMEDEPOT.CA...
  • Page 17 Assembly (continued) Attaching the Middle Beam and Middle Beam Connector □ Connect the big roof rafter (L1) with big roof corner frame (K3) and rafter connector (E1) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 18 Assembly (continued) Attaching the Small Roof Rafter and Small Connector and Hook □ Connect the big roof middle beam (L2) with middle beam connector (E2) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 19 Assembly (continued) Attaching the Small Roof Rafter and Big Roof Corner Frame Connect the big roof middle beam (L2) with big roof long frame (K2). □ Connect the middle beam connector (E2) with long side cross beam 1/2/3/4 (F1/F2/F4/F5) using Bolt (H1). □...
  • Page 20 Assembly (continued) Attaching the Small Roof Short Panel Flashing and Small Roof Long Panel Flashing and Hook □ Connect the small roof rafter (L3) with small connector (M) using bolts(H1). □ Use the wrench (HW) to tighten the bolts. □ Then screw hook (N) to the top small connector (M).
  • Page 21 Assembly (continued) Attaching the Small Roof Side Roof Panel 1/2 □ Insert and connect the small roof rafter (L3) into the big roof corner frame (K3) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. STEP 1 STEP 2 WWW.HOMEDEPOT.CA...
  • Page 22 Assembly (continued) Attaching the Small Roof Rafter Cap and Top Cover □ Connect the small roof long/short panel flashing (P1/P2) with small roof rafter (L3) using bolts (H1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 23 Assembly (continued) Attaching the Small Roof Panel □ Put the small roof side roof panel 1/2 (Q1/Q2) on the top, connect them with small roof rafter (L3). □ Connect the small roof side roof panel 1 (Q1) with small roof long panel flashing (P1). □...
  • Page 24 Assembly (continued) Attach the Small Roof Rafter Cap and Top Cover □ Put the small roof rafter cap (R1) and top cover (R2) on the top, connect the top cover (R2) with small connector (M) using bolts (H1). □ Connect the small roof rafter cap (R1) with Small Roof Rafter (L3) using bolts (H2) and rubber washer (HH1). □...
  • Page 25 Assembly (continued) Attaching the Panel Flashing □ Connect the short/long side big roof small beam (S1/S2) with big roof rafter (L1) using bolts (H2). □ Connect the long side big roof small beam (S2) with big roof middle beam (L2) using bolts (H1). □...
  • Page 26 Assembly (continued) Attaching the Panel Flashing □ Insert the big roof panel flashing and long side big roof panel flashing 1/2 (P3/P4/P5) into the big roof rafter (L1). □ Connect the big roof middle beam (L2) with long side big roof panel flashing 1/2 (P4/P5) using bolts (H1). □...
  • Page 27 Assembly (continued) Attaching the Big Roof Panel □ Put the big roof left/right middle panel (Q3/Q4) and big roof left/middle/right big panel (Q5/Q6/Q7) on the top in turn. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 28 Assembly (continued) Attaching the Big Roof Panel □ Connect the big roof left middle panel (Q3) and Big Roof Left/Middle Big Panel (Q5/Q6) with long side big roof panel flashing 1(P4). □ Connect the big roof right middle panel (Q4) and big roof middle/right panel (Q6/Q7) with long side big roof panel flashing 2 (P5). □...
  • Page 29 Assembly (continued) Attaching the Big Roof Rafter Cap □ Connect the big roof rafter cap (R3) with big roof rafter (L1) using bolts (H2) and rubber washer (HH1). □ Use the wrench (HW) to tighten the bolts. NOTE: To avoid destroying the finish, do not put the parts on the ground directly. STEP 1 STEP 2 WWW.HOMEDEPOT.CA...
  • Page 30 Assembly (continued) Attaching the Screen □ Connect the screen 1 (T1) with post 4 (A4), connect the screen 2 (T2) with post 3 (A3) and long side cross beam 3 (F4) using bolts (H3). □ Use the wrench (HW) to tighten the bolts. NOTE: There are 14 rings in the length direction and 12 rings in the width direction.
  • Page 31 Assembly (continued) Attaching the Shelf and Hook □ Put the shelf (U2) on the screen 2 (T2), put the hook (U1) on the screen 1 (T1). NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 32 Assembly (continued) Attaching the Spot Light □ Attaching the spot light (V) on the big roof panel (flat surface ). NOTE: To avoid destroying the finish, do not put the parts on the ground directly. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 33 Assembly (continued) Attaching the Stake □ Lift the post base (C) and secure the assembled gazebo using stakes (HS), assembly completed. A1/A2 A3/A4 WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 34 Assembly (continued) Attaching the Remote Control □ Connect and lock the remote control (W) and post 1 (A1) using bolts (H1), and the product assembly is completed NOTE: Open the back cover of the remote control to replace and install the batteries, The remote batteries are not included a total of 2 (AAA batteries) .
  • Page 35 Assembly (continued) Install Spot Lights Battery - Requiring 3 x NI-MH Batteries □ Remove battery lid of the sports light by loosening the screws pre-assembled, put the batteries into the battery case, cover the battery lid by tightening the screws. □...

  • Page 36: Care And Cleaning

    Care and Cleaning □ Steel components for this gazebo are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur if these protective coatings are scratched. This is not a defect and thus not covered by the warranty.
  • Page 37 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-841-1350 WWW.HOMEDEPOT.CA Retain this manual for future use. WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
  • Page 38 WWW.HOMEDEPOT.CA Please contact 1-800-841-1350 for further assistance.
