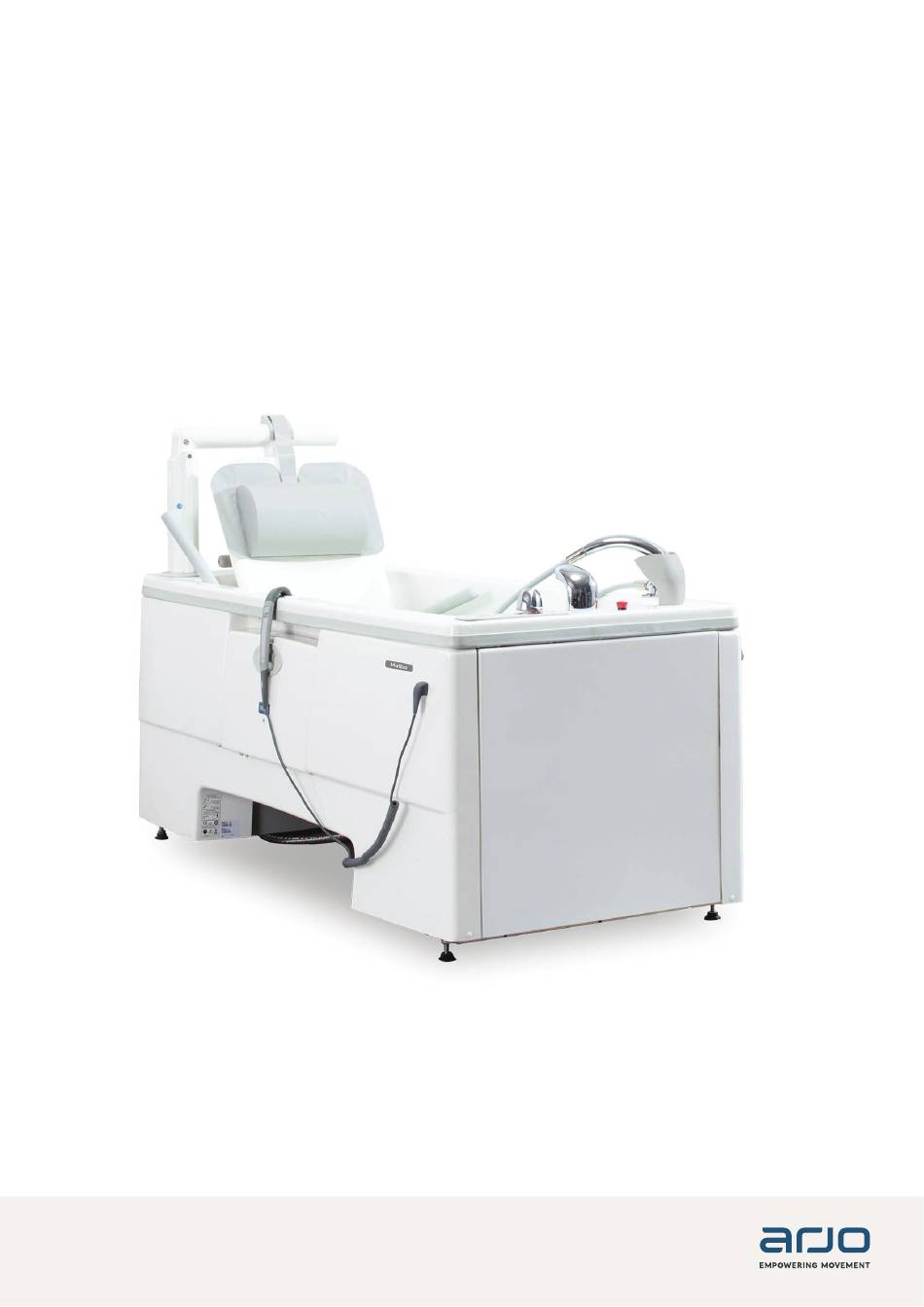

- Page 1 SITE PREPARATION Malibu / Sovereign (2021 Edition- UK) 02.AZ6.00_4EN • 2024-07...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2024. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
-
Page 3: Table Of Contents
Content Content ....................3 Introduction ..................4 Safety Instructions ................4 Measurements and Weights ..............5 Overall Dimensions ................6 Space Requirements .................7 Floor Preparations ................10 Water and Drain Preparations ............11 Electrical Installation Preparations ..........13 Electrical supply................14 Checkpoints prior to the Installation ..........16... -
Page 4: Introduction
Introduction This site preparation provides information regarding recommended pre-installation WARNING procedures. It shall be seen as guideline and can always Means: Safety warning. Failure to understand be superseded by local regulations. and obey this warning may result in injury to This document has been developed to supply you or to others. -
Page 5: Measurements And Weights
L = 1830 mm W = 800 mm Weight max 212 kg Measurement and weight of the Malibu/Sovereign bathtub 2010 mm 1602 mm (Malibu 1600) Measurements 1702 mm (Malibu 1700 and Sovereign) 770 mm Weight max 172 kg Allowed Combinations... -
Page 6: Overall Dimensions
Chair outside the bathtub Highest position Lowest position 654 mm 710 mm 770 mm 760 mm (Malibu 1600) 1410 mm 860 mm (Malibu 1700 & Sovereign) 1435 mm (Malibu 1600) 1535 mm (Malibu 1700 & Sovereign) 1602 mm (Malibu 1600) 1702 mm (Malibu 1700 &... -
Page 7: Space Requirements
Wall Position (measurements depending on Malibu/Sovereign bathtub model) Contact Arjo to order side / back / corner cover if: * Short side is equal or larger measurements than 60 mm ** Long side is equal or larger measurements than 80 mm Fig. - Page 8 Wall Position (measurements depending on Malibu/Sovereign bathtub model) Contact Arjo to order side / back / corner cover if: * Short side is equal or larger measurements than 60 mm ** Long side is equal or larger measurements than 80 mm Fig.
- Page 9 Island position (measurements depending on Malibu/Sovereign bathtub model) Contact Arjo to order side / back / corner cover if: * Short side is equal or larger measurements than 60 mm ** Long side is equal or larger measurements than 80 mm Fig.
-
Page 10: Floor Preparations
Floor Preparations NOTE in accordance with local and national regulations Floor Requirements 576 kg / m 4.5 N/mm WARNING recessed drains, holes or slopes do NOT exceed a ration of 1:50 (1.15°). • sealed. • Also see Assembly and Installation instructions manual. •... -
Page 11: Water And Drain Preparations
Water and Drain Preparations Water Supply Requirements Maximum static pressure 6 bar (600 kPa, 87 psi) Min. Dynamic pressure 1 bar (100 kPa, 15 psi) Temperature - Cold water supply 5 - 20 °C Temperature - Hot water supply 55 - 60 °C Hot/Cold Water connection G3/4”... - Page 12 Drain Supply Preparations Drainage Requirements Min. Drainage capacity 100 l/min Drain position Floor The Malibu/Sovereign bathtub must be connected to drainage. Create air gap if needed. Connections must be done in accordance with local regulations.
-
Page 13: Electrical Installation Preparations
Electrical Installation Preparations WARNING • To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. • The unit must be continuously powered and connected to a electrical power disconnection device and to separate fuse with ground fault interrupter in accordance with local codes and regulations. -
Page 14: Electrical Supply
IMPORTANT: See overleaf for further information. It is the responsibility of the customer to for the Arjo engineer to connect the unit. If a booster Pump assembly is installed, the base plate on which the pump assembly is mounted must be earthed. - Page 15 If there is a requirement for a Booster Pump or a Multi Clean disinfection module then a separate 10A surface fused connection should be provided for each unit. In both instances a Refer to Arjo Technical Support in further detail is required.
-
Page 16: Checkpoints Prior To The Installation
Checkpoints prior to the Installation installation. Reference to values and other information in this manual. CHECK POINTS COMPLETED Pressure, temperature, location, local/ Water cold/hot national requirements, hot water min: 200 l / Malibu/Sovereign bathtub Location, capacity, local/national Drain requirements Power Fusing, capacity, local/national requirements Fittings, local/national requirements Construction, materials, local/national... - Page 17 Intentionally left blank...
- Page 18 Intentionally left blank...
- Page 19 AUSTRALIA FRANCE Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi 11 Talavera Road CS 70133 Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX Tel: +48 691 119 999 Australia Tél: +33 (0) 3 20 28 13 13 E-mail: arjo@arjo.com...
- Page 20 At Arjo, we believe that empowering movement within healthcare environments is essential to quality care. Our products and solutions are and the prevention of pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years caring for patients and healthcare professionals, we are committed to driving healthier outcomes for people facing mobility challenges.
