Summary of Contents for Arjo Sorrento Floor Bed

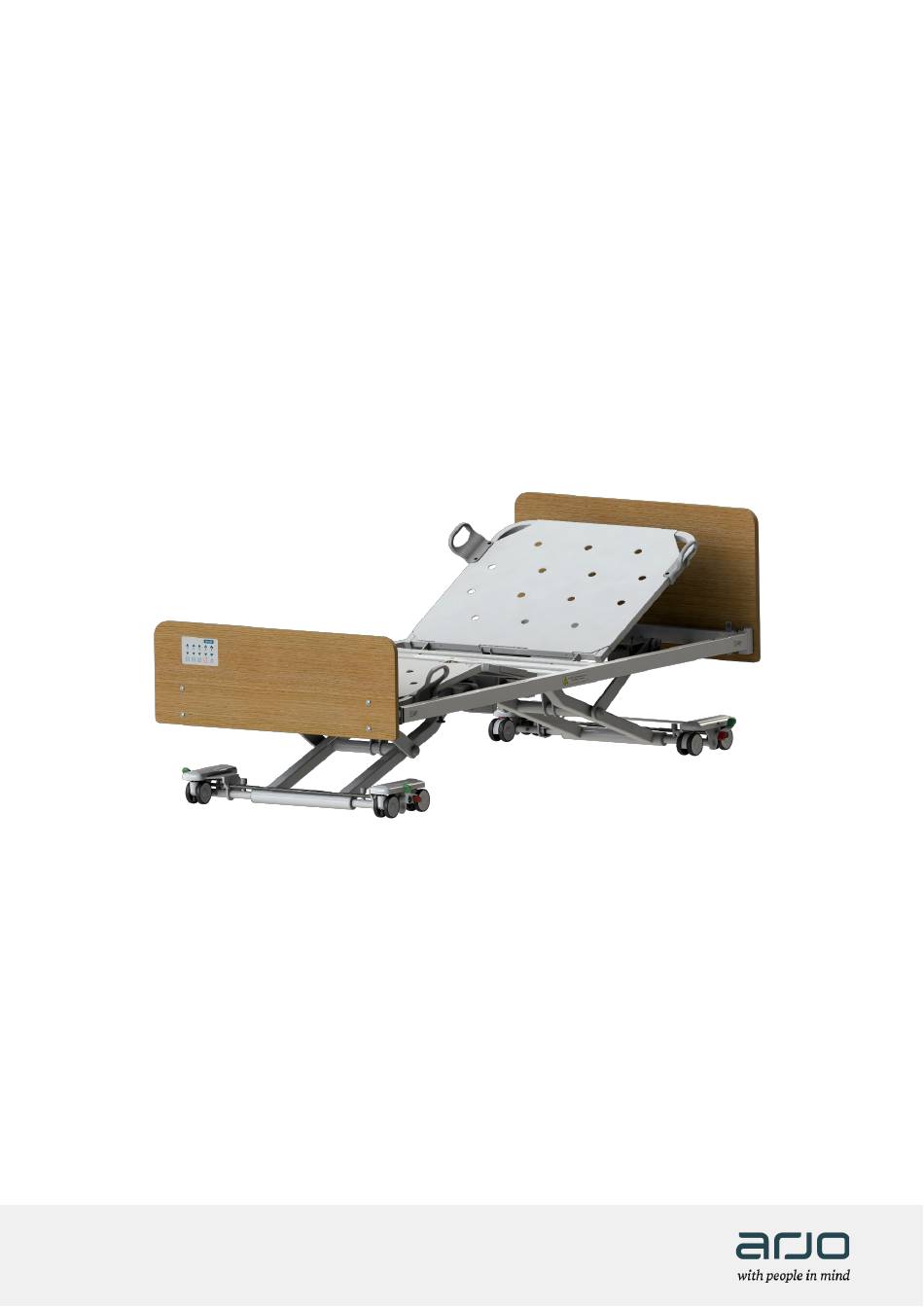

  • Page 1 Instructions for Use Single & King Single Bed Options Sorrento Floor Bed SOR-REV5-090921...
  • Page 2: Table Of Contents

    CONTENT Page INTRODUCTION WARNINGS & CAUTIONS 3 - 4 ELECTRONIC FUNCTIONS Handset & Foot Board Control Panel Operation ELECTRONIC FUNCTIONS DESCRIBED 6 - 9 Backrest Adjustment Mattress Platform Height Adjustment Knee Positioning Adjustment Auto Contour Positioning Tilt Positioning - Trendelenburg / Reverse Trendelenburg Bed Levelling Function Chair Positioning Function Cardiopulmonary Resuscitation (CPR)
  • Page 3: Introduction

    1. INTRODUCTION The Sorrento bed is an electrically actuated care bed which has a range of functions and positional movements that assist caregivers and provides for patient comfort. Ease of use, functionality, serviceability, and cleaning practicality are key features of the bed. The bed has a fabricated steel structure with a powder coated finish.
  • Page 4: Warnings & Cautions

    2. WARNINGS & CAUTIONS It is important that this manual be read in its entirety prior to the operation of the bed. The manual is designed to ensure that users are equipped with the information required to competently operate the bed and its accessories. It is recommended that the manual be kept in an easily accessible place for quick reference.
  • Page 5 2. WARNINGS & CAUTIONS - Continued GENERAL SAFETY WARNINGS • Always use a mattress of the correct size and type. • Before operating the bed make sure that the patient is safely positioned to avoid entrapment. • Before transporting the bed make sure that the bed is at a suitable height to move without stooping, or straining.
  • Page 6: Electronic Functions

    3. ELECTRONIC FUNCTIONS 3.1 Handset & Foot Board Control Panel Operation The Sorrento’s bed adjustments are powered by four electric actuators, which are controlled by the buttons on the handset and foot board control panel. Page | 5 Commercial in confidence. Instructions For Use Revision SOR-REV5-090921...
  • Page 7: Electronic Functions Described

    4. ELECTRONIC FUNCTIONS DESCRIBED NOTE: Adjustment occurs only while a button is pressed. Adjustment will stop when the button is released, or the movement selection reaches the end of its range of adjustment. 4.1 Backrest Adjustment WARNING Care should be taken whilst operating the backrest function to ensure hands and fingers are away from potential squeeze hazards.
  • Page 8: Auto Contour Positioning

    4. ELECTRONIC FUNCTIONS DESCRIBED - Continued 4.4 Auto Contour Positioning NOTE: This control function is available on both control devices fitted to the bed. To move the auto contour positioning press and hold the appropriate button on the control device. Auto Contour Positioning provides synchronised movement of the backrest and knee positioning in one operation.
  • Page 9: Cardiopulmonary Resuscitation (Cpr)

    4. ELECTRONIC FUNCTIONS DESCRIBED - Continued 4.8 Cardiopulmonary Resuscitation (CPR) NOTE: The Cardiopulmonary Resuscitation Function (CPR) is available only on the Foot Board Control Panel. NOTE: Pressing the CPR button will override any locked out functions. CAUTION When electronic emergency patient positioning functions are activated, care should be taken over the potential of the beds moving parts to either trap or crush the patient, caregivers and or other equipment.
  • Page 10: Mains Power Indicator

    4. ELECTRONIC FUNCTIONS DESCRIBED - Continued NOTE: The beds batteries should be charged for 24 hours prior to first use. NOTE: Keep the bed plugged to mains power source for optimum performance. NOTE: Bed adjustment will be slower when the power cord is unplugged, and the bed is powered from its batteries only.
  • Page 11: General Bed Operation

    5. GENERAL BED OPERATION 5.1 Castor System The Sorrento bed uses eight 75mm Tente twin wheeled castors for easy manoeuvrability (four braking castors and four free-wheeling castors). Operating the Brakes • To activate and release the braking castors use the pedals at each side and end of the bed. Simply push down on the red lever using the toe of the shoe to brake and the green lever to release the brake.
  • Page 12: Bed Extension

    5. GENERAL BED OPERATION - Continued 5.2 Bed Extension The integral bed extension is easily extended to add an extra 195mm of length to the mattress platform. Extending the Bed Extension from the Closed Position 1. The bed extension is locked in the closed and fully open positions by two threaded hand wheels located towards the foot end of the bed on either side of the bed platform.
  • Page 13: Fold Down Side Rails

    5. GENERAL BED OPERATION - Continued 5.3 Fold Down Side Rails (if fitted) The (optional) bed rails are easily fitted by clamping to the side rail of the bed. Medical equipment international standard IEC 60601-2-52, which includes specific rail entrapment requirements are complex and strict.
  • Page 14: Side Rail Operation

    4. GENERAL BED OPERATION - Continued 5.5 Side Rail Operation The rails are either fully raised or folded down closed. When the side rail is raised to its full height position it will automatically lock in the positioning hole on the rails clamp plate. The release/lock knob feature can be both visually and audibly confirmed.
  • Page 15: Side Rail Safety Lock Indicator

    5. GENERAL BED OPERATION - Continued 5.6 Side Rail Safety Lock Indicator The side rail locating pin has a yellow coating that allows for visual inspection of the locking device. When the side rail is in the raised position, viewing the release knob from the side there should be no yellow shaft visible.
  • Page 16: Sorrento Single Bed Specifications

    6. SORRENTO SINGLE BED SPECIFICATIONS Basic Dimensions Overall Length 211.5cm Overall Length (base extension extended) 231.0cm Overall Width 92.0cm Overall Width (rails fitted) 102.5cm Mattress Surface Length (between panels) 207.0cm Bed Platform Height Range 17.0cm to 69.0cm (+/- 5mm) Back Rest Angle Adjustment 0°...
  • Page 17: Sorrento King Single Bed Specifications

    7. SORRENTO KING SINGLE BED SPECIFICATIONS Basic Dimensions Overall Length 211.5cm Overall Length (base extension extended) 231.0cm Overall Width 109.0cm Overall Width (rails fitted) 120.0cm Mattress Surface Length (between panels) 207.0cm Bed Platform Height Range 17.0cm to 69.0cm (+/- 5mm) Back Rest Angle Adjustment 0°...
  • Page 18: Cleaning

    8. CLEANING WARNING Before cleaning always disconnect the bed from the mains power source. Note: It is strongly recommended that protective clothing be used when carrying out cleaning processes on the Sorrento bed. Note: The following procedure also applies to the beds accessories but does not include mattresses.
  • Page 19: Maintenance

    Note: Other than general maintenance activities all other service, or repair work must be performed by qualified and trained persons who are approved by Arjo. WARNING The bed must be disconnected from the mains power supply before starting any maintenance activity.
  • Page 20: Trouble Shooting

    Control box and handset Check the plugs are fully plugs disconnected inserted in the control box sockets. Blown fuse Contact your local Arjo Service Department. Damaged handset cable Replace handset One actuator fails to work Actuator plug disconnected Check that actuator plug is fully inserted in control box.
  • Page 21: Product Lifetime & End Of Life Disposal

    13. SORRENTO BED ACCESSORIES A range of accessories to suit the Sorrento bed is available from Arjo. As well as the below listed equipment, Arjo specialises in static foam and air pressure mattresses. Contact Arjo for details.
  • Page 22: Sorrento Bed Labels And Warnings

    14. SORRENTO BED LABELS & WARNINGS Page | 21 Commercial in confidence. Instructions For Use Revision SOR-REV5-090921...
  • Page 23: Explanation Of Symbols

    15. EXPLANATION OF SYMBOLS Serial Number Label Hazard Identification Label Areas labelled are of a low risk nature. Recommended Mattress Size Label Manufacturer European Representative Date of Manufacture Product Code Reference Serial Number Bed Safe Working Load Maximum Patient Weight Read Instructions Before Use Indicates the Product is a Medical Device According to EU Medical Device Regulation 2017/745...
  • Page 24: Warranty And Service

    16. WARRANTY & SERVICE Arjo standard terms and conditions apply to all sales. A copy of the terms and conditions, which provides the full details of warranty terms and statutory rights of the customer can be obtained upon request. 17. REGULATORY INFORMATION...
