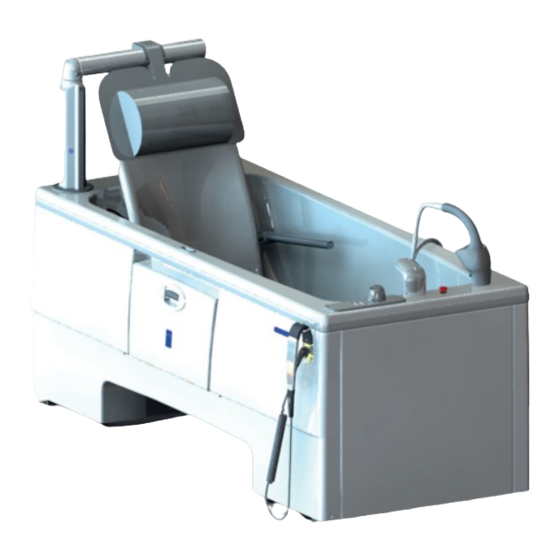

Arjo Malibu Quick Reference Manual

QUICK REFERENCE GUIDE – FUNCTIONS QUICK REFERENCE GUIDE – FUNCTIONS
Malibu/Sovereign

Emergency stop

Emergency stop
Press button to stop all functions.
Turn clockwise to release.
Hand control – Lift in
A

Temperature display

•
•
•
for another 60 seconds.

Air spa system (optional feature)

The massage effect is obtained by injecting air through
air jets into the bath water. The recommended maximum
treatment with the Air spa system is 15 minutes.
Push and hold the Lift in button
(A). The lift arm will complete a full
sequence of movement; from outside
the bathtub, over the bathtub edge
and into the bathtub.
Shows current bathtub water
temperature.
Shows the temperature of the
1
Push the Air spa system
ON/OFF button, the
air blower will start at
minimum speed.
08.AZ6.03_1EN • 07/2020 • Page 1/2

Patient lock-out

Hand control – Lift out
B

Scalding protection

stagnating water in the shower system.
30 hours after the last use of the
bathtub and then every 24 hours if the
bathtub is not used.
2
The intensity of the air
stream will increase
by pushing the button
again.
Push and hold the patient lock out
button (A) for 3 seconds to disable
all panel and remote buttons.
B
Patient lock-out is indicated by a
yellow LED (B).
A
Push and hold for 3 seconds to
re-enable all functions.
Push and hold the Lift out
button (B). The sequence will be
performed in the reverse order.
The bathtub must be in the lowest
position.
The electronic scalding
protection shuts off the water if a
dangerous temperature level is
detected.
The LED between the displays
lights up if a temperature above
or equal to 45 °C (113 °F) after
10 seconds is detected.
To aviod water spillage the
shower handle should be
placed in the holder after
every use.
3
Push the Air spa system
ON/OFF button again to
stop.
