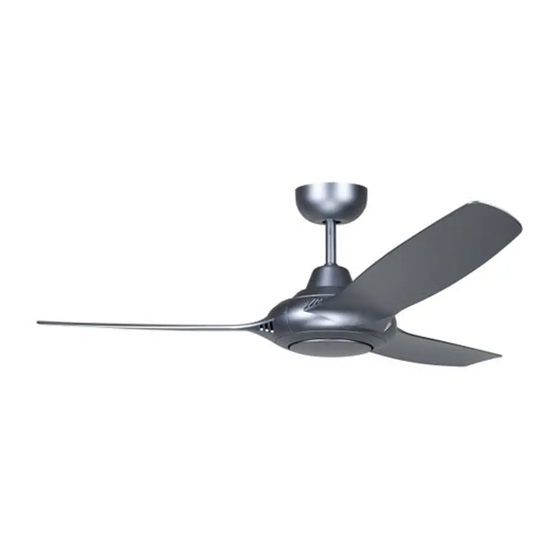

- Page 1 LUCCI AIR HYPERION DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (04/2024)
-
Page 2: Safety Precautions
HYPERION DC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 HYPERION DC Fan Installation Instructions the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
HYPERION DC Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
HYPERION DC Fan Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... -
Page 6: Hanging The Fan
HYPERION DC Fan Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4) Fig. - Page 7 HYPERION DC Fan Installation Instructions 2. Remove the 4 blade screws from the fan motor assembly. (Fig. 6) Fig. 6 3. Insert the blade into the rotating member of fan motor assembly. Align the 4 holes on the blade with the 4 holes of fan motor assembly and using the 4 blade screws in step 2, to secure the blade to the fan motor assembly.
-
Page 8: Installation Of Lamp
HYPERION DC Fan Installation Instructions 4. Repeat this process for the remaining blades. (Fig. 8) Fig. 8 Install the lower motor housing back onto the fan body. (Fig. 9) Fig. 9 INSTALLATION OF LAMP • If lamp (Not included) is required, remove the bottom cover from the fan assembly by turning counterclockwise. - Page 9 HYPERION DC Fan Installation Instructions • Install the lamp on the fan assembly then secure it by turning clockwise. (Fig. 11) (NOTE: Gx53 LED lamp is an optional accessory and is not included with this appliance) Fig. 11 ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG.
- Page 10 HYPERION DC Fan Installation Instructions Fig. 12 Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 12). 9 | P a g e...
-
Page 11: Finishing The Installation
HYPERION DC Fan Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal... -
Page 12: Using Your Ceiling Fan
HYPERION DC Fan Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL 1. Open the battery compartment cover by removing the securing screw and insert 2 x AAA battery. Note the correct battery polarity (+/-) when inserting the battery, and then replace the cover and secure with the screw. - Page 13 HYPERION DC Fan Installation Instructions THE FAN RECEIVER & REMOTE PAIRING NOTE: The pairing of the remote and receiver has been done at the factory. When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
-
Page 14: After Installation
HYPERION DC Fan Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 15: Technical Information
HYPERION DC Fan Installation Instructions SAFETY PRECAUTIONS FOR BATTERY WARNING – Keep new and used batteries away from children. CAUTION – Do not ingest battery—Chemical burn hazard. Always use 2 x AAA battery type with this ceiling fan remote controller. - Page 16 HYPERION DC Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 17 HYPERION DC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes.
