Instructions for installation and use
14. HEATING CIRCUIT, PUMP

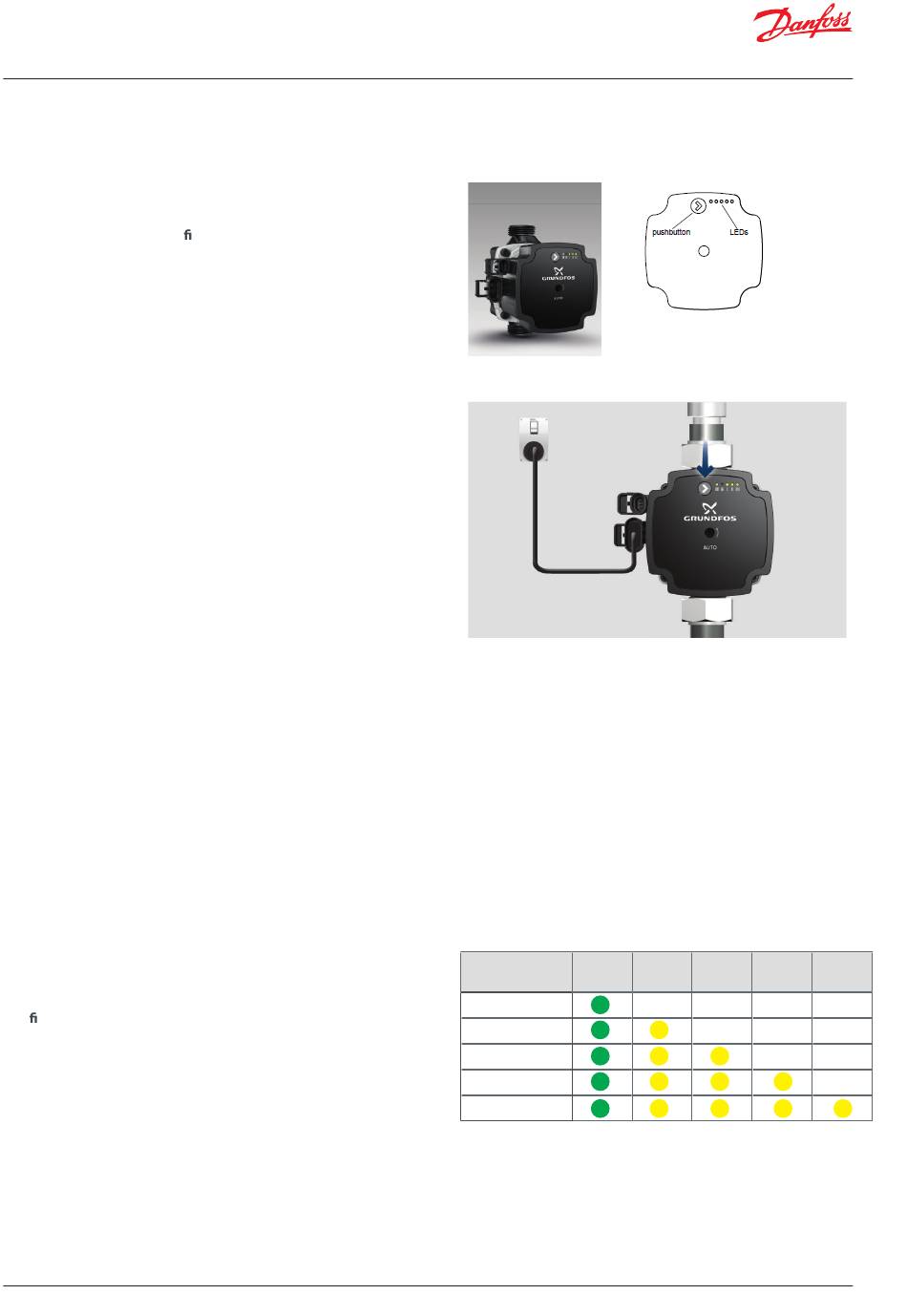

Grundfos Pump UPM3 AUTO
Grundfos UPM3 Auto has 12 optional settings, which can be select-
ed with the push-botton. See g. 1 - User interface.
The pump is set from factory to Proportionaldruck Pressure 2 .
The user interface shows:
* performance view (during operation)
- operation status
- alarm status
* settings view (after pressing the button)
During operation, the display shows the performance of the pump.
By pressing the button, the display changes status or you can
change settings.
The LEDs show the power consumption for the pump.
When the pump is running, LED 1 is green. The four yellow
LEDs indicate the current power consumption.
See g. 2 - Performance view.
20 | © Danfoss | Produced by Danfoss Redan A/S | 2017.01
Akva Lux II VXi, VXi Solo HWP, VXi Solo H
Fig. 2. Performance view
Performance
% of P max.
1
0% (standby)
0 - 25%
25 - 50%
50 - 75%
75 - 100 %
Abb. 1. Bedienfeld
mit einer Drucktaste und fünf LED´s
VI.JV.R1.02
