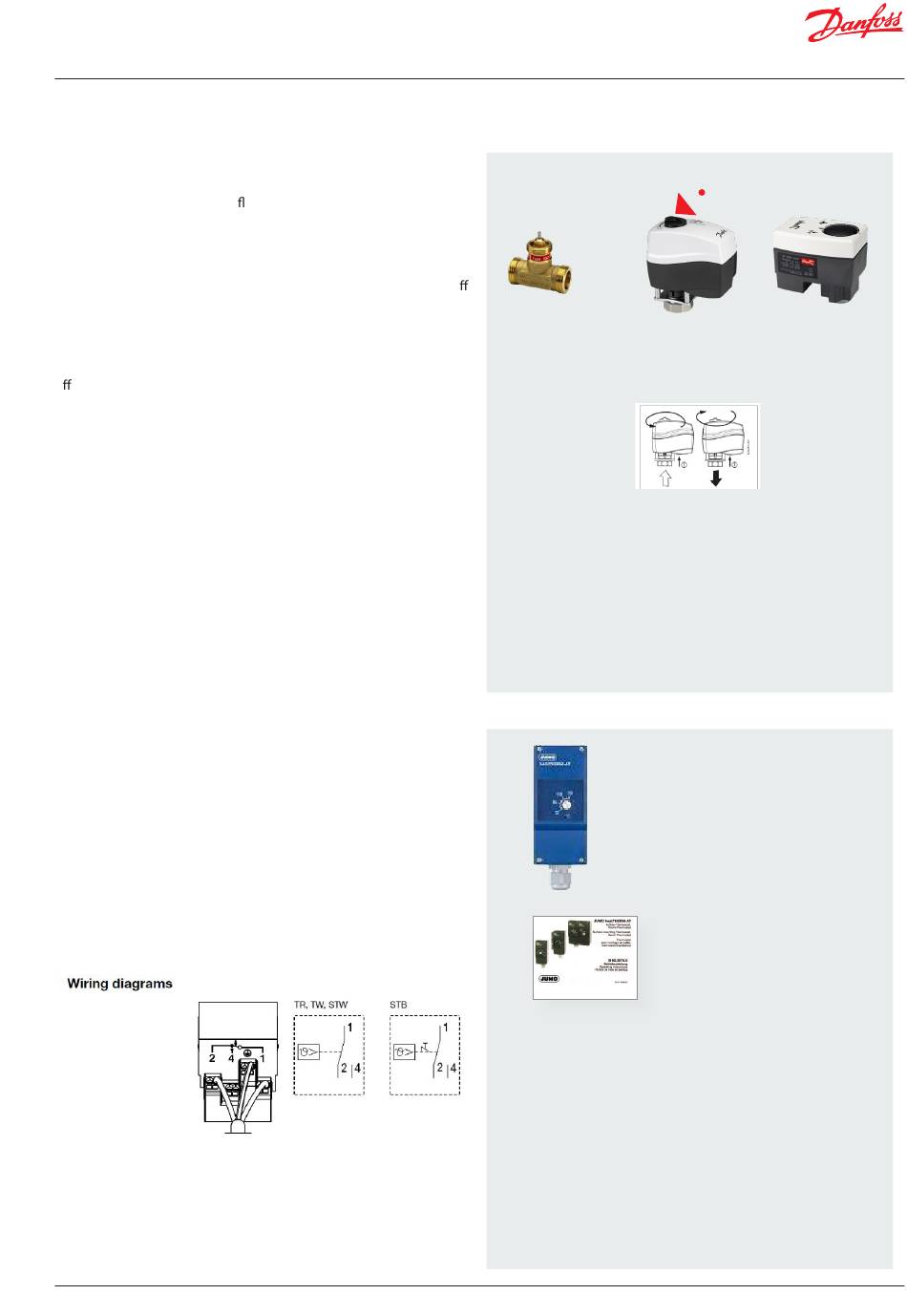

Instructions for installation and use
Actuator and valve, VXi Solo HWP
For controlling the heating circuit the VX Solo II HWP is supplied with
a Danfoss AMV 150 or AMV 13 actuator and a Danfoss valve VS 2,
placed on the primary return ow line. THE AMV actuator is electri-
cally wired to the controller from factory.
The actuator has undergone a functional test and is preset from
factory.
In the event of operating disturbances the actuator can be shut o
manually by turning the manual override knob on top of the actuator
clockwise. Please note that the knob can be "tight" to turn..
Depending on the selected setting of the safety function, the AMV 13
valve is fully opened or closed when the voltage supply is switched
o .
For additional information see the enclosed manuals for:
Electronic Actuator AMV 13
Danfoss Valve VS 2
Safety function, Jumo AT
The heating circuit(s) can be supplied with a safety thermostat Jumo
AT for protection against overheating.
From factory the Jumo AT safety thermostat is pre-wired to the
Danfoss ECL controller with a 2 m cable, enabling the thermostat
housing to be mounted in any mounting position on the household
piping (HE supply) on site.
For additional information see the enclosed manuals for:
Jumo AT
VI.JV.R1.02
Akva Lux II VXi, VXi Solo HWP, VXi Solo H
VS 2
© Danfoss | Produced by Danfoss Redan A/S | 2017.01 | 19
AMV 150
Manual override
Press and hold the button (on
the bottom side of the actuator)
during manual operation.
AMV 13
