Instructions for installation and use

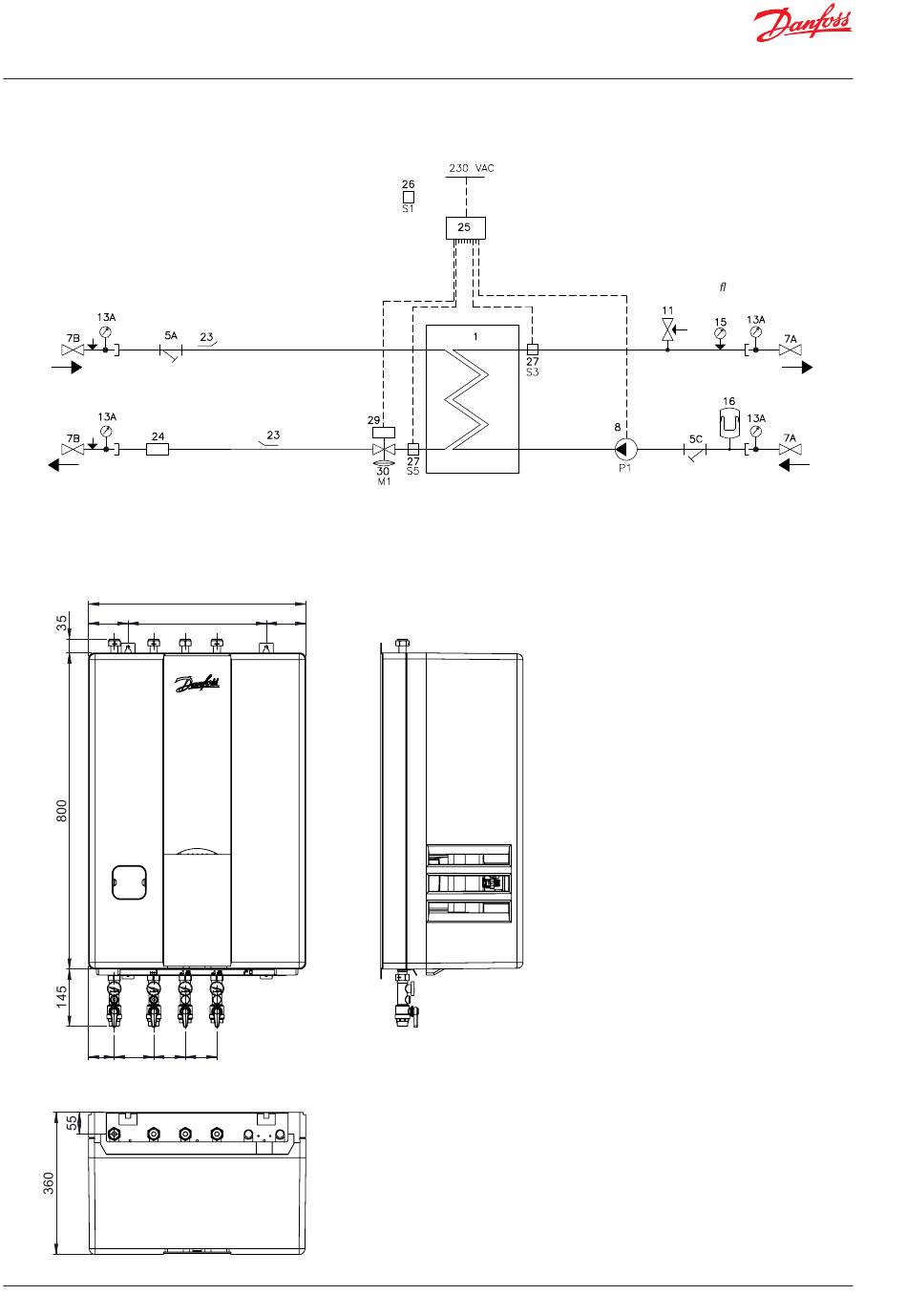

5. DIAGRAM, DIMENSIONAL SKETCHES, EXAMPLES - VXI SOLO H
1 Plate heat exchanger HE
5 Strainer
7A Ball valve ¾ ET/ET, 120 mm for thermo./Mano.
7B Ball valve ¾ IT/IT, for thermometer
8 Circulation pump
11 Safety valve HE, 3 bar ½"
13 Thermometer
15 Manometer
16 Expansion vessel 12 L
DH
Supply
DH
Return
1
100
65 100 80
1 2
10 | © Danfoss | Produced by Danfoss Redan A/S | 2017.01
3
2
550
350 100
80
3 4
Wand
von oben
Akva Lux II VXi, VXi Solo HWP, VXi Solo H
4
23 Sensor pocket ½"/10x1, plug M10 for heat
meter
24 Fitting piece for heat meter
3/4" x 110 mm
25 Danfoss Controller ECL 310/A230
26 Outdoor sensor, ESMT
27 Danfoss sensor, ESMC
29 Danfoss actuator HE, AMV 150
30 Pressure independent control valve with
integrated ow limiter Danfoss AVQM
6
5
Connections:
1. District heating (DH) supply
2. District heating (DH) return
3. Heating (HE) return
4. Heating (HE) supply
General tolerance accuracy
kg
Weight
Replace
Design
Approval
Confidential: Property of Danfoss Redan A/S, Nordborg, Denmark.
HE
Supply
HE
Return
7
Projection Scale Size Ma
1:7.5 A3
Dan
Des
V
VI.JV.R1.02
Danfoss Redan A/S
