DFI VP101-M8M Quick Installation Manual

Arm-based in-vehicle fanless touch panel pc
Hide thumbs Also See for VP101-M8M:

Advertisement

Quick Installation Guide
VP101-M8M
ARM-Based In-vehicle Fanless Touch Panel PC

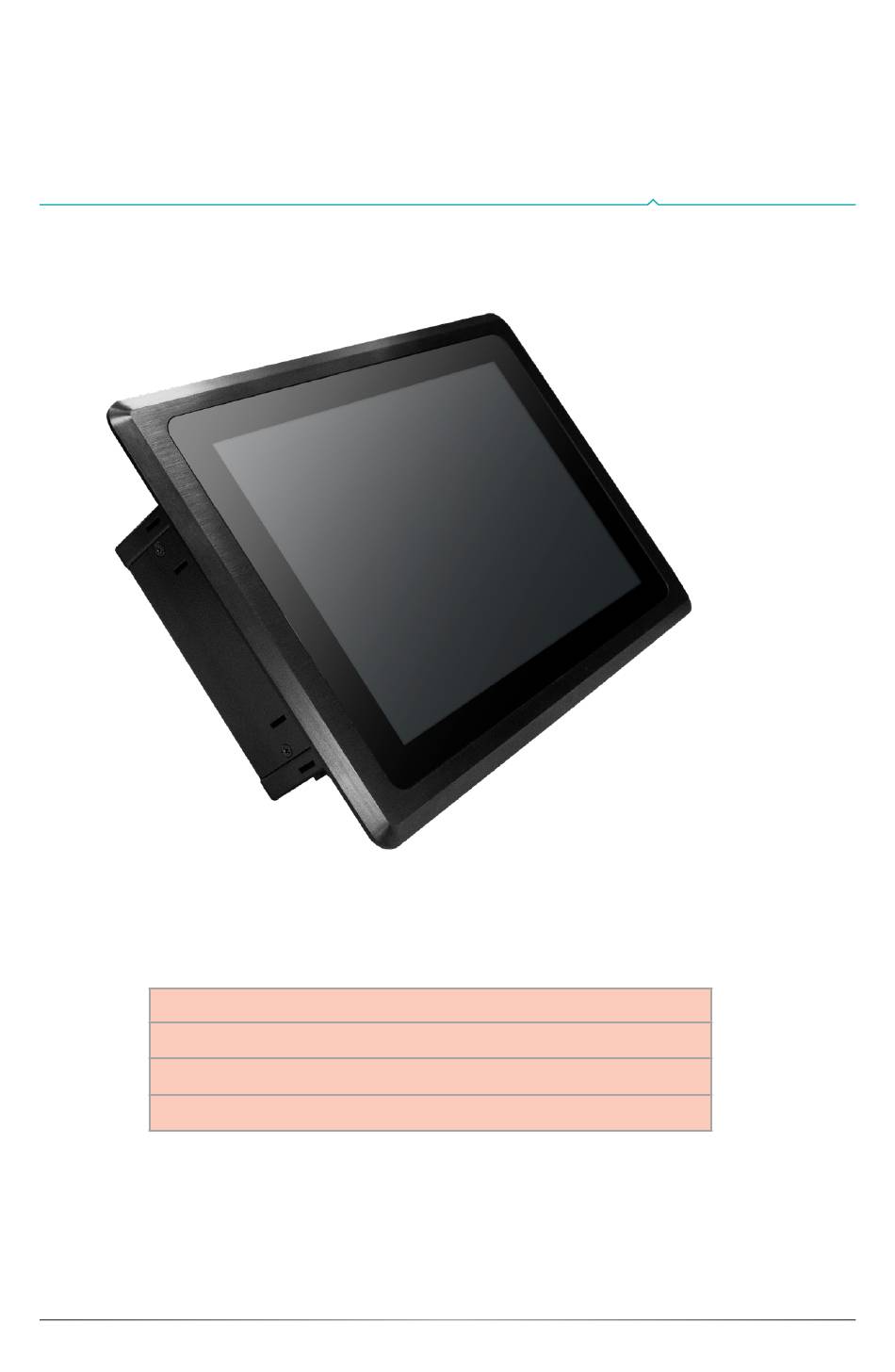

1 x VP101-M8M System Unit
1 Switch Cable
12 Rubber Holders
1 ADDM UL Battery Addendum
© June 12, 2024 DFI Inc.
Package Contents
www.dfi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP101-M8M and is the answer not in the manual?

Questions and answers

Summary of Contents for DFI VP101-M8M

  • Page 1 Quick Installation Guide VP101-M8M ARM-Based In-vehicle Fanless Touch Panel PC www.dfi.com Package Contents 1 x VP101-M8M System Unit 1 Switch Cable 12 Rubber Holders 1 ADDM UL Battery Addendum © June 12, 2024 DFI Inc.
  • Page 2: Product Overview

    Product Overview Bottom View Reset Switch Power Input USB3.1 Gen1 Re-download Switch Quick Installation Guide | VP101-M8M...
  • Page 3 Back View CANbus Quick Installation Guide | VP101-M8M...
  • Page 4: Removing The Chassis Cover

    The 8 screws of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Step 2: Slide the cover to open the system. Quick Installation Guide | VP101-M8M...
  • Page 5 Step 3: The boards can be easily accessed after the chassis cover is removed. System Board Power Board Quick Installation Guide | VP101-M8M...
  • Page 6: Installing An M.2 Card

    Installing an M.2 Card M.2 Sockets Quick Installation Guide | VP101-M8M...
  • Page 7 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Quick Installation Guide | VP101-M8M...
  • Page 8: System Layout

    Power Board Power Board ST-Link / SWD MCU Debug Remote Switch Remote Switch High/Low Active 12V DC Out 9V~36V In Host Bus Communication Host Bus Communication LED1(Red): Debug LED for the MCU LED2 (Green): R/W LED Quick Installation Guide | VP101-M8M...
  • Page 9 System Board System Board USB2_4 HDMI Speaker M.2 B key USB2_3 Battery M.2 E key VP IO Power Link COM1 Debug SIM Slot Boot CFG LVDS USB3.0 DC-IN LED Backlight Audio Quick Installation Guide | VP101-M8M...
  • Page 10 System Board - uSD Card Slot System Board uSD Card Slot Quick Installation Guide | VP101-M8M...
  • Page 11: Jumper Settings

    Power On Delay Time Select (Delay Duration) 10 seconds (default) 4 On , 5 On 30 seconds 4 Off , 5 On 1 miniute 4 On , 5 Off 5 minutes 4 Off , 5 Off Quick Installation Guide | VP101-M8M...
  • Page 12 5-6 On Backlight Power 5V 4-6 On DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/...
