Metal Defender MD-1 User Manual

Hide thumbs Also See for MD-1:

Advertisement

Quick Links

Download this manual
MD-1
USER MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metal Defender MD-1

Summary of Contents for Metal Defender MD-1

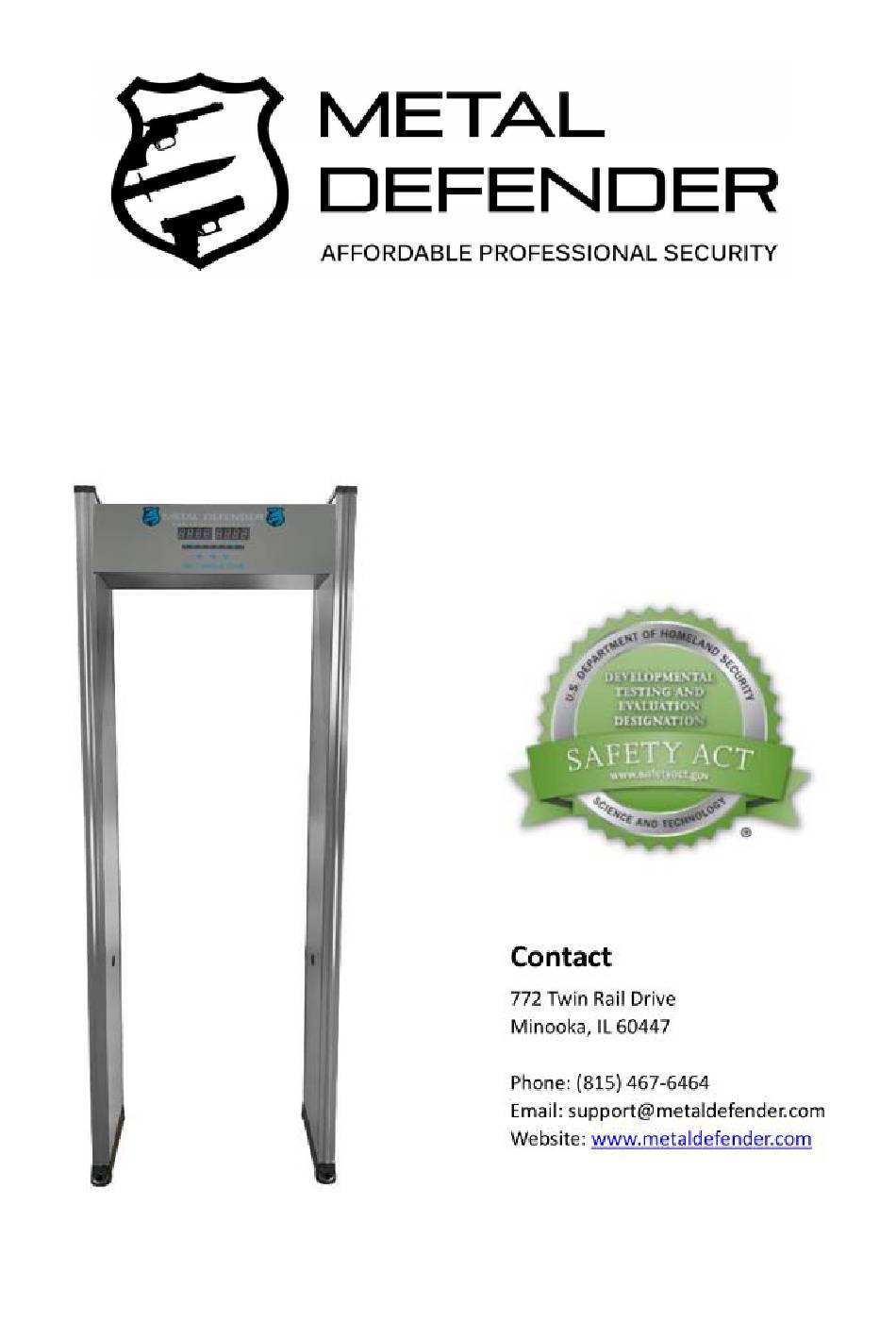

  • Page 1 MD-1 USER MANUAL...

  • Page 2: Medical Safety

    MEDICAL SAFETY Metal Defender makes every effort to ensure its products are safe for use. Extensive research by Metal Defender has produced no information which would indicate that its products have any adverse effects on medical implants, pregnancy, recording media or magnetic strips. Metal Defender makes every effort to cooperate with medical device manufacturers and to communicate with agencies such as the United States Food and Drug Administration and Health Canada as a means of assuring product safety.
  • Page 3 PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE OPERATON Regarding to how to how to use the machine correctly and safely, please attention to the following instructions. make sure you have read it before operation. 1. It’s available for both indoor and outdoor use, please use canopy to protect it against rain. 2.

  • Page 4: Technical Specifications

    Technical Specifications Metal Defender’s MD-1 Walk-through Metal Detector provides pinpoint accuracy and discrimination features. This detector is effective in all environments including but not limited to airports, government buildings, correctional facilities, and sports venues. While being cost effective it also provides the same security that professionals worldwide receive from other brands.

  • Page 5: Product Features

    Product Features • Alarm Display, LED display show the mess of metallic articles • Built in power supply • Waterproof for mild outdoor usage General Information Regional Sensitivity: The maximum sensitivity can detect metal content as small as a paper coin, in self-regulation between 0-99 sensitivity detection requirements may need to be adjusted.

  • Page 6: Installation Instructions

    Installation Instructions Please read through the following instructions to properly install, program, and adjust the sensitivity of the Metal Defender walk-through metal detector. 1. Open the boxes and take out the 3 main pieces – Left door panel, Right door panel, and control unit. Place all on the Styrofoam in the position below to properly secure the 3 pieces to form the frame of the unit (see diagram below).
  • Page 7 Debugging TURN ON After finishing cable connection, press the orange button. ENTER IN TO SETTING INTERFACE Press "ENTER" for 3 seconds so as to enter in to setting interface. the initial password is 1234; Press ENTER key on the power-on screen to enter the password； Power on the screen Enter the password 1234 Press ENTER key again, enter a new password, press “↑”key to set the value，and press “↓”key to shift the...
  • Page 8 The alarm duration has three levels, d-01,d-02,d-03, and d-01 represents the shortest time；Switch levels by press“↑”or“↓”， 3）Press “ENTER”again to enter the sensitivity setting of 00-99, Set the value by "↑" or "↓" SENSITIVITY SETTING After entering into the setting interface, the the panel shows 0000 L-90. L means sensitivity, 90 means the value of sensitivity, the scope is from 0 to 99.
  • Page 9 What is the right sensitivity setting for me? The best way to determine what sensitivity setting would work best for you is to start on the lowest sensitivity setting 70 and find an article of metal that you wish to pick up. Walk through with the object and increase gradually until the detector picks up the metal.
  • Page 10 SUGGESTED SINGLE LANE CONFIGURATION SUGGESTED MULTI-LANE CONFIGURAT...
  • Page 11 BRIEF MAINTENANCE 1. Can’t Start The Machine 1) Check whether power sockets properly. 2) Check whether the power switch is on. 3) Check the fuse blew out (Only for Walk Through model). 2. Can’t Account Passengers 1) Don’t work in the strong sunlight as it use infrared sensor. 2) Check the left and right infrared sensor probe whether in parallel.
  • Page 12 2 YEAR WARRANTY INFORMATION Metal Defender warrants that each piece of security equipment manufactured by Metal Defender is protected by the following limited parts and labor warranty for a period of 24 (twenty-four) months (the “Warranty”). During this 24-month period Metal Defender will inspect and evaluate all equipment returned to its authorized repair station or factory to determine if the equipment meets Metal Defender’s performance specifications.
