Summary of Contents for Metal Defender MD-1

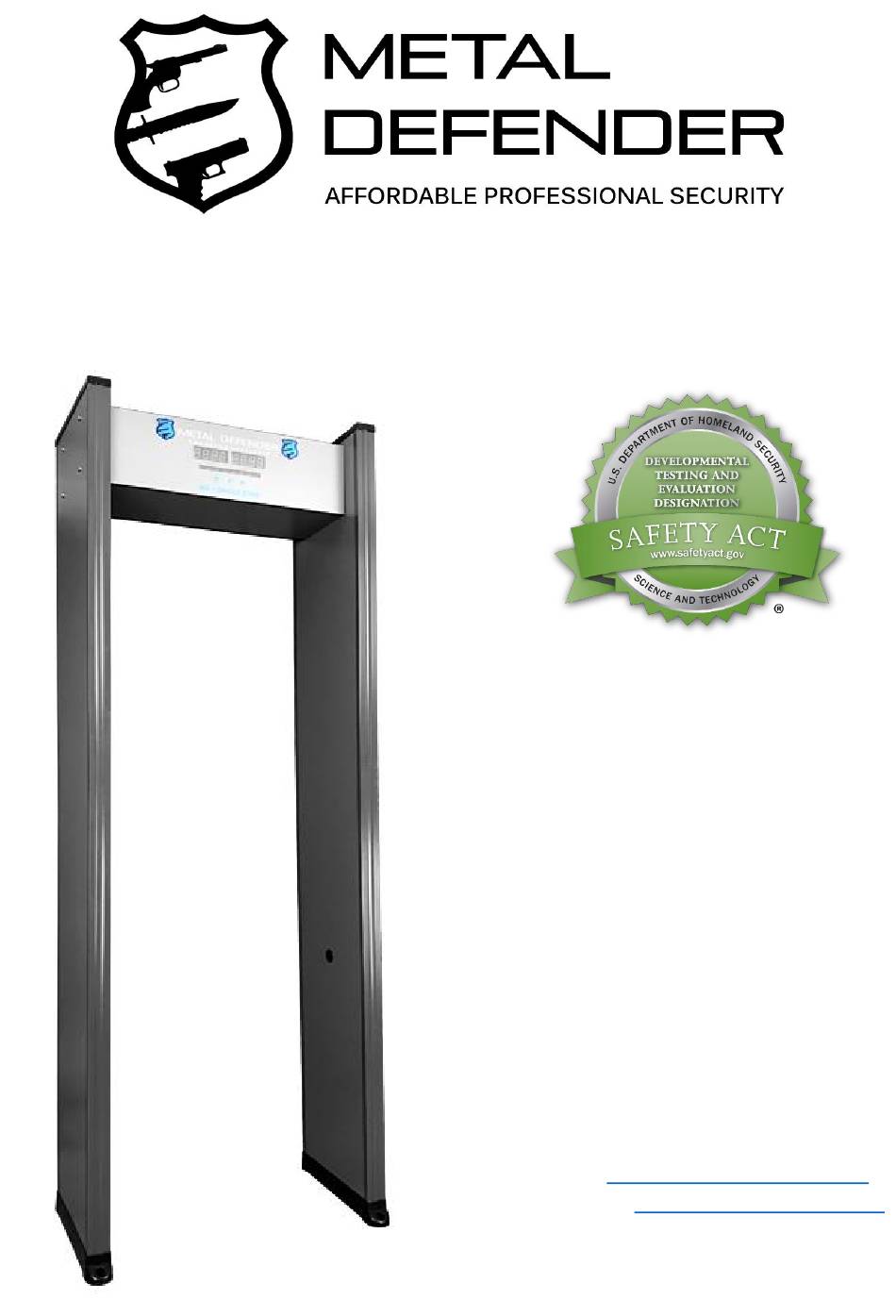

- Page 1 MD-1 User Manual Contact 772 Twin Rail Drive Minooka, IL 60447 Phone: (815) 467-6464 Email: sales@metaldefender.com Website: www.metaldefender.com...
-
Page 2: Medical Safety
MEDICAL SAFETY Metal Defender makes every effort to ensure its products are safe for use. Extensive research by Metal Defender has produced no information which would indicate that its products have any adverse effects on medical implants, pregnancy, recording media or magnetic strips. - Page 3 Index Medical Safety – pg.2 Product Description – pg.5 Product Performance – pg.5 Introduction of Components – pg.6 Installation Instructions – pg.7 Description of Display Panel – pg.8 Operation Procedures – pg.8 Adjustment of Object Detection – pg.9 Interference Description – pg.9-10 Precautions –...
- Page 4 1. Please assemble and deploy on a flat, vibration-free surface in order to avoid false alarms caused by shaking the security gate. 2. Wait 1 minute after you turn on the metal detector in order to get the best detection results.
-
Page 5: Product Description
Product Description The MD-1 is a single zone walk thru metal detector with only one changeable zone. This metal detector is only recommended when individuals passing through are eliminating all portions of metal on their entire body. Due to this unit only having one zone, determining or pin pointing the exact location of the metal can be difficult that is why we all suggest having an on staff security screener administrating the unit. - Page 6 Introduction of Components 1. Main board 2. Panel 3. Built-in infrared sensor probe 4. Infrared sensor 5. Waterproof feet 6. Power socket...
-
Page 7: Installation Instructions
Installation Instructions 1. Open the carton, take objects out from the packaging, and placed them on the foam board according to the following figure: 2. Place the main case with its display panel facing up, after you properly place the components, open main case's lower panel with key, fix the left and right panels on the main case with screws. -
Page 8: Operation Procedures
Description of Display Panel Number of passengers: Counting of personnel walking through the security door Number of alarms: Counting of security door's alarming times Counting board (8 digital LED tubes): The left four LEDs indicate the number of passengers, the right four LEDs indicate the number of alarms, for the indication meaning of settings, please check operation procedures. - Page 9 Adjustment of Object Detection How to exclude small pieces of metal and detect large pieces of metal? During the inspection of metal objects carried by people, we do not want to detect small pieces of metal objects such as rings, keys, etc., and need to detect large pieces of metal; you can adjust the product according to the following methods: 1.
- Page 10 Electronic interference There are many objects that can cause electronic interference to metal detection door, such as elevators, engines, televisions, computers, telephone lines, mobile phones, and so on. These objects should be kept away from metal detection door; consult your dealer if there has continuous serious interference.
- Page 11 Common Faults & Solutions Fault Phenomenon Solution 1. Keep away from the wall 2. Change the direction of security The signal lamp flashes door or lights up during the starting 3. Change the installation location 1. Shut down and re-start Security door 2.
-
Page 12: Tech Specs
Metal Defender MD-1 Tech Specs 1 Zone pinpoint Walk-through Metal Detector Standard Programs: Comes preprogrammed based on customer needs Sensitivity: 1 Adjustable Zones with sensitivity levels 0-99 Tamper-Proof Settings: Tamper proof design Self-Diagnostics: Upon Startup/Reset Unit performs Self-Diagnostics Warranty 24-Month standard warranty Limited Parts/Labor... - Page 13 What does the signal strength indicator mean? This is how the unit detects metal. This indicates the density and presence of metal. Sometimes if there are any overhead pipes, hvac vents, metal doors, metal cabinets or florescent light fixtures this may trigger this indicator to light up. Ideally you would want to keep 2-3 feet from these items and find a location where this indicator won’t light up continuously.
- Page 14 catch people stealing small computer IC chips in their pockets, you are going to need a high sensitivity to detect them. One must have a plan as to which items are needed to be put aside before walking through. If you are not sure, or would like a product specialist to assist creating a plan, feel free to contact us at (815) 467-6464.
- Page 15 SUGGESTED MULTI-LANE CONFIGURATION...
- Page 16 2 YEAR WARRANTY INFORMATION Metal Defender warrants that each piece of security equipment manufactured by Metal Defender is protected by the following limited parts and labor warranty for a period of 24 (twenty-four) months (the “Warranty”). During this 24-month period Metal Defender will inspect and evaluate all equipment returned to its authorized repair station or factory to determine if the equipment meets Metal Defender’s performance specifications.
- Page 17 Replacement Parts Please Call Us Directly For Price: Replacement Legs (815-290-5354) (815-467-6464) Please Call Us Directly For Price: Replacement Head Unit (815-290-5354) (815-467-6464) Speaker $19.99 Zone Card $22.99 Fuse $15.99 Power Supply $34.99 Motherboard $79.99 Power Cords $21.99 Set of Nuts + Bolts $14.99 Battery Back Up $165.00...
