Metal Defender MD-6ADA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

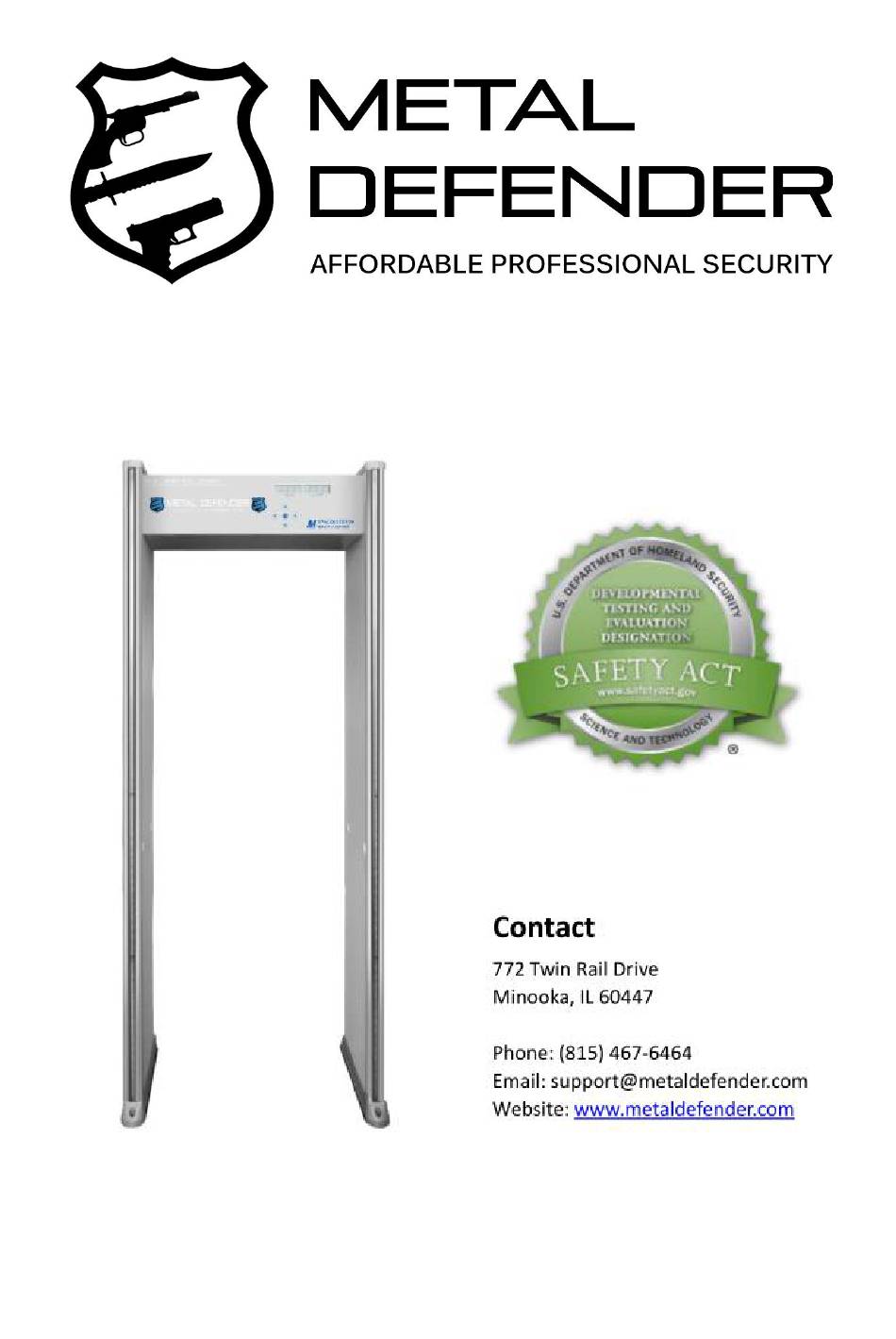

MD-6ADA
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-6ADA and is the answer not in the manual?

Questions and answers

Related Manuals for Metal Defender MD-6ADA

Summary of Contents for Metal Defender MD-6ADA

  • Page 1 MD-6ADA USER MANUAL...

  • Page 2: Medical Safety

    MEDICAL SAFETY Metal Defender makes every effort to ensure its products are safe for use. Extensive research by Metal Defender has produced no information which would indicate that its products have any adverse effects on medical implants, pregnancy, recording media or magnetic strips.
  • Page 3 PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE OPERATON Regarding to how to how to use the machine correctly and safely, please attention to the following instructions. make sure you have read it before operation. 1. It’s available for both indoor and outdoor use, please use canopy to protect it against rain. 2.

  • Page 4: Technical Specifications

    Technical Specifications Metal Defender’s MD-6A Walk-through Metal Detector provides pinpoint accuracy and discrimination features. This detector is effective in all environments including but not limited to airports, government buildings, correctional facilities, and sports venues. While being cost effective it also provides the same security that professionals worldwide receive from other brands.

  • Page 5: Product Features

    Product Features • Alarm Display, LED lights determine metal objects on both side • Built in power supply • Waterproof for mild outdoor usage General Information Regional Sensitivity: The maximum sensitivity can detect metal content as small as a paper clip, in self-regulation between 0-255 sensitivity detection requirements may need to be adjusted.

  • Page 6: Installation Instructions

    Please read through the following instructions to properly install, program, and adjust the sensitivity of the Metal Defender walk-through metal detector. 1. Open the boxes and take out the 3 main pieces – Left door panel, Right door panel, and control unit.

  • Page 7: Understanding The Zones

    5. Lock the cover of the control unit case with 4 bolts to prevent opening while transporting. 6. Please have 2 people lift the detector vertically so it is secure and standing upright on the bottom feet. Move the detector to where you will want to install it. 7.
  • Page 8 Understanding the Panel PASS CNT: Will count the number of people that pass through the detector ALARM CNT: Will count the number of times the detector found metal Enter: startup and close,enter the option. "←": left option, return, parameters to be the left or upward options. "→": right option, parameters to be the right or downward options.

  • Page 9: Sensitivity Setting

    Debugging TURN ON After finishing cable connection, press the orange button the door panel and then Press the "ENTER" in the control unit for 5s to turn on the detector. ENTER IN TO SETTING INTERFACE Press "ENTER" to input password so as to enter in to setting interface. Factory Password: 9000 0000.

  • Page 10: Alarm Setting

    ALARM SETTING Press button "↑" or "↓" to opt the setting, the panel displays A--1, 200. A--1: Alarm Volume (0-255) A--2: Alarm Duration (1-25) A--3: Alarm Tones (0-10) Press “ENTER” key enter into adjusting, press "↑" or "↓" to adjust the alarm volume/ alarm duration / alarm tones, press "←"...
  • Page 11 What if I cannot put in a location where the signal strength indicator will not go off? If you cannot find a fitting location where the signal strength indicator will not turn off, that is ok, it will just make the unit less sensitive. It will still pick up metal from passer bys, but the sensitivity levels will have to be adjusted higher.
  • Page 12 SUGGESTED SINGLE LANE CONFIGURATION SUGGESTED MULTI-LANE CONFIGURAT...
  • Page 13 BRIEF MAINTENANCE 1. Can’t Start The Machine 1) Check whether power sockets properly. 2) Check whether the power switch is on. 3) Check the fuse blew out (Only for Walk Through model). 2. Can’t Account Passengers 1) Don’t work in the strong sunlight as it use infrared sensor. 2) Check the left and right infrared sensor probe whether in parallel.
  • Page 14 2 YEAR WARRANTY INFORMATION Metal Defender warrants that each piece of security equipment manufactured by Metal Defender is protected by the following limited parts and labor warranty for a period of 24 (twenty-four) months (the “Warranty”). During this 24-month period Metal Defender will inspect and evaluate all equipment returned to its authorized repair station or factory to determine if the equipment meets Metal Defender’s performance specifications.
