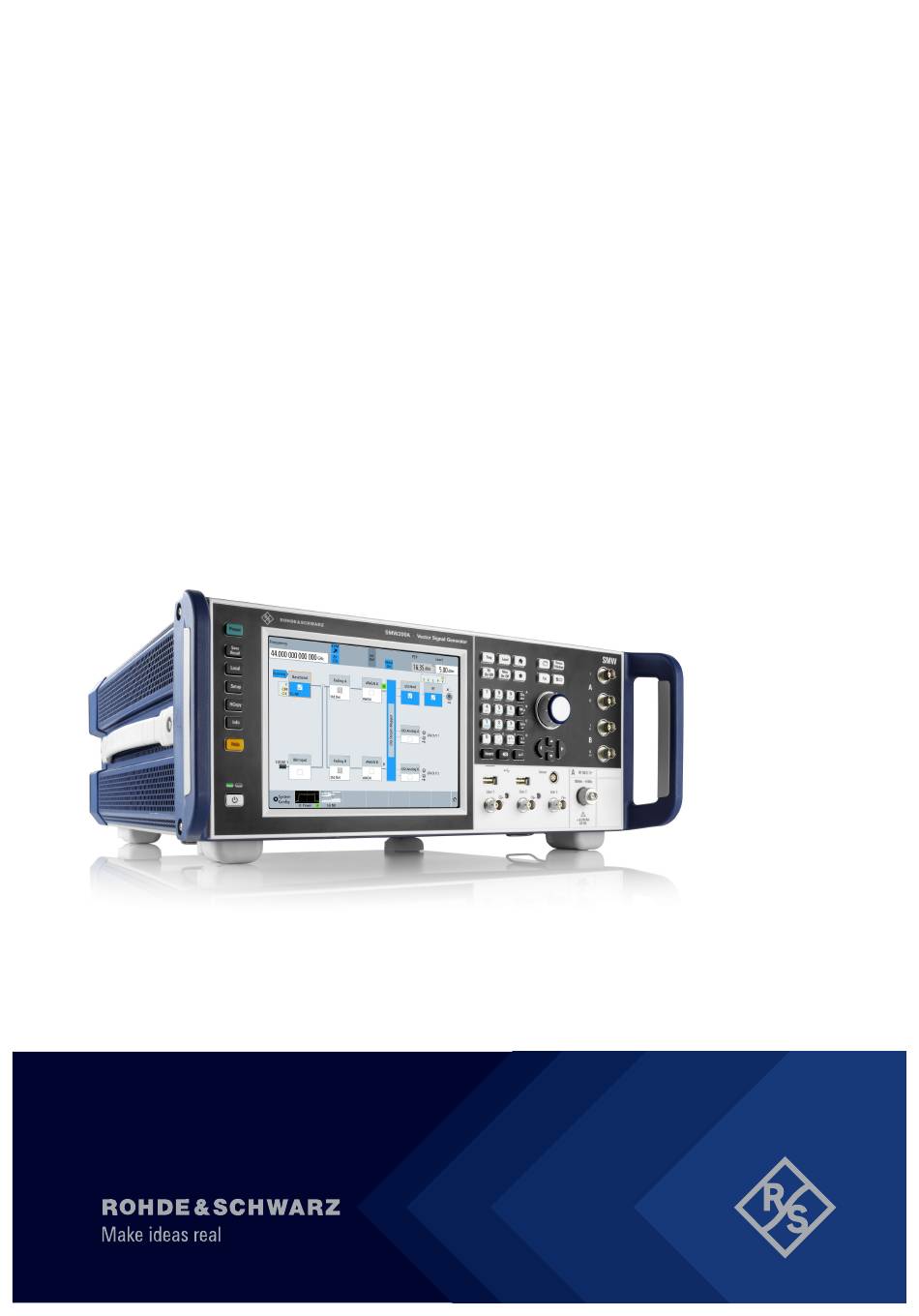

  • Page 1 ® R&S SMW200A Vector Signal Generator Getting Started (><êÐ2) 1412926602 Version 11...
  • Page 2 ® This document describes the R&S SMW200A, stock no. 1412.0000.02. © 2024 Rohde & Schwarz Muehldorfstr. 15, 81671 Muenchen, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com Subject to change – data without tolerance limits is not binding.

  • Page 3: Table Of Contents

    2.10 Application notes, application cards, white papers, etc....15 2.11 Videos....................16 3 Key features................. 17 4 Preparing for use..............18 4.1 Lifting and carrying................18 4.2 Unpacking and checking..............18 4.3 Choosing the operating site.............. 19 4.4 Setting up the R&S SMW200A............19 Getting Started 1412.9266.02 ─ 11...
  • Page 4 ® Contents R&S SMW200A 4.4.1 Placing the R&S SMW200A on a bench top.........19 4.4.2 Mounting the R&S SMW200A in a rack..........21 4.5 Considerations for test setup............22 4.6 Connecting to power................23 4.7 Connecting to LAN................23 4.8 Connecting USB devices..............24 4.9 Connecting to RF coaxial connectors..........
  • Page 5 7.1.7 I/Q modulator (I/Q Mod blocks).............85 7.1.8 Analog I/Q output (I/Q Analog blocks)..........85 7.1.9 RF and analog modulations (RF blocks)..........86 7.2 Applications examples of the R&S SMW200A......... 86 7.2.1 Transmit diversity test (MISO scenario)..........87 7.2.2 Receive diversity test (SIMO scenario)..........88 7.2.3 WCDMA test signal for handover (two cells)........
  • Page 6 ® Contents R&S SMW200A 8.3 Accessing the functionality............. 101 8.4 Entering data..................102 8.5 Undo and redo actions..............104 8.6 Getting information and help............104 8.6.1 Using the tutorials................106 9 Contacting customer support...........110 Index..................111 Getting Started 1412.9266.02 ─ 11...

  • Page 7: Safety And Regulatory Information

    ® Safety and regulatory information R&S SMW200A Safety instructions Safety and regulatory information The product documentation helps you use the product safely and efficiently. Fol- low the instructions provided here and in the following sections. Intended use The product generates radio frequency (RF) signals for the development, produc- tion and verification of electronic components, modules or devices.
  • Page 8 ® Safety and regulatory information R&S SMW200A Safety instructions the instructions provided here and in the product documentation. Keep the prod- uct documentation nearby and offer it to other users. Use the product only for its intended use and within its performance limits. Inten- ded use and limits are described in the product documentation such as the speci- fications document, manuals and the printed "Safety Instructions"...
  • Page 9 ® Safety and regulatory information R&S SMW200A Safety instructions You can operate the product up to an altitude of 2000 m above sea level. If a higher altitude is permissible, the value is provided in the specifications docu- ment. The product is suitable for pollution degree 2 environments where noncon- ductive contamination can occur.
  • Page 10 ® Safety and regulatory information R&S SMW200A Safety instructions Take the following measures for your safety: ● Before switching on the product, ensure that the voltage and frequency indica- ted on the product match the available power source. If the power adapter does not adjust automatically, set the correct value and check the rating of the fuse.

  • Page 11: Labels On R&S Smw200A

    1-1. ● Identification of the product, see the serial number on the rear panel. Table 1-1: Labels regarding R&S SMW200A and environment safety Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the product has come to the end of its service life. For more information, see the prod- uct user manual, chapter "Disposal".

  • Page 12: Where To Find Key Documents On Rohde & Schwarz

    ® Safety and regulatory information R&S SMW200A Korea certification class B NOTICE Potential risks of damage. Could result in damage to the supported product or to other property. Where to find key documents on Rohde & Schwarz Certificates issued to Rohde & Schwarz that are relevant for your country are pro- vided at www.rohde-schwarz.com/key-documents, e.g.

  • Page 13: Documentation Overview

    Contains the description of the specific functions of an option. Basic informa- tion on operating the R&S SMW200A is not included. The contents of the user manuals are available as help in the R&S SMW200A. The help offers quick, context-sensitive access to the complete information for the base unit and the software options.

  • Page 14: Tutorials

    Rohde & Schwarz information system (GLORIS): https://gloris.rohde-schwarz.com Instrument security procedures Deals with security issues when working with the R&S SMW200A in secure areas. It is available for download on the internet. Printed safety instructions Provides safety information in many languages. The printed document is deliv- ered with the product.

  • Page 15: Calibration Certificate

    ® Documentation overview R&S SMW200A Application notes, application cards, white papers, etc. The brochure provides an overview of the instrument and deals with the specific characteristics. www.rohde-schwarz.com/brochure-datasheet/smw200a Calibration certificate The document is available on https://gloris.rohde-schwarz.com/calcert. You need the device ID of your instrument, which you can find on a label on the rear panel.

  • Page 16: Videos

    ® Documentation overview R&S SMW200A Videos 2.11 Videos Find various videos on Rohde & Schwarz products and test and measurement topics on YouTube: https://www.youtube.com/@RohdeundSchwarz On the menu bar, search for your product to find related videos. Figure 2-1: Product search on YouTube...

  • Page 17: Key Features

    R&S SMW200A Key features The R&S SMW200A is a new high-performance vector signal generator devel- oped to meet demanding customer requirements. Offering excellent signal char- acteristic and straightforward and intuitive operation, the R&S SMW200A makes signal generation fast and easy.

  • Page 18: Preparing For Use

    For safety information, see "Lifting and carrying the product" on page 8. Use the handles for lifting and carrying the R&S SMW200A. Figure 4-1: Instrument side view with front handles (1) and side handles (2) Unpacking and checking 1. Unpack the R&S SMW200A carefully.

  • Page 19: Choosing The Operating Site

    "Intended use" on page 7 4.4.1 Placing the R&S SMW200A on a bench top To place the product on a bench top 1. Place the product on a stable, flat and level surface. Ensure that the surface can support the weight of the product. For information on the weight, see the specifications document.
  • Page 20 ® Preparing for use R&S SMW200A Setting up the R&S SMW200A 2. CAUTION! Foldable feet can collapse. For safety information, see "Setting up the product" on page 9. Always fold the feet completely in or out. With folded-out feet, do not place anything on top or underneath the product.

  • Page 21: Mounting The R&S Smw200A In A Rack

    Design and implement an efficient ventilation concept for the rack. To mount the R&S SMW200A in a rack 1. Use an adapter kit that fits the dimensions of the R&S SMW200A to prepare the instrument for rack mounting. a) Order the rack adapter kit designed for the R&S SMW200A.

  • Page 22: Considerations For Test Setup

    R&S SMW200A Considerations for test setup 4. If placing the R&S SMW200A on a bench top again, unmount the adapter kit from the R&S SMW200A. Follow the instructions provided with the adapter kit. Considerations for test setup Cable selection and electromagnetic interference (EMI) Electromagnetic interference (EMI) can affect the measurement results.

  • Page 23: Connecting To Power

    9. 1. Plug the AC power cable into the AC power connector on the rear panel. Only use the AC power cable delivered with the R&S SMW200A. 2. Plug the AC power cable into a power outlet with ground contact.

  • Page 24: Connecting Usb Devices

    Using DHCP (dynamic host configuration protocol), the R&S SMW200A assigns the IP address automatically. If connected to the LAN, the R&S SMW200A displays the IP address and the hostname at the left bottom of the block diagram. 1 = IP address 2 = Hostname If disconnected from the LAN, the R&S SMW200A displays the IP address...

  • Page 25: Connecting To Rf Coaxial Connectors

    Here, you find information on how to prepare and to connect to RF coaxial con- nectors of the R&S SMW200A. Use these RF connectors, for example, for output of the RF signal or for input of an external reference signal.
  • Page 26 Turn the nut of the outer connector until the connectors are firmly coupled. d) Using a calibrated torque wrench torque the nut to the limit as in the table below. Hold the opposite connector part stationary with a spanner. The R&S SMW200A provides screwable RF connectors as in Table 4-1.

  • Page 27: Connecting To Rf A/Rf B

    For more information, refer to the specifications document. 4.11 Connecting to LO In/Out For connection, the R&S SMW200A provides SMA connectors on the rear panel. "To connect to screwable connectors" on page 26. See also chapter "Local oscillator coupling" in the user manual.

  • Page 28: Connecting To Ref In/Ref Out

    SMW200A Connecting to HS DIG I/Q 4.12 Connecting to REF IN/REF OUT For connection, the R&S SMW200A provides BNC connectors or SMA connec- tors on the rear panel. See "To connect to pluggable connectors" on page 27 and "To connect to screwable connectors"...

  • Page 29: Switching On Or Off

    Ready green To switch on the R&S SMW200A The R&S SMW200A is off but connected to power. See Chapter 4.6, "Connecting power", on page 23. 1. Set the switch on the power supply to position [I] on the rear panel.
  • Page 30 After booting, the R&S SMW200A starts up displaying the block diagram on the screen on the front panel. To check startup functions When starting for the first time, the R&S SMW200A starts with the default set- tings. When restarting, the R&S SMW200A recalls the instrument configuration before shut-down.

  • Page 31: Instrument Tour

    This chapter explains the control elements and the connectors of the R&S SMW200A. The views of the front panel and the rear panel help you to get familiar with the instrument and to perform the first steps. For specifications of the interfaces, see the specifications document.

  • Page 32: Touchscreen

    ® Instrument tour R&S SMW200A Front panel tour USER x 10 = USB, page 37 11 = On/Standby key, page 34 5.1.1 Touchscreen The block diagram and the most important settings are displayed on the screen on the front panel. The screen display also provides status and setting informa- tion and allows you to quickly reconfigure the signal flow.

  • Page 33: Keys

    ® Instrument tour R&S SMW200A Front panel tour Any user interface elements that react to a click by a mouse pointer also react to a tap on the screen, and vice versa. Using the touchscreen, you can perform the following tasks (among others) by the tap of your finger: ●...

  • Page 34: On/Standby Key

    ® Instrument tour R&S SMW200A Front panel tour 5.1.2.2 On/Standby key The [On/Standby] key switches the instrument from the standby to the ready state or vice versa. The LED above the [On/Standby] key indicates the instrument state, see Chap- ter 4.14, "Switching on or off",...

  • Page 35: Navigation Controls

    ® Instrument tour R&S SMW200A Front panel tour 5.1.2.4 Keypad The keypad is used to enter alphanumeric parameters, including the correspond- ing units. It contains the following keys: Table 5-3: Keys on the keypad Type of key Description Alphanumeric keys Enter numbers and (special) characters in edit dialog boxes.

  • Page 36: Rotary Knob

    ® Instrument tour R&S SMW200A Front panel tour Rotary knob The rotary knob has several functions: ● Increments (clockwise direction) or decrements (counterclockwise direction) numeric instrument parameters at a defined step size. ● Moves the selection, e.g. to a function block in the block diagram ●...

  • Page 37: Connectors

    ® Instrument tour R&S SMW200A Front panel tour Table 5-5: Display keys Display key Assigned functions [NEXT WINDOW] Toggles between the active dialogs [RESIZE WINDOW] Adjusts the size of the active dialog to use the whole height of the display.
  • Page 38 Instrument tour R&S SMW200A Front panel tour To work with these sensors, use the R&S SMW200A applications power viewer, power control, sensor configuration and sensor mapping. How to: Section "Using power sensors" in the user manual USER x BNC multipurpose connectors for defining input signals and output signals.

  • Page 39: Rear Panel Tour

    Rear panel tour This section provides an overview of the connectors on the rear panel of the instrument. Figure 5-3: Rear panel view of R&S SMW200A (R&S SMW-B9/-B13XT) Connectors for multipurpose RF signals and remote control Processing board connectors and power supply Instrument boards R&S SMW-B10/-B13T/-B14 (standard baseband)
  • Page 40 ® Instrument tour R&S SMW200A Rear panel tour Figure 5-4: Connectors for multipurpose RF signals and remote control = Connectors for rack use: RF A/RF B 2, 3 = REF IN/REF OUT INST TRIG x USER x = Serial number (six digits in the string 1412.0000.02-<serial number>-<checksum>)
  • Page 41 ® Instrument tour R&S SMW200A Rear panel tour BBMM Figure 5-6: Instrument boards R&S SMW-B10/-B13T/-B14 (standard baseband) 1, 5, 14 = Board designation (CODER, FADER, BBMM) 2, 4, 6, 8 T/M/C 3, 7, 10, 12 = DIG I/Q 9, 11...

  • Page 42: Connectors

    See "I/Q, I/Q Bar" on page 37. How to: ● Chapter 4.4.2, "Mounting the R&S SMW200A in a rack", on page 21 ● Chapter "How to apply an external digital baseband signal" in the user manual RF A/RF B Rear panel RF output connectors for the first RF path (option R&S SMW-B81/-...
  • Page 43 System drive (SSD) Solid-state drive (hard disk). For security reasons, the hard disk is bound to the specific R&S SMW200A. You can remove it from the instrument, but you cannot use it in other instruments. See also section "Removing the system drive from the R&S SMW200A" in the user manual.
  • Page 44 ● Female USB 3.0 connector of type B (USB Device), for example, for remote control. How to: Chapter 4.8, "Connecting USB devices", on page 24 RJ-45 connector to connect the R&S SMW200A to a LAN for remote control, remote operation, and data transfer. How to: Chapter 4.7, "Connecting to LAN", on page 23 Display Port, HDMI Provided for future use.
  • Page 45 ® Instrument tour R&S SMW200A Rear panel tour A dedicated LED indicates the connector status: ● green: an input connector ● yellow: an output connector ● no light / gray: the connector is not active See also the chapters in the user manual: ●...
  • Page 46 BNC connector for output of direct (single-ended) or differential analog I/Q sig- nals. Note: The R&S SMW200A also assigns the internal signal of the LF generator to the I output connector. Therefore, consider that you cannot output the analog I/Q signal and the internal LF signal at the same physical connector simultaneously.
  • Page 47 ® Instrument tour R&S SMW200A Rear panel tour ADV TRG, ADV CLK Option: R&S SMW-B9/-B13XT Input and output for synchronization signal in multi-instrument setups. See also "Multi-Instrument Setups" in the user manual. HS DIG I/Q Connectors for the input or output of high-speed digital I/Q signals, for example, from and to Rohde &...

  • Page 48: Trying Out The Instrument

    106 Prerequisites ● The R&S SMW200A is equipped with its base unit configuration. ● The R&S SMW200A is connected to the power supply and started up. ● The R&S SMW200A has its default configuration after an instrument preset. Base unit The R&S SMW200A has the following options when equipped as a base unit:...

  • Page 49: Generating An Unmodulated Carrier

    RF signal that is sufficient for generic RF receiver testing, for exam- ple for testing chipsets. To generate a CW signal 1. Connect the RF A/RF B connector of the R&S SMW200A to the RF input con- nector of the DUT. "To connect to screwable connectors"...
  • Page 50 4. In the block diagram, set the block "RF A" > "On" to enable the output of the generated RF signal. Figure 6-1: Block diagram with an unmodulated RF signal The "RF A" connector on the front panel of the R&S SMW200A is output for the 1.955 GHz signal. To connect to a signal analyzer To display the generated CW, you can connect to a signal analyzer.

  • Page 51: Generating A Digitally Modulated Signal

    Generating a digitally modulated signal This example shows you how to generate a simple WCDMA-3GPP (QPSK 45° offset) signal. The minimum requirement for R&S SMW200A in this example is a base unit. The initial situation is not the instrument's preset state but rather the configuration described in Chapter 6.1, "Generating an unmodulated...
  • Page 52 ® Trying out the instrument R&S SMW200A Generating a digitally modulated signal 4. Select the "Modulation" tab to check the "Modulation Type". Figure 6-3: Modulation type of the WCDMA-3GPP signal The instrument enables the I/Q modulator automatically ("I/Q Mod A" > "On").

  • Page 53: Triggering The Instrument Externally

    Triggering the instrument externally The example configurations are rather theoretical cases, because you rarely use the R&S SMW200A as a stand-alone instrument. Usually, you connect the instru- ment to a device under test (DUT) or other measurement equipment. As a rule, whenever a test setup requires two or more devices, provide them with a com- mon reference frequency.
  • Page 54 57 To verify the current connector configuration The R&S SMW200A is equipped with multipurpose bi-directional local T/M/C con- nectors and global USER connectors. Because the signal direction, input or out- put, and the signal mapping are configurable, we recommend that you check the current configuration before cabling or further instrument's configurations.
  • Page 55 ® Trying out the instrument R&S SMW200A Triggering the instrument externally The instrument uses its internal trigger and clock signals, and the default map- ping of the marker signals to the connectors. 2. To open the related connector settings, select "Global Connectors".
  • Page 56 ● The "USER 3" connector is an input for the trigger signal "Global Trigger 1". Check the front panel of the R&S SMW200A. The LEDs next to the "USER 1" and "USER 2" connectors are yellow. The LED next to the "USER 3" connec- tor is green.
  • Page 57 1. Connect the external trigger source to the "USER 3" connector of the R&S SMW200A and to the signal analyzer. 2. Connect the output connectors for the RF signal and for the reference signal of the R&S SMW200A to the signal analyzer. Signal generator Signal analyzer...
  • Page 58 To generate an RF signal with an external trigger 1. Set "Baseband A" > "On" to trigger signal generation. If the R&S SMW200A receives the external trigger event, it starts continuous signal generation. Arming the trigger stops the signal generation until the next trigger event restarts the signal generation.

  • Page 59: Working With Marker Signals

    SMW200A Working with marker signals 2. Select "RF A" > "On". The R&S SMW200A generates the RF output signal and transmits the signal to the signal analyzer. For more information see the following sections: ● "Baseband trigger signals" in the user manual ●...
  • Page 60 R&S RTO. Use suitable cables for connection, see "Cable selection and electro- magnetic interference (EMI)" on page 22. 1. Connect the "USER 1" connector of the R&S SMW200A to the oscilloscope. 2. Connect the "I" connector of the R&S SMW200A to the oscilloscope. Signal generator Oscilloscope...

  • Page 61: Routing A Baseband Signal To The Outputs

    "I/Q Stream Mapper" function to route and distribute each of the gener- ated I/Q signals (streams) to any of the available output connectors. In the provided example, you use the R&S SMW200A to generate two baseband signals, apply a baseband frequency shift, weight them and add them. You then route the generated stream and define the output connector.
  • Page 62 ® Trying out the instrument R&S SMW200A Routing a baseband signal to the outputs b) Drag&drop this block to the first path, for example the "Fading A" block or "AWGN A" block depending on the options installed on your instrument.
  • Page 63 ® Trying out the instrument R&S SMW200A Routing a baseband signal to the outputs 3. Configure the baseband signal for path B: a) Select "Baseband B" > "Misc" > "Custom Digital Mod". b) Select "General" > "Set according to Standard" > "WCDMA-3GPP".
  • Page 64 ● For an enabled frequency offset: ● For an enabled frequency offset and path gain: Also, the R&S SMW200A couples the trigger settings in both basebands. The trigger settings in "Baseband A" apply automatically to the "Baseband B". The "TMC" block indicates the coupling: To map the I/Q stream to the output connector The term stream describes the signal at the input of the "I/Q Stream Mapper"...
  • Page 65 ® Trying out the instrument R&S SMW200A Routing a baseband signal to the outputs With the I/Q stream mapper, you can route the streams to the outputs. Note that routing does not enable the output states. Enable them separately, for example, in the block diagram.

  • Page 66: Visualizing The Generated Signal

    Visualizing the generated signal You can visualize the generated signal graphically, before you enable the RF out- put of the instrument. The R&S SMW200A provides a build-in function to repre- sent the generated signal on a graphical signal display. We demonstrate this fea- ture by showing the characteristics at one particular point of the signal processing chain.
  • Page 67 ® Trying out the instrument R&S SMW200A Visualizing the generated signal A new thumbnail appears in the taskbar and displays the power spectrum. 4. Press the thumbnail graphic. The graphic enlarges and the diagram is displayed in a normal size.
  • Page 68 ® Trying out the instrument R&S SMW200A Visualizing the generated signal 7. Select "Config" to return to the "Graphics Configuration" dialog. Getting Started 1412.9266.02 ─ 11...

  • Page 69: Saving And Recalling Settings

    ® Trying out the instrument R&S SMW200A Saving and recalling settings You can close the dialog. Closing the dialog has no effect on the configured graphics but on the dialog itself. The block diagram displays the current signal routing. It indicates that fre- quency and power offsets are enabled and displays the acquisition points for the real-time diagrams minimized in the taskbar.
  • Page 70 ® Trying out the instrument R&S SMW200A Saving and recalling settings 2. In the "Save/Recall" dialog, save the settings of the test configuration: a) Select "Operation Mode" > "Save". b) Use the on-screen keyboard to enter MyTestSignal for the "File Name".
  • Page 71 ® Trying out the instrument R&S SMW200A Saving and recalling settings 5. Tap the "Recall" button. All instrument settings are restored. To display variations from preset values When you load a file to your instrument, you can mark the changed settings. The user interface can visualize all parameters that differ from their default state.

  • Page 72: Generating An Eutra/Lte Signal

    Generating an EUTRA/LTE signal Generating an EUTRA/LTE signal The main application field of the R&S SMW200A is the generation of digital sig- nals in accordance with several telecommunication and wireless standards, like WCDMA, EUTRA/LTE or WLAN, to name a few. This example uses the digital standard EUTRA/LTE to introduce the way you can access and interact with the instrument and experience the advantages provided by the additional options.
  • Page 73 We use one of the provided EUTRA test models (E-TM) to show how to generate a test signal upon a quick selection. 1. On the R&S SMW200A front panel, press the [PRESET] key to start out in a defined instrument configuration.
  • Page 74 ® Trying out the instrument R&S SMW200A Generating an EUTRA/LTE signal Tip: On the front panel, press the [HELP] key to obtain detailed information on the contents of the predefined files. 4. Navigate to a file, for example to the file E-TM1_1__10MHz.

  • Page 75: Enabling Mimo Configuration

    9. Set "RF A" > "On" to enable RF signal generation. The instrument generates an EUTRA/LTE test signal with the configured channel bandwidth, frequency and level. For more information, see the "R&S SMW200A EUTRA/LTE" user manual. Enabling MIMO configuration The R&S SMW200A supports versatile MIMO configurations and provides com- fortable functions to simplify the definition and signal routing for MIMO test setups and configuration involving several instruments.
  • Page 76 EUTRA/LTE signal in 2x2 MIMO configuration. In this example, the R&S SMW200A is equipped with two signal paths: ● Two options R&S SMW-B10 and one option R&S SMW-B13T ●...
  • Page 77 ® Trying out the instrument R&S SMW200A Enabling MIMO configuration Figure 6-8: Standard mode system configuration 1 = Standard for simple signaling scenarios 2 = Preview diagram of the particular system configuration 2. Select "I/Q Stream Mapper" to obtain an overview of the current distribution and mapping of the I/Q streams to the output connectors.
  • Page 78 ® Trying out the instrument R&S SMW200A Enabling MIMO configuration f) Optionally, observe the signal routing in the preview diagram to the right to check if it matches your expectation. g) Select "Apply" to confirm the configuration. Figure 6-9: Advanced mode system configuration (1x2x2 MIMO)
  • Page 79 1. In the block diagram, select "Baseband" > "EUTRA/LTE" 2. Set "State" > "On" to enable baseband signal generation. In coupled baseband source mode, the R&S SMW200A takes over the base- band signal configuration. The instrument adjusts the settings in the base- bands automatically, for example the mapping of the transmit antennas to the basebands.
  • Page 80 Enabling MIMO configuration 5. In the block diagram, select "RF A" > "On" and "RF B" > "On". The R&S SMW200A generates a realistic EUTRA/LTE downlink signal with 10 MHz channel bandwidth but without any scheduled data. For more information, see the "R&S SMW200A EUTRA/LTE" user manual.

  • Page 81: System Overview

    Brief concept of the instrument System overview This section helps you to get familiar with the R&S SMW200A. It provides an introduction to the general concept of the instrument with a sample of the possible application fields. This section also introduces the main blocks in the signal gen- eration flow.
  • Page 82 ® System overview R&S SMW200A Brief concept of the instrument ● An example of a base unit, equipped with one signal path (R&S SMW-B10, R&S SMW-B13, and R&S SMW-B1003) For more examples, see also Chapter 7.2, "Applications examples of the R&S...

  • Page 83: Internal Baseband Source (Baseband Blocks)

    ● The internal baseband generator The baseband generator contains modules for real-time signal generation (custom digital modulation) and an arbitrary waveform generator (ARB). One or two baseband generators can be fitted in an R&S SMW200A and operated separately. ● The available digital standards Generation of digital signals in accordance with the supported standards requires additional software options.

  • Page 84: Digital I/Q Input And Output (Bb Input, I/Q Digital Blocks)

    7.1.3 Digital I/Q input and output (BB Input, I/Q Digital blocks) Equipped with the required SW and HW options, the R&S SMW200A is able to receive and to output digital baseband signals. A fully equipped standard base- band instrument provides eight configurable digital interfaces. Depending on the configuration, you can use the available digital interfaces for up to six inputs or up to six outputs.

  • Page 85: Additional White Gaussian Noise (Awgn Blocks)

    ® System overview R&S SMW200A Brief concept of the instrument output). For MIMO mode, you can create up to 20 paths per MIMO channel. Fad- ing extension options provide even more functionality. 7.1.5 Additional white Gaussian noise (AWGN blocks) Displaying the "AWGN" block requires at least one option R&S SMW-K62. This block controls the additional white Gaussian noise generator (AWGN).

  • Page 86: Rf And Analog Modulations (Rf Blocks)

    ● Generation of digitally modulated signal The main field of application of the R&S SMW200A is the generation of digi- tally modulated signals. The R&S SMW200A generates a digitally modulated signal in several ways: using the internal baseband generator, using the exter- nally applied digital baseband signals or in an analog wideband I/Q operation.

  • Page 87: Transmit Diversity Test (Miso Scenario)

    ® System overview R&S SMW200A Applications examples of the R&S SMW200A 7.2.1 Transmit diversity test (MISO scenario) The block diagram in this example depicts the generation of a test signal using both internal baseband generators and 1 RF output (RF A).

  • Page 88: Receive Diversity Test (Simo Scenario)

    ® System overview R&S SMW200A Applications examples of the R&S SMW200A 7.2.2 Receive diversity test (SIMO scenario) The block diagram in this example depicts the generation of a test signal using one internal baseband generator ("Baseband A") and distributing the signal to both RF outputs.

  • Page 89: Wcdma Test Signal For Handover (Two Cells)

    The block diagram in this example depicts the generation of a test signal using both internal baseband generators and both RF outputs, for example for hand- over tests. The R&S SMW200A acts as two independent generators in one instru- ment.

  • Page 90: Eutra/Lte Test Signal With 8X2 Mimo

    ® System overview R&S SMW200A Applications examples of the R&S SMW200A 7.2.4 EUTRA/LTE test signal with 8x2 MIMO The block diagram in this example depicts the generation of an EUTRA/LTE test signal in a 8x2 MIMO scenario, for example for UE tests. The instrument uses a coupled internal baseband source to generate all required baseband signals.

  • Page 91: Eutra/Lte Test Signal With Ca And 2X2 Mimo

    ® System overview R&S SMW200A Applications examples of the R&S SMW200A 7.2.5 EUTRA/LTE test signal with CA and 2x2 MIMO The block diagram in this example depicts the generation of an EUTRA/LTE test signal with carrier aggregation (CA), for example for UE tests. This signal pro- vides two component carriers (intra-band carrier aggregation) and 2x2 MIMO fad- ing for each carrier.

  • Page 92: Wlan 802.11Ad/Ay Test Signal With 1.76 Ghz Bandwidth

    ® System overview R&S SMW200A Applications examples of the R&S SMW200A 7.2.6 WLAN 802.11ad/ay test signal with 1.76 GHz bandwidth The block diagram in this example depicts the generation of a WLAN 802.11ad/ay test signal with 1.76 GHz bandwidth. The instrument uses one internal wideband baseband generator with 2 GHz bandwidth and one RF output.

  • Page 93: Operating The Instrument

    Remote operation For remote monitoring and operation of the instrument, a VNC server is installed on the R&S SMW200A. You need a LAN connection to the computer, and a VNC client or browser to connect to the instrument. This way of operation is described in the user manual, chapter "Network opera- tion and remote control".
  • Page 94 ® Operating the instrument R&S SMW200A Means of manual interaction Touchscreen operation is the most direct way to interact. Almost all control elements and actions on the screen are based on the standard operating sys- tem concept. You can tap any user interface element to set parameters in dia- log boxes, enter data, scroll within a dialog etc., as if you work with a mouse...

  • Page 95: Understanding The Display Information

    R&S SMW200A Understanding the display information Understanding the display information The block diagram of the R&S SMW200A displays all main settings and genera- tor states, divided into main operation areas. Figure 8-1: Block diagram 1 = Status bar 2 = Block diagram 3 = Taskbar/softkey bar ●...

  • Page 96: Status Bar

    ® Operating the instrument R&S SMW200A Understanding the display information 8.2.1 Status bar The status bar at the top of the screen indicates the RF frequency and the level of the output signal provided to the DUT. You can set both parameters directly here.
  • Page 97 ® Operating the instrument R&S SMW200A Understanding the display information Baseband domain, digital RF domain, analog 1, 10 = Control signal block = Status indicator = Functional block 4, 6 = Graphics indicator = Signal line (digital) = Stream status indicator (On/Off)

  • Page 98: Taskbar

    ® Operating the instrument R&S SMW200A Understanding the display information Legend Item Description Functional block Represents a basic task in signal generation. The push button provides access to any number of associ- ated actions to accomplish the task. "On/Off" (checkbox) and the block label quickly enables the basic task.

  • Page 99: Additional Display Characteristics

    ® Operating the instrument R&S SMW200A Understanding the display information Figure 8-3: Taskbar with thumbnails 1 = System configuration 2 = Remote control connections 3 = Graphics 4 = Dialogs 5 = Homescreen or more thumbnails System Config Provides access to general system configurations like setup, display, or remote.
  • Page 100 ● Info line The "Info line" shows brief status information and error messages. It appears when an event generates a message. If selected, the R&S SMW200A shows information on static errors and the error history. ● Key parameters indicated in tab labels Most dialogs are divided into tabs with logically grouped parameters.

  • Page 101: Accessing The Functionality

    ® Operating the instrument R&S SMW200A Accessing the functionality Accessing the functionality All functionalities are provided in dialog boxes as known from computer pro- grams. You can control the instrument intuitively with the touchscreen. This sec- tion provides an overview of the accessing methods.

  • Page 102: Entering Data

    ® Operating the instrument R&S SMW200A Entering data To minimize a dialog box ► Select the "Minimize" icon in the upper right corner. To close a dialog box To close a dialog box, you have the same controls as you know from computers or devices with touchscreen.
  • Page 103 Tip: For a quick unit change, you can enter shortcuts, for example for a fre- quency value 1e8h for 100 MHz. For an overview of shortcuts supported by the R&S SMW200A, see chapter "Unit Shortcuts" in the appendix of the user manual.

  • Page 104: Undo And Redo Actions

    ® Operating the instrument R&S SMW200A Getting information and help 2. Press the [Backspace] key. 3. Deletes the entry to the left of the cursor. 4. Enter your correction. To abort an entry ► Press the [ESC] key. The dialog box closes without changing the settings.
  • Page 105 ® Operating the instrument R&S SMW200A Getting information and help To display context help ► To access a help topic, perform one of the following: a) Tap and hold the parameter for which you need information. b) In the opening context menu, tap "Help".

  • Page 106: Using The Tutorials

    ® Operating the instrument R&S SMW200A Getting information and help To open general help ► Press the yellow [HELP] key on the front panel. If a dialog box is opened, the help topic for the current tab is shown. Other- wise the "Contents"...
  • Page 107 ® Operating the instrument R&S SMW200A Getting information and help The "Tutorials" dialog opens. 4. Select "File" > "Load Predefined Tutorial". 5. Tap on a tutorial from the list. 6. Confirm with "Select". The preview section displays the content of the file if available.
  • Page 108 ® Operating the instrument R&S SMW200A Getting information and help 7. Use the default mode that is "Execution Mode" > "Interactive". 8. Tap on the "Start" button. 9. Observe the information displayed in the "Info" line (bottom of the display).
  • Page 109 ® Operating the instrument R&S SMW200A Getting information and help To stop the tutorial The demonstration can be terminated at any time. ► Select the "Stop" button. The demonstration stops. You can reopen the "Tutorials" dialog and start another file or exit the tutorial mode.

  • Page 110: Contacting Customer Support

    ® Contacting customer support R&S SMW200A Contacting customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program- ming or applications of Rohde &...

  • Page 111: Index

    ® Index R&S SMW200A Index ADV TRG ..........47 CLOCK ..........44 Abort Control signal ........46 Tutorial ..........109 Data ............ 46 Active elements ........99 DIFF I/Q ..........46 Alphanumeric values Differential output ........46 Entering ..........103 Digital IQ ..........45 Application cards ........
  • Page 112 ® Index R&S SMW200A Digital standard ........83 Operating site ........19 Display Unpacking ........... 18 Active elements ........99 Instrument help ........13 Block diagram ........96 Instrument security procedures ....14 Context-sensitive menu ...... 99 Info line ..........99 Information ..........
  • Page 113 ® Index R&S SMW200A Remote control ........93 Remote Desktop ........93 Manual interaction ........93 Remote operation ........93 MIMO ............90 Reopen MISO scenario .........87 Tutorial ..........109 Mounting, in a rack ........21 RF A/RF B connector ......38 Mouse Rotary knob ..........
  • Page 114 ® Index R&S SMW200A Videos ............. 16 VNC ............93 Web interface .......... 93 White papers ........... 15 Getting Started 1412.9266.02 ─ 11...
