C H A P T E R 5 – G E T T I N G
5.4.

Quick Start Tutorial

After you have installed the AT5600 together with the editor and server software
packages as described in section 5.2 and 5.3, you may wish to follow through this
tutorial to familiarize yourself with the system operation.
This tutorial will guide you through the process of creating a schematic and test
program using the Editor software. The program you will create will only run if
your tester has been installed with the tests used.
5.4.1.
This tutorial describes a method of setting up the tester to test a two-winding
transformer with the following specification:
Resistance of winding AB
Resistance of winding CD
Inductance of winging AB
Turns ratio AB to CD

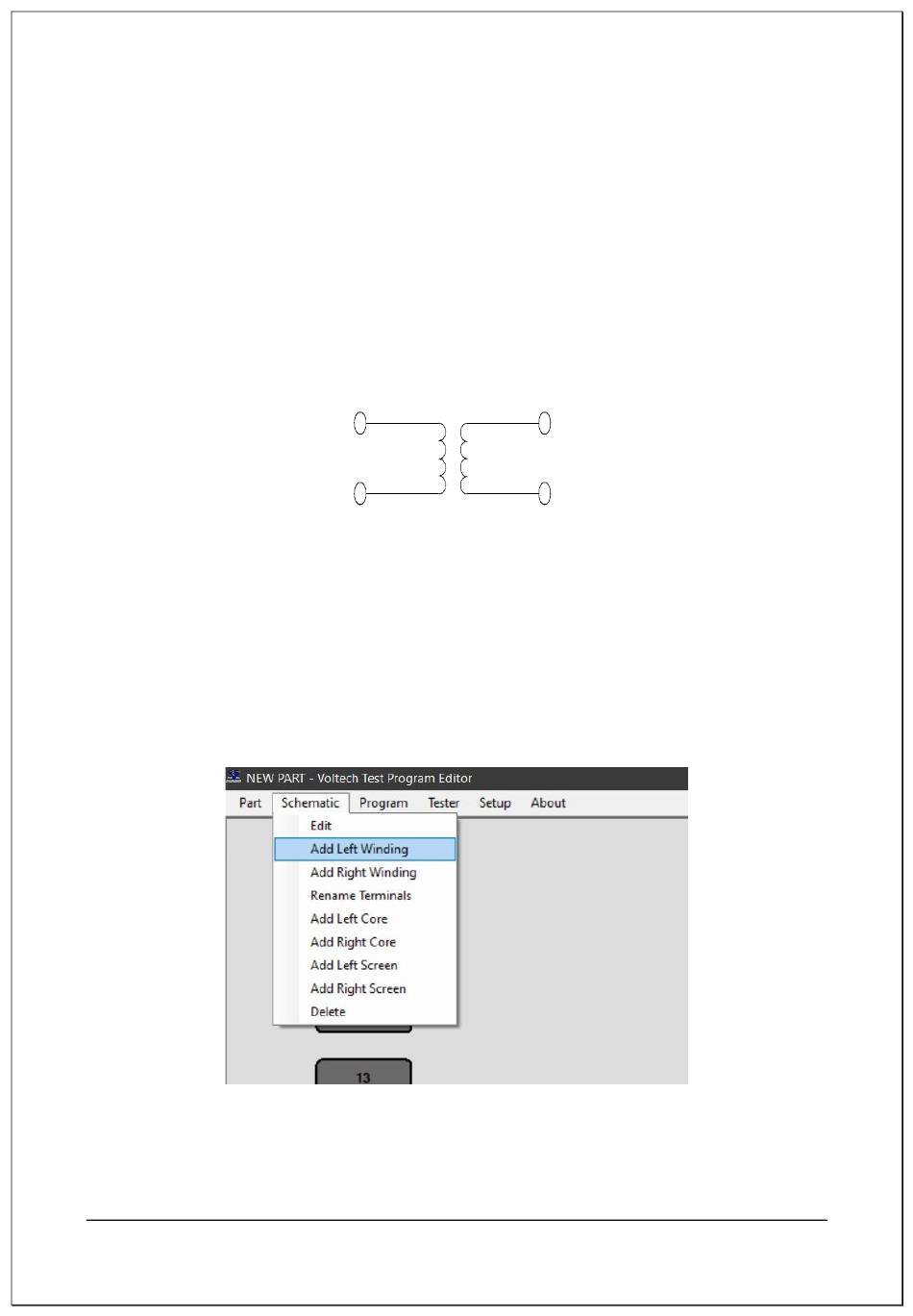

Start the editor program by double-clicking with the left mouse button on the editor
icon, the first thing to do is to 'draw' a schematic of the transformer to be tested.
1. Using the left mouse button, click on 'Schematic' on the Top-Level menu bar,
and select 'Add Winding' from the menu.
AT5600 User Manual 98-119 issue 30
S T A R T E D

Creating a Simple Schematic

59-73 OHMS
59-73 OHMS
>3H
1:1 +- 2%.
