C H A P T E R 8 – F R O N T

8 . 1 . 6 . 6 R u n S c r e e n

Once a program is loaded into the AT5600, connect the transformer to the fixture
and press the Run button to begin testing the transformer.

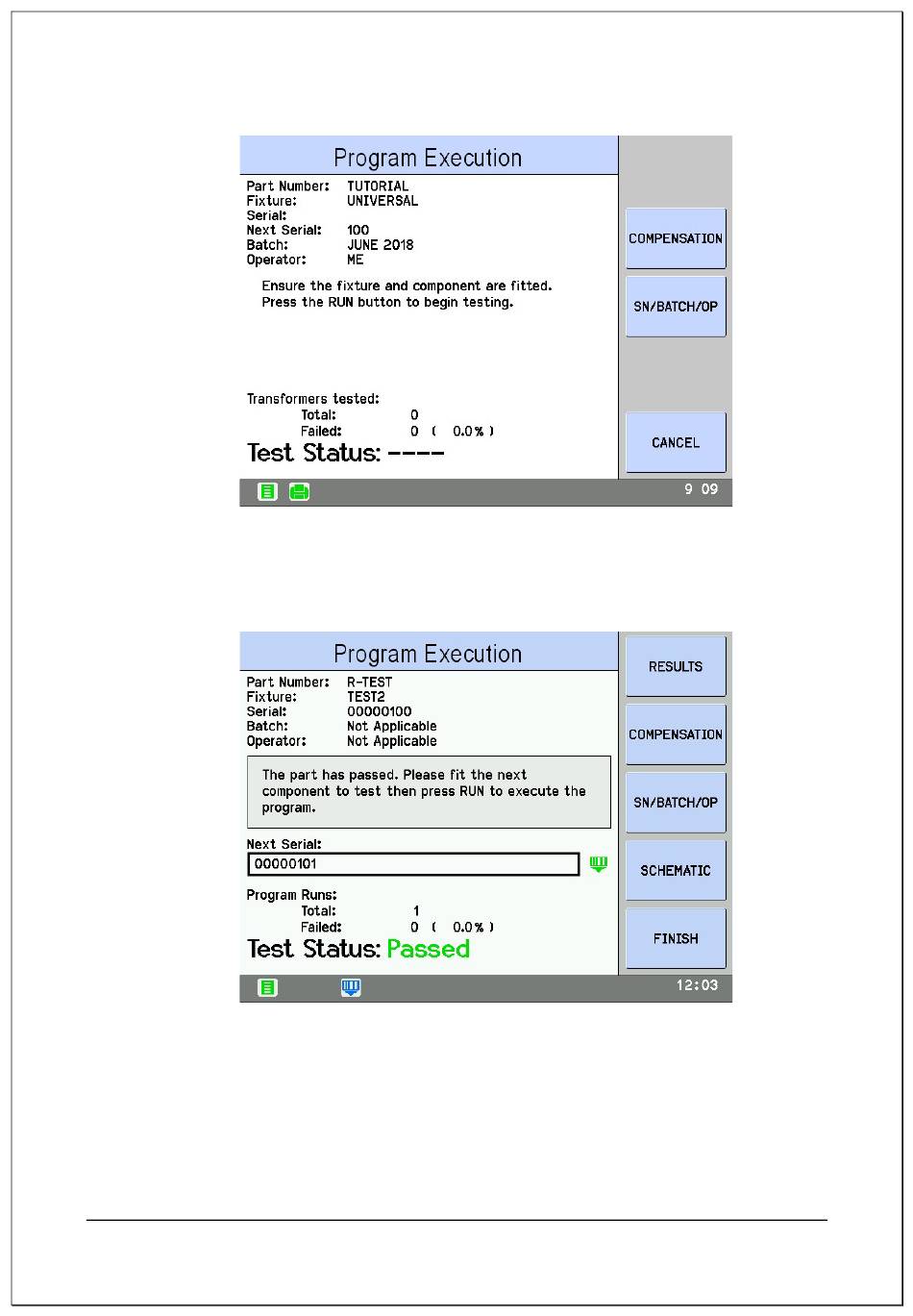

When testing is complete, you will see the following display:
RESULTS
COMPENSATE
SN/BATCH/ OP
AT5600 User Manual 98-119 issue 30
P A N E L O P E R A T I O N
show the results of the test.
used to perform an Open, Short or Load Compensation.
used to change the serial number of the part under test, or
Batch Number, and Operator Number.
The key is enabled only if the option(s) are selected in the
test program.
Page 207
